Page 1

Multifunction Installation Tester

ProInstall-75

User Manual

Page 2

Page 3

Multifunction Installation Tester

ProInstall-75

User Manual

English

Page 4

Limited Warranty and Limitation of Liability

Your Beha-Amprobe product will be free from defects in material and workmanship for two years from the date of purchase unless local laws require otherwise. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on the behalf of Beha-Amprobe. To obtain service during the warranty period, return the product with proof of purchase to an authorized Beha-Amprobe Service Center or to an Beha-Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR STATUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Repair

All Beha-Amprobe tools returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company’s name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Beha-Amprobe.

In-warranty Repairs and Replacement – All Countries

Please read the warranty statement and check your battery before requesting repair. During the warranty period, any defective test tool can be returned to your Beha-Amprobe distributor for an exchange for the same or like product. Please check the “Where to Buy” section on beha-amprobe.com for a list of distributors near you.

Non-warranty Repairs and Replacement – Europe

European non-warranty units can be replaced by your Beha-Amprobe distributor for a nominal charge. Please check the “Where to Buy” section on beha-amprobe.com for a list of distributors near you.

Beha-Amprobe Germany Beha-Amprobe United Kingdom In den Engematten 14 52 Hurricane Way 79286 Glottertal Norwich +49 (0) 7684 8009 - 0 Norfolk, NR6 6JB beha-amprobe.de +44 (0) 1603 25 6662 beha-amprobe.com

Beha-Amprobe Headquarters Science Park Eindhoven 5110 5692 EC Son, The Netherlands +31 (0)40 267 51 00 beha-amprobe.com

Page 5

ProInstall-75

CONTENTS

INTRODUCTION ...........................................................................................................3

SYMBOLS .....................................................................................................................3

SAFETY INFORMATION ...............................................................................................4

UNPACKING THE TESTER ............................................................................................5

OPERATING THE TESTER .............................................................................................5

Using the Rotary Switch ........................................................................................................ 5

Understanding the Pushbuttons ........................................................................................... 5

Understanding the Display ................................................................................................... 7

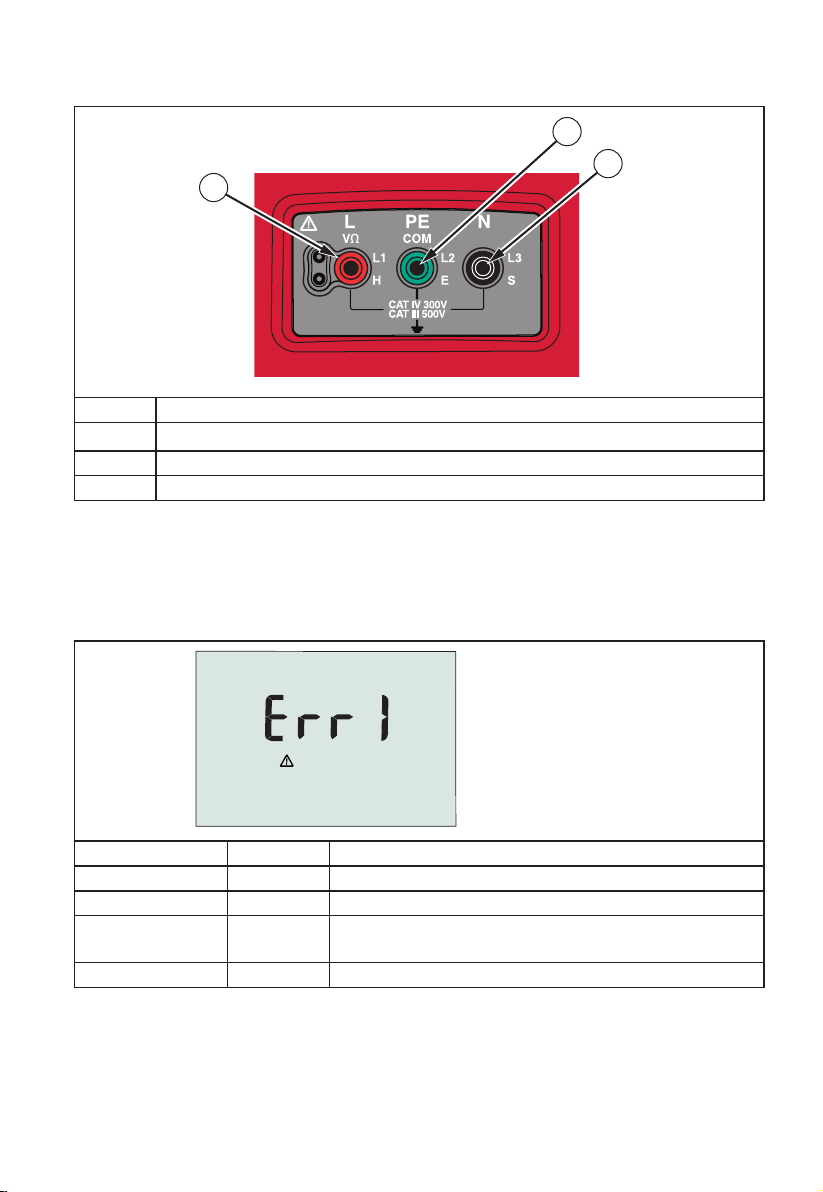

Input Terminals ...................................................................................................................... 9

Error Codes ............................................................................................................................. 9

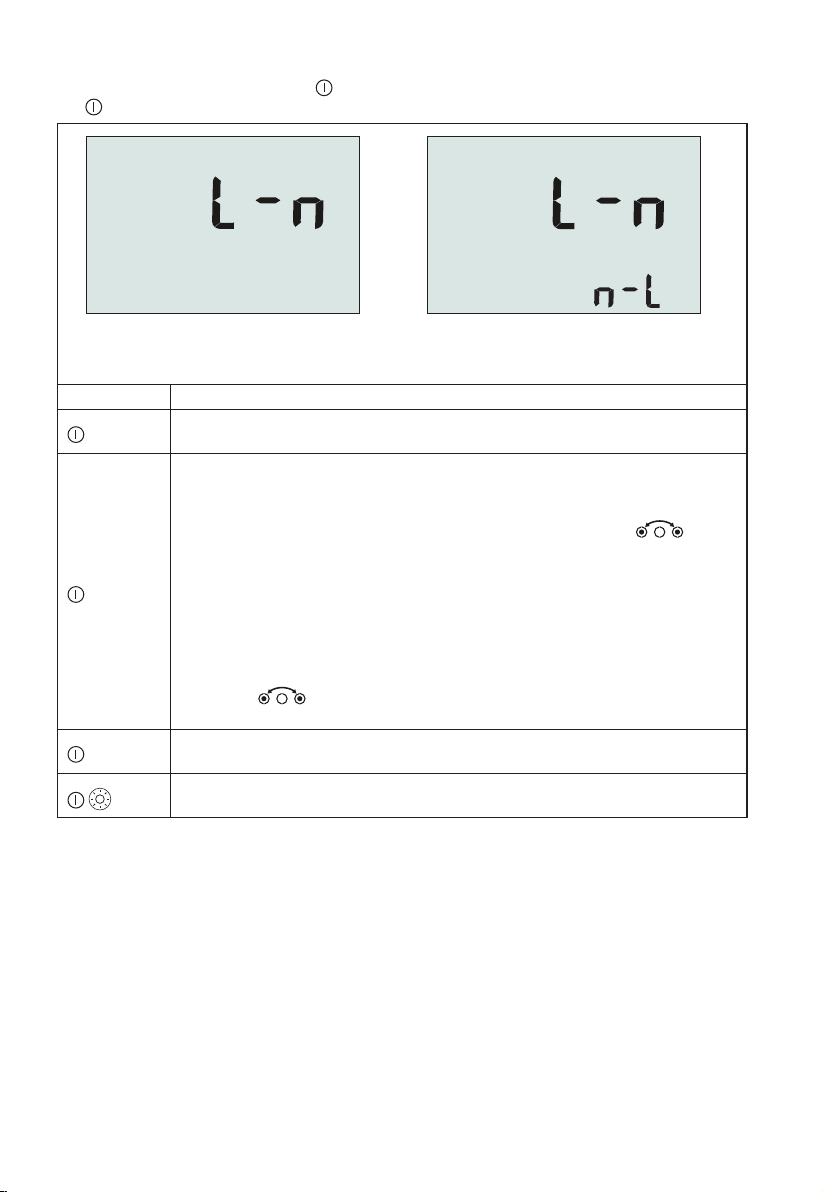

Power-On Options ................................................................................................................. 10

MAKING MEASUREMENTS .........................................................................................11

Measuring Volts and Frequency ........................................................................................... 11

Measuring Insulation Resistance .......................................................................................... 11

Measuring Continuity ........................................................................................................... 12

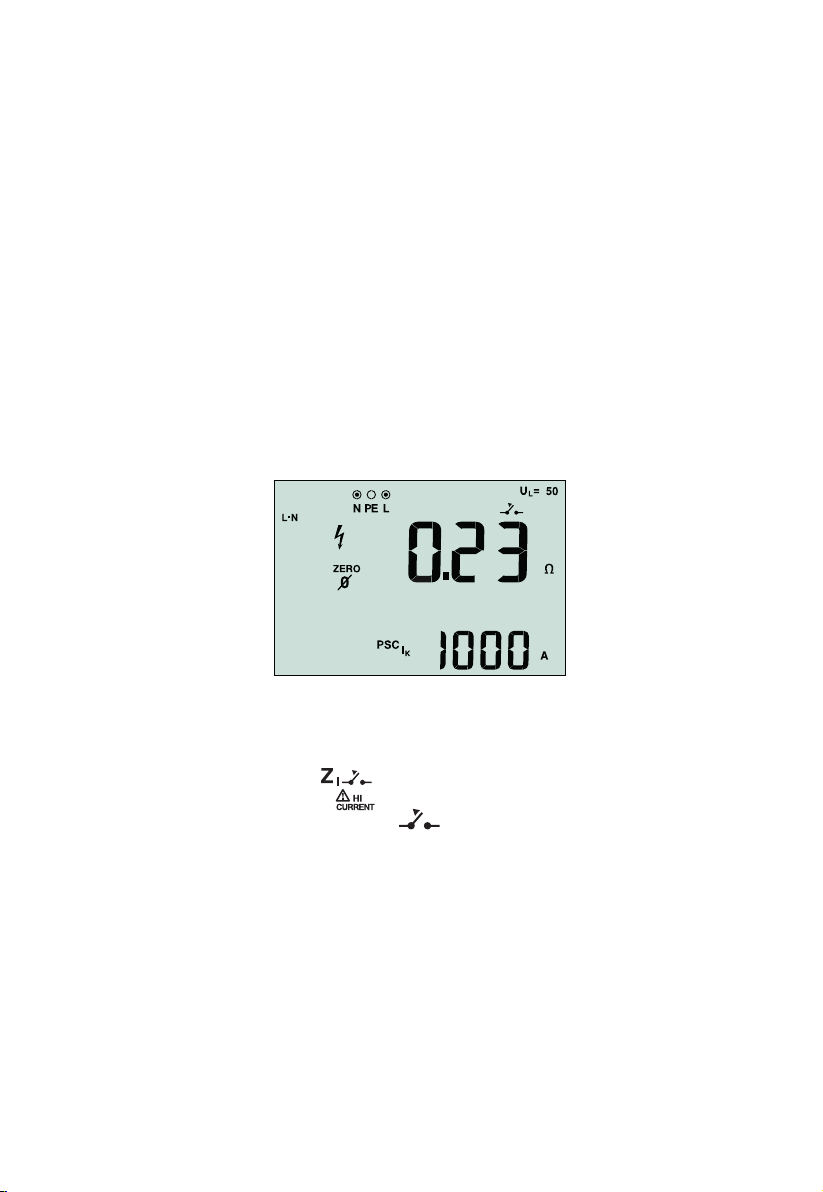

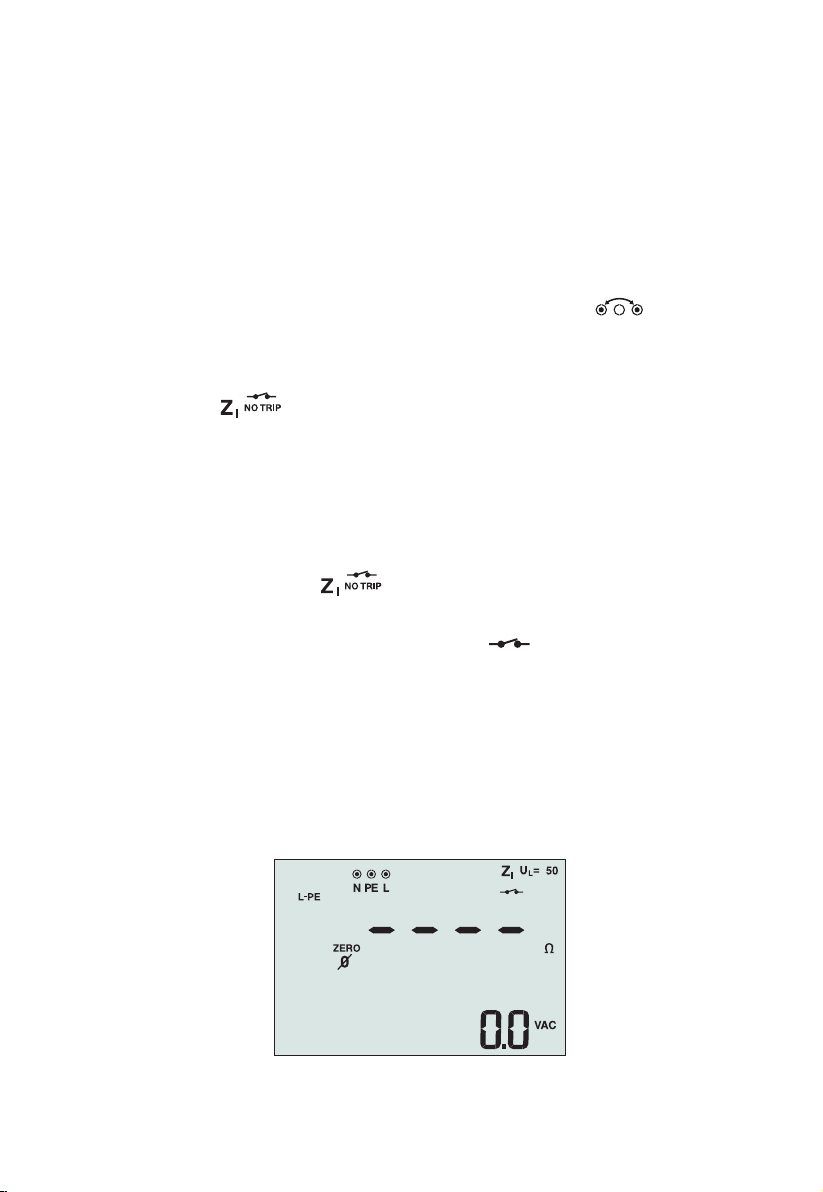

Measuring Loop/Line Impedance ......................................................................................... 12

Loop impedance (line to protective earth L-PE) ........................................................... 13

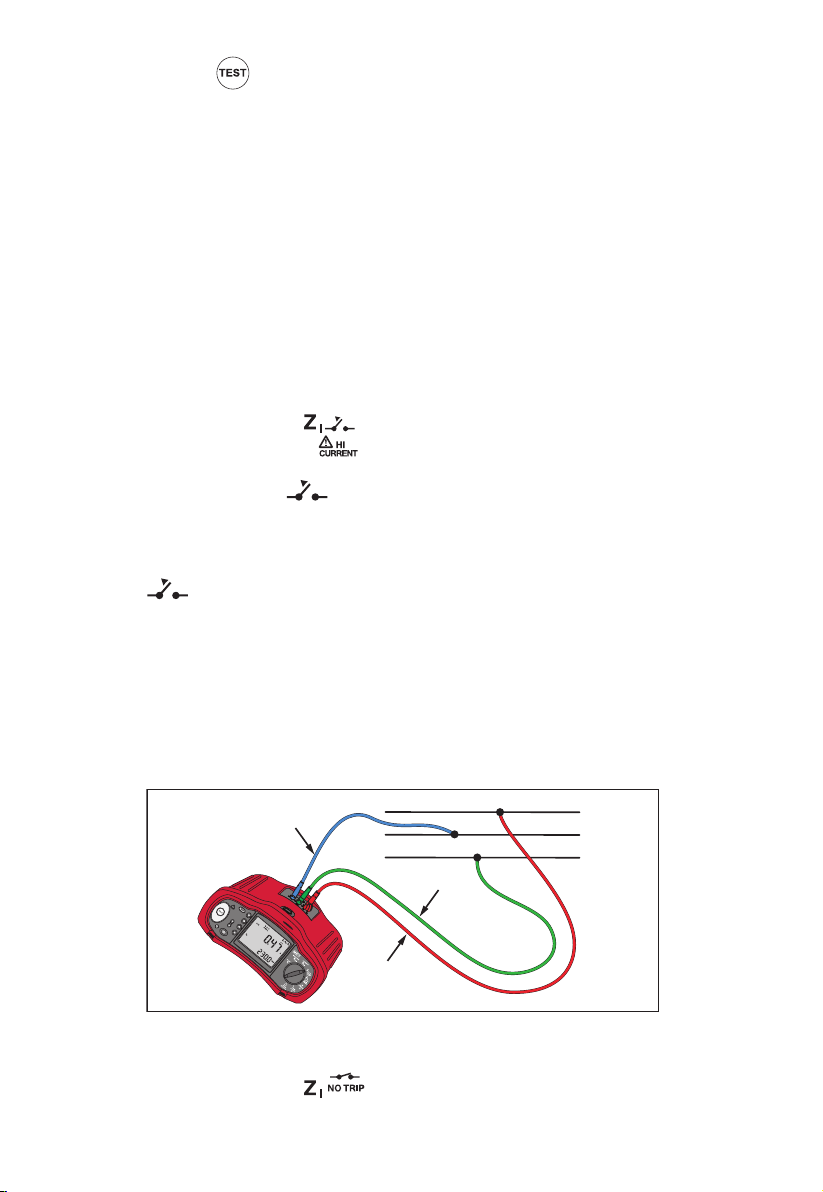

Earth resistance testing by loop method ....................................................................... 14

Line impedance ............................................................................................................... 15

Measuring RCD Tripping Time .............................................................................................. 16

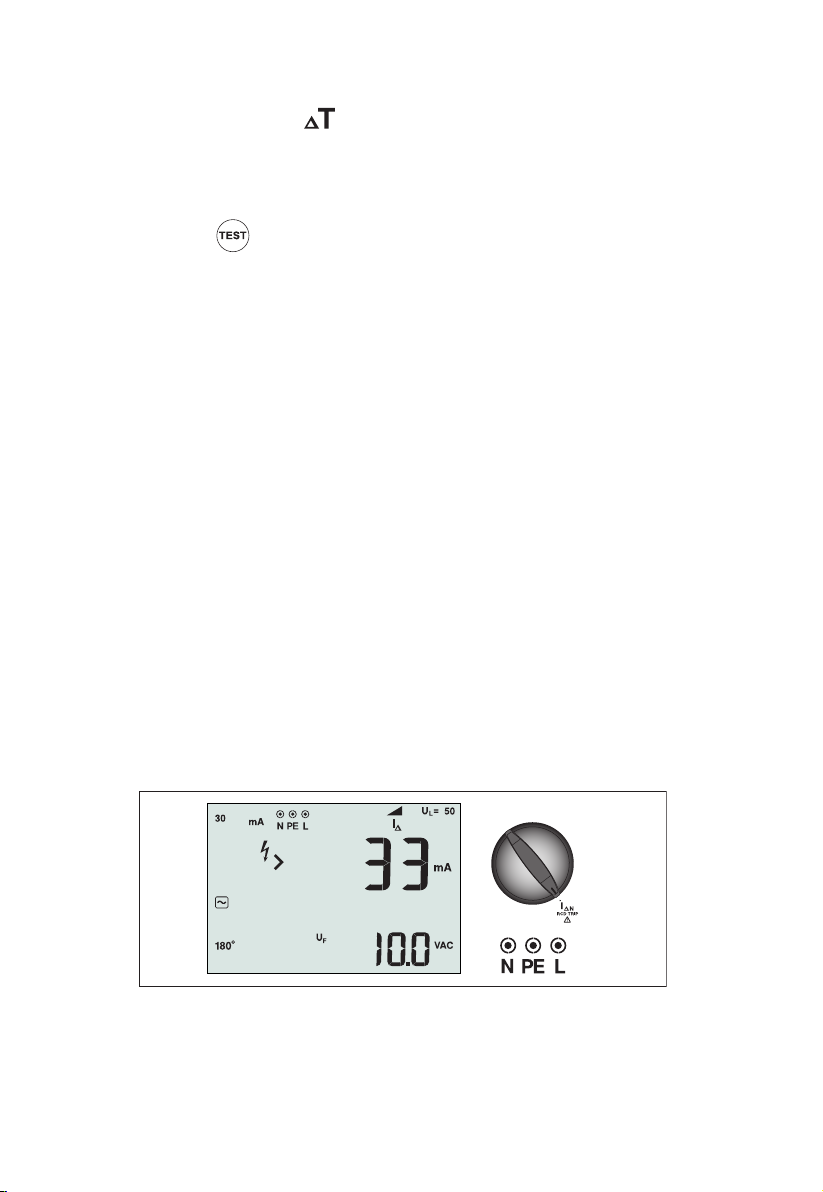

Measuring RCD Tripping Current ......................................................................................... 18

RCD Testing in IT Systems ...................................................................................................... 20

Testing Phase Sequence ........................................................................................................ 20

MAINTAINING THE TESTER .........................................................................................21

Cleaning ................................................................................................................................. 21

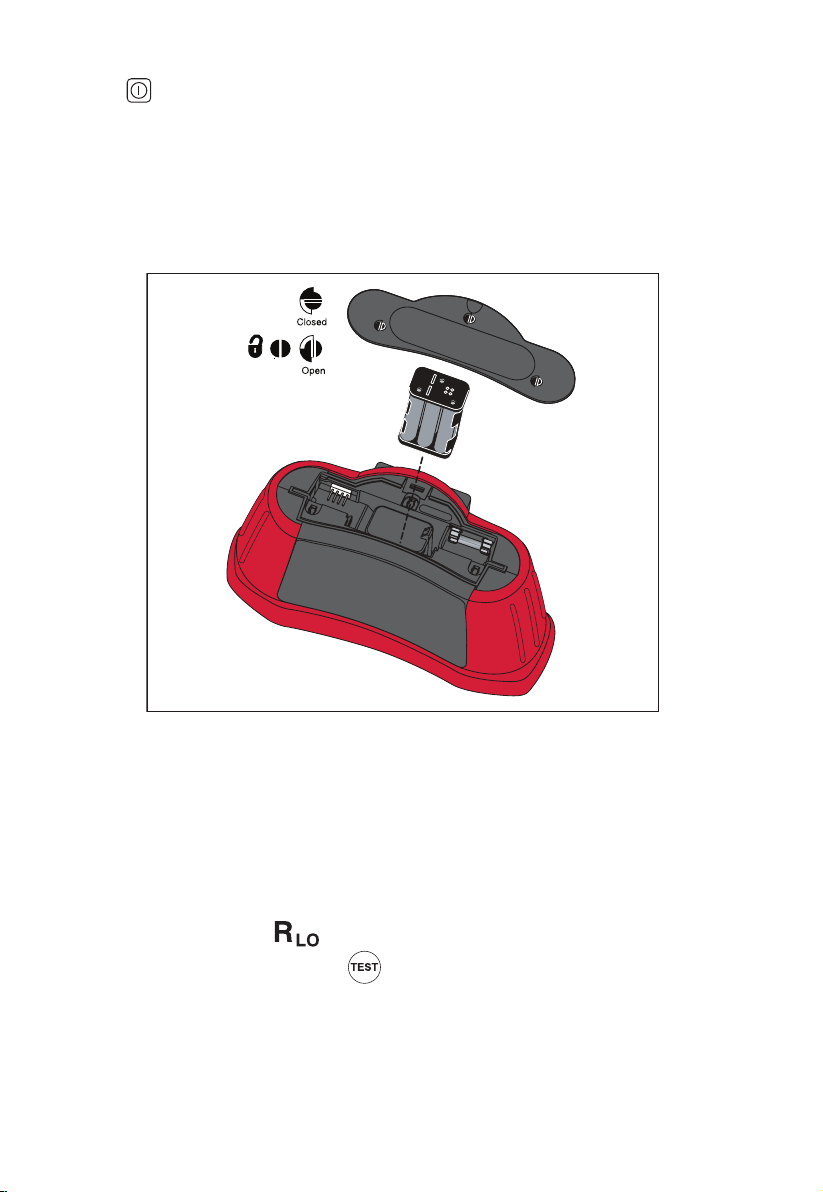

Testing and Replacing the Batteries ..................................................................................... 21

Testing the Fuse ..................................................................................................................... 22

DETAILED SPECIFICATIONS .........................................................................................23

Features .................................................................................................................................. 23

General Specifications ........................................................................................................... 24

ELECTRICAL MEASUREMENT SPECIFICATIONS ..........................................................25

Insulation Resistance (R

) ................................................................................................... 25

ISO

Page 6

Continuity (R

Loop Tests (Z

RCD/FI Tests (

) ..................................................................................................................... 26

) ........................................................................................................................ 26

PT, IPN) ........................................................................................................... 27

AC Voltage Measurement (V) ............................................................................................... 28

Continuity Testing (R

Insulation Resistance Measurement (R

) ........................................................................................................ 28

) ........................................................................... 28

ISO

No Trip and Hi Current Modes RCD/FI .................................................................................. 29

Prospective Short Circuit Current Test (PSC/I

)

Prospective Earth Fault Current (PEFC) ................................................................................ 29

RCD TESTING ...............................................................................................................30

RCD Types Tested ................................................................................................................... 30

Test Signals ............................................................................................................................. 30

RCD Types Tested (

PT) .......................................................................................................... 30

Maximum Trip Time ............................................................................................................... 31

RCD/FI-Tripping Current Measurement/Ramp Test (I

PN ) .................................................. 31

Phase Sequence Indication .................................................................................................... 31

MAINS WIRING TEST ...................................................................................................32

OPERATING RANGES AND UNCERTAINTIES PER EN 61557 ....................................... 32

Page 7

INTRODUCTION

The Beha-Amprobe Model ProInstall-75 is a battery powered multifunction installation tester. This tester is designed to measure and test the following:

• Voltage and Frequency

• Insulation Resistance (EN61557-2)

• Continuity (EN61557-4)

• Loop/Line Resistance (EN61557-3)

• Residual Current Devices (RCD) Tripping Time (EN61557-6)

• RCD Tripping Current (EN61557-6)

• Phase Sequence (EN61557-7)

SYMBOLS

 W

CAT III / CAT IV

Caution! Risk of electric shock.

Caution! Refer to the explanation in this manual.

Consult user documentation.

Double insulated (Class II) equipment

Earth (Ground).

Fuse.

Battery.

Conforms to requirements of European Union and European Free Trade Association.

Conforms to relevant Australian standards.

Do not use in distribution systems with voltages higher than 550 V.

CAT III Testers are designed to protect against transients in fixed equipment installations at the distribution level; CAT IV Testers are designed to protect against transients from the primary supply level (overhead or underground utility service).

This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 “Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste.

Page 8

SAFETY INFORMATION

A Warning identifies hazardous conditions and actions that could cause bodily harm or death.

A Caution identifies conditions and actions that could damage the installation tester or cause permanent loss of data.

WWarnings: Read Before Using

To prevent possible electrical shock, fire, or personal injury:

• Use the product only as specified, or the protection supplied by the product can be compromised.

• Do not use the product around explosive gas, vapor or in damp or wet environments.

• Do not use test leads if they are damaged. Examine the test leads for damaged insulation, exposed metal, or if the wear indicator shows. Check test lead continuity.

• Use only probes, test leads, and adapters supplied with the product.

• Measure a known voltage first to make sure that the product operates correctly.

• The battery door must be closed and locked before you operate the Product.

• Examine the case before you use the Product. Look for cracks or missing plastic. Carefully look at the insulation around the terminals.

• Be sure that the battery polarity is correct to prevent battery leakage.

• Repair the Product before use if the battery leaks.

• Do not operate the Product with covers removed or the case open. Hazardous voltage exposure is possible.

• Do not apply more than the rated voltage between the terminals or between each terminal and earth ground.

• Do not use the product if it is damaged.

• Have an approved technician repair the product.

• Do not apply more than the rated voltage between the terminals or between each terminal and earth ground.

• Remove all probes, test leads, and accessories before opening the battery door and the product case.

• Do not operate the product with covers removed or the case open. Hazardous voltage exposure is possible.

• Use caution when working with voltages above 30 V ac rms, 42 V ac peak, or 60 V dc.

• Use only specified replacement fuses.

• Use the correct terminals, function, and range for measurements.

• Keep fingers behind the finger guards on the probes.

• Connect the common test lead before the live test lead and remove the live test lead before the common test lead.

• Replace the batteries when the low battery indicator shows to prevent incorrect measurements.

• Use only specified replacement parts.

• Do not use the tester in distribution systems with voltages higher than 550 V.

• Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and flame-resistant clothes) to prevent shock and arc blast injury where hazardous live conductors are exposed.

Page 9

UNPACKING AND INSPECTION

Your shipping carton should include:

• ProInstall-75

• Test lead set

• ProInstall-TL-UK (LC38 AMP-MFT, mains test cord)

• Alligator clips

• Test probe

• ProInstall-TL-KIT (Remote test probe and probe tips)

• ProInstall-CC (Soft case with carrying strap)

• TL-75 ( Fused test probe, red/blue/green with lantern spring, cap and tip cover)

• Zero-Adapter

• Statement of calibration

• Batteries

• Quick reference guide

• Carry strap for neck/waist

• CD-ROM (User manual)

If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange.

OPERATING THE TESTER

Using the Rotary Switch

Use the rotary switch to select the type of test you want to perform.

Understanding the Pushbuttons

Use the pushbuttons to control operation of the tester, select test results for viewing, and scroll through selected test results.

13 14

5 6 18

Page 10

Number Measurement Function

Starts the selected test. The TEST key is surrounded by a “touch pad”. The touch pad measures the potential between the operator and the tester’s PE terminal.

If you exceed a 100 V threshold, the W symbol above the touch pad is illuminated.

2 Set RCD variable trip current.

3 Illuminates when > 100 V is detected on the touch pad.

4 Zero the test lead resistance offset.

5 Turns the backlight on and off.

Turns the tester on and off. The tester will also shut off automatically if there is

no activity for 10 minutes.

• Loop input select (L-N, L-PE).

• Voltage input select (L-N, L-PE, N-PE).

• Insulation test: (L-N, L-PE, N-PE)

• RCD current rating (10, 30, 100, 300, 500, 1000 mA or VAR).

8 RCD Current multiplier (x1/2, x1, x5, AUTO).

• Select RCD: Type AC (sinusoidal), Type AC Selective, Type A (half-wave), Type A

Selective.

• Battery test.

• Loop No Trip R

/ I

• RCD test polarity (0, 180 degrees).

• Insulation test voltage (250, 500, or 1000 V).

11 Volts.

12 Insulation resistance.

13 Continuity.

14 Loop impedance — No trip mode.

15 Loop impedance — Hi current trip mode.

16 RCD tripping time.

17 RCD tripping level.

18 Phase rotation.

19 Rotary switch.

Page 11

Understanding the Display

Number Description

Configuration options. Settings you can make within the measurement functions. For example, in the RCD Tripping Time function (

F2 to multiply the test current by x1/2, x1, x5 and you can press F3 to select the type of RCD you are testing.

Arrows above or below the terminal indicator symbol indicate reversed polarity.

Check the connection or check the wiring to correct.

Terminal indicator symbol. A terminal indicator symbol with a dot center indicates the terminal is used for the selected function. The terminals are:

• L (Line)

• PE (Protective Earth)

• N (Neutral)

Indicates the selected rotary switch setting. The measurement value in the primary display also corresponds to the switch setting. Rotary switch settings are:

Volts

Continuity RCD trip time

Loop no trip RCD trip current

Loop hi current trip Phase Rotation

PT) you can press

in the

Insulation

Indicates that the measured trip current (trip current test) or the measured trip time (trip time test) is according to the appropriate RCD standard and the fault

voltage is below the selected limit. For more information, see Maximum Trip Time Table in the Specifications section of this manual.

Page 12

Indicates the preset fault voltage limit. The default setting is 50 V. Some locations require the fault voltage be set to 25 V, as specified by local electrical

codes. Press F4 when you turn on the tester to toggle the fault voltage between 25 V and 50 V. The value you set will appear on the display and will be saved when you turn the tester off.

26 Primary display and measurement units.

Low battery icon. See “Testing and Replacing the Batteries” section for

additional information on batteries and power management.

28 Appears when you press the Test button. Disappears when the test is completed.

Appears when the instrument is overheated. The Loop test and RCD functions

are inhibited when the instrument is overheated.

Appears when an error occurs. Testing is disabled. See “Error Codes” on page 9

for a listing and explanation of possible error codes.

Name of the secondary measurement function.

Test voltage for insulation test.

Fault voltage. Measures neutral to earth.

PSC

Prospective Short Circuit. Calculated from measured voltage and impedance when reading line to neutral.

PEFC

Prospective Earth Fault Current. Calculated from voltage and loop impedance which is measured line to protective earth.

In combination with the PSC or PEFC symbol, indicates a short circuit current.

Earth resistance.

Secondary display and measurement units. Some tests will return more than one result or return a computed value based on the test result. This will occur with:

• Volts Secondary display shows line frequency.

• Insulation tests

Secondary display shows actual test voltage.

• Loop/line impedance Secondary display shows PEFC (Prospective Earth Fault Current) or R

PSC

(Prospective Short Circuit Current).

• RCD switching time Secondary display shows UF fault voltage.

• RCD tripping current Secondary display shows UF fault voltage.

Appears only in Volts. For more information see “Testing and Replacing the

Batteries” Section. Appears when you press the  button to zero the leads. After the zeroing

operation, the icon stays illuminated indicating that zeroing has been performed. Only used when performing continuity or loop testing.

35 Potential danger. Appears when measuring or sourcing high voltages.

Page 13

Input Terminals

Use the rotary switch to select the type of test you want to perform.

Number Description

L (Line)

37 PE (Protective Earth)

38 N (Neutral)

Error Codes

Various error conditions are detected by the tester and are indicated with the W icon, “Err”, and an error number on the primary display. See table below. These error conditions disable testing and, if necessary, stop a running test.

Figure 1. Error Display

Error Condition Code Solution

Self-test Fails 1 Return the tester to your distributor or Beha-Amprobe.

Over-temp 2 Wait while the tester cools down.

Fault Voltage 4

Excessive Noise 5 Switch off all appliances (Loop, RCD measurements)

Check the installation, in particular, the voltage between N and PE.

Page 14

Power-On Options

To select a power-on option, press and the function key simultaneously and then release the button. Power-on options are retained when the tester is turned OFF. See Table below.

UK - Mode Selected Automatic Lead

Keys Power-on Options







Loop/Line Impedance IK limit. Toggles the IK limit between 10 kA and 50 kA. The default is 10 kA.

Line and Neutral Swap mode. Two modes of operation are available. You can configure the tester to operate in L-n mode or L-n n-L mode,

• In L-n mode, the L and N phase conductors must NEVER be reversed. This is a requirement in some regions including the UK. The appears on the display indicating that the system L and N conductors are swapped and testing is inhibited. Investigate and rectify the cause of this system fault before proceeding. L-n mode also changes the RCD x1/2 trip time duration to 2 seconds as required in the UK.

• In L-n n-L mode, the unit allows the L and N phase conductors to be swapped and testing will continue.

Note: In locations where polarized plugs and outlets are used, a swapped lead icon ( Correct this problem before proceeding with any testing.

Fault voltage limit. Toggles the fault voltage between 25 V and 50 V. The default is 50 V.

Continuity beeper toggle. Toggles the continuity beeper on and off. The default is on.

Swapping Mode Selected

Figure 2. Lead Swapping Modes

icon

) may indicate that the outlet was wired incorrectly.

Page 15

MAKING MEASUREMENTS

Measuring Volts and Frequency

Figure 3. Volts Display/Switch and Terminal Settings

To measure voltage and frequency:

1. Turn the rotary switch to the V position.

2. Use two (red and blue) terminals for this test. You can use test leads or mains cord when measuring AC voltage.

• The primary (upper) display shows the AC voltage. The tester reads AC voltage to 500 V.

Press F1 to toggle the voltage reading between L-PE, L-N, and N-PE.

• The secondary (lower) display shows mains frequency.

Measuring Insulation Resistance

Figure 4. Insulation Resistance Display/Switch and Terminal Settings

WWarning

To avoid electric shock, measurements should only be performed on de-energized circuits.

To measure insulation resistance:

1. Turn the rotary switch to the R

2. Use the L and PE (red and green) terminals for this test.

3. Use the F4 to select the test voltage. Most insulation testing is performed at 500 V, but observe local test requirements.

4. Press and hold

Note: Testing is inhibited if voltage is detected in the line.

• The primary (upper) display shows the insulation resistance.

• The secondary (lower) display shows the actual test voltage.

Note: For normal insulation with high resistance, the actual test voltage (UN) should always be equal to or higher than the programmed voltage. If insulation resistance is bad, the test voltage is automatically reduced to limit the test current to safe ranges.

until the reading settles.

position.

ISO

Page 16

Measuring Continuity

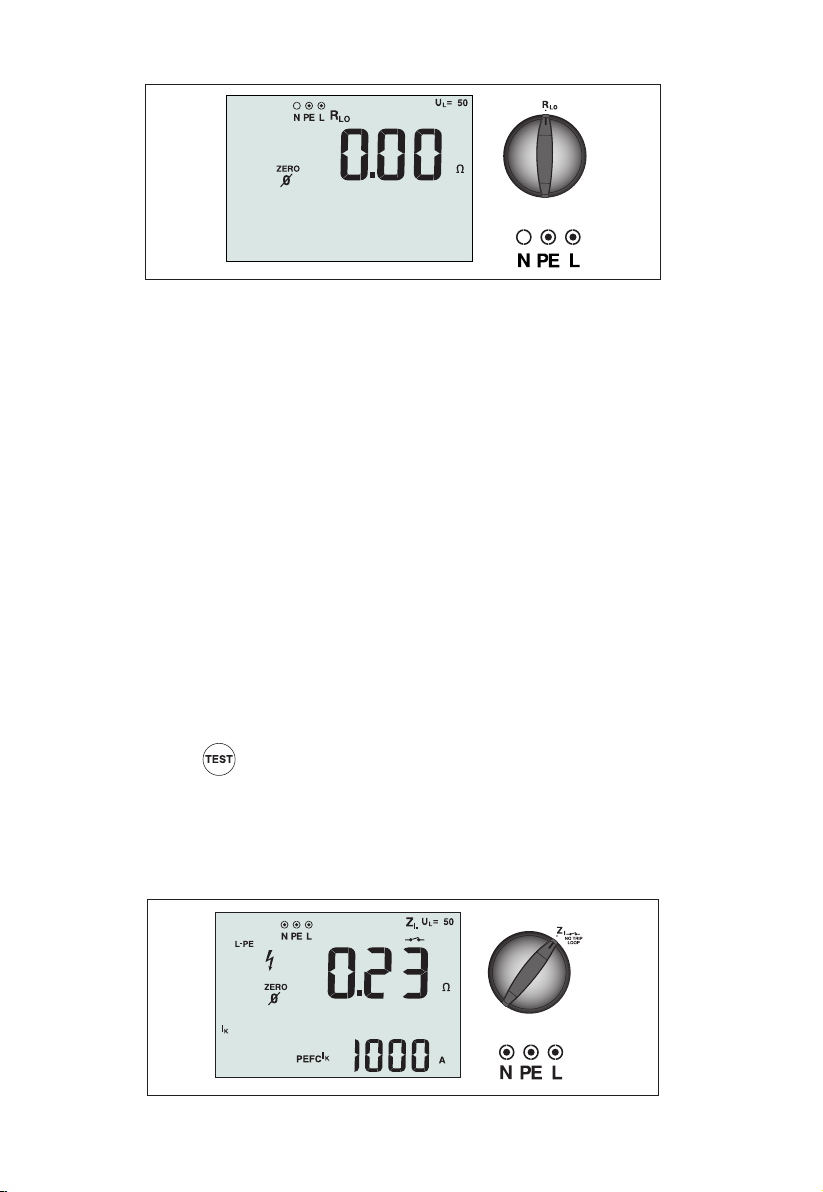

Figure 5. Continuity Zero Display/Switch and Terminal Settings

A continuity test is used to verify the integrity of connections by making a high resolution resistance measurement. This is especially important for checking Protective Earth connections.

Note: In countries where electrical circuits are laid out in a ring, it is recommended that you make an end-to-end check of the ring at the electrical panel.

WWarning

• Measurements should only be performed on de-energized circuits.

• Measurements may be adversely affected by impedances or parallel circuits or transient currents.

To measure continuity:

1. Turn the rotary switch to the RLO position.

2. Use the L and PE (red and green) terminals for this test.

3. Before making a continuity test, use the Zero adapter to zero the test leads. Press and

hold  until the ZERO annunciator appears. The tester measures probe resistance, stores the reading in memory, and subtracts it from readings. The resistance value is saved even when power is turned off so you don’t need to repeat the operation every time you use the instrument.

Note: Be sure the batteries are in good charge condition before you compensate the test leads.

4. Press and hold

tester beeps continuously for measured values less than 2 Ω and there is no stable reading beep for measured values 2 ohms or greater. If a circuit is live, the test is inhibited and the AC voltage appears in the secondary (lower) display.

until the reading settles. If the continuity beeper is enabled, the

Measuring Loop/Line Impedance

Figure 6. Loop/Line Impedance/Switch and Terminal Settings

Page 17

Loop Impedance (Line to Protective Earth L-PE)

Loop impedance is source impedance measured between Line (L) and Protective Earth (PE). You can also ascertain the Prospective Earth Fault Current (PEFC) that is the current that could potentially flow if the phase conductor is shorted to the protective earth conductor. The tester calculates the PEFC by dividing the measured mains voltage by the loop impedance. The loop impedance function applies a test current that flows to earth. If RCDs are present in the circuit, they may trip. To avoid tripping, always use the Zl No Trip function on the rotary switch. The no trip test applies a special test that prevents RCDs in the system from tripping. If you are certain no RCDs are in the circuit, you can use the Zl Hi Current function for a faster test.

Note: If the L and N terminals are reversed, the tester will auto-swap them internally and continue testing. If the tester is configured for UK operation, testing will halt. This condition is indicated by arrows above or below the terminal indicator symbol (

To measure loop impedance no trip mode: WWarning

To prevent tripping RCDs in the circuit:

• Always use the

• Preload conditions can cause the RCD to trip.

• An RCD with a nominal fault current of 10 mA will trip.

Note: To do a Loop impedance test in a circuit with a 10 mA RCD, we recommend a trip time

RCD test. Use a nominal test current of 10 mA and the factor x ½ for this test.

If the fault voltage is below 25 V or 50 V, dependent on the local requirement, the loop is good. To calculate the loop impedance, divide the fault voltage by 10 mA (Loop impedance = fault voltage x 100).

1. Turn the rotary switch to the

2. Connect all three leads to the L, PE, and N (red, green, and blue) terminals of the tester.

3. Press F1 to select L-PE. The display shows the Z

4. Before you do a loop impedance test, use the zero adapter to zero the test leads or the

mains cord. Press and hold  for more than two seconds until the ZERO annunciator appears. The tester measures the lead resistance, stores the reading in memory, and subtracts it from readings. The resistance value is saved even when the power is turned off so it is unnecessary to repeat the operation each time you use the tester with the same test leads or mains cord.

Note: Be sure the batteries are in good charge condition before you zero the test leads.

5. Connect all three leads to the L, PE, and N of the system under test or plug the mains

cord into the socket under test.

position for loop measurements.

position.

and indicator.

Figure 7. Display After Zeroing

Page 18

6. Press and release

. Wait for the test to complete. The primary (upper) display shows

the loop impedance.

7. To read the Prospective Earth Fault Current, press the  key and select lK. The Prospective Earth Fault Current appears in amps or kilo amps in the secondary (lower) display.

8. If the mains is too noisy, Err 5 will be displayed. (The measured value accuracy is degraded by the noise.) Press the down arrow

 to display the measured value. Press the

up arrow  to return to the Err 5 display.

This test will take several seconds to complete. If the mains is disconnected while the test is active, the test automatically terminates.

Note: Errors may occur due to preloading the circuit under test.

To measure loop impedance—Hi current trip mode:

If no RCDs are present in the system under test, you can use the high current Line Earth (LPE) loop impedance test.

1. Turn the rotary switch to the

position.

2. Connect all three leads to the L, PE, and N (red, green, and blue) terminals of the tester.

3. Press F1 to select L-PE. The

appears to indicate that hi current trip mode is

selected.

4. Repeat Steps 4 through 8 from the preceding test.

WWarning

The symbol

on the LCD indicates the high current loop mode - any RCDs in the system

will trip - ensure there are no RCDs present.

Earth Resistance Testing by Loop Method

You can also use the tester to measure the earth resistance component of the total loop resistance. Check your local regulations to determine if this method is acceptable in your area. You can use three leads or the mains cord to perform this test. Use the connection shown in Figure 8 when making a 3-wire connection for earth resistance loop test. Zero the test leads (see sequence for Loop Impedance measurement).

N (Blue)

PE (Green)

L (Red)

Figure 8. 3-Wire Connection for Earth Resistance Loop Test

To measure earth resistance using the loop test no trip mode:

1. Turn the rotary switch to the position

Page 19

2. Press  to select L-PE.

3. Press  to select RE (resistance).

4. Press and release . Wait for the test to complete.

• The primary (upper) display shows the loop impedance.

• The secondary (lower) display shows the earth resistance.

Line Impedance

Line impedance is source impedance measured between Line conductors or Line and Neutral. This function allows the following tests:

• Line to Neutral loop impedance.

• Line to Line impedance in 3-phase systems.

• L-PE loop measurement. This is a way of making a high current, 2-wire loop measurement. It cannot be used on circuits protected by RCDs because it will cause them to trip.

• Prospective Short Circuit Current (PSC). PSC is the current that can potentially flow if the phase conductor is shorted to the neutral conductor or another phase conductor. The tester calculates the PSC current by dividing the measured mains voltage by the

line impedance.

Figure 9. Line Impedance Display

To measure line impedance:

1. Turn the rotary switch to the loop mode is selected by displaying the symbol.

2. Connect the red lead to the L (red) and the blue lead to the N (blue) terminals of the tester.

3. Press F1 to select L-N.

4. Use the zero adapter to zero the test leads or the mains cord.

5. Press and hold  for more than two seconds until the ZERO annunciator appears. The tester measures the lead resistance, stores the reading in memory, and subtracts it from readings. The resistance value is saved even when the power is turned off so it is unnecessary to repeat the operation each time you use the tester with the same test leads or mains cord.

Note: Be sure the batteries are in good charge condition before you zero the test leads.

position. The LCD indicates that the high current

Page 20

WWarning

At this step, be careful not to select L-PE because a high current loop test will take place. Any RCDs in the system will trip if you proceed.

Note: Connect the leads in a single-phase test to the system line and neutral. To measure

line-to-line impedance in a 3-phase system, connect the leads to 2 phases.

7. Press and release

. Wait for the test to complete.

• The primary (upper) display shows the line impedance.

• The secondary (lower) display shows the Prospective Short Circuit Current (PSC).

8. If the mains is too noisy, Err 5 will be displayed. (The measured value accuracy is degraded by the noise). Press the down arrow

 to display the measured value. Press the

up arrow  to return to the Err 5 display.

Use the connection shown in Figure 10 when measuring in a 3-phase 500 V system.

N (L3/Blue)

L (L1/Red)

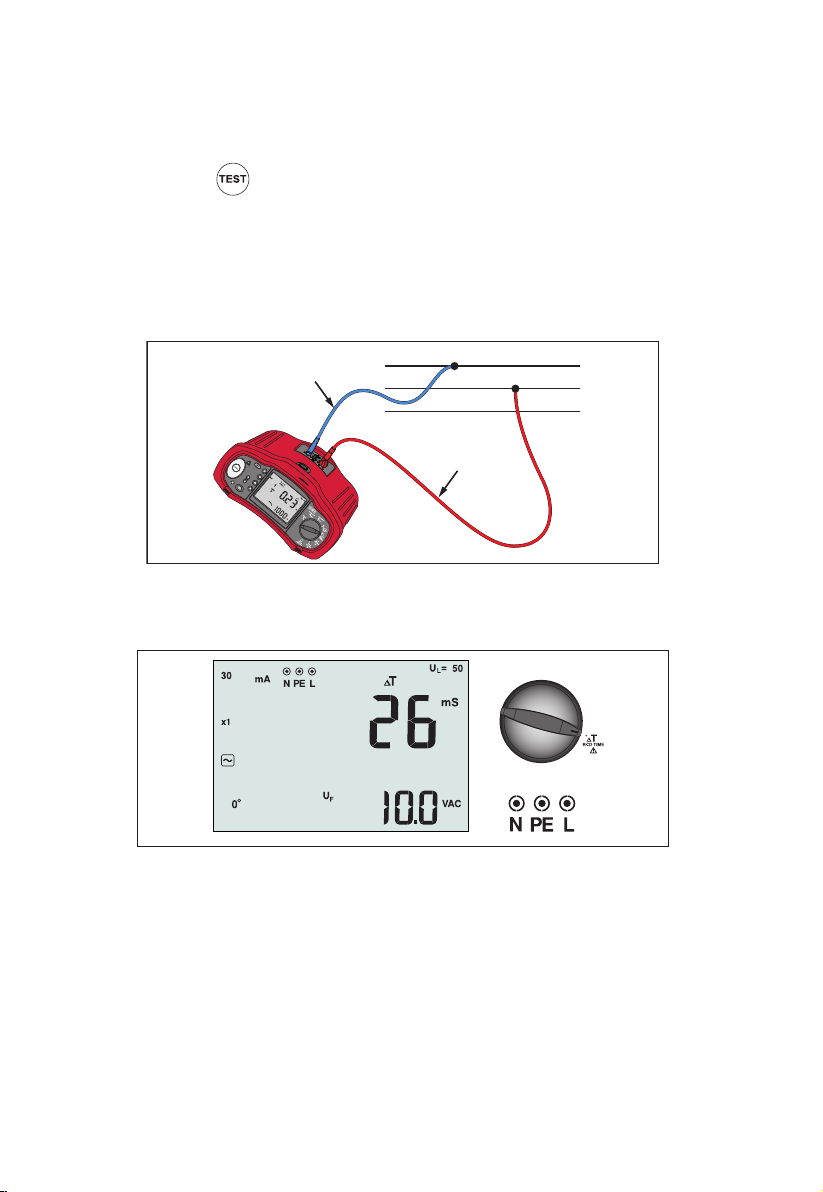

Figure 10. Measuring in a 3-Phase System

Measuring RCD Tripping Time

Figure 11. RCD Tripping Time Display/Switch and Terminal Settings

In this test, a calibrated fault current is induced into the circuit, causing the RCD to trip. The meter measures and displays the time required for the RCD to trip. You can perform this test with test leads or using the mains cord. The test is performed with a live circuit.

You can also use the tester to perform the RCD tripping time test in Auto mode, which makes it easier for one person to perform the test. If the RCD has a special nominal current setting other than the standard options, 10, 30, 100, 300, 500 1000 mA, you can use a custom setting with the VAR mode.

Note: When measuring trip time for any type of RCD, the tester first does a pretest to determine if the actual test will cause a fault voltage exceeding the limit (25 or 50 V).

To avoid having an inaccurate trip time for S type (time delay) RCDs, a 30 second delay is activated between the pretest and the actual test. This RCD type needs a delay because it contains RC circuits that are required to settle before applying the full test.

Page 21

WWarning

• Test the connection between the N-conductor and earth before starting the test. A

voltage between the N-conductor and earth may influence the test.

• Leakage currents in the circuit following the residual current protection device may

influence measurements.

• The displayed fault voltage relates to the rated residual current of the RCD.

• Potential fields of other earthing installations may influence the measurement.

• Equipment (motors, capacitors) connected downstream of the RCD may cause

considerable extension of the tripping time.

Note: If the L and N terminals are reversed, the tester will auto-swap them internally and

continue testing. If the tester is configured for UK operation, testing will halt and you will need to determine why the L and N are swapped. This condition is indicated by arrows

above or below the terminal indicator symbol (

Type A RCDs do not have the 1000 mA option available.

To measure RCD tripping time:

1. Turn the rotary switch to the

2. Press F1 to select the RCD current rating (10, 30, 100, 300, 500, or 1000 mA).

3. Press F2 to select a test current multiplier (x ½, x 1, x 5, or Auto). Normally you will use

x 1 for this test.

4. Press F3 to select the RCD test-current waveform:

– AC current to test type AC (standard AC RCD) and type A (pulse-DC sensitive RCD)

– Half-wave current to test type A (pulse-DC sensitive RCD)

– Delayed response to test S-type AC (time delayed AC RCD)

position.

– Delayed response to S-type A (time delayed pulse-DC sensitive RCD)

5. Press F4 to select the test current phase, 0° or 180°. RCDs should be tested with both

phase settings, as their response time can vary significantly depending on the phase.

6. Press and release

• The primary (upper) display shows the trip time.

• The secondary (lower) display shows the fault voltage (N to PE) related to the rated residual current.

• If the trip time is according to the appropriate standard of the RCD, the RCD indicator displays. For more information, see Maximum Trip Time Table on page 31.

To measure RCD tripping time for a custom RCD setting – VAR mode:

1. Turn the rotary switch to the

2. Press  to select the VAR current rating. The current custom setting shows on the

primary display. Use the

3. Press  to select a test current multiplier. Normally you will use x 1/2 or x 1 for this test.

4. Repeat steps 4 through 6 listed in the preceding RCD tripping time procedure.

5. To view the nominal setting used for the test, depress the

Note: The maximum setting for type A RCDs is 700 mA.

. Wait for the test to complete.

position.

 arrow keys to adjust the value.

 arrow key.

Page 22

To measure RCD tripping time using Auto mode:

1. Plug the tester into the outlet.

2. Turn the rotary switch to the

3. Press F1 to select the RCD current rating (10, 30, or 100 mA).

4. Press F2 to select Auto mode.

5. Press F3 to select the RCD test-current waveform.

6. Press and release

The tester supplies ½x the rated RCD current for 310 or 510 ms (2 seconds in the UK). If the RCD trips, the test terminates. If the RCD does not trip, the tester reverses phase and repeats the test. The test terminates if the RCD Trips.

If the RCD does not trip, the tester restores the initial phase setting and supplies 1x the rated RCD current. The RCD should trip and the test results appear in the primary display.

7. Reset the RCD.

8. The tester reverses phases and repeats the 1x test. The RCD should trip and the test results appear in the primary display.

9. Reset the RCD.

10. The tester restores the initial phase setting and supplies 5x the rated RCD current for

up to 50 ms. The RCD should trip and the test results appear in the primary display.

11. Reset the RCD.

12. The tester reverses phase and repeats the 5x test. The RCD should trip and the test

results appear in the primary display.

13. Reset the RCD.

• You can use the

last measurement taken, the 5x current test. Press the down arrow key  to move backward to the first test at ½x the rated current.

 arrow keys to review test results. The first result shown is the

position.

Measuring RCD Tripping Current

Figure 12. RCD Tripping Current/Switch and Terminal Settings

This test measures the RCD tripping current by applying a test current and then gradually increasing the current until the RCD trips. You can use the test leads or mains cord for this test. A 3-wire connection is required.

Page 23

WWarning

• Test the connection between the N-conductor and earth before starting the test. A

voltage between the N-conductor and earth may influence the test.

• Leakage currents in the circuit following the residual current protection device may

influence measurements.

• The displayed fault voltage relates to the rated residual current of the RCD.

• Potential fields of other earthing installations may influence the measurement.

Note: If the L and N terminals are reversed, the tester will auto-swap them internally and

continue testing. If the tester is configured for UK operation, testing will halt and you will need to determine why the L and N are swapped. This condition is indicated by arrows above or below the terminal indicator symbol (

Type A RCDs do not have the 1000 mA option available.

To measure RCD tripping current:

1. Turn the rotary switch to the

2. Press F1 to select the RCD current rating (10, 30, 100, 300, or 500 mA). If the RCD has a

special nominal current setting other than the standard options, 10, 30, 100, 300, 500 1000 mA, you can use a custom setting with the VAR mode.

3. Press F2 to select the RCD test-current waveform:

– AC current to test type AC (standard AC RCD) and type A (pulse-DC sensitive RCD)

– Half-wave current to test type A (pulse-DC sensitive RCD)

– Delayed response to test S-type AC (time delayed AC RCD)

position.

– Delayed response to S-type A (time delayed pulse-DC sensitive RCD)

4. Press F4 to select the test current phase, 0° or 180°. RCDs should be tested with both

phase settings, as their response time can vary significantly depending on the phase.

5. Press and release

• The primary (upper) display shows the RCD trip current.

• If the trip current is according to the appropriate standard of the RCD, the RCD indicator displays. For more information, see Maximum Trip Time Table on page 31.

To measure RCD tripping current for a custom RCD setting - VAR mode:

1. Turn the rotary switch to the

2. Press  to select the VAR current rating. The current custom setting shows on the

primary display. Use the

3. Repeat steps 3 through 5 listed in the preceding RCD tripping current procedure.

4. To view the nominal test setting, depress the

Note: The maximum setting for RCDs is 700 mA.

. Wait for the test to complete.

position.

 arrow keys to adjust the value.

 arrow key.

Page 24

RCD testing in IT systems

RCD testing at locations with IT systems requires a special test procedure because the Protective Earth connection is grounded locally and is not tied directly to the power system.

The test is conducted at the electrical panel using probes. Use the connection shown in Figure 13 when performing RCD testing on IT electrical systems.

Mains Supply

PE (L2/Green)

RCD

N (L3/Blue)

L (L1/Red)

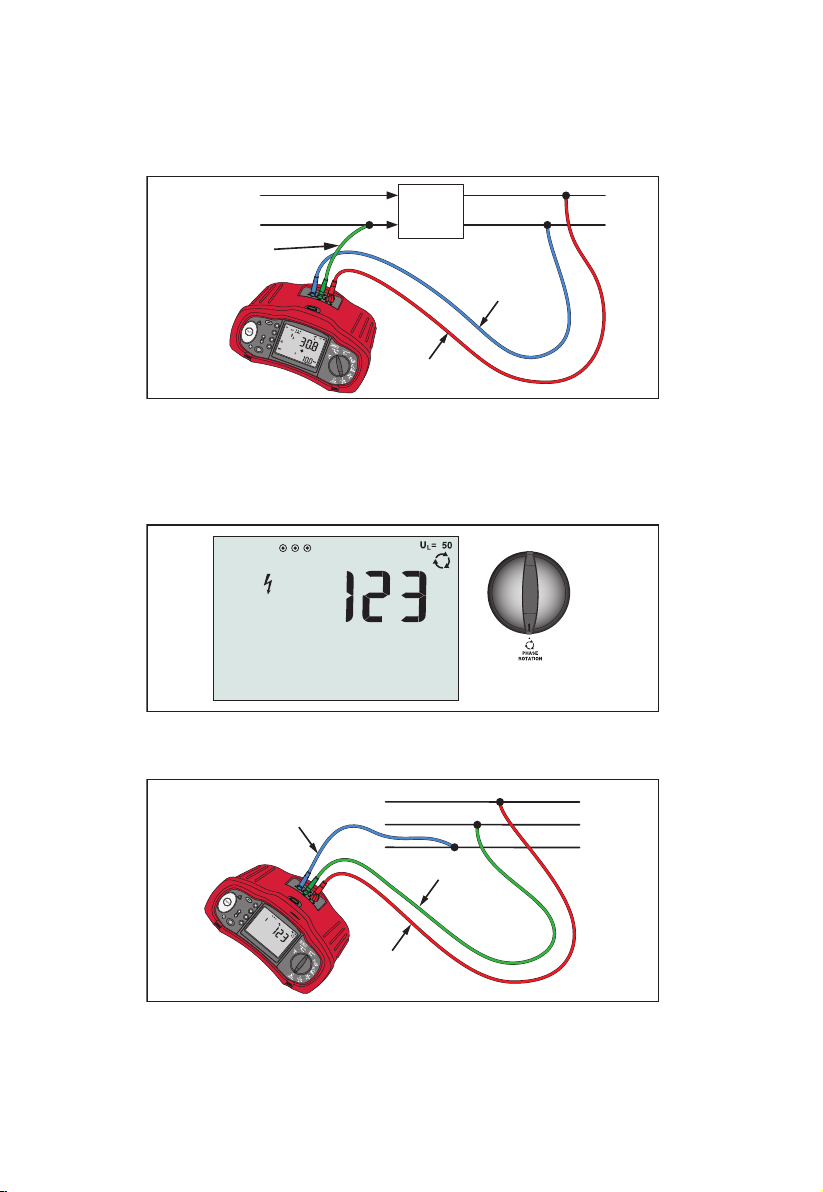

Figure 13. Connection for RCD Testing on IT Electrical Systems

The test current flows through the upper side of the RCD, into the L terminal, and returns though the PE terminal.

Testing Phase Sequence

Figure 14. Phase Sequence Display/Switch and Terminal Settings

Use the connection shown in Figure 15 for a phase sequence test connection.

N (L3/Blue)

PE (L2/Green)

L (L1/Red)

Figure 15. Phase Sequence Test Connection

Page 25

To perform a phase sequence test:

1. Turn the rotary switch to the

2. The primary (upper) display shows:

• 123 for correct phase sequence.

• 321 for reversed phase sequence.

• Dashes (---) instead of numbers if insufficient voltage is sensed.

position.

MAINTAINING THE TESTER

Cleaning

Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.

Dirt or moisture in the terminals can affect readings.

To clean the terminals:

1. Turn the meter off and remove all test leads.

2. Shake out any dirt that may be in the terminals.

3. Soak a new swab with alcohol. Work the swab around each terminal.

Testing and Replacing the Batteries

Battery voltage is continuously monitored by the tester. If the voltage falls below 6.0 V (1.0 V/cell), the low battery icon M appears on the display, indicating that there is minimal battery life left. The low battery icon continues to appear on the display until you replace the batteries.

WWarning

To avoid false readings, which could lead to possible electric shock or personal injury, replace the batteries as soon as the battery icon ( M ) appears.

Be sure that the battery polarity is correct. A reversed battery can cause leakage.

Replace the batteries with six AA batteries. Alkaline batteries are supplied with the tester but you can also use 1.2 V NiCd or NiMH batteries. You can also check the battery charge so that you can replace them before they discharge.

WWarning

To avoid electrical shock or personal injury, remove the test leads and any input signals before replacing the battery. To prevent damage or injury, install ONLY specified replacement fuses with the amperage, voltage, and speed ratings shown in the General Specifications section of this manual.

To test the batteries:

1. Turn the rotary switch to the V position.

2. Press F3 > 2 seconds to initiate the battery test. The Voltage function display clears and is replaced by the measured battery voltage in the secondary display for 2 seconds, the Voltage function display then returns.

Page 26

To replace the batteries (refer to Figure 16):

1. Press

2. Remove the test leads from the terminals.

3. Remove the battery door by using a standard-blade screwdriver to turn the battery door screws (3) one-quarter turn counterclockwise.

4. Press the release latch and slide the battery holder out of the tester.

5. Replace the batteries and the battery door.

6. Secure the door by turning the screws one-quarter turn clockwise.

to turn the tester off.

Figure 16. Replacing the Batteries

Testing the Fuse

A fuse test is performed each time you turn on the tester. If leads are plugged into the L and PE terminals, the fuse test is skipped. If a blown fuse is detected, testing is disabled, FUSE appears on the primary display, and the tester issues a warning beep.

You can also perform a manual check of the fuse.

To manually check the fuse:

1. Turn the rotary switch to

2. Short the leads and press and hold

3. If the fuse is bad, FUSE or Err1 will appear on the display to indicate the tester is damaged and needs repair. Contact Beha-Amprobe Service for repair (see Contacting Beha-Amprobe).

switch setting.

Page 27

DETAILED SPECIFICATIONS

Features

Measurement Function

Voltage & Frequency √ Wiring polarity checker √ Insulation Resistance √ Loop & Line Resistance √

Prospective Short-Circuit current (PSC/I RCD switching time √ RCD tripping level √ ramp test RCD variable current √ Automatic RCD test sequence √ Test pulse current sensitive RCDs (Type A) √ Phase Sequence Indicator √

Other Features

Self-test √ Illuminated Display √

Included Accessories

• Test lead set

• ProInstall-TL-UK (LC38 AMP-MFT, mains test cord)

• Alligator clips

• Test probe

• ProInstall-TL-KIT (Remote test probe and probe tips)

• ProInstall-CC (Soft case with carrying strap)

• TL-75 ( Fused test probe, red/blue/green with lantern spring, cap and tip cover)

• Zero-Adapter

• Statement of calibration

• Batteries

• Quick reference guide

• Carry strap for neck/waist

• CD-ROM (User manual)

) √

Page 28

General Specifications

Specification Characteristic

Size 10 cm (L) x 25 cm (W) x 12.5 cm (H)

Weight (with batteries) 1.3 kg

Battery size, quantity Type AA, 6 ea.

Battery type Alkaline supplied.

Battery life (typical) 200 hours idling

Fuse T3.15 A, 500 V, 1.5 kA 6.3 x 32 mm (PN 2030852)

Operating Temperature -10 °C to 40 °C

Storage Temperature -10 °C to 60 °C indefinitely (to -40 °C for 100 hrs)

Relative Humidity 80 % 10 to 35 °C; 70 % 35 to 40 °C

Operating Altitude 0 to 2000 meters

Shock, Vibration Vibration to Class 3 per MIL-PRF-28800F

Sealing IP 40

EMC Complies with EN61326-1

Safety Complies with EN61010-1

Pollution Degree 2

Maximum voltage between any terminal and earth ground

Surge Protection 6 kV peak per EN 61010-1

Usable with 1.2 V NiCd or NiMH batteries (not supplied)

1 meter drop test, six sides, oak floor

Overvoltage Category: 500 V/CAT III, 300 V/CAT IV

Measurement Category III is for measurements performed in the building installation. Examples are distribution panels, circuit breakers, wiring and cabling. Category IV equipment is designed to protect against transients from the primary supply level, such as an electrical meter or an overhead or underground utility service. Performance EN61557-1, EN61557-2, EN61557-3, EN61557-4, EN61557-6, EN61557-7. EN61557-10.

500 V

Category Ratings and Usage

Part/Accessory Printed

Electrical Installation Tester CAT III 500 V

ProInstall-TL-UK, British Mains Cord CAT II 250 V √ ProInstall-TL-Kit Remote Test Probe (red) CAT III 1000 V √ √ √ Test Lead (red/green/blue) CAT III 1000 V √ √ √ Test Probe (red/green/blue) CAT III 1000 V √ √ √ Alligator Clip (red/green/blue) CAT III 1000 V √ √ √

TL-75 Fused Test Probes: (red/green/blue)

CAT Rating

CAT IV 300 V

CAT III 1000 V CAT IV 600 V

CAT II 250 V

√ √

CAT III 500 V

√ √

CAT IV 300 V

√ √

Page 29

ELECTRICAL MEASUREMENT SPECIFICATIONS

The accuracy specification is defined as ±(% reading +digit counts) at 23 °C ±5 °C, ≤80 % RH. Between -10 °C and 18 °C and between 28 °C and 40 °C, accuracy specifications may degrade by 0,1 x (accuracy specification) per °C. The following tables can be used for the determination of maximum or minimum display values considering maximum instrument operating uncertainty per EN61557-1, 5.2.4.

Insulation Resistance (R

250 V 500 V 1000 V

Limit Value

1 1.3 1 1.3 1 1.3

2 2.4 2 2.4 2 2.4

3 3.5 3 3.5 3 3.5

4 4.6 4 4.6 4 4.6

5 5.7 5 5.7 5 5.7

6 6.8 6 6.8 6 6.8

7 7.9 7 7.9 7 7.9

8 9.0 8 9.0 8 9.0

9 10.1 9 10.1 9 10.1

10 11.2 10 11.2 10 11.2

20 22.2 20 22.2 20 22.2

30 33.2 30 33.2 30 33.2

40 44.2 40 44.2 40 44.2

50 55.2 50 55.2 50 55.2

60 66.2 60 66.2 60 66.2

70 77.2 70 77.2 70 77.2

80 88.2 80 88.2 80 88.2

90 99.2 90 99.2 90 99.2

100 110.2 100 110.2 100 110.2

200 220.2 200 220.2 200 220.2

Maximum

Display Value

)

ISO

Limit Value

300 347 300 345

400 462 400 460

500 577 500 575

Maximum

Display Value

Limit Value

600 690

700 805

800 920

900 1035

1000 1150

Display Value

Maximum

Page 30

Continuity (RLO)

Limit Value Maximum Display

Value

0.2 0.16 3 2.68

0.3 0.25 4 3.58

0.4 0.34 5 4.48

0.5 0.43 6 5.38

0.6 0.52 7 6.28

0.7 0.61 8 7.18

0.8 0.7 9 8.08

0.9 0.79 10 8.98

1 0.88 20 17.98

2 1.78 30 26.8

Limit Value Maximum Display

Value

Loop Tests (ZI)

Loop Z

Hi Current

Limit

Value

Maximum

Display

Value

0.20 0.14 - - 3 2.53 3 2.72

0.30 0.23 - - 4 3.38 4 3.62

0.40 0.32 0.40 0.28 5 4.23 5 4.52

0.50 0.41 0.50 0.37 6 5.08 6 5.42

0.60 0.50 0.60 0.45 7 5.93 7 6.32

0.70 0.59 0.70 0.54 8 6.78 8 7.22

0.80 0.68 0.80 0.62 9 7.63 9 8.12

0.90 0.77 0.90 0.71 10 8.48 10 9.02

1.00 0.86 1.00 0.79 20 16.98 20 18.02

1.10 0.95 1.10 0.88 30 25.3 30 27.2

1.20 1.04 1.20 0.96 40 33.8 40 36.2

1.30 1.13 1.30 1.05 50 42.3 50 45.2

1.40 1.22 1.40 1.13 60 50.8 60 54.2

1.50 1.31 1.50 1.22 70 59.3 70 63.2

1.60 1.40 1.60 1.30 80 67.8 80 72.2

1.70 1.49 1.70 1.39 90 76.3 90 81.2

1.80 1.58 1.80 1.47 100 84.8 100 90.2

1.90 1.67 1.90 1.56 200 169.8 200 180.2

2.00 1.76 2.00 1.64 300 253 300 272

- - - - 400 338 400 362

- - - - 500 423 500 452

- - - - 600 508 600 542

Limit

Value

Loop Z No Trip

Maximum

Display

Value

Limit

Value

Loop Z

Maximum

Display

Value

Limit

Value

Loop R

Maximum

Display

Value

Page 31

Loop Tests (ZI) (cont.)

- - - - 700 593 700 632

- - - - 800 678 800 722

- - - - 900 763 900 812

- - - - 1000 848 1000 902

RCD/FI Tests (ΔT, IΔN)

RCD/FI Time RCD/FI Current

Limit Value Maximum Display Value Limit Value Maximum Display Value

20 18.1 0.5 0.43

30 27.1 0.6 0.52

40 36.1 0.7 0.61

50 45.1 0.8 0.7

60 54.1 0.9 0.79

70 63.1 1 0.88

80 72.1 2 1.78

90 81.1 3 2.68

100 90.1 4 3.58

200 180.1 5 4.48

300 271 6 5.38

400 361 7 6.28

500 451 8 7.18

600 541 9 8.08

700 631 10 8.98

800 721 20 17.98

900 811 30 26.8

1000 901 40 35.8

2000 1801 50 44.8

60 53.8

70 62.8

80 71.8

90 80.8

100 89.8

200 179.8

300 268

400 358

500 448

Page 32

AC Voltage Measurement (V)

Range Resolution Accuracy

50 Hz – 60 Hz

500 V 0.1 V 0.8 % + 3 digits 3.3 MΩ 660 V rms

Input Impedance Overload

Protection

Continuity Testing (RLO)

Range (Autoranging)

20 Ω 0.01 Ω >4 V ±(1.5 % + 3 digits) 200 Ω 0.1 Ω >4 V ±(1.5 % + 3 digits) 2000 Ω 1 Ω >4 V ±(1.5 % + 3 digits)

Note: The number of possible continuity tests with a fresh set of batteries is 3000.

Resolution Open Circuit Voltage Accuracy

Range R

7.5 Ω 210 mA 35 Ω 100 mA 240 Ω 20 mA 2000 Ω 2 mA

Test Probe Zeroing

Live Circuit Detection Inhibits test if terminal voltage >10 V ac detected prior to

Press the Can subtract up to 3 Ω of lead resistance. Error message for >3 Ω.

initiation of test.

 to zero the test.

Insulation Resistance Measurement (R

Test Voltages 250-500-1000 V

Accuracy of Test Voltage (at rated test current)

Test Voltage

250 V 10 kΩ to 20 MΩ 0.01 MΩ 1 mA @ 250 kΩ ±(1.5 % + 3 digits)

500 V 10 kΩ to 20 MΩ 0.01 MΩ 1 mA @ 500 kΩ ±(1.5 % + 3 digits)

1000 V 100 kΩ to 200 MΩ 0.1 MΩ 1 mA @ 1 MΩ ±(1.5 % + 3 digits)

Note: The number of possible insulation tests with a fresh set of batteries is 2000.

Insulation Resistance Range

20 MΩ to 200 MΩ 0.1 MΩ ±(1.5 % + 3 digits)

20 MΩ to 200 MΩ 0.1 MΩ ±(1.5 % + 3 digits) 200 MΩ to 500 MΩ 1 MΩ ±10 %

200 MΩ to 1000 MΩ 1 MΩ ±10 %

+10 %, -0 %

Resolution Test Current Accuracy

Test Current

)

ISO

Page 33

Auto Discharge Discharge time constant <0.5 second for C = 1 μF

or less.

Live Circuit Detection Inhibits test if terminal voltage >30 V prior to initiation of test.

Maximum Capacitive Load Operable with up the 5 μF load.

No Trip and Hi Current Modes RCD/FI

Mains Input Voltage Range 100 - 500 V ac (50/60 Hz)

Input Connection (soft key selection)

Limit on Consecutive Tests Automatic shutdown when internal components are too

Maximum Test Current @ 400 V 20 A sinusoidal for 10 ms

Maximum Test Current @ 230 V 12 A sinusoidal for 10 ms

Loop Impedance: phase to earth

Line impedance: phase to neutral

hot. There is also a thermal shutdown for RCD tests.

Range Resolution Accuracy

[1]

20 Ω 0.01 Ω No Trip mode: ±(3 % + 6 digits)

Hi Current mode: ±(2 % + 4 digits)

200 Ω 0.1 Ω No Trip mode: ±(3 %)

Hi Current mode: ±(2 %)

2000 Ω 1 Ω ±6 %

[2]

Note: [1] Valid for resistance of neutral circuit <20 Ω and up to a system phase angle of 30 °. Test leads must be zeroed before testing. [2] Valid for mains voltage >200 V.

Prospective Short Circuit Current Test (PSC/IK) Prospective Earth Fault Current (PEFC)

Computation Prospective Earth Fault Current (PSC/IK) or Prospective Short

Range 0 to 10 kA or 0 to 50 kA

Resolution and Units Resolution Units

Accuracy Determined by accuracy of loop resistance and mains

Circuit Current (PSC/IK) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.

(See Power-On Options earlier in this manual)

<1000 A 1 A

>1000 A 0.1 kA

voltage measurements.

Page 34

RCD TESTING

RCD Types Tested

RCD Type

AC S

A A S √

Note: [1] AC – Responds to ac [2] G – General, no delay [3] S – Time delay [4] A – Responds to pulsed signal [5] RCD test inhibited for V >265 ac RCD tests permitted only if the selected current, multiplied by earthing resistance, is <50V.

[5]

[1]

[4]

[2]

[3]

G √

√ √

Test Signals

RCD Type Test Signal Description

AC (sinusoidal)

A (half wave)

The waveform is a sinewave starting at zero crossing, polarity determined by phase selection (0 ° phase starts with low to high zero crossing, 180 ° phase starts with high to low zero crossing). The magnitude of the test current is I

n x Multiplier

for all tests.

The waveform is a half wave rectified sinewave starting at zero, polarity determined by phase selection (0 ° phase starts with low to high zero crossing, 180 ° phase starts with high to low zero crossing). The magnitude of the test current is

n (rms) x Multiplier for all tests for IPn = 0.01A. The

2.0 x I

magnitude of the test current is 1.4 x IPn (rms) x Multiplier for all tests for all other IPn ratings.

RCD Types Tested (PT)

RCD Current Selection

Test Function

X ½, 1 √ √ √ √ √ √ √ X 5 √ √ √

Ramp √ √ √ √ √ √ √ Auto √ √ √

Note: Mains voltage 100 V – 265 V ac, 50/60 Hz [1] Type AC RCDs only. [2] Type A RCDs are limited to 700 mA, not available for Type B RCDs.

10 mA 30 mA 100 mA 300 mA 500 mA 1000

[1]

var

[2]

Page 35

Current Multiplier

*RCD Type

Measurement Range

Europe UK

Trip Time Accuracy

X ½ G 310 ms 2000 ms ± (1% Reading + 1ms)

X ½ S 510 ms 2000 ms ± (1% Reading + 1ms)

X 1 G 310 ms 310 ms ± (1% Reading + 1ms)

X 1 S 510 ms 510 ms ± (1% Reading + 1ms)

X 5 G 50 ms 50 ms ± (1% Reading + 1ms)

X 5 S 160 ms 160 ms ± (1% Reading + 1ms)

Note: *G – General, no delay *S – Time delay

Maximum Trip Time

The RCD √ symbol switches on when testing the RCD trip time if the trip time meets the

following conditions:

RCD I

AC G, A X 1 Less than 300 ms

AC G-S, A-S X 1 Between 130 ms and 500 ms

AC G, A X 5 Less than 40 ms

AC G-S, A-S X 5 Between 50 ms and 150 ms

Trip Time Limits

RCD/FI-Tripping Current Measurement/Ramp Test ( I

Current Range Step Size

30 % to 110 % of RCD rated current

[1]

10 % of I

Measurement Range

Type G Type S

300 ms/step 500 ms/step ±5 %

)

Measurement

Accuracy

Notes [1] 30 % to 150 % for Type A I 30 % to 210 % for Type A IPN = 10 mA

>10 mA

Specified trip current ranges (EN 61008-1): 50 % to 100 % for Type AC 35 % to 140 % for Type A (>10 mA) 35 % to 200 % for Type A (≤10 mA)

Phase Sequence Indication

Icon

Display of Phase Sequence Displays “1-2-3” in digital display field for correct

Mains Input Voltage Range (phase-to-phase)

icon Phase Sequence indicator is active.

sequence. Displays “3-2-1” for incorrect phase. Dashes in place of a number indicate a valid determination could not be made. 100 to 500 V

Page 36

MAINS WIRING TEST

Icons ( , , ) indicate if L-PE or L-N terminals are reversed. Instrument operation is inhibited and an error code is generated if the input voltage is not between 100 V and 500 V. The UK Loop and RCD tests are inhibited if the L-PE or the L-N terminals are reversed.

OPERATING RANGES AND UNCERTAINTIES PER EN 61557

Function

V EN 61557-1

EN 61557-4

ISO

EN 61557-2

EN 61557-3

∆T, I

∆N

EN 61557-6

Phase EN 61557-7

Display

Range

0.0 V ac – 500 V ac

0.00 Ω - 2000 Ω

0.00 MΩ - 1000 MΩ

(NO TRIP)

0.00 Ω - 2000 Ω

(HI CURRENT)

0.00 Ω - 2000 Ω

0.0 Ω - 2000 Ω ∆T

0.0 ms - 2000 ms

3 mA - 550 mA

∆N

(VAR 3 mA – 700 mA)

EN 61557

Measurement Range

Operating Error

50 V ac – 500 V ac ±(2% + 2 dgt)

0.2 Ω - 2000 Ω ± ( 10% + 2 dgt )

1 MΩ - 200 MΩ ± ( 10% + 2 dgt ) 200 MΩ - 1000 MΩ ± ( 15% + 2 dgt )

0.4 Ω - 2000 Ω ± ( 15% + 6 dgt )

0.2 Ω - 200 Ω ± ( 10% + 4 dgt )

10 Ω - 1000 Ω ±(10 % + 2 dgt)

25 ms - 2000 ms ± ( 10% + 1 dgt )

3 mA - 550 mA ± ( 10% + 1 dgt )

Nominal Values

= 230/400 V ac

f = 50/60 Hz

4,0 VDC < U R

≤ 2.00 Ω IN ≥ 200 mA

= 250 / 500 / 1000 V dc

= 1,0 mA

= 230 / 400 Vac

f = 50 / 60 Hz I

= 0 A - 10.0 kA

< 24 VDC

∆T@ 10 / 30 / 100 / 300 / 500 / 1000 / VAR mA

= 10 / 30 / 100 / 300 / 500 /

∆N

VAR mA

1 : 2 : 3

Page 37

Operating Uncertainties per EN 61557

The Operating Uncertainty shows the maximum possible uncertainty when all influence factors E1-E10 are counted.

EN 61557-3∆TEN 61557-6

∆N

Intrinsic Uncertainty A

Influence Quantity

Volts

EN 61557-4

ISO

EN 61557-2

0.80 % 1.50 % 10.00 % 6.00 % 1.00 % 5.00 %

Volts

EN 61557-4

ISO

EN 61557-2

E1 - Position 0.00 % 0.00 % 0.00 % 0.00 % 0.00 % 0.00 %

E2 - Supply Voltage

E3 Temperature

0.50 % 3.00 % 3.00 % 3.00 % 3.00 % 2.75 %

E4 - Series Interferences

- - - - - -

Voltage

E5 - Resistance of the probes and auxiliary

- - - - - -

earth electrodes

E6.2 - System phase angle

E7 - System frequency

E8 - System voltage

- - - 1.00 % - -

- - - 2.50 % - -

- - - 2.50 % 2.50 % 2.50 %

E9 - Harmonics - - - 2.00 % - -

E10 - D.C. Quantity

- - - 2.50 % - -

EN 61557-6

Page 38

Visit beha-amprobe.com for

• Catalog

• Application notes

• Product specifications

• User manuals

Beha-Amprobe

In den Engematten 14 79286 Glottertal, Germany Phone: +49 (0) 7684 8009 - 0 beha-amprobe.de

Beha-Amprobe

52 Hurricane Way Norwich, Norfolk NR6 6JB United Kingdom Phone: +44 (0) 1603 25 6662 beha-amprobe.com

Beha-Amprobe

Science Park Eindhoven 5110 5692 EC Son The Netherlands Phone: +31 (0) 40 267 51 00 beha-amprobe.com

Please

Recycle
