Beckhoff KL3214 Documentation

Documentation

KL3214

Four-channel HD input terminal for 3-wire connection of
resistance sensors

Version:
Date:

1.2.0
2019-09-24

Table of contents

Table of contents

1 Foreword ....................................................................................................................................................5

1.1 Notes on the documentation..............................................................................................................5

1.2 Safety instructions .............................................................................................................................6

1.3 Documentation Issue Status..............................................................................................................7

1.4 Beckhoff Identification Code (BIC) ....................................................................................................7

2 Product overview.....................................................................................................................................10

2.1 Introduction......................................................................................................................................10

2.2 Technical data .................................................................................................................................11

3 Mounting and wiring................................................................................................................................12

3.1 Instructions for ESD protection........................................................................................................12

3.2 Installation on mounting rails ...........................................................................................................12

3.3 Installation instructions for enhanced mechanical load capacity .....................................................15

3.4 Connection ......................................................................................................................................16

3.4.1 Connection system .......................................................................................................... 16

3.4.2 Wiring............................................................................................................................... 18

3.4.3 Shielding .......................................................................................................................... 19

3.5 Connection and LED displays .........................................................................................................20

4 KS2000 Configuration software .............................................................................................................21

4.1 KS2000 - Introduction......................................................................................................................21

4.2 Parameterization with KS2000 ........................................................................................................22

4.3 Register ...........................................................................................................................................24

4.4 Settings............................................................................................................................................26

4.5 Sample program for KL register communication via EtherCAT on KL3314 exemplary...................27

5 Access from the user program ..............................................................................................................30

5.1 Control and status bytes..................................................................................................................30

5.1.1 Process data mode.......................................................................................................... 30

5.1.2 Register communication .................................................................................................. 31

5.2 Register overview ............................................................................................................................32

5.3 Register description.........................................................................................................................33

5.4 Examples of Register Communication ............................................................................................36

5.4.1 Example 1: reading the firmware version from Register 9............................................... 36

5.4.2 Example 2: Writing to an user register............................................................................. 37

5.5 Process image.................................................................................................................................40

5.6 Mapping...........................................................................................................................................41

6 Appendix ..................................................................................................................................................43

6.1 Support and Service ........................................................................................................................43

KL3214 3Version: 1.2.0

Table of contents

KL32144 Version: 1.2.0

Foreword

1 Foreword

1.1 Notes on the documentation

Intended audience

This description is only intended for the use of trained specialists in control and automation engineering who
are familiar with the applicable national standards.
It is essential that the documentation and the following notes and explanations are followed when installing
and commissioning these components.
It is the duty of the technical personnel to use the documentation published at the respective time of each
installation and commissioning.

The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.

Disclaimer

The documentation has been prepared with care. The products described are, however, constantly under
development.

We reserve the right to revise and change the documentation at any time and without prior announcement.

No claims for the modification of products that have already been supplied may be made on the basis of the
data, diagrams and descriptions in this documentation.

Trademarks

Beckhoff®, TwinCAT®, EtherCAT®, EtherCATG®, EtherCATG10®, EtherCATP®, SafetyoverEtherCAT®,
TwinSAFE®, XFC®, XTS® and XPlanar® are registered trademarks of and licensed by Beckhoff Automation
GmbH. Other designations used in this publication may be trademarks whose use by third parties for their
own purposes could violate the rights of the owners.

Patent Pending

The EtherCAT Technology is covered, including but not limited to the following patent applications and
patents: EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 with corresponding
applications or registrations in various other countries.

EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH,
Germany.

Copyright

© Beckhoff Automation GmbH & Co. KG, Germany.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization are prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a
patent, utility model or design.

KL3214 5Version: 1.2.0

Foreword

1.2 Safety instructions

Safety regulations

Please note the following safety instructions and explanations!
Product-specific safety instructions can be found on following pages or in the areas mounting, wiring,
commissioning etc.

Exclusion of liability

All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.

Personnel qualification

This description is only intended for trained specialists in control, automation and drive engineering who are
familiar with the applicable national standards.

Description of instructions

In this documentation the following instructions are used.
These instructions must be read carefully and followed without fail!

DANGER

Serious risk of injury!

Failure to follow this safety instruction directly endangers the life and health of persons.

WARNING

Risk of injury!

Failure to follow this safety instruction endangers the life and health of persons.

CAUTION

Personal injuries!

Failure to follow this safety instruction can lead to injuries to persons.

NOTE

Damage to environment/equipment or data loss

Failure to follow this instruction can lead to environmental damage, equipment damage or data loss.

Tip or pointer

This symbol indicates information that contributes to better understanding.

KL32146 Version: 1.2.0

1.3 Documentation Issue Status

Version Comment

1.2.0 • Update Chapter “Instructions for ESD protection”

• Chapter “Beckhoff Identification Code (BIC)” added

1.1.0 • Design of the safety instructions adapted to IEC 82079-1

• Update chapter Notes on the documentation

• Update Technical data

• Chapter Instructions for ESD protection added

• Chapter Installation instructions for enhanced mechanical load capacity added

• Example program added to chapter “KS2000 Configuration software“

• Correction chapter Register description

• Update chapter Connection system -> Connection

1.0.0 • First published

0.5 • Preliminary version (internal only)

Firmware and hardware versions

Foreword

Documentation
Version

1.1.0 1A 01

1.0.0 1A 00

0.5 1A 00

The firmware and hardware versions (delivery state) can be taken from the serial number printed on the side
of the terminal.

Syntax of the serial number

Structure of the serial number: WW YY FF HH

WW - week of production (calendar week)
YY - year of production
FF - firmware version
HH - hardware version

Example with ser. no.: 40 15 1A 00:

40 - week of production 40
15 - year of production 2015
1A - firmware version 1A
00 - hardware version 00

KL3214

Firmware Hardware

1.4 Beckhoff Identification Code (BIC)

The Beckhoff Identification Code (BIC) is increasingly being applied to Beckhoff products to uniquely identify
the product. The BIC is represented as a Data Matrix Code (DMC, code scheme ECC200), the content is
based on the ANSI standard MH10.8.2-2016.

KL3214 7Version: 1.2.0

Foreword

Fig.1: BIC as data matrix code (DMC, code scheme ECC200)

The BIC will be introduced step by step across all product groups.

Depending on the product, it can be found in the following places:

• on the packaging unit

• directly on the product (if space suffices)

• on the packaging unit and the product

The BIC is machine-readable and contains information that can also be used by the customer for handling
and product management.

Each piece of information can be uniquely identified using the so-called data identifier
(ANSIMH10.8.2-2016). The data identifier is followed by a character string. Both together have a maximum
length according to the table below. If the information is shorter, spaces are added to it. The data under
positions 1 to 4 are always available.

The following information is contained:

Item

Type of

no.

information

1 Beckhoff order

number

2 Beckhoff Traceability

Number (BTN)

3 Article description Beckhoff article

4 Quantity Quantity in packaging

5 Batch number Optional: Year and week

6 ID/serial number Optional: Present-day

7 Variant number Optional: Product variant

...

Explanation Data

identifier

Beckhoff order number 1P 8 1P072222

Unique serial number,
see note below

description, e.g.
EL1008

unit, e.g. 1, 10, etc.

of production

serial number system,
e.g. with safety products

number on the basis of
standard products

S 12 SBTNk4p562d7

1K 32 1KEL1809

Q 6 Q1

2P 14 2P401503180016

51S 12 51S678294104

30P 32 30PF971, 2*K183

Number of digits
incl. data identifier

Example

KL32148 Version: 1.2.0

Foreword

Further types of information and data identifiers are used by Beckhoff and serve internal processes.

Structure of the BIC

Example of composite information from item 1 to 4 and 6. The data identifiers are marked in red for better
display:

BTN

An important component of the BIC is the Beckhoff Traceability Number (BTN, item no.2). The BTN is a
unique serial number consisting of eight characters that will replace all other serial number systems at
Beckhoff in the long term (e.g. batch designations on IO components, previous serial number range for
safety products, etc.). The BTN will also be introduced step by step, so it may happen that the BTN is not yet
coded in the BIC.

NOTE

This information has been carefully prepared. However, the procedure described is constantly being further
developed. We reserve the right to revise and change procedures and documentation at any time and with­out prior notice. No claims for changes can be made from the information, illustrations and descriptions in
this information.

KL3214 9Version: 1.2.0

Product overview

2 Product overview

2.1 Introduction

Fig.2: KL3214-0000

The KL3214 analog HD input terminal allows four resistance sensors to be connected directly on a width of
12mm.

The Bus Terminal's circuitry can handle sensors using the 3-wire technique. A microprocessor handles
linearization across the whole temperature range, which is freely selectable.

The Bus Terminal's standard settings are: resolution 0.1°C. Sensor malfunctions such as broken wires are
indicated by error LEDs.

KL321410 Version: 1.2.0

Product overview

2.2 Technical data

Technical data KL3214-0000

Number of inputs 4

Sensor types PT100/200/500/1000,

Ni100/120/1000,
KTY sensors,
Potentiometer (10Ω… 1.2/4kΩ)

Connection technology 3-wire

Measuring range Pt sensors -200°C ... +850°C

Ni sensors -60°C ... +250°C

Measuring current typ. 0.5mA (load-dependent)

Resolution 0.1℃ per digit

Measuring error (total meas. range) < ± 0.5°C (for PT sensors)

Conversion time approx. 170ms

Bit width in the input process image 4 x 16bit data, 4 x 8bit status (optional)

Bit width in the output process image 4 x 8bit Control (optional)

Supply voltage for internal electronic via the K-bus

Current consumption from K-bus typically 120mA

Electrical isolation 500V (K-bus/signal voltage)

Special features Broken wire detection

Weight approx. 60g

Dimensions (W x H x D) approx. 15mm x 100mm x 70mm (width aligned:

12mm)

Mounting on 35mm mounting rail conforms to EN 60715

Permissible ambient temperature during operation 0°C ... +55°C

Permissible ambient temperature during storage -25°C ... +85°C

Permissible relative humidity 95%, no condensation

Vibration/shock resistance conforms to EN 60068-2-6 / EN 60068-2-27, see also

Installation instructions for terminals with increased
mechanical load capacity [}15]

EMC immunity/emission conforms to EN 61000-6-2 / EN 61000-6-4

Installation position variable

Protection class IP20

Approvals CE, cULus

KL3214 11Version: 1.2.0

Mounting and wiring

3 Mounting and wiring

3.1 Instructions for ESD protection

NOTE

Destruction of the devices by electrostatic discharge possible!

The devices contain components at risk from electrostatic discharge caused by improper handling.

• Please ensure you are electrostatically discharged and avoid touching the contacts of the device directly.

• Avoid contact with highly insulating materials (synthetic fibers, plastic film etc.).

• Surroundings (working place, packaging and personnel) should by grounded probably, when handling
with the devices.

• Each assembly must be terminated at the right hand end with a KL9010 bus end terminal, to ensure the
protection class and ESD protection.

Fig.3: Spring contacts of the Beckhoff I/O components

3.2 Installation on mounting rails

WARNING

Risk of electric shock and damage of device!

Bring the bus terminal system into a safe, powered down state before starting installation, disassembly or
wiring of the bus terminals!

KL321412 Version: 1.2.0

Assembly

Mounting and wiring

Fig.4: Attaching on mounting rail

The bus coupler and bus terminals are attached to commercially available 35mm mounting rails (DIN rails
according to EN60715) by applying slight pressure:

1. First attach the fieldbus coupler to the mounting rail.

2. The bus terminals are now attached on the right-hand side of the fieldbus coupler. Join the compo­nents with tongue and groove and push the terminals against the mounting rail, until the lock clicks
onto the mounting rail.
If the terminals are clipped onto the mounting rail first and then pushed together without tongue and
groove, the connection will not be operational! When correctly assembled, no significant gap should
be visible between the housings.

Fixing of mounting rails

The locking mechanism of the terminals and couplers extends to the profile of the mounting rail. At
the installation, the locking mechanism of the components must not come into conflict with the fixing
bolts of the mounting rail. To mount the mounting rails with a height of 7.5mm under the terminals
and couplers, you should use flat mounting connections (e.g. countersunk screws or blind rivets).

KL3214 13Version: 1.2.0

Mounting and wiring

Disassembly

Fig.5: Disassembling of terminal

Each terminal is secured by a lock on the mounting rail, which must be released for disassembly:

1. Pull the terminal by its orange-colored lugs approximately 1cm away from the mounting rail. In doing
so for this terminal the mounting rail lock is released automatically and you can pull the terminal out of
the bus terminal block easily without excessive force.

2. Grasp the released terminal with thumb and index finger simultaneous at the upper and lower grooved
housing surfaces and pull the terminal out of the bus terminal block.

Connections within a bus terminal block

The electric connections between the Bus Coupler and the Bus Terminals are automatically realized by
joining the components:

• The six spring contacts of the K-Bus/E-Bus deal with the transfer of the data and the supply of the Bus
Terminal electronics.

• The power contacts deal with the supply for the field electronics and thus represent a supply rail within
the bus terminal block. The power contacts are supplied via terminals on the Bus Coupler (up to 24V)
or for higher voltages via power feed terminals.

Power Contacts

During the design of a bus terminal block, the pin assignment of the individual Bus Terminals must
be taken account of, since some types (e.g. analog Bus Terminals or digital 4-channel Bus Termi­nals) do not or not fully loop through the power contacts. Power Feed Terminals (KL91xx, KL92xx
or EL91xx, EL92xx) interrupt the power contacts and thus represent the start of a new supply rail.

PE power contact

The power contact labeled PE can be used as a protective earth. For safety reasons this contact mates first
when plugging together, and can ground short-circuit currents of up to 125A.

KL321414 Version: 1.2.0

Fig.6: Power contact on left side

Mounting and wiring

NOTE

Possible damage of the device

Note that, for reasons of electromagnetic compatibility, the PE contacts are capacitatively coupled to the
mounting rail. This may lead to incorrect results during insulation testing or to damage on the terminal (e.g.
disruptive discharge to the PE line during insulation testing of a consumer with a nominal voltage of 230V).
For insulation testing, disconnect the PE supply line at the Bus Coupler or the Power Feed Terminal! In or­der to decouple further feed points for testing, these Power Feed Terminals can be released and pulled at
least 10mm from the group of terminals.

WARNING

Risk of electric shock!

The PE power contact must not be used for other potentials!

3.3 Installation instructions for enhanced mechanical load capacity

WARNING

Risk of injury through electric shock and damage to the device!

Bring the Bus Terminal system into a safe, de-energized state before starting mounting, disassembly or
wiring of the Bus Terminals!

Additional checks

The terminals have undergone the following additional tests:

Verification Explanation

Vibration 10 frequency runs in 3 axes

6 Hz < f < 60 Hz displacement 0.35 mm, constant amplitude

60.1Hz<f<500Hz acceleration 5g, constant amplitude

Shocks 1000 shocks in each direction, in 3 axes

25 g, 6 ms

KL3214 15Version: 1.2.0

Mounting and wiring

Additional installation instructions

For terminals with enhanced mechanical load capacity, the following additional installation instructions apply:

• The enhanced mechanical load capacity is valid for all permissible installation positions

• Use a mounting rail according to EN 60715 TH35-15

• Fix the terminal segment on both sides of the mounting rail with a mechanical fixture, e.g. an earth
terminal or reinforced end clamp

• The maximum total extension of the terminal segment (without coupler) is:
64 terminals (12 mm mounting with) or 32 terminals (24 mm mounting with)

• Avoid deformation, twisting, crushing and bending of the mounting rail during edging and installation of
the rail

• The mounting points of the mounting rail must be set at 5 cm intervals

• Use countersunk head screws to fasten the mounting rail

• The free length between the strain relief and the wire connection should be kept as short as possible. A
distance of approx. 10 cm should be maintained to the cable duct.

3.4 Connection

3.4.1 Connection system

WARNING

Risk of electric shock and damage of device!

Bring the bus terminal system into a safe, powered down state before starting installation, disassembly or
wiring of the bus terminals!

Overview

The Bus Terminal system offers different connection options for optimum adaptation to the respective
application:

• The terminals of ELxxxx and KLxxxx series with standard wiring include electronics and connection
level in a single enclosure.

• The terminals of ESxxxx and KSxxxx series feature a pluggable connection level and enable steady
wiring while replacing.

• The High Density Terminals (HD Terminals) include electronics and connection level in a single
enclosure and have advanced packaging density.

Standard wiring (ELxxxx / KLxxxx)

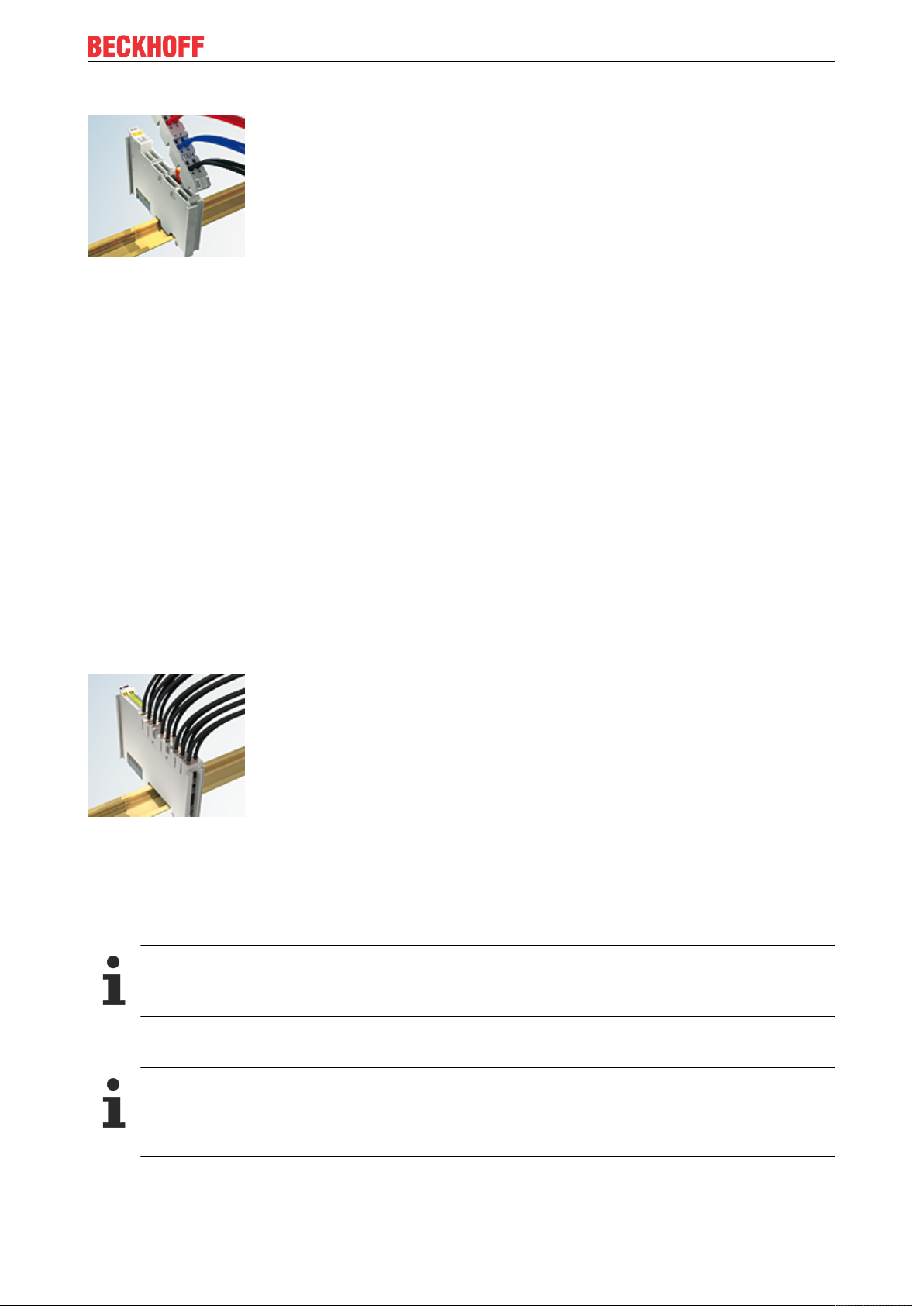

Fig.7: Standard wiring

The terminals of ELxxxx and KLxxxx series have been tried and tested for years.
They feature integrated screwless spring force technology for fast and simple assembly.

KL321416 Version: 1.2.0

Mounting and wiring

Pluggable wiring (ESxxxx / KSxxxx)

Fig.8: Pluggable wiring

The terminals of ESxxxx and KSxxxx series feature a pluggable connection level.
The assembly and wiring procedure is the same as for the ELxxxx and KLxxxx series.
The pluggable connection level enables the complete wiring to be removed as a plug connector from the top
of the housing for servicing.
The lower section can be removed from the terminal block by pulling the unlocking tab.
Insert the new component and plug in the connector with the wiring. This reduces the installation time and
eliminates the risk of wires being mixed up.

The familiar dimensions of the terminal only had to be changed slightly. The new connector adds about 3
mm. The maximum height of the terminal remains unchanged.

A tab for strain relief of the cable simplifies assembly in many applications and prevents tangling of individual
connection wires when the connector is removed.

Conductor cross sections between 0.08mm2 and 2.5mm2 can continue to be used with the proven spring
force technology.

The overview and nomenclature of the product names for ESxxxx and KSxxxx series has been retained as
known from ELxxxx and KLxxxx series.

High Density Terminals (HD Terminals)

Fig.9: High Density Terminals

The Bus Terminals from these series with 16 terminal points are distinguished by a particularly compact
design, as the packaging density is twice as large as that of the standard 12mm Bus Terminals. Massive
conductors and conductors with a wire end sleeve can be inserted directly into the spring loaded terminal
point without tools.

Wiring HD Terminals

The High Density (HD) Terminals of the ELx8xx and KLx8xx series doesn't support pluggable
wiring.

Ultrasonically "bonded" (ultrasonically welded) conductors

Ultrasonically “bonded" conductors

It is also possible to connect the Standard and High Density Terminals with ultrasonically
"bonded" (ultrasonically welded) conductors. In this case, please note the tables concerning the
wire-size width below!

KL3214 17Version: 1.2.0

Mounting and wiring

3.4.2 Wiring

WARNING

Risk of electric shock and damage of device!

Bring the bus terminal system into a safe, powered down state before starting installation, disassembly or
wiring of the Bus Terminals!

Terminals for standard wiring ELxxxx/KLxxxx and for pluggable wiring ESxxxx/KSxxxx

Fig.10: Connecting a cable on a terminal point

Up to eight terminal points enable the connection of solid or finely stranded cables to the Bus Terminal. The
terminal points are implemented in spring force technology. Connect the cables as follows:

1. Open a terminal point by pushing a screwdriver straight against the stop into the square opening
above the terminal point. Do not turn the screwdriver or move it alternately (don't toggle).

2. The wire can now be inserted into the round terminal opening without any force.

3. The terminal point closes automatically when the pressure is released, holding the wire securely and
permanently.

See the following table for the suitable wire size width.

Terminal housing ELxxxx, KLxxxx ESxxxx, KSxxxx

Wire size width (single core wires) 0.08 ... 2.5mm

Wire size width (fine-wire conductors) 0.08 ... 2.5mm

Wire size width (conductors with a wire end sleeve) 0.14 ... 1.5mm

2

2

2

0.08 ... 2.5mm

0,08 ... 2.5mm

0.14 ... 1.5mm

2

2

2

Wire stripping length 8 ... 9mm 9 ... 10mm

High Density Terminals (HD Terminals [}17]) with 16 terminal points

The conductors of the HD Terminals are connected without tools for single-wire conductors using the direct
plug-in technique, i.e. after stripping the wire is simply plugged into the terminal point. The cables are
released, as usual, using the contact release with the aid of a screwdriver. See the following table for the
suitable wire size width.

KL321418 Version: 1.2.0

Terminal housing High Density Housing

Wire size width (single core wires) 0.08 ... 1.5mm

Wire size width (fine-wire conductors) 0.25 ... 1.5mm

Wire size width (conductors with a wire end sleeve) 0.14 ... 0.75mm

Wire size width (ultrasonically “bonded" conductors) only 1.5mm

2

2

2

2

Wire stripping length 8 ... 9mm

3.4.3 Shielding

Shielding

Encoder, analog sensors and actors should always be connected with shielded, twisted paired
wires.

Mounting and wiring

KL3214 19Version: 1.2.0

Mounting and wiring

3.5 Connection and LED displays

Fig.11: KL3214 - terminal points and LEDs

Connection - KL3214

Terminal point No. Comment

+R1 1 Input +R1

RL1 2 Input RL1

+R2 3 Input +R2

RL2 4 Input RL2

+R3 5 Input +R3

RL3 6 Input RL3

+R4 7 Input +R4

RL4 8 Input RL4

-R1 9 Input –R1

n.c. 10 reserved

-R2 11 Input –R2

n.c. 12 reserved

-R3 13 Input -R3

n.c. 14 reserved

-R4 15 Input -R4

n.c. 16 reserved

LED indicators

LED Display Description

Run Green illumi-

nated

Off Watchdog-timer overflow has occurred.

Error red illuminated The respective channel is affected by a short circuit or broken wire.

Off The resistance is in the valid range of the characteristic curve.

Normal operation:

If no process data is transmitted to the bus coupler for 100ms, the green LEDs go out

The resistance is in the invalid range of the characteristic curve.

KL321420 Version: 1.2.0

KS2000 Configuration software

4 KS2000 Configuration software

4.1 KS2000 - Introduction

The KS2000 configuration software permits configuration, commissioning and parameterization of bus
couplers, of the affiliated bus terminals and of Fieldbus Box Modules. The connection between bus coupler/
Fieldbus Box Module and the PC is established by means of the serial configuration cable or the fieldbus.

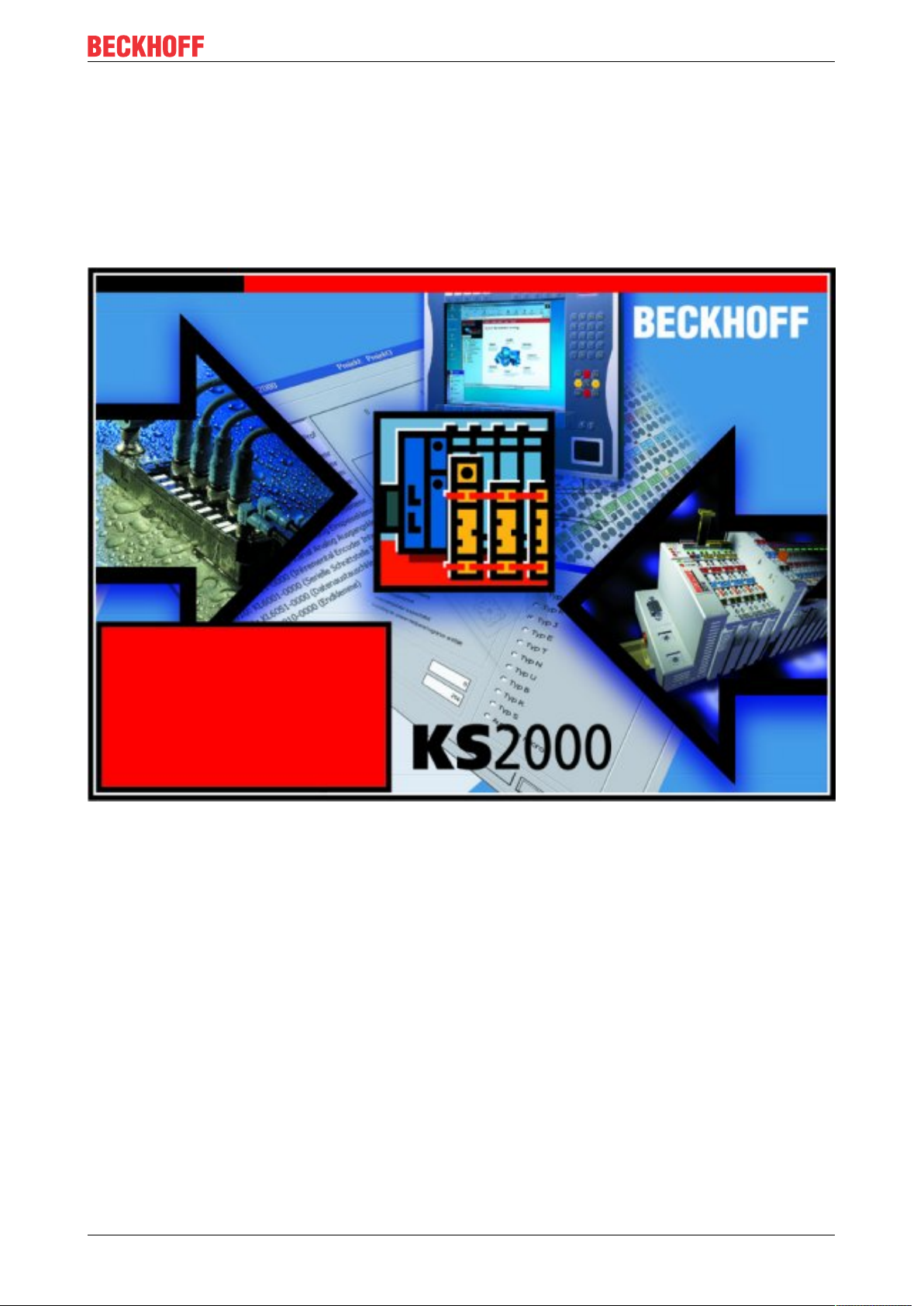

Fig.12: KS2000 configuration software

Configuration

You can configure the Fieldbus stations with the Configuration Software KS2000 offline. That means, setting
up a terminal station with all settings on the couplers and terminals resp. the Fieldbus Box Modules can be
prepared before the commissioning phase. Later on, this configuration can be transferred to the terminal
station in the commissioning phase by means of a download. For documentation purposes, you are provided
with the breakdown of the terminal station, a parts list of modules used and a list of the parameters you have
modified. After an upload, existing fieldbus stations are at your disposal for further editing.

Parameterization

KS2000 offers simple access to the parameters of a fieldbus station: specific high-level dialogs are available
for all bus couplers, all intelligent bus terminals and Fieldbus Box modules with the aid of which settings can
be modified easily. Alternatively, you have full access to all internal registers of the bus couplers and
intelligent terminals. Refer to the register description for the meanings of the registers.

KL3214 21Version: 1.2.0

KS2000 Configuration software

Commissioning

The KS2000 software facilitates commissioning of machine components or their fieldbus stations: Configured
settings can be transferred to the fieldbus modules by means of a download. After a login to the terminal
station, it is possible to define settings in couplers, terminals and Fieldbus Box modules directly online. The
same high-level dialogs and register access are available for this purpose as in the configuration phase.

The KS2000 offers access to the process images of the bus couplers and Fieldbus Box modules.

• Thus, the coupler's input and output images can be observed by monitoring.

• Process values can be specified in the output image for commissioning of the output modules.

All possibilities in the online mode can be used in parallel with the actual fieldbus mode of the terminal
station. The fieldbus protocol always has the higher priority in this case.

4.2 Parameterization with KS2000

Connect the configuration interface of your fieldbus coupler with the serial interface of your PC via the
configuration cable and start the KS2000 configuration software.

Click on the Login button. The configuration software will now load the information for the
connected fieldbus station.

In the example shown, this is

• a BK9000 Bus Coupler for Ethernet

• a KL1xx2 digital input terminal

• a KL3214 multimeter terminal

• a KL9010 bus end terminal

KL321422 Version: 1.2.0

KS2000 Configuration software

Fig.13: Display of the fieldbus station in KS2000

The left-hand KS2000 window displays the terminals of the fieldbus station in a tree structure.
The right-hand KS2000 window contains a graphic display of the fieldbus station terminals.

In the tree structure of the left-hand window, click on the plus-sign next to the terminal whose parameters
you wish to change (item 2 in the example).

Fig.14: KS2000 tree branch for channel 1 of the KL3214

For the KL3214, the branches Register, Settings and ProcData are displayed:

KL3214 23Version: 1.2.0

KS2000 Configuration software

• Register [}24] enables direct access to the KL3214 registers.

• A dialog mask for the parameterization of the KL3214 can be found under Settings [}26].

• ProcData displays the KL3214 process data.

4.3 Register

You can access the registers of the KL3214 directly under Register.– The meaning of the register is
explained in the register overview.

KL321424 Version: 1.2.0

KS2000 Configuration software

Fig.15: Register view in KS2000

KL3214 25Version: 1.2.0

KS2000 Configuration software

4.4 Settings

The dialog mask for the parameterization of the KL3214 can be found under Settings.

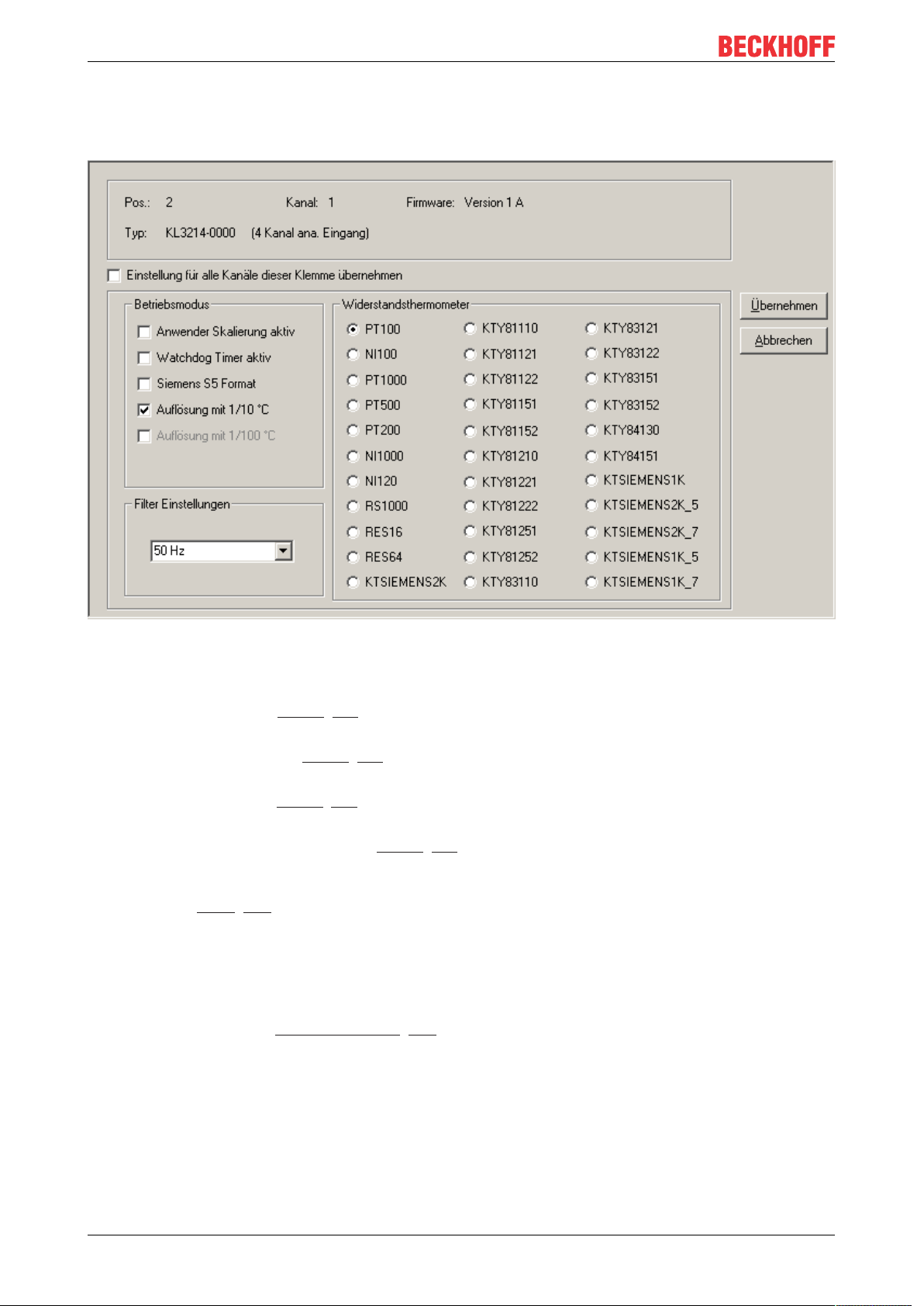

Fig.16: Parameterization with the KS2000 configuration software

Operation mode

• User scaling active (R32.0 [}35])

You can activate user scaling here (default: deactivated).

• Watchdog timer active (R32.2 [}35])

Here you can activate the watchdog timer (default: deactivated).

• Siemens S5 format (R32.4 [}35])

Here you can activate the Siemens S5 format (default: deactivated).

• Resolution of 1/10 °C or 1/100 °C (R32.5 [}35])

Here you can select the resolution (default: 1/10 °C).

Filter settings (R37 [}36])

Here you can set the filter frequency (default: 50 Hz).

Permissible values:
5Hz, 10Hz, 50Hz, 60Hz, 100Hz, 500Hz, 1000Hz, 2000Hz, 3750Hz, 7500Hz, 15000Hz, 30000Hz

Resistance thermometer (R32.15 to R32.8 [}35])

Here you can adapt the channel to the connected thermocouple (default: PT100).

KL321426 Version: 1.2.0

KS2000 Configuration software

4.5 Sample program for KL register communication via EtherCAT on KL3314 exemplary

Using the sample programs

This document contains sample applications of our products for certain areas of application. The
application notes provided here are based on typical features of our products and only serve as ex­amples. The notes contained in this document explicitly do not refer to specific applications. The
customer is therefore responsible for assessing and deciding whether the product is suitable for a
particular application. We accept no responsibility for the completeness and correctness of the
source code contained in this document. We reserve the right to modify the content of this docu­ment at any time and accept no responsibility for errors and missing information.

Program description / function

This example program (TwinCAT 3) provides change of single register values of the KL3314 as selection of
the element type, characteristical settings of the feature register R32 and user scaling offset and gain (R33/
R34) similar as per KS2000.

Fig.17: Settings of KL3314 via visualisation of TwinCAT 3

At least following configuration setup shall be present:

[coupler (e.g. BK1120) or embedded PC] + KL3314 + KL9010.

KL3214 27Version: 1.2.0

KS2000 Configuration software

Download:

https://infosys.beckhoff.com/content/1033/kl3214/Resources/zip/5996114571.zip

Preparations for starting the sample programs (tnzip file / TwinCAT 3)

• Click on the download button to save the Zip archive locally on your hard disk, then unzip the *.tnzip
archive file in a temporary folder.

Fig.18: Opening the *. tnzip archive

• Select the .tnzip file (sample program).

• A further selection window opens. Select the destination directory for storing the project.

• For a description of the general PLC commissioning procedure and starting the program please refer to
the terminal documentation or the EtherCAT system documentation.

• The EtherCAT device of the example should usually be declared your present system. After selection
of the EtherCAT device in the “Solutionexplorer” select the “Adapter” tab and click on “Search...”:

Fig.19: Search of the existing HW configuration for the EtherCAT configuration of the example

• Checking NetId: the "EtherCAT" tab of the EtherCAT device shows the configured NetId:

.
The first 4 numbers have to be identical with the project NetId of the target system. The project NetId
can be viewed within the TwinCAT environment above, where a pull down menu can be opened to
choose a target system (by clicking right in the text field). The number blocks are placed in brackets
there next to each computer name of a target system.

KL321428 Version: 1.2.0

KS2000 Configuration software

• Modify the NetId: By right clicking on "EtherCAT device" within the solution explorer a context menu
opens where "Change NetId..." have to be selected. The first 4 numbers of the NetId of the target
computer have to be entered; the both last values are 4.1 usually.
Example:

◦ NetId of project:myComputer (123.45.67.89.1.1)

◦ Entry via „Change NetId...“:123.45.67.89.4.1

KL3214 29Version: 1.2.0

Access from the user program

5 Access from the user program

Different operating modes or functionalities may be set for the complex terminals. The General Description of
Registers explains those register contents that are the same for all complex terminals.

The terminal-specific registers are explained in the following section.

Access to the internal terminal registers is described in the Register Communication section.

5.1 Control and status bytes

5.1.1 Process data mode

Control byte (for process data mode)

The control byte (CB) is located in the output image, and is transmitted from the controller to the terminal.

Bit CB.7 CB.6 CB.5 CB.4 CB.3 CB.2 CB.1 CB.0

Name RegAccess R/W - - - - - -

Bit Name Description

CB.7 RegAccess 0

CB.6 R/W 0

bin

bin

1

bin

Register communication off (process data mode)

Read access

Write access

CB.5 - reserved

CB.4 - reserved

CB.3 - reserved

CB.2 - reserved

CB.1 - reserved

CB.0 - reserved

Status byte (for process data mode)

The status byte (SB) is located in the input image, and is transmitted from terminal to the controller.

Bit SB.7 SB.6 SB.5 SB.4 SB.3 SB.2 SB.1 SB.0

Name RegAccess Error - - - - overrange underrange

Bit Name Description

SB.7 RegAccess 0

SB.6 Error 1

bin

bin

Process data mode switched on

Measuring range exceeded, overrange or underrange; the Error LED lights
up or conversion error or invalid measuring range

SB.5 - reserved

SB.4 - reserved

SB.3 - reserved

SB.2 - reserved

SB.1 overrange 1

SB.0 underrange 1

bin

bin

Electrical measuring range exceeded

Electrical measuring range undershot

KL321430 Version: 1.2.0

Access from the user program

5.1.2 Register communication

Control byte (for register communication)

The control byte (CB) is located in the output image, and is transmitted from the controller to the terminal.

Bit CB.7 CB.6 CB.5 CB.4 CB.3 CB.2 CB.1 CB.0

Name RegAccess R/W Reg. no.

Bit Name Description

CB.7 RegAccess 1

CB.6 R/W 0

CB.5

Reg. no. Register number:
to
CB.0

bin

bin

1

bin

Enter here the number of the register that you wish

• to read with input data word DataIN, or

• to write with output data word DataOUT.

Status byte (for register communication)

Register communication switched on

Read access

Write access

The status byte (SB) is located in the input image, and is transmitted from terminal to the controller.

Bit SB.7 SB.6 SB.5 SB.4 SB.3 SB.2 SB.1 SB.0

Name RegAccess R/W Reg. no.

Bit Name Description

SB.7 RegAccess 1

SB.6 R 0

SB.5

Reg. no. Number of the register that was read or written.

bin

bin

Acknowledgement for register access

Read access

to
SB.0

KL3214 31Version: 1.2.0

Access from the user program

5.2 Register overview

The registers are used for parametering the Bus Terminals and are available for each channel. They can be
read or written by means of register communication.

Register
no.

R0 [}33]

R1 [}33]

R2 [}33]

R3 [}33]

R4 reserved 0x0000 0

R5 reserved 0x0000 0

R6 Diagnostic register (not used) 0x0000 0

R7 Command register (not used) 0x0000 0

R8 [}33]

R9 Firmware version number 0x3141 1A

R10 Multiplex shift register 0x0230 560

R11 Signal channels 0x0418 1048

R12 Minimum data length 0x0098 152

R13 Data structure 0x0004 4

R14 reserved 0x0000 0

Comment Default value R/W Memory

hex dec

Raw ADC value variable R RAM

ADC raw value RL (of the conductor) variable R RAM

Resistance RTD variable R RAM

Resistance RL variable R RAM

- -

dec

- -

dec

- RAM

dec

R/W RAM

dec

Terminal type 0x0C8E 3214

ASCII

dec

dec

dec

dec

dec

dec

R ROM

R ROM

R ROM

R ROM

R ROM

R ROM

- -

R15 Alignment register variable R/W RAM

R16 Hardware version number 0x0000 00

R17 [}34]

R18 [}34]

Vendor calibration: Offset PT100 specific R SEEROM

Vendor calibration: Gain PT100 specific R SEEROM

R19 reserved 0x0000 0

R20 reserved 0x0000 0

R21 [}34]

R22 [}34]

R23 [}34]

R24 [}34]

Vendor calibration: Offset PT1000 specific R SEEROM

Vendor calibration: Gain PT1000 specific R SEEROM

Vendor calibration: Offset RL specific R SEEROM

Vendor calibration: Gain RL specific R SEEROM

R25 reserved 0x0000 0

ASCII

dec

dec

dec

R SEEROM

- -

- -

- -

… ... ... … ... ...

R28 reserved 0x0000 0

R29 Terminal type, special identification 0x0000 0

R30 reserved 0x0000 0

R31 [}34]

R32 [}35]

R33 [}36]

R34 [}36]

Code word register 0x0000 0

Feature register 0x0040 64

User scaling: Offset 0x0000 0

User scaling: Gain 0x0100 256

R35 reserved 0x0000 0

R36 reserved 0x0000 0

R37 [}36]

R38 [}36]

Filter setting 0x0000 0

Compensation for the line resistance 0x0000 0

R39 reserved 0x0000 0

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

- -

R ROM

- -

R/W RAM

R/W SEEROM

R/W SEEROM

R/W SEEROM

- -

- -

R/W SEEROM

R/W SEEROM

- -

… ... ... … ... ...

R63 reserved 0x0000 0

- -

dec

KL321432 Version: 1.2.0

Access from the user program

5.3 Register description

The following registers are used for parameterization of the KL3214. They can be read or written via the
register communication with the aid of control, status and data bytes.

• R0: ADC raw value RTD
Raw value of the A/D converter (XR). The range is restricted to 16 bits; the three least significant bits
are discarded.

• R1: ADC raw value RL
Raw value of the A/D converter for the line (XRL). The range is restricted to 16 bits; the three least
significant bits are discarded.

• R2: Resistance RTD
Resistance RTD with a resolution of 1/32ohm with PT100 and 1/8ohm with PT1000.

• R3: Resistance RL
Resistance RL with a resolution of 1/32ohm.

• R6: Diagnostic register
The diagnostic register has no function in the KL3214.

• R7: Command register
The command register has no function in the KL3214.

• R8: Terminal description
Register R8 contains the designation of the KL3214 terminal: 0x0C8E (3214

• R9: Firmware version
Register R9 contains the ASCII coding of the terminal's firmware version, e.g. 0x3141 (1A)
corresponds to the ASCII character '1' and '0x41' to the ASCII character 'A'. This value cannot be
changed.

• R10: Data length (multiplex shift register)
R10 contains the number of multiplexed shift registers and their length in bits.

• R11: Signal channels
Unlike R10, this contains the number of channels that are logically present. Thus for example a shift
register that is physically present can perfectly well consist of several signal channels.

• R12: Minimum data length
The particular byte contains the minimum data length for a channel that is to be transferred. If the MSB
is set, the control and status byte is not necessarily required for the terminal function and is not
transferred to the control, if the Bus Coupler is configured accordingly.

• R13: Data structure (data type register)

dec

).

. '0x31'

ASCII

Data type register Meaning

0x00 Terminal with no valid data type

0x01 Byte array

0x02 Structure: 1 byte, n bytes

0x03 Word array

0x04 Structure: 1 byte, n words

0x05 Double word array

0x06 Structure: 1 byte, n double words

0x07 Structure: 1 byte, 1 double word

0x08 Structure: 1 byte, 1 double word

0x11 Byte array with variable logical channel length

0x12 Structure: 1 byte, n bytes with variable logical channel length (e.g. 60xx)

0x13 Word array with variable logical channel length

0x14 Structure: 1 byte, n words with variable logical channel length

0x15 Double word array with variable logical channel length

0x16 Structure: 1 byte, n double words with variable logical channel length

KL3214 33Version: 1.2.0

Access from the user program

• R15: Alignment register
Via the alignment register bits, the Bus Coupler arranges the address range of an analog terminal such
that it starts at a byte boundary.

• R16: Hardware version number
Register R16 contains the hardware revision level of the terminal; this value cannot be changed.

• R17: Vendor calibration - offset PT100
This register contains the vendor calibration offset for PT100.

• R18: Vendor calibration - gain PT100
This register contains the vendor calibration gain for PT100.

• R21: Vendor calibration - offset PT1000
This register contains the vendor calibration offset for PT1000.

• R22: Vendor calibration - gain PT1000
This register contains the vendor calibration gain for PT1000.

• R23: Manufacturer compensation - offset RL
This register contains the vendor calibration offset for RL.

• R24: vendor calibration - gain RL
This register contains the vendor calibration gain for RL.

• R29: Terminal type, special version
Register R29 contains the special designation of the KL3214-0000 terminal: 0x0000 (0000

• R31: Code word register

◦ If you write values into the user registers without first entering the user code word (0x1235) into

the code word register, the terminal will not accept the supplied data.

◦ If you write values into the user registers and have previously entered the user code word

(0x1235) in the code word register, these values are stored in the RAM registers and in the
SEEPROM registers and are therefore retained if the terminal is restarted.

The code word is reset with each restart of the terminal.

dec

).

KL321434 Version: 1.2.0

Access from the user program

• R32: Feature register
The feature register specifies the terminal's configuration. Default: 0x0040 (64

Bit R32.15 R32.14 R32.13 R32.12 R32.11 R32.10 R32.9 R32.8

Name SensorType

Bit R32.7 R32.6 R32.5 R32.4 R32.3 R32.2 R32.1 R32.0

Name ConnectionTechnique en1/100°C enS5format - enWdTimer - enUserScaling

Bit Name Description Default

R32.15
to R32.8

R32.7 to
R32.6

R32.5 Resolution 0

R32.4 enS5format 0

SensorType 0

Connection
technique

1

2

3

4

5

6

7

8
13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

00

01

10

11

1

1

dec

dec

dec

dec

dec

dec

dec

dec

…

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

dec

bin

bin

bin

bin

bin

bin

bin

bin

RTD PT100 0

RTD NI100

RTD PT1000

RTD PT500

RTD PT200

RTD NI1000

RTD NI120

RTD RS1000

reserved

RTD RES16

RTD RES64

RTD KTSIEMENS2K

KTY81110

KTY81121

KTY81122

KTY81151

KTY81152

KTY81210

KTY81221

KTY81222

KTY81251

KTY81252

KTY83110

KTY83121

KTY83122

KTY83151

KTY83152

KTY84130

KTY84151

KTSIEMENS1K

KTSIEMENS2K_5

KTSIEMENS2K_7

KTSIEMENS1K_5

KTSIEMENS1K_7

reserved 01

Three-wire connection technique

reserved

not connected

Resolution 1/10 °C 0

Resolution 1/100°C

Siemens S5 Format disabled 0

Siemens S5 Format enabled

R32.3 - reserved 0

R32.2 enWdTimer 0

bin

1

bin

Watchdog timer is not active 1

Watchdog timer is active (the watchdog is triggered if no process data are
received for 100 ms)

R32.1 - reserved 0

R32.0 enUserScal-

ing

0

bin

1

bin

User scaling deactivated 0

User scaling activated

)

dec

dec

bin

bin

bin

bin

bin

bin

bin

KL3214 35Version: 1.2.0

Access from the user program

• R33: user scaling offset (default: 0x0000)
Here you can specify the offset for the user scaling.

Scaling: 1/10 °C (default) or 1/100 °C, see bit R32.5 of the feature register [}35].
The user scaling must be activated with bit R32.0 of the feature register.

• R34: user scaling gain (default: 0x0100)
Here you can specify the gain for the user scaling.
Scaling: Register value x 2-8. This means that 0x0100 (256

) corresponds to the factor 1.

dec

The user scaling must be activated with bit R32.0 of the feature register.

• R37: Filter settings (default: 0x0000)
0x0000: 50Hz
0x0001: 60Hz
0x0002: 100Hz
0x0003: 500Hz
0x0004: 1000Hz
0x0005: 2000Hz
0x0006: 3750Hz
0x0007: 7500Hz
0x0008: 15000Hz
0x0009: 30000Hz
0x000A: 5Hz
0x000B: 10Hz

• R38: Line resistance calibration (default: 0x0000)
1 ohm corresponds to 32 digits.

Also see about this

2 Register description [}34]

5.4 Examples of Register Communication

The numbering of the bytes in the examples corresponds to the display without word alignment.

5.4.1 Example 1: reading the firmware version from Register 9

Output Data

Byte 0: Control byte Byte 1: DataOUT1, high byte Byte 2: DataOUT1, low byte

0x89 (1000 1001

Explanation:

• Bit 0.7 set means: Register communication switched on.

• Bit 0.6 not set means: reading the register.

• Bits 0.5 to 0.0 specify the register number 9 with 00 1001

• The output data word (byte 1 and byte 2) has no meaning during read access. To change a register,
write the required value into the output word.

) 0xXX 0xXX

bin

.

bin

Input Data (answer of the bus terminal)

Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte

0x89 0x33 0x41

Explanation:

• The terminal returns the value of the control byte as a receipt in the status byte.

• The terminal returns the firmware version 0x3341 in the input data word (byte 1 and byte 2). This is to
be interpreted as an ASCII code:

KL321436 Version: 1.2.0

Access from the user program

◦ ASCII code 0x33 represents the digit 3

◦ ASCII code 0x41 represents the letter A

The firmware version is thus 3A.

5.4.2 Example 2: Writing to an user register

Code word

In normal mode all user registers are read-only with the exception of Register 31. In order to deacti­vate this write protection you must write the code word (0x1235) into Register 31. If a value other
than 0x1235 is written into Register 31, write protection is reactivated. Please note that changes to
a register only become effective after restarting the terminal (power-off/power-on).

I. Write the code word (0x1235) into Register 31.

Output Data

Byte 0: Control byte Byte 1: DataOUT1, high byte Byte 2: DataOUT1, low byte

0xDF (1101 1111

Explanation:

) 0x12 0x35

bin

• Bit 0.7 set means: Register communication switched on.

• Bit 0.6 set means: writing to the register.

• Bits 0.5 to 0.0 specify the register number 31 with 01 1111

.

bin

• The output data word (byte 1 and byte 2) contains the code word (0x1235) for deactivating write
protection.

Input Data (answer of the bus terminal)

Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte

0x9F (1001 1111

) 0xXX 0xXX

bin

Explanation:

• The terminal returns a value as a receipt in the status byte that differs only in bit 0.6 from the value of
the control byte.

• The input data word (byte 1 and byte 2) is of no importance after the write access. Any values still
displayed are invalid!

II. Read Register 31 (check the set code word)

Output Data

Byte 0: Control byte Byte 1: DataOUT1, high byte Byte 2: DataOUT1, low byte

0x9F (1001 1111

) 0xXX 0xXX

bin

Explanation:

• Bit 0.7 set means: Register communication switched on.

• Bit 0.6 not set means: reading the register.

• Bits 0.5 to 0.0 specify the register number 31 with 01 1111

.

bin

• The output data word (byte 1 and byte 2) has no meaning during read access.

Input Data (answer of the bus terminal)

Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte

0x9F (1001 1111

) 0x12 0x35

bin

KL3214 37Version: 1.2.0

Access from the user program

Explanation:

• The terminal returns the value of the control byte as a receipt in the status byte.

• The terminal returns the current value of the code word register in the input data word (byte 1 and byte

2).

III. Write to Register 32 (change contents of the feature register)

Output data

Byte 0: Control byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte

0xE0 (1110 0000

) 0x00 0x02

bin

Explanation:

• Bit 0.7 set means: Register communication switched on.

• Bit 0.6 set means: writing to the register.

• Bits 0.5 to 0.0 indicate register number 32 with 10 0000

.

bin

• The output data word (byte 1 and byte 2) contains the new value for the feature register.

CAUTION

Observe the register description!

The value of 0x0002 given here is just an example!
The bits of the feature register change the properties of the terminal and have a different meaning, depend­ing on the type of terminal. Refer to the description of the feature register of your terminal (chapter Register
description) regarding the meaning of the individual bits before changing the values.

Input data (response from the Bus Terminal)

Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte

0xA0 (1010 0000

Explanation:

• The terminal returns a value as a receipt in the status byte that differs only in bit 0.6 from the value of
the control byte.

• The input data word (byte 1 and byte 2) is of no importance after the write access. Any values still
displayed are invalid!

IV. Read Register 32 (check changed feature register)

Output Data

Byte 0: Control byte Byte 1: DataOUT1, high byte Byte 2: DataOUT1, low byte

0xA0 (1010 0000

) 0xXX 0xXX

bin

) 0xXX 0xXX

bin

Explanation:

• Bit 0.7 set means: Register communication switched on.

• Bit 0.6 not set means: reading the register.

• Bits 0.5 to 0.0 indicate register number 32 with 10 0000

.

bin

• The output data word (byte 1 and byte 2) has no meaning during read access.

Input Data (answer of the bus terminal)

Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte

0xA0 (1010 0000

) 0x00 0x02

bin

Explanation:

KL321438 Version: 1.2.0

Access from the user program

• The terminal returns the value of the control byte as a receipt in the status byte.

• The terminal returns the current value of the feature register in the input data word (byte 1 and byte 2).

V. Write Register 31 (reset code word)

Output Data

Byte 0: Control byte Byte 1: DataOUT1, high byte Byte 2: DataOUT1, low byte

0xDF (1101 1111

) 0x00 0x00

bin

Explanation:

• Bit 0.7 set means: Register communication switched on.

• Bit 0.6 set means: writing to the register.

• Bits 0.5 to 0.0 specify the register number 31 with 01 1111

.

bin

• The output data word (byte 1 and byte 2) contains 0x0000 for reactivating write protection.

Input Data (answer of the bus terminal)

Byte 0: Status byte Byte 1: DataIN1, high byte Byte 2: DataIN1, low byte

0x9F (1001 1111

) 0xXX 0xXX

bin

Explanation:

• The terminal returns a value as a receipt in the status byte that differs only in bit 0.6 from the value of
the control byte.

• The input data word (byte 1 and byte 2) is of no importance after the write access. Any values still
displayed are invalid!

KL3214 39Version: 1.2.0

Access from the user program

5.5 Process image

Complex mapping

The following 12 bytes are transferred bi-directionally between KL3214 and control:

Byte offset (without
word alignment*)

0 0 Byte Status byte 0 (SB0) Control byte 0 (CB0)

1 2 Word DataIN0 DataOUT0

3 4 Byte Status byte 1 (SB1) Control byte 1 (CB1)

4 6 Word DataIN1 DataOUT1

6 8 Byte Status byte 2 (SB2) Control byte 2 (CB2)

7 10 Word DataIN2 DataOUT2

9 12 Byte Status byte 3 (SB3) Control byte 3 (CB3)

10 14 Word DataIN3 DataOUT3

*) Word alignment: The Bus Coupler places values on even byte addresses

Compact mapping

The following 8 bytes are transmitted bidirectionally between KL3414 and controller:

Byte offset (with and without word
alignment*)

0 Word DataIN0 DataOUT0

2 Word DataIN1 DataOUT1

4 Word DataIN2 DataOUT2

6 Word DataIN3 DataOUT3

Byte offset (with
word alignment*)

Format Input data Output data

Format Input data Output data

*) word alignment has no effect with compact mapping

KL321440 Version: 1.2.0

Access from the user program

5.6 Mapping

Each Bus Terminal is mapped in the Bus Coupler. In the delivery state, this mapping occurs with the default
settings of the Bus Coupler for this terminal. The default setting can be changed with the KS2000
configuration software or with a master configuration software (e.g. TwinCAT System Manager or
ComProfibus).

If the terminals are complexly evaluated, they occupy memory space in the input and output process image.

The following tables provide information about the terminal mapping, depending on the conditions set in the
Bus Coupler.

Default mapping for:
Lightbus, EtherCAT, Ethernet and Bus Terminal Controller (BCxxxx, BXxxxx)

Conditions Word offset High byte Low byte

Complex evaluation: yes

Motorola format: no

Word alignment: yes

0 reserved Ch0 CB/SB

1 Ch0 D1 Ch0 D0

2 r reserved Ch1 CB/SB

3 Ch1 D1 Ch1 D0

Conditions Word offset High byte Low byte

Complex evaluation: yes

Motorola format: yes

Word alignment: yes

Key

• Complex evaluation:
The terminal is mapped with control and status byte.

• Motorola format:
Motorola or Intel format can be set.

• Word alignment:
The terminal is at word limit in the Bus Coupler.

• Ch n SB:
status byte for channel n (appears in the input process image).

• Ch n CB:
control byte for channel n (appears in the output process image).

• Ch n D0:
channel n, data byte 0 (byte with the lowest value)

• Ch n D1:
channel n, data byte 1 (byte with the highest value)

• reserved:
This byte occupies process data memory, although it is not used.

• "-":
This byte is not used or occupied by the terminal.

0 reserved Ch0 CB/SB

1 Ch0 D0 Ch0 D1

2 reserved Ch1 CB/SB

3 Ch1 D0 Ch1 D1

Default mapping for:
PROFIBUS, Interbus

Conditions Word offset High byte Low byte

Complex evaluation: no

Motorola format: yes

Word alignment: don't care

KL3214 41Version: 1.2.0

0 Ch0 D0 Ch0 D1

1 Ch1 D0 Ch1 D1

2 Ch2 D0 Ch2 D1

3 Ch3 D0 Ch3 D1

Access from the user program

Conditions Word offset High byte Low byte

Complex evaluation: yes

Motorola format: no

Word alignment: no

Conditions Word offset High byte Low byte

Complex evaluation: yes

Motorola format: yes

Word alignment: no

Default mapping for:
CANopen, CANCAL, DeviceNet, ControlNet, Modbus, RS232, RS485

0 Ch0 D0 Ch0 CB/SB

1 Ch1 CB/SB Ch0 D1

2 Ch1 D1 Ch1 D0

3 Ch2 D0 Ch2 CB/SB

4 Ch3 CB/SB Ch2 D1

5 Ch3 D1 Ch3 D0

0 Ch0 D1 Ch0 CB/SB

1 Ch1 CB/SB Ch0 D0

2 Ch1 D0 Ch1 D1

3 Ch2 D1 Ch2 CB/SB

4 Ch3 CB/SB Ch2 D0

5 Ch3 D0 Ch3 D1

Conditions Word offset High byte Low byte

Complex evaluation: no

Motorola format: no

Word alignment: don't care

0 Ch0 D1 Ch0 D0

1 Ch1 D1 Ch1 D0

2 Ch2 D1 Ch2 D0

3 Ch3 D1 Ch3 D0

KL321442 Version: 1.2.0

Appendix

6 Appendix

6.1 Support and Service

Beckhoff and their partners around the world offer comprehensive support and service, making available fast
and competent assistance with all questions related to Beckhoff products and system solutions.

Beckhoff's branch offices and representatives

Please contact your Beckhoff branch office or representative for local support and service on Beckhoff
products!

The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet
pages:

http://www.beckhoff.com

You will also find further documentation for Beckhoff components there.

Beckhoff Headquarters

Beckhoff Automation GmbH & Co. KG

Huelshorstweg 20
33415 Verl
Germany

Phone: [phone]
Fax: [phone]
e-mail: [e-mail]

Beckhoff Support

Support offers you comprehensive technical assistance, helping you not only with the application of
individual Beckhoff products, but also with other, wide-ranging services:

• support

• design, programming and commissioning of complex automation systems

• and extensive training program for Beckhoff system components

Hotline: [phone]
Fax: [phone]
e-mail: [e-mail]

Beckhoff Service

The Beckhoff Service Center supports you in all matters of after-sales service:

• on-site service

• repair service

• spare parts service

• hotline service

Hotline: [phone]
Fax: [phone]
e-mail: [e-mail]

KL3214 43Version: 1.2.0

List of illustrations

List of illustrations

Fig. 1 BIC as data matrix code (DMC, code scheme ECC200)............................................................. 8

Fig. 2 KL3214-0000 ............................................................................................................................... 10

Fig. 3 Spring contacts of the Beckhoff I/O components......................................................................... 12

Fig. 4 Attaching on mounting rail ........................................................................................................... 13

Fig. 5 Disassembling of terminal............................................................................................................ 14

Fig. 6 Power contact on left side............................................................................................................ 15

Fig. 7 Standard wiring............................................................................................................................ 16

Fig. 8 Pluggable wiring .......................................................................................................................... 17

Fig. 9 High Density Terminals................................................................................................................ 17

Fig. 10 Connecting a cable on a terminal point ....................................................................................... 18

Fig. 11 KL3214 - terminal points and LEDs ............................................................................................ 20

Fig. 12 KS2000 configuration software .................................................................................................... 21

Fig. 13 Display of the fieldbus station in KS2000 .................................................................................... 23

Fig. 14 KS2000 tree branch for channel 1 of the KL3214........................................................................ 23

Fig. 15 Register view in KS2000.............................................................................................................. 25

Fig. 16 Parameterization with the KS2000 configuration software .......................................................... 26

Fig. 17 Settings of KL3314 via visualisation of TwinCAT 3 ..................................................................... 27

Fig. 18 Opening the *. tnzip archive......................................................................................................... 28

Fig. 19 Search of the existing HW configuration for the EtherCAT configuration of the example ........... 28

KL321444 Version: 1.2.0
