Beckhoff EL2911 Operating Instructions Manual

Operating Instructions for

EL2911

TwinSAFE Potential Supply Terminal with 4 digital fail-safe
inputs

Version:
Date:

1.0.0
2018-08-24

Table of contents

Table of contents

1 Foreword ....................................................................................................................................................5

1.1 Notes on the documentation..............................................................................................................5

1.2 Safety instructions .............................................................................................................................6

1.2.1 Delivery state ..................................................................................................................... 6

1.2.2 Operator's obligation to exercise diligence ........................................................................ 6

1.2.3 Description of safety symbols ............................................................................................ 7

1.3 Documentation issue status ..............................................................................................................7

1.4 Version history of the TwinSAFE product..........................................................................................8

2 System description ...................................................................................................................................9

2.1 The Beckhoff EtherCAT Terminal system .........................................................................................9

2.1.1 EtherCAT Bus Coupler .................................................................................................... 10

2.1.2 EtherCAT Terminals ........................................................................................................ 11

2.1.3 E-bus ............................................................................................................................... 11

2.1.4 Power contacts ................................................................................................................ 11

2.2 TwinSAFE........................................................................................................................................12

2.2.1 The I/O construction kit is extended safely ...................................................................... 12

2.2.2 Safety concept ................................................................................................................. 12

2.2.3 The fail-safe principle (Fail Stop) ..................................................................................... 13

3 Product description.................................................................................................................................14

3.1 EL2911 - TwinSAFE potential supply terminal with 4 digital fail-safe inputs ...................................14

3.2 Intended use....................................................................................................................................15

3.3 Requirements for the potential group ..............................................................................................17

3.4 Technical data .................................................................................................................................19

3.5 Safety parameters ...........................................................................................................................20

3.6 Safe inputs and outputs...................................................................................................................20

3.7 Characteristic curve of the inputs ....................................................................................................20

3.8 Dimensions......................................................................................................................................21

4 Operation..................................................................................................................................................22

4.1 Environmental conditions ................................................................................................................22

4.2 Installation .......................................................................................................................................22

4.2.1 Safety instructions ........................................................................................................... 22

4.2.2 Transport / storage .......................................................................................................... 22

4.2.3 Mechanical installation..................................................................................................... 22

4.2.4 Electrical installation ........................................................................................................ 29

4.3 Configuration of the terminal in TwinCAT........................................................................................34

4.3.1 Inserting a Bus Coupler ................................................................................................... 34

4.3.2 Inserting a Bus Terminal.................................................................................................. 34

4.3.3 Adding an EL2911 ........................................................................................................... 34

4.3.4 Using the integrated TwinSAFE Logic functions.............................................................. 35

4.3.5 Address settings on TwinSAFE terminals with 1023 possible addresses ....................... 36

4.3.6 Alias devices.................................................................................................................... 37

4.3.7 EL2911 parameters in TwinCAT...................................................................................... 38

4.3.8 EL2911 process image .................................................................................................... 41

EL2911 3Version: 1.0.0

Table of contents

4.4 TwinSAFE reaction times ................................................................................................................42

4.5 Diagnosis.........................................................................................................................................44

4.5.1 Status LEDs..................................................................................................................... 44

4.5.2 Diagnostic LEDs .............................................................................................................. 44

4.5.3 Flash code display ........................................................................................................... 45

4.5.4 Diagnosis History............................................................................................................. 45

4.5.5 Diag History tab ............................................................................................................... 48

4.6 Maintenance ....................................................................................................................................50

4.7 Service life .......................................................................................................................................51

4.8 Decommissioning ............................................................................................................................51

4.9 Firmware update of TwinSAFE products.........................................................................................52

5 Appendix ..................................................................................................................................................55

5.1 Support and Service ........................................................................................................................55

5.2 Certificates.......................................................................................................................................56

EL29114 Version: 1.0.0

Foreword

1 Foreword

1.1 Notes on the documentation

Intended audience

This description is only intended for the use of trained specialists in control and automation engineering who
are familiar with the applicable national standards.

It is essential that the following notes and explanations are followed when installing and commissioning
these components.

The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.

Origin of the document

This documentation was originally written in German. All other languages are derived from the German
original.

Currentness

Please check whether you are using the current and valid version of this document. The current version can
be downloaded from the Beckhoff homepage at http://www.beckhoff.com/english/download/twinsafe.htm.
In case of doubt, please contact Technical Support [}55].

Product features

Only the product features specified in the current user documentation are valid. Further information given on
the product pages of the Beckhoff homepage, in emails or in other publications is not authoritative.

Disclaimer

The documentation has been prepared with care. The products described are subject to cyclical revision. For
that reason the documentation is not in every case checked for consistency with performance data,
standards or other characteristics. We reserve the right to revise and change the documentation at any time
and without prior announcement. No claims for the modification of products that have already been supplied
may be made on the basis of the data, diagrams and descriptions in this documentation.

Trademarks

Beckhoff®, TwinCAT®, EtherCAT®, EtherCATP®, SafetyoverEtherCAT®, TwinSAFE®, XFC® and XTS® are
registered trademarks of and licensed by Beckhoff Automation GmbH.
Other designations used in this publication may be trademarks whose use by third parties for their own
purposes could violate the rights of the owners.

Patent Pending

The EtherCAT Technology is covered, including but not limited to the following patent applications and
patents: EP1590927, EP1789857, DE102004044764, DE102007017835 with corresponding applications or
registrations in various other countries.

The TwinCAT Technology is covered, including but not limited to the following patent applications and
patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries.

EL2911 5Version: 1.0.0

Foreword

EtherCAT® and Safety over EtherCAT® are registered trademarks and patented technologies, licensed by
Beckhoff Automation GmbH, Germany.

Copyright

© Beckhoff Automation GmbH & Co. KG, Germany.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization are prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a
patent, utility model or design.

Delivery conditions

In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply.

1.2 Safety instructions

1.2.1 Delivery state

All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.

1.2.2 Operator's obligation to exercise diligence

The operator must ensure that

• the TwinSAFE products are only used as intended (see chapter Product description);

• the TwinSAFE products are only operated in sound condition and in working order.

• the TwinSAFE products are operated only by suitably qualified and authorized personnel.

• the personnel is instructed regularly about relevant occupational safety and environmental protection
aspects, and is familiar with the operating instructions and in particular the safety instructions contained
herein.

• the operating instructions are in good condition and complete, and always available for reference at the
location where the TwinSAFE products are used.

• none of the safety and warning notes attached to the TwinSAFE products are removed, and all notes
remain legible.

EL29116 Version: 1.0.0

1.2.3 Description of safety symbols

In these operating instructions the following instructions are used.
These instructions must be read carefully and followed without fail!

DANGER

Serious risk of injury!

Failure to follow this safety instruction directly endangers the life and health of persons.

WARNING

Risk of injury!

Failure to follow this safety instruction endangers the life and health of persons.

CAUTION

Personal injuries!

Failure to follow this safety instruction can lead to injuries to persons.

NOTE

Damage to the environment/equipment or data loss

Failure to follow this instruction can lead to environmental damage, equipment damage or data loss.

Foreword

Tip or pointer

This symbol indicates information that contributes to better understanding.

1.3 Documentation issue status

Version Comment

1.0.0 • Certificate added

• First release

0.0.5 • Overview screen updated

0.0.4 • Connection added

• Parameter description updated

0.0.3 • Requirements for the potential group added

0.0.2 • Update after review

0.0.1 • First draft

EL2911 7Version: 1.0.0

Foreword

1.4 Version history of the TwinSAFE product

This version history lists the software and hardware version numbers. A description of the changes
compared to the previous version is also given.

Updated hardware and software

TwinSAFE products are subject to a cyclical revision. We reserve the right to revise and change the
TwinSAFE products at any time and without prior notice.
No claims for changes to products already delivered can be asserted from these hardware and/or
software changes.

A description of how a firmware (software) update can be performed can be found in chapter Firmware
update of TwinSAFE products [}52].

Date Software ver-

sion

16.08.2018 01 00 First release of the EL2911

Hardware
version

Modifications

EL29118 Version: 1.0.0

System description

2 System description

2.1 The Beckhoff EtherCAT Terminal system

The Beckhoff EtherCAT Terminal system is used for decentralized connection of sensors and actuators to a
controller. The components of the Beckhoff EtherCAT Terminal system are mainly used in industrial
automation and building management systems. As a minimum, a bus station consists of an EtherCAT
Coupler and connected EtherCAT Terminals. The EtherCAT Coupler forms the communication interface to
the higher-level controller, while the EtherCAT Terminals form the interface to the sensors and actuators.
The whole bus station is clipped onto a 35mm DIN mounting rail (EN 60715). The mechanical link of the bus
station is established with a slot and key system on EtherCAT Couplers and EtherCAT Terminals.

The sensors and actuators are connected with the terminals via the screwless (spring-loaded) connection
system.

Fig.1: Slot and key system and screwless (spring-loaded) connection system

EL2911 9Version: 1.0.0

System description

2.1.1 EtherCAT Bus Coupler

Mechanical data Bus Coupler

Material polycarbonate, polyamide (PA6.6).
Dimensions (W x H x D) 44mm x 100mm x 68mm
Mounting on 35 mm mounting rail (EN60715) with locking
Attachable by double slot and key connection

Fig.2: Bus Coupler (EtherCAT)

Connection technology Bus Coupler

Wiring Spring-loaded system
Connection cross-section 0.08mm² ... 2.5mm², stranded wire, solid wire
Fieldbus connection EtherCAT
Power contacts 3 spring contacts
Current load 10A
Nominal voltage 24V

DC

EL291110 Version: 1.0.0

2.1.2 EtherCAT Terminals

Mechanical data Bus Terminal

Material polycarbonate, polyamide (PA6.6).
Dimensions (W x H x D) 12mm x 100mm x 68mm or 24mm x 100mm x 68mm
Mounting on 35 mm mounting rail (EN60715) with locking
Attachable by double slot and key connection

System description

Fig.3: Overview of EtherCAT Terminals

Connection technology Bus Terminal

Wiring Spring-loaded system
Connection cross-section typically 0.08mm² – 2.5mm², stranded wire, solid wire
Communication E-bus
Power contacts Up to 3 blade/spring contacts
Current load 10A
Nominal voltage Depending on terminal type (typically 24 VDC)

2.1.3 E-bus

The E-bus is the data path within a terminal strip. The E-bus is led through from the Bus Coupler through all
the terminals via six contacts on the terminals' side walls.

2.1.4 Power contacts

The operating voltage is passed on to following terminals via three power contacts. Terminal strip can be
split into galvanically isolated groups by means of potential supply terminals as required. The supply
terminals play no part in the control of the terminals, and can be inserted at any locations within the terminal
strip.

EL2911 11Version: 1.0.0

System description

2.2 TwinSAFE

2.2.1 The I/O construction kit is extended safely

The integrated TwinSAFE safety solution is the logical continuation of the open, PC-based Beckhoff control
philosophy. Due to their modularity and versatility, the TwinSAFE components fit seamlessly into the
Beckhoff control system. The I/O components are available in the formats Bus Terminal, EtherCAT Terminal,
EtherCAT plug-in module and EtherCAT Box.

Thanks to the fieldbus-neutral safety protocol (TwinSAFE/Safety-over-EtherCAT), TwinSAFE devices can be
integrated into any fieldbus system. They are integrated into existing networks with K-bus or EtherCAT and
can be used directly in the machine as IP67 modules. These safety I/Os form the interfaces to the safety­relevant sensors and actuators.

The possibility to transmit the safety-relevant signals over a standard bus system gives rise to substantial
advantages in terms of planning, installation, operation, maintenance, diagnostics and costs.

The safety application is configured or programmed respectively in the TwinCAT software. This application is
then transferred via the bus to a TwinSAFE logic component. These form the heart of the TwinSAFE system.
All safety devices in the system communicate with this logic component. Due to the enormous flexibility of
the system, several TwinSAFE logic components can also be operated simultaneously in a network.

2.2.2 Safety concept

TwinSAFE: Safety and I/O technology in one system

• Extension of the familiar Beckhoff I/O system with TwinSAFE Terminals

• Freely selectable mix of safe and standard signals

• Logic link of the I/Os in the TwinSAFE logic component, e.g. EL6910

• Safety-relevant networking of machines via bus systems

TwinSAFE protocol (FSoE / Safety-over-EtherCAT)

• Transfer of safety-relevant data via any media (“genuine black channel”)

• TwinSAFE communication via fieldbus systems such as EtherCAT, Lightbus, PROFIBUS or Ethernet

• IEC 61508:2010 SIL 3 compliant

TwinCAT software and TwinSAFE editor

• Safety application is configured or programmed in the TwinCAT software

• Certified function blocks such as emergency stop, operation mode, etc.

• simple handling

• Transfer of the application via the bus to the TwinSAFE logic component

TwinSAFE logic component, e.g. EL6910

• Processing of the safety-related application and communication with the TwinSAFE terminals

• No safety requirements for higher-level control system

• TwinSAFE enables a network with up to 65,535 TwinSAFE components.

• TwinSAFE logic component can establish up to 512 connections (TwinSAFE connections).

• Several TwinSAFE logic components can be operated in a network

• Suitable for applications up to SIL 3 according to IEC 61508:2010 and category 4 / PL e according to
ENISO13849-1:2015.

EL291112 Version: 1.0.0

System description

TwinSAFE I/O components

• The TwinSAFE I/O components are available in the formats Bus Terminal, EtherCAT Terminal,
EtherCAT plug-in module, EtherCAT Box and TwinSAFE Drive option card

• All common safety sensors and actuators can be connected

• Operation with a TwinSAFE logic component

• Typically meet the requirements of IEC 61508:2010 up to SIL 3 and ENISO13849-1:2015 up to
Category 4, PLe. More detailed information can be found in the respective user documentation

2.2.3 The fail-safe principle (Fail Stop)

The basic rule for a safety system such as TwinSAFE is that failure of a part, a system component or the
overall system must never lead to a dangerous condition.

CAUTION

Safe state

The safe state of the TwinSAFE system is always the switched-off and de-energized state.

EL2911 13Version: 1.0.0

Product description

3 Product description

3.1 EL2911 - TwinSAFE potential supply terminal with 4 digital fail-safe inputs

The EL2911 is a safe potential supply terminal for the power contacts for a downstream potential group. In
addition, it has 4 fail-safe inputs for sensors with potential-free contacts for 24VDC.

The EL2911 meets the requirements of IEC61508:2010SIL3 and ENISO13849-1:2015(Cat4, PLe). The
safe inputs of the EL2911 meet the requirements of EN62061:2005/A2:2015 up to SILCL3, the safe output
up to SILCL2.

The TwinSAFE Terminal has the usual design of a 24mm EtherCAT Terminal. It has no power contacts on
the left side and therefore forms the start of a new potential group.

The safe inputs and the safe output are supplied from UP.

Fig.4: EL2911 - TwinSAFE potential supply terminal with 4 fail-safe inputs

EL291114 Version: 1.0.0

Product description

3.2 Intended use

WARNING

Caution - Risk of injury!

TwinSAFE components may only be used for the purposes described below!

The TwinSAFE Terminals expand the application area of Beckhoff Bus Terminal system with functions that
enable them to be used for machine safety applications. The TwinSAFE Terminals are designed for machine
safety functions and directly associated industrial automation tasks. They are therefore only approved for
applications with a defined fail-safe state. This safe state is the switched-off and de-energized state. Fail­safety according to the relevant standards is required.

The TwinSAFE I/O components allow the connection of:

• 24VDC sensors such as
emergency stop push-buttons, rope pull switches, position switches, two-hand switches, safety
switching mats, light curtains, light barriers, laser scanners, etc.

• 24VDC actuators such as
contactors, protective door switches with tumbler, signal lamps, servo drives, etc.

Test pulses

When selecting actuators please ensure that the test pulses of the TwinSAFE component do not
lead to switching of the actuator or a diagnostic message of the TwinSAFE component.

The following TwinSAFE components were developed for these tasks:

• The EL1904 is an EtherCAT Terminal with 4 digital fail-safe inputs

• The EL2904 is an EtherCAT Terminal with 4 digital fail-safe outputs

• The EL6900 is an EtherCAT Terminal with integrated TwinSAFE logic

These TwinSAFE components are suitable for operation on the

• Beckhoff EKxxxx series Bus Couplers

• Beckhoff CXxxxx series Embedded PCs with E-bus connection

WARNING

The fail-safe principle!

The basic rule for a safety system such as TwinSAFE is that failure of a part, a system component or the
overall system must never lead to a dangerous condition. The safe state is always the switched off and

wattless state.

WARNING

System limits

The TÜV SÜD certificate applies to these TwinSAFE components, the function blocks available in it, the
documentation and the engineering tool. TwinCAT 3.1 and the TwinSAFE Loader are permitted as engi­neering tools. Any deviations from these procedures or tools, particularly externally generated xml files for
TwinSAFE import or externally generated automatic project creation procedures, are not covered by the
certificate.

WARNING

Power supply from SELV/PELV power supply unit!

The TwinSAFE components must be supplied with 24VDC by an SELV/PELV power supply unit with an out­put voltage limit U

of 36VDC. Failure to observe this can result in a loss of safety.

max

WARNING

Commissioning test

Before the EL2911 can be used for the safety task, the user must carry out a commissioning test so that
sensor and actuator wiring errors can be ruled out.

EL2911 15Version: 1.0.0

Product description

CAUTION

Follow the machinery directive!

The TwinSAFE components may only be used in machines as defined in the machinery directive.

CAUTION

Ensure traceability!

The buyer has to ensure the traceability of the device via the serial number.

CAUTION

Note on approval according to EN 81-20, EN 81-22 and EN 81-50

• The TwinSAFE components may only be used in machines that have been designed and installed in ac­cordance with the requirements of the EN60204-1 standard.

• Provide a surge filter for the supply voltage of the TwinSAFE components against overvoltages. (Reduc­tion to overvoltage category II)

• EN81 requires that in the case of devices with internal temperature monitoring, a stop must be reached
in the event of an overtemperature. In this case, passengers must be able to disembark (see EN81-20
chapter 5.10.4.3, for example). To ensure this, application measures are necessary. The internal termi­nal temperature of the TwinSAFE components can be read out by the user. There is a direct switch-off at
the maximum permissible temperature of e.g. 95°C when using the EL terminals.
The user must select a temperature threshold below the maximum temperature such that a stop can be
reached in all cases before the maximum temperature is reached. Information on the optimum terminal
configuration can be found under Notes on the arrangement of TwinSAFE components and under Exam­ple configuration for temperature measurement.

• For the use of the TwinSAFE components according to EN81-22 and EN81-50, the conditions de­scribed in the manuals for achieving category4 according to ENISO13849-1:2015 must be observed.

• The use of TwinSAFE components is limited to indoor applications.

• Basic protection against direct contact must be provided, either by fulfilling protection class IP2X or by
installing the TwinSAFE components in a control cabinet which corresponds at least to protection class
IP54 according to EN60529.

• The ambient conditions regarding temperature, humidity, heat dissipation, EMC and vibrations, as speci­fied in the operating instructions under technical data, must be observed.

• The operating conditions in potentially explosive atmospheres (ATEX) are specified in the operating in­structions.

• The safe state (triggering) of the application must be the de-energized state. The safe state of the Twin­SAFE components is always the de-energized, switched-off state, and this cannot be changed.

• The service life specified in the operating instructions must be observed.

• If the TwinSAFE component is operated outside the permissible temperature range, it changes to
"Global Shutdown" state.

• The TwinSAFE components must be installed in a control cabinet with protection class IP54 according to
EN60529, so that the requirement for contamination level3 according to EN60664-1 can be reduced to
level2.

• The TwinSAFE components must be supplied by a SELV/PELV power supply unit with a maximum volt­age of U

<=36VDC.

max

EL291116 Version: 1.0.0

Product description

3.3 Requirements for the potential group

WARNING

Prevention of feedback

Feedback must be prevented through the following measures:

• No switching of loads with a separate power supply

• Excluding a line short-circuit fault (see following alternatives)

CAUTION

Non-reactive EtherCAT Terminals

In the potential group connected through the EL2911, only non-reactive standard terminals must be used. A
list the non-reactive EtherCAT Terminals can be found in the Beckhoff Information System under http://in-

fosys.beckhoff.de

NOTE

Maximum achievable safety level for the safe output

Provided feedback is avoided by excluding line short-circuit faults, the following safety levels can be
achieved:

• EN ISO 13849-1: max. Cat. 4 / PL e

• IEC 61508: max. SIL3

• EN 62061: max. SIL2

No switching of loads with a separate power supply

Loads that have their own power supply must not be switched by standard terminals, since in this case
feedback via the load cannot be ruled out.

Fig.5: External load

EL2911 17Version: 1.0.0

Product description

CAUTION

Exceptions

Exceptions to the general requirement are allowed only if the manufacturer of the connected load guaran­tees that feedback to the control input cannot occur.

Cable short-circuit fault exclusion

It must be possible to avoid the risk of feedback due to a short circuit in the line through further measures.
The following measures can be implemented as an alternative.

Fig.6: protected wiring

Alternative 1: Load connection via separate sheathed cables

The non-safely switched potential of the standard terminal may not be conducted together with other
potential-conducting cores inside the same sheathed cable

Alternative 2: Wiring only inside the control cabinet

All loads connected to the non-safe standard terminals must be located in the same control cabinet as the
terminals. The cables are routed entirely inside the control cabinet.

Alternative 3: Dedicated earth connection per conductor

All conductors connected to the non-safe standard terminals are protected by a separate ground connection.

Alternative 4: Permanent (fixed) wiring, protected from external damage

All conductors connected to the non-safe standard terminals are permanently installed and protected from
external damage, e.g. through a cable duct or an armored conduit.

CAUTION

Fault exclusion

The machine manufacturer or the user is solely responsible for the correct execution and evaluation of the
applied alternatives.

EL291118 Version: 1.0.0

Product description

3.4 Technical data

Product designation EL2911-0000

Number of inputs 4
Number of outputs 1 (for the power and spring force contacts)
Status display 10 (one green LED for each input and output + 5 DIAG LEDs)
Reaction time (read input/write to E-bus) typically: 4ms,

Fault response time ≤ watchdog time
Cable length between sensor and terminal unshielded max. 100m (0.75 or 1mm²)

Output current of the clock outputs typically 10mA, max. 12mA
Safe output max. 10 A (for the power and spring force contacts)

Input process image 6byte
Output process image 6byte
EL2911 supply voltage (PELV) 24VDC (–15%/+20%)
Signal voltage "0" inputs

Signal voltage "1" inputs

Current consumption of the module electronics at 24V (with­out current consumption of sensors)

Current consumption via E-bus 5 channels occupied: approx. 180mA
Power dissipation of the terminal typically 2.7W (at 10A output current)
Electrical isolation (between the channels) No
Electrical isolation (between the channels and the E-bus) Yes
Insulation voltage (between the channels and the E-bus, un-

der common operating conditions)
Dimensions (WxHxD) 24 mm x 100 mm x 68 mm
Weight app.98g
Permissible ambient temperature (operation)

Permissible ambient temperature (transport/storage) -40°C to +85°C
Permissible air humidity 5% to 95%, non-condensing
Permissible air pressure (operation/storage/transport) 750hPa to 1100hPa

Climate category according to EN60721-3-3 3K3

Permissible level of contamination
according to EN 60664-1

Inadmissible operating conditions TwinSAFE Terminals must not be used under the following operating

EMC immunity/emission conforms to EN61000-6-2/ EN61000-6-4
Vibration/shock resistance conforms to EN60068-2-6/ EN60068-2-27
Shocks 15g with pulse duration 11ms in all three axes
Protection class IP20
Permitted operating environment In the control cabinet or terminal box, with minimum protection class

correct installation position horizontal

Approvals CE, TÜV SÜD

maximally: see error reaction time

shielded max. 100m (0.75 or 1mm²)

Diagnosis:
In switched-off state, external feeds are detected above 5 V.

-3V ... 5V (EN61131-2, type 3) see chapter Characteristic curve of the

inputs [}20]
11V ... 30 V (EN61131-2, type 3) see chapter Characteristic curve of the

inputs [}20]

5 channels occupied: typically 29mA
0 channels occupied: typically 5mA

insulation tested with 500V

-25°C to +55°C (see chapter on Temperature measurement [}24])

(this corresponds to an altitude of approx. -690m to 2450m above sea
level, assuming an international standard atmosphere)

(the deviation from 3K3 is possible only with optimal environmental con­ditions and also applies only to the technical data which are specified dif­ferently in this documentation)

level of contamination 2
(note chapter Maintenance [}50])

conditions:

• under the influence of ionizing radiation (exceeding the natural
background radiation)

• in corrosive environments

• in an environment that leads to unacceptable contamination of
the TwinSAFE component

IP54 according to IEC60529

(see chapter Installation position and minimum distances [}23])

DC

EL2911 19Version: 1.0.0

Product description

3.5 Safety parameters

Characteristic numbers EL2911-0000

Lifetime [a] 20
Prooftest Interval [a] not required
PFH

D

PFD 5.00 E-05
MTTF

D

DC high
Performance level PL e
Category 4
HFT 1
Element classification

1. Special proof tests are not required during the entire service life of the EL2911 EtherCAT Terminal.

2. Classification according to IEC 61508-2:2010 (chapter 7.4.4.1.2 and 7.4.4.1.3)

The EL2911 EtherCAT Terminal can be used for safety-related applications within the meaning of
IEC61508:2010 up to SIL3 and ENISO13849-1:2015 up to PL e (Cat4).

2

4.50 E-09

high

Type B

1

Further information on calculating or estimating the MTTFD value from the PFHD value can be found in the
TwinSAFE application manual or in ENISO13849-1:2015, TableK.1.

In terms of safety-related parameters, the Safety-over-EtherCAT communication is already considered with
1% of SIL3 according to the protocol specification.

3.6 Safe inputs and outputs

The safe inputs and corresponding clock outputs are consolidated in a module. This has the advantage that
a two-channel safe sensor can be used on any of the EL2911 channels, and a fault such as cross-circuit or
external feed results in shutdown of the whole module.

The safe output module has a single-channel design.

NOTE

Clocked signals inside a sheathed cable

The clocked signals (clock outputs for the safe inputs) can be used in any way that may be required within
a sheathed cable, since faults such as cross-circuit or external feed result in shutdown of the whole input
module.

NOTE

Safe inputs in Cat.4 / PL e

If two safe input channels in category 4 structure are to be used, any of the EL2911 channels can be used.

3.7 Characteristic curve of the inputs

The characteristic curve of the inputs is similar to type 3 according to EN 61131-2.

EL291120 Version: 1.0.0

Product description

Fig.7: Characteristic curve of the inputs

3.8 Dimensions

Fig.8: EL2911 dimensions

Width: 24mm (side-by-side installation)
Height: 100mm
Depth: 68mm

EL2911 21Version: 1.0.0

Operation

4 Operation

4.1 Environmental conditions

Please ensure that the TwinSAFE components are only transported, stored and operated under the specified
conditions (see technical data)!

WARNING

Risk of injury!

The TwinSAFE components must not be used under the following operating conditions.

• under the influence of ionizing radiation (that exceeds the level of the natural environmental radiation)

• in corrosive environments

• in an environment that leads to unacceptable soiling of the TwinSAFE component

NOTE

Electromagnetic compatibility

The TwinSAFE components comply with the current standards on electromagnetic compatibility with regard
to spurious radiation and immunity to interference in particular.
However, in cases where devices such as mobile phones, radio equipment, transmitters or high-frequency
systems that exceed the interference emissions limits specified in the standards are operated near Twin­SAFE components, the function of the TwinSAFE components may be impaired.

4.2 Installation

4.2.1 Safety instructions

Before installing and commissioning the TwinSAFE components please read the safety instructions in the
foreword of this documentation.

4.2.2 Transport / storage

Use the original packaging in which the components were delivered for transporting and storing the
TwinSAFE components.

CAUTION

Note the specified environmental conditions

Please ensure that the digital TwinSAFE components are only transported and stored under the specified
environmental conditions (see technical data).

4.2.3 Mechanical installation

DANGER

Risk of injury!

Bring the bus system into a safe, de-energized state before starting installation, disassembly or wiring of
the devices!

EL291122 Version: 1.0.0

4.2.3.1 Instructions for ESD protection

NOTE

Devices can be destroyed by electrostatic charging!

The devices contain electrostatically sensitive components which can be damaged by im­proper handling.

• Please ensure you are electrostatically discharged when handling the components; also
avoid touching the spring contacts directly (see illustration).

• Avoid contact with highly insulating materials (synthetic fibers, plastic films etc.)

• When handling the components, ensure good grounding of the environment (workplace,
packaging and persons)

• Each bus station must be terminated on the right side with the EL9011 or EL9012 end cap
to ensure the protection class and ESD protection.

Operation

Fig.9: Spring contacts of Beckhoff I/O components

4.2.3.2 Control cabinet / terminal box

The TwinSAFE terminals must be installed in a control cabinet or terminal box with IP54 protection class
according to IEC60529 as a minimum.

4.2.3.3 Installation position and minimum distances

For the prescribed installation position the mounting rail is installed horizontally and the mating surfaces of
the EL/KL terminals point toward the front (see illustration below). The terminals are ventilated from below,
which enables optimum cooling of the electronics through convection. The direction indication “down”
corresponds to the direction of positive acceleration due to gravity.

EL2911 23Version: 1.0.0

Operation

Fig.10: Installation position and minimum distances

In order to ensure optimum convection cooling, the distances to neighboring devices and to control cabinet
walls must not be smaller than those shown in the diagram.

4.2.3.4 Temperature measurement

The temperature measurement consists of an EK1100 EtherCAT Coupler, to which EtherCAT Terminals are
attached, based on the typical distribution of digital and analog signal types at a machine. On the EL6910 a
safety project is active, which reads safe inputs and enables safe outputs during the measurement.

NOTE

External heat sources / radiant heat / impaired convection

The maximum permissible ambient temperature of 55°C was checked with the example configuration de­scribed above. Impaired convection, an unfavorable location near heat sources or an unfavorable configu­ration of the EtherCAT Terminals may result in overheating of the TwinSAFE components.

The key parameter is always the maximum permitted internally measured temperature of 110°C, above
which the TwinSAFE components switch to safe state and report an error. The internal temperature can be
read from the TwinSAFE components via CoE.

EL291124 Version: 1.0.0

Operation

4.2.3.5 Notes on the arrangement of TwinSAFE components

The following notes show favorable and unfavorable arrangement of the terminals in relation to thermal

aspects. Components with higher waste heat are marked with a red symbol and components with low

waste heat with a blue symbol .

EtherCAT coupler EK11xx and power supply terminal EL9410

The more terminals are connected behind an EtherCAT coupler or a power supply terminal, the higher is the
E-Bus current, which must be supplied by their power supply units. As the current increases, the waste heat
of the power supply units is also increased..

EL69x0

The EL69x0 has a rather high waste heat because it has a high internal clock and high logic power.

EL2904

The EL2904 has a rather high waste heat, due to the possibly high output current of the connected
actuators.

EL1904

Even the EL1904 has a rather high waste heat, although the external load by clock outputs and safe inputs is
rather low.

EL2911 25Version: 1.0.0

Operation

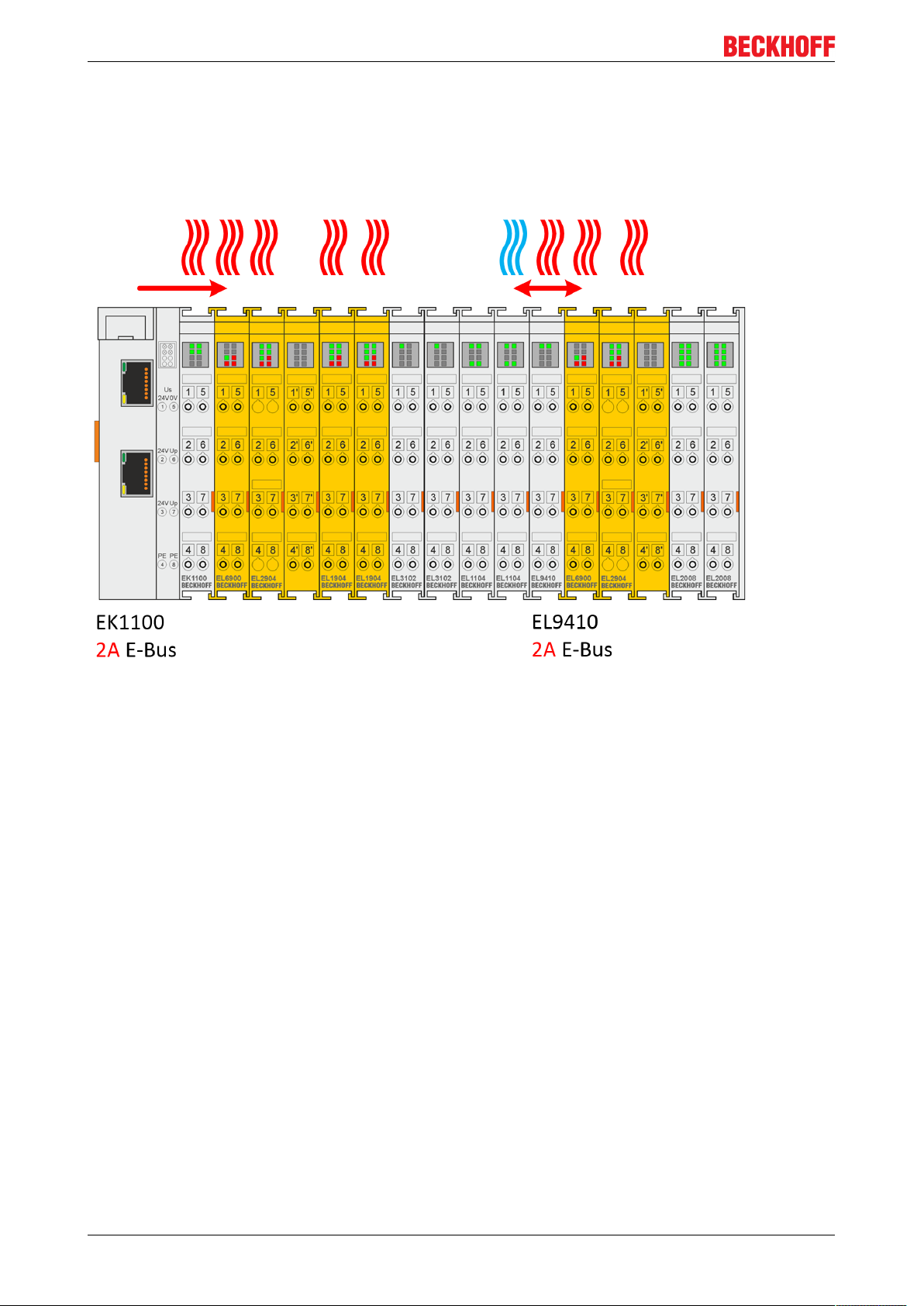

Thermally unfavorable arrangement of the TwinSAFE terminals

The following structure is rather unfavorable, since terminals with rather high waste heat are connected
directly to couplers or power supply terminals with high E-Bus load. The additional external heating of the
TwinSAFE terminals by the adjacent power supply units increases the internal terminal temperature, which
can lead to the maximum permissible temperature being exceeded. This leads to a diagnosis message
"overtemperature”.

Fig.11: Thermally unfavorable arrangement of the TwinSAFE terminals

EL291126 Version: 1.0.0

Operation

Thermally favorable arrangement of the TwinSAFE terminals

The following structure is thermally favorable, since between the coupler / power supply terminal and
terminals with rather high waste heat, terminals with low current consumption and thus rather low waste heat
are placed.

Fig.12: Thermally favorable arrangement of the TwinSAFE terminals

4.2.3.6 Installation on mounting rails

WARNING

Risk of electric shock and damage of device!

Bring the bus terminal system into a safe, powered down state before starting installation, disassembly or
wiring of the Bus Terminals!

Mounting

The Bus Couplers and Bus Terminals are attached to commercially available 35mm mounting rails
(according to EN60715) by applying slight pressure:

EL2911 27Version: 1.0.0

Operation

Fig.13: Installation on the mounting rail

1. First attach the Fieldbus Coupler to the mounting rail.

2. The Bus Terminals are now attached on the right-hand side of the fieldbus Coupler. Join the compo­nents with slot and key and push the terminals against the mounting rail, until the lock clicks onto the
mounting rail.
If the terminals are clipped onto the mounting rail first and then pushed together without slot and key,
the connection will not be operational! When correctly assembled, no significant gap should be visible
between the housings.

Fastening of mounting rails

The locking mechanism of the terminals and couplers protrudes into the profile of the mounting rail.
When installing the components, make sure that the locking mechanism doesn't come into conflict
with the fixing bolts of the mounting rail. For fastening mounting rails with a height of 7.5 mm under
the terminals and couplers, use flat fastening components such as countersunk head screws or
blind rivets.

Removal

Fig.14: Removal of mounting rails

EL291128 Version: 1.0.0

Operation

1. Carefully pull the orange-colored lugs approximately 1 cm out of the disassembled terminal, until they
protrude loosely. The lock with the mounting rail is now released for this terminal, and the terminal can
be pulled from the mounting rail without excessive force.

2. Grasp the released terminal with thumb and index finger simultaneous at the upper and lower grooved
housing surfaces and pull the terminal away from the mounting rail.

4.2.4 Electrical installation

4.2.4.1 Connections within a Bus Terminal block

The electric connections between the Bus Coupler and the Bus Terminals are automatically realized by
joining the components:

Spring contacts (E-bus)

The six spring contacts of the E-bus deal with the transfer of the data and the supply of the Bus Terminal
electronics.

NOTE

Observe the E-bus current

Observe the maximum current that your Bus Coupler can supply to the E-bus! Use the EL9410 Power Sup­ply Terminal if the current consumption of your terminals exceeds the maximum current that your Bus Cou­pler can feed to the E-bus supply.

Power contacts

The power contacts deal with the supply for the field electronics and thus represent a supply rail within the
Bus Terminal block. The power contacts are supplied via terminals on the Bus Coupler.

Note the connection of the power contacts

During the design of a Bus Terminal block, the pin assignment of the individual Bus Terminals must
be taken account of, since some types (e.g. analog Bus Terminals or digital 4-channel Bus Termi­nals) do not or not fully loop through the power contacts.
Potential supply terminals (EL91xx, EL92xx) interrupt the power contacts and thus represent the
start of a new supply rail.

PE power contact

The power contact labelled PE can be used as a protective earth. For safety reasons this contact mates first
when plugging together, and can ground short-circuit currents of up to 125A.

EL2911 29Version: 1.0.0

Operation

Fig.15: PE power contact

CAUTION

Insulation tests

Note that, for reasons of electromagnetic compatibility, the PE contacts are capacitatively coupled to the
mounting rail. This may lead to incorrect results during insulation testing or to damage on the terminal (e.g.
disruptive discharge to the PE line during insulation testing of a consumer with a rated voltage of 230V).
For insulation testing, disconnect the PE supply line at the Bus Coupler or the Potential Supply Terminal! In
order to decouple further feed points for testing, these Power Feed Terminals can be released and pulled at
least 10mm from the group of terminals.

DANGER

Serious risk of injury!

The PE power contact must not be used for other potentials!

4.2.4.2 Overvoltage protection

If protection against overvoltage is necessary in your plant, provide a surge filter for the voltage supply to the
Bus Terminal blocks and the TwinSAFE terminals.

EL291130 Version: 1.0.0

4.2.4.3 Wiring

Operation

Fig.16: Connection of a cable to a terminal point

Up to eight terminal points enable the connection of solid or finely stranded cables to the Bus Terminal. The
terminal points are implemented in spring force technology. Connect the cables as follows:

1. Open a terminal point by pushing a screwdriver straight against the stop into the square opening
above the terminal point. Do not turn the screwdriver or move it alternately (don't toggle).

2. The wire can now be inserted into the round terminal opening without any force.

3. The terminal closes automatically when the pressure is released, holding the wire safely and perma­nently.

See the following table for the suitable wire size width.

Wire size width (single core wires) 0.08 ... 2.5mm
Wire size width (fine-wire conductors) 0.08 ... 2.5mm
Wire size width (conductors with a wire end sleeve) 0.14 ... 1.5mm

2

2

2

Wire stripping length 8 ... 9mm

EL2911 31Version: 1.0.0

Operation

4.2.4.4 EL2911 pin assignment

Fig.17: EL2911 - pin assignment

Terminal point Input / Out-

Signal

put

1 In1 Input 1+ (clock output)
2 Input 1- (safe input)
3 In3 Input 3+ (clock output)
4 Input 3- (safe input)
5 In2 Input 2+ (clock output)
6 Input 2- (safe input)
7 In4 Input 4+ (clock output)
8 Input 4- (safe input)
1‘ - not used
2‘ Out1 Safe output 1
3‘ - GND UP (0VDC for power supply and safe output)
4‘ - 24 VDC power supply U

P

5‘ - not used
6‘ Out1 Safe output 1
7‘ - GND UP (0VDC for power supply and safe output)
8‘ - 24 VDC power supply U
Power contact

Out1 Safe output 1

P

(top)
Power contact

- GND UP (0VDC for power supply and safe output)

(low)

EL291132 Version: 1.0.0

4.2.4.5 Signal cables

Cable routing

Fig.18: Cable routing

Operation

NOTE

Route the signal cable separately

The signal cable must be routed separately from potential sources of interference, such as motor supply ca­bles, 230 VAC power cables etc.!
Interference caused by cables routed in parallel can influence the signal form of the test pulses and thus
cause diagnostic messages (e.g. sensor errors or OpenLoad errors).
D: Distance between the cable ducts should be as large as possible
blue arrows: signal line
red arrows: potential source of interference

The common routing of signals together with other clocked signals in a common cable also reduces the
maximum propagation, since crosstalk of the signals can occur over long cable lengths and cause diagnostic
messages.

EL2911 33Version: 1.0.0

Operation

4.3 Configuration of the terminal in TwinCAT

CAUTION

Do not change CoE objects!

Do not change any of the CoE objects in the TwinSAFE terminals. Any modifications (e.g. via TwinCAT) of
the CoE objects will permanently set the terminals to the Fail-Stop state or lead to unexpected behavior of
the terminals!

4.3.1 Inserting a Bus Coupler

See TwinCAT automation software documentation.

4.3.2 Inserting a Bus Terminal

See TwinCAT automation software documentation.

4.3.3 Adding an EL2911

An EL2911 is added in exactly the same way as any other Beckhoff EtherCAT Terminal. Open TwinSAFE
Terminals item in the list and select the EL2911.

Fig.19: Adding an EL2911

EL291134 Version: 1.0.0

Operation

4.3.4 Using the integrated TwinSAFE Logic functions

On delivery, the EL2911 behaves like a safe TwinSAFE I/O slave, which can be used as an alias device
within a TwinSAFE Logic, e.g. EL6910.

Alternatively, the local logic function of the EP2911 can be used. To this end please create a TwinSAFE
project in the Safety Editor and select the EL2911 as the target system. Further information on creating a

project can be found in the EL6910 documentation and the description of the function blocks under http://
www.beckhoff.de/german/download/twinsafe.htm.

In order to be able to use the EP2911 again as a safe TwinSAFE I/O slave, please delete the logic, the
mapping and the parameter data on the EtherCAT Terminal and switch the voltage off and on again.

Fig.20: Delete project data

EL2911 35Version: 1.0.0

Operation

4.3.5 Address settings on TwinSAFE terminals with 1023 possible addresses

Fig.21: Address settings on TwinSAFE terminals with 1023 possible addresses

The TwinSAFE address of the terminal is set via the 10-way DIP switch on the left-hand side of the
TwinSAFE terminal. TwinSAFE addresses between 1 and 1023 are available.

DIP switch Address

1 2 3 4 5 6 7 8 9 10
ON OFF OFF OFF OFF OFF OFF OFF OFF OFF 1
OFF ON OFF OFF OFF OFF OFF OFF OFF OFF 2
ON ON OFF OFF OFF OFF OFF OFF OFF OFF 3
OFF OFF ON OFF OFF OFF OFF OFF OFF OFF 4
ON OFF ON OFF OFF OFF OFF OFF OFF OFF 5
OFF ON ON OFF OFF OFF OFF OFF OFF OFF 6
ON ON ON OFF OFF OFF OFF OFF OFF OFF 7

... ... ... ... ... ... ... ... ... ... ...

ON ON ON ON ON ON ON ON ON ON 1023

WARNING

TwinSAFE address

Each TwinSAFE address may only be used once within a network/ a configuration!
The address 0 is not a valid TwinSAFE address!

EL291136 Version: 1.0.0

Operation

4.3.6 Alias devices

The communication between the safety logic and the I/O level is realized via an alias level. At this alias level
(subnode Alias Devices) corresponding alias devices are created for all safe inputs and outputs, and also for
standard signal types. For the safe inputs and outputs, this can be done automatically via the I/O
configuration.

The connection- and device-specific parameters are set via the alias devices.

Fig.22: Starting the automatic import from the I/O configuration

If the automatic import is started from the I/O configuration, a selection dialog opens, in which the individual
terminals to be imported can be selected.

Fig.23: Selection from the I/O tree

The alias devices are created in the safety project when the dialog is closed via OK.

Alternatively, the user can create the alias devices individually. To this end select Add and New item from
the context menu, followed by the required device.

EL2911 37Version: 1.0.0

Operation

Fig.24: Creating alias devices by the user

4.3.7 EL2911 parameters in TwinCAT

After creating the alias device, it can be parameterized according to the user specifications. The FSoE
address is set under the Linking tab, and the link to the physical device is created.

Fig.25: Linking tab of the alias device

Under the Connection tab you can make further settings, e.g. the mapping of the info data or the behavior in
case of a module error.

EL291138 Version: 1.0.0

Operation

Fig.26: Connection tab of the alias device

The Safety Parameters tab contains the parameters of the EL2911 to be set. The output is parameterized via
parameter 0x8000. The inputs are configured via the objects 0x8010 and 0x8011.

Fig.27: EL2911 parameters

Index Name Default value/

unit

8000:03 Standard outputs active FALSE /

Boolean

8000:04 Diag TestPulse active TRUE / Boolean Switching the internal clocking of the

8000:12 Output cross-circuit detection delay 0x03E8 / 1ms After the output is switched off, the system

EL2911 39Version: 1.0.0

Description

Activation of the logical AND operator of
the safe and standard outputs of the
module

output module on/off
(24VDC at the output is always without
clocking)

waits for the set delay time before the
voltage is read at the output. If the voltage
exceeds 5V, a module error is generated.

Operation

Index Name Default value/

unit

8010:01 ModuloDiagTestPulse 0x00 / integer Modulo value for the frequency of

8010:02 MultiplierDiagTestPulse 0x01 / integer Length of the test pulse in multiples of

8010:04 Diag TestPulse active TRUE / Boolean Activation of test pulses for the

8011:01 Channel1.InputFilterTime 0x0014 / 0.1ms Input filter of the safe input. Following this

8011:02 Channel1.DiagTestPulseFilterTime 0x0002 / 0.1ms Input filter for the test pulse signal
8011:04 Channel2.InputFilterTime 0x0014 / 0.1ms Input filter of the safe input. Following this

8011:05 Channel2.DiagTestPulseFilterTime 0x0002 / 0.1ms Input filter for the test pulse signal
8011:07 Channel3.InputFilterTime 0x0014 / 0.1ms Input filter of the safe input. Following this

8011:08 Channel3.DiagTestPulseFilterTime 0x0002 / 0.1ms Input filter for the test pulse signal
8011:0A Channel4.InputFilterTime 0x0014 / 0.1ms Input filter of the safe input. Following this

8011:0B Channel4.DiagTestPulseFilterTime 0x0002 / 0.1ms Input filter for the test pulse signal

Description

generating a test pulse.
0 -> every time
1 -> every 2nd time
...

400µs

corresponding input module

time the internal input signal changes to
the applied signal state.

Internal test pulses can have a length of
up to 2 ms and cannot can be switched
off.

time the internal input signal changes to
the applied signal state.
Internal test pulses can have a length of
up to 2 ms and cannot can be switched
off.

time the internal input signal changes to
the applied signal state.
Internal test pulses can have a length of
up to 2 ms and cannot can be switched
off.

time the internal input signal changes to
the applied signal state.
Internal test pulses can have a length of
up to 2 ms and cannot can be switched
off.

EL291140 Version: 1.0.0

4.3.8 EL2911 process image

The process image of the EL2911 consists 6 bytes of process data in the input and the output.

Operation

Fig.28: EL2911 process image

The assignment of the individual signals in the safe data is listed in the following table.

Name Process


FSOUT Module.Module Fault IN 0.0 Module error information for safe output
FSIN

Channel1.Channel1.Input
FSIN

Channel2.Channel1.Input
FSIN Module.Channel3.Input IN 0.3 Safe input channel 3
FSIN Module.Channel4.Input IN 0.4 Safe input channel 4
FSIN Module.Module Fault IN 0.5 Module error information for safe input module
FSOUT Module Output OUT 0.0 Safe output to power contact
FSOUT Module.ErrAck OUT 0.1 Error acknowledge for safe output module
FSIN Module.ErrAck OUT 0.2 Error acknowledge for safe input module

IN 0.1 Safe input channel 1

IN 0.2 Safe input channel 2

Bit position Description

EL2911 41Version: 1.0.0

Operation

4.4 TwinSAFE reaction times

The TwinSAFE terminals form a modular safety system that exchanges safety-oriented data via the Safety­over-EtherCAT protocol. This chapter is intended to help you determine the system's reaction time from the
change of signal at the sensor to the reaction at the actuator.

Typical reaction time

The typical reaction time is the time that is required to transmit information from the sensor to the actuator, if
the overall system is working without error in normal operation.

Fig.29: Typical reaction time

Definition Description

RTSensor Reaction time of the sensor until the signal is provided at the interface. Typically supplied by

the sensor manufacturer.

RTInput Reaction time of the safe input, such as EL1904 or EP1908. This time can be found in the

technical data. In the case of the EL1904 it is 4 ms.

RTComm Reaction time of the communication This is typically 3x the EtherCAT cycle time, because

new data can only be sent in a new Safety-over-EtherCAT telegram. These times depend
directly on the higher-level standard controller (cycle time of the PLC/NC).

RTLogic Reaction time of the logic terminal. This is the cycle time of the logic terminal and typically

ranges from 500 µs to 10 ms for the EL6900, depending on the size of the safety project.

The actual cycle time can be read from the terminal.
RTOutput Reaction time of the output terminal. This typically lies within the range of 2 to 3 ms.
RTActor Reaction time of the actuator. This information is typically supplied by the actuator

manufacturer
WDComm Watchdog time of the communication

This results in the following equation for the typical reaction time:

with, for example

Worst-case reaction time

The worst case reaction time is the maximum time required to switch off the actuator in the case of an error.

EL291142 Version: 1.0.0

Operation

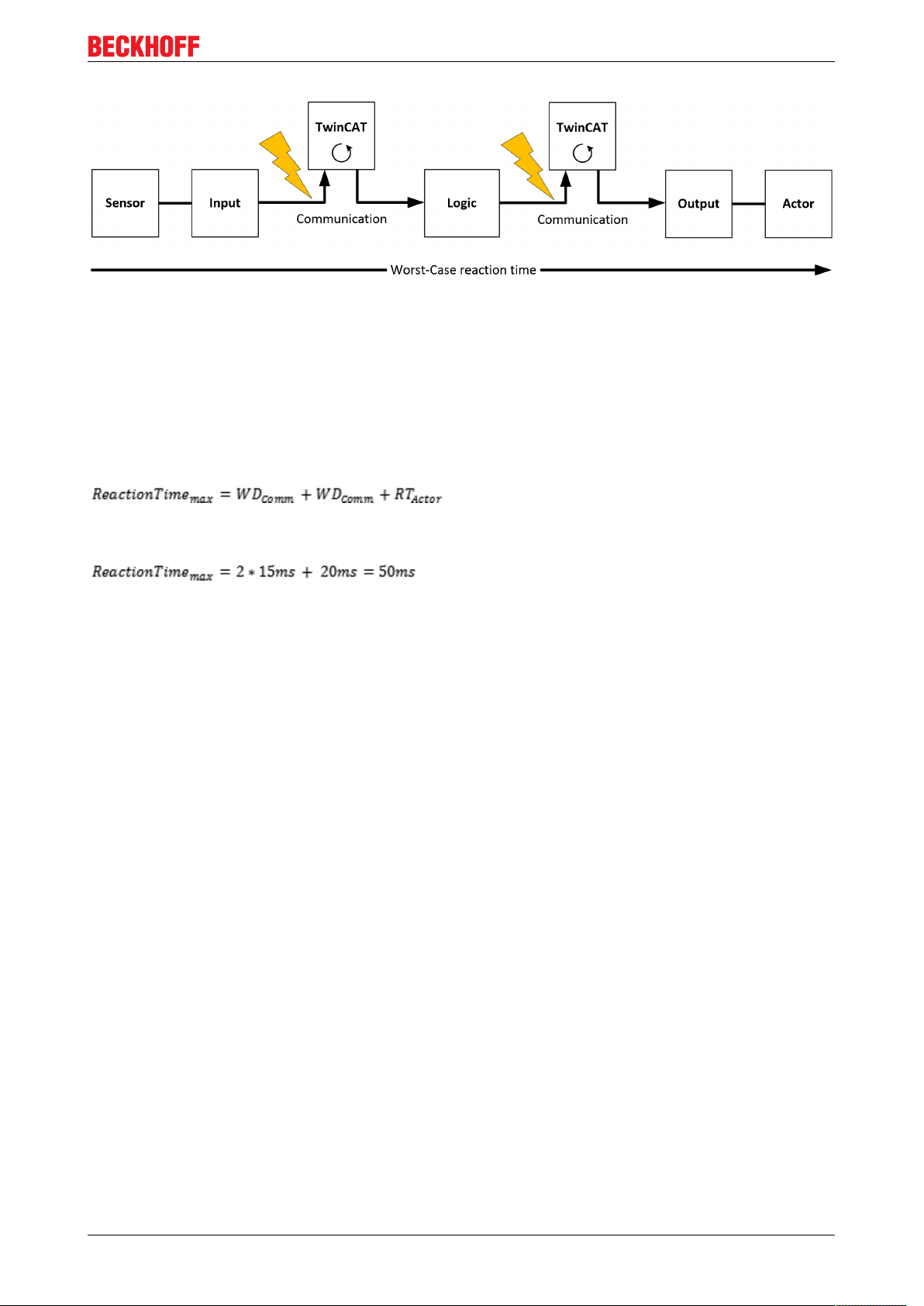

Fig.30: Worst-case reaction time

This assumes that a signal change occurs at the sensor and is transmitted to the input. A communication
error occurs at precisely the moment when the signal is to be transferred to the communication interface.
This is detected by the logic following the watchdog time of the communication link. This information should
then be transferred to the output, but a further communication error occurs here. This error is detected at the
output following the expiry of the watchdog time and leads to the switch-off.

This results in the following equation for the worst-case reaction:

with, for example

EL2911 43Version: 1.0.0

Operation

4.5 Diagnosis

4.5.1 Status LEDs

Fig.31: EL2911 status and diagnostics LEDs

LED Color Description

Input 1 green Status display for the respective input and output
Input 2
Input 3

LED lights up: Input/output is set
LED not lit: Input/output is not set

Input 4
Output 1

4.5.2 Diagnostic LEDs

Diagnostic LEDs

LED lit flashes off

Diag1
(green)

Diag2
(red)

Diag3
(red)

Diag4
(red)

Diag Out
(red)

Environment variables,
operating voltage and internal
tests are in the valid range

• If Diag2 flashes, a logic
error code applies

Together with Diag3 and 4:
Global Shutdown1) has

occurred. (see diag history of
the TwinSAFE components)

Global fault or global shutdown
on µC1

Global fault or global shutdown
on µC2

1)

1)

Module error in the output
module

- Environment variables,
operating voltage and internal
tests are outside the valid
range

• If Diag2 flashes, an
environment error code
applies

Logic or environment error
code according to Diag1 and
tables below is output

Together with Diag 3 and 4:
Global Fault1) has occurred.

(see diag history of the
TwinSAFE components)

- No global fault or global
shutdown on µC1

- No global fault or global
shutdown on µC2

- No error in the output module

1)

1)

1. A global fault permanently disables the TwinSAFE component, so that it has to be replaced. A global
shutdown temporarily disables the TwinSAFE component. The error can be reset by switching off and
back on again.

EL291144 Version: 1.0.0

Logic error codes of LED Diag2 (if LED Diag1 is lit)

Operation

Flashing
Code

1 Function block error in one of the TwinSAFE groups
2 Communication error in one of the TwinSAFE groups
3 Error combination: Function block and communication
4 General error in one of the TwinSAFE groups
5 Error combination: General and function block
6 Error combination: General and communication
7 Error combination: General, function block and communication

Environment error codes of LED Diag2 (if LED Diag1 is off)

Flashing
Code

1 Maximum supply voltage µC1 exceeded
2 Supply voltage µC1 below minimum value
3 Maximum supply voltage µC2 exceeded
4 Supply voltage µC2 below minimum value
5 Maximum internal temperature exceeded
6 Internal temperature below minimum value
7 Valid temperature difference between µC1 and µC2 exceeded
8 not used
9 not used
10 General error

Description

Description

4.5.3 Flash code display

LED Display Description

flashing 400ms ON / 400ms OFF

1 second pause between the flash codes

flickering 50ms ON / 50ms OFF

4.5.4 Diagnosis History

The diagnostic history of the TwinSAFE devices that support this function is implemented in accordance with
the ETG guideline ETG.1020 Chapter 13 "Diagnosis Handling". The diagnostic messages are saved by the

TwinSAFE device in a dedicated CoE object under 0x10F3 and can be read out by the application or by
TwinCAT.

Both the control entries and the history itself can be found in the CoE object 0x10F3. The entry Newest
Message (0x10F3:02) contains the subindex of 0x10F3, which contains the latest diagnostic message, e.g.
0x06 for diagnostic message 1.

EL2911 45Version: 1.0.0

Operation

Index 10F3

Diagnosis History

hex

Index (hex) Name Meaning Data type Flags Default

10F3:0 Diagnosis

History

10F3:01 Maximum

Messages

Maximum number of stored messages. A
maximum of 64 messages can be stored.

UINT8 RO 0x40 (64

After that the respective oldest messages
are overwritten.

10F3:02 Newest

Subindex of the latest message UINT8 RO 0x00 (0

Message

10F3:03 Newest

Subindex of the last confirmed message UINT8 RW 0x00 (0
Acknowledged
Message

10F3:04 New

Indicates that a new message is available BOOLEAN RO 0x00 (0
Messages
Available

10F3:05 Flags Set via the startup list. If set to 0x0001, the

UINT16 RW 0x0000 (0
diagnostic messages are additionally sent
by emergency to the EtherCAT master

10F3:06 Diagnosis

Diagnostic message 1 BYTE[32] RO {0}

Message 001

... ... ... ... ... ...

10F3:45 Diagnosis

Diagnostic message 64 BYTE[32] RO {0}

Message 064

dec

dec

dec

dec

)

)

)

)

)

dec

Structure of the diagnostic messages

• DiagCode (4 bytes) – in this case always 0x 0000 E000

• Flags (2 bytes) - diagnosis type (info, warning or error), timestamp and number of parameters
contained (see the following table)

• Text ID (2 bytes) – ID of the diagnostic message as a reference to the message text from the ESI/XML

• Timestamp (8 bytes) – local slave time in ns since switching on the TwinSAFE device

• dynamic parameters (16 bytes) – parameters that can be inserted in the message text (see following
table)

Flags in diagnostic messages

Data type Offset Description

UINT16 Bits 0 to 3 DiagType (value)

0 Info message
1 Warning message
2 Error message
3…15 reserved

Bit 4 If the bit = 1, the timestamp contained in the message is the local timestamp of the

TwinSAFE device. The age of the diagnostic message can be deduced by

calculation with the current timestamp from the CoE object 0x10F8.
Bits 5 to 7 reserved
Bits 8 to 15 Number of parameters in this diagnostic message

EL291146 Version: 1.0.0

Dynamic parameters in the diagnostic messages

Type Data type Description

Flags parameter 1 UINT16 Describes the type of parameter 1

Bits 12 to 15 =0Bits 0 to 11 = data type of parameter 1

0x0001 - BOOLEAN
0x0002 - INT8
0x0003 - INT16
0x0004 - INT32
0x0005 - UINT8
0x0006 - UINT16
0x0007 - UINT32
0x0008 - REAL32
0x0011 - REAL64
0x0015 - INT64
0x001B - UINT64

Text parameters and formats are
specified in ETG.2000.

Parameter 1 Data type in accordance with

flags
Flags parameter 2 UINT16 see Flags parameter 1
Parameter 2 Data type in accordance with

flags
...

Value of parameter 1

Value of parameter 2

Operation

The diagnostic messages are saved in text form in the ESI/XML file belonging to the TwinSAFE device. On
the basis of the Text ID contained in the diagnostic message, the corresponding plain text message can be
found in the respective languages. The parameters can be inserted in the appropriate positions. In the
following example, %x is used for a hexadecimal representation of the parameters.

Fig.32: ESI/XML message text

Via the entry New Messages Available the user receives information that new messages are available. The
messages can be read out via CompleteAccess (a CoE read command for the complete CoE object
0x10F3). The New Messages Available bit is reset after reading the messages.

The sending of emergency messages to the EtherCAT master is activated by adding the CoE object
0x10F3:05 to the startup list (Transition IP, value 0x0001). If new diagnostic messages arrive, they are
entered in object 0x10F3 and additionally sent by emergency to the EtherCAT master.

Fig.33: Startup list

EL2911 47Version: 1.0.0

Operation

4.5.5 Diag History tab

All errors occurring within the TwinSAFE components are stored in their diag history. The diag history can be
viewed by selecting the corresponding TwinSAFE component in the I/O tree structure and then selecting the
Diag History tab. Use the Update History button to fetch the current data from the TwinSAFE component.
Errors within the logic, the function blocks, the connections or the component itself are stored with a
corresponding time stamp.

Fig.34: Diag history

Use the Advanced… button to open the advanced settings. Here, the user can customize the behavior of the
diag history.

Fig.35: Diag history – advanced settings

EL291148 Version: 1.0.0

Operation

Advanced Settings

Setting Description

Message Types • disable Info

Messages with status Info are not stored in the diag history

• disable Warnings
Messages with status Warning are not stored in the diag history

• disable Errors
Messages with status Error are not stored in the diag history

Emergency In addition to saving the message in the diag history, an emergency object

is also sent and displayed in the TwinCAT logger window.

Overwrite/Acknowledge Mode This setting is currently not supported.

EL2911 49Version: 1.0.0

Operation

4.6 Maintenance

Maintenance

The TwinSAFE components are maintenance-free!

Environmental conditions

WARNING

Observe the specified environmental conditions!

Please ensure that the TwinSAFE components are only stored and operated under the specified conditions
(see technical data).

If the TwinSAFE component is operated outside the permitted temperature range it will switch to Global
Shutdown state.

Cleaning

Protect the TwinSAFE component from unacceptable soling during operation and storage!

If the TwinSAFE component was subjected to unacceptable soiling it may no longer be operated!

WARNING

Have soiled terminals checked!

Cleaning of the TwinSAFE component by the user is not permitted!
Please send soiled terminals to the manufacturer for inspection and cleaning!

EL291150 Version: 1.0.0

4.7 Service life

The TwinSAFE terminals are designed for a service life of 20 years.

Due to the high diagnostic coverage within the lifecycle no special proof tests are required.

The TwinSAFE terminals bear a date code, which is composed as follows:

Datecode: CWYYSWHW

Operation

Legend:
CW: Calendar week of manufacture
YY: Year of manufacture
SW: Software version
HW: Hardware version

In addition the TwinSAFE terminals bear a unique serial number.

Fig.36: Unique serial number of a TwinSAFE terminal

Sample: DateCode 17110500
Calendar week: 17
Year: 2011
Software version: 05
Hardware version: 00

4.8 Decommissioning

DANGER

Serious risk of injury!

Bring the bus system into a safe, de-energized state before starting disassembly of the devices!

Disposal

In order to dispose of the device, it must be removed and fully dismantled.

• Housing components (polycarbonate, polyamide (PA6.6)) are suitable for plastic recycling.

• Metal parts can be sent for metal recycling.

• Electronic parts such as disk drives and circuit boards must be disposed of in accordance with national
electronics scrap regulations.

EL2911 51Version: 1.0.0

Operation

4.9 Firmware update of TwinSAFE products

For TwinSAFE products there is the option of performing a firmware update via the EtherCAT interface. The
complete firmware of the TwinSAFE component is deleted and replaced by a new version.

The latest firmware can be downloaded from the Beckhoff website or requested from Beckhoff Support. The
versions are available in an encrypted form and can only be loaded onto the matching TwinSAFE product.
An incorrect firmware file is rejected by the respective TwinSAFE product.

Prerequisite for a firmware update

DANGER

Put the machine into a safe state!

A firmware update stops the current processing of the firmware of the TwinSAFE product. It is essential that
you switch the TwinSAFE system to the safe state before you start an update.
All safe outputs must be in a safe, de-energized state. If hanging or pulling loads are present on the ma­chine or the TwinSAFE system, these must also be brought into a safe state through external safety mea­sures if necessary.

DANGER

Monitor the machine state!

It is necessary that you have control over the machine, i.e. you can see it and thus ensure that it is in a safe
state and that a firmware update can be carried out without endangering the operators or other personnel.

NOTE

Avoid communication interruptions during the download

Please avoid disconnecting the EtherCAT connection while downloading the firmware under any circum­stances. If a communication error does occur, the TwinSAFE product may subsequently be unusable and
must be sent to the Beckhoff Service.

WARNING

Default project for TwinSAFE I/O components with local logic function!

After a firmware update, any implemented default project starts automatically. An EK1960, for example,
would start up as a TwinSAFE I/O slave after a firmware update.

NOTE

Firmware update of TwinSAFE logics

If a firmware update is performed for a TwinSAFE logic component, e.g. on a TwinSAFE logic EL6910, the
safety-related user program must be reloaded to the TwinSAFE logic after the update.

EtherCAT communication

When an EtherCAT component is updated, it is switched to BOOTSTRAP mode. This can have an
effect on the EtherCAT communication with other EtherCAT devices.

EL291152 Version: 1.0.0

Operation

Performing the firmware update

Click the button (1) in the TwinCAT system to enter Config mode. Confirm the query with OK (2). After that a
further window appears which must be confirmed with Yes (Ja) (3). Deactivate the "Free Run" with No (Nein)
(4). The system is now in "Configuration mode".

Fig.37: Firmware update of TwinSAFE products - Part 1

EL2911 53Version: 1.0.0

Operation

To perform the firmware update, select the "Online" tab (6) for the "EtherCAT Device" (5). If you want to
update several components, you can select the corresponding components (7) together; for individual
components, select only these. Subsequently, click with the right mouse button inside the selected area and
select the command "Firmware Update..." (8) in the command overview.

Fig.38: Firmware update of TwinSAFE products - Part 2

In the place where you have stored the desired firmware version, select the firmware file (9) and click
"Open" (10). Confirm the window that then opens with "OK" (11); the firmware update is then performed.
After successful completion you must click OK (12) in the concluding "Function Succeeded" window. You
can then switch the system back to Run mode and use the TwinSAFE system.

Fig.39: Firmware update of TwinSAFE products - Part 3

EL291154 Version: 1.0.0

Appendix

5 Appendix

5.1 Support and Service

Beckhoff and their partners around the world offer comprehensive support and service, making available fast
and competent assistance with all questions related to Beckhoff products and system solutions.

Beckhoff's branch offices and representatives

Please contact your Beckhoff branch office or representative for local support and service on Beckhoff
products!

The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet
pages:

http://www.beckhoff.com

You will also find further documentation for Beckhoff components there.

Beckhoff Headquarters

Beckhoff Automation GmbH & Co. KG

Huelshorstweg 20
33415 Verl
Germany

Phone: [phone]
Fax: [phone]
e-mail: [e-mail]

Beckhoff Support

Support offers you comprehensive technical assistance, helping you not only with the application of
individual Beckhoff products, but also with other, wide-ranging services:

• support

• design, programming and commissioning of complex automation systems

• and extensive training program for Beckhoff system components

Hotline: [phone]
Fax: [phone]
e-mail: [e-mail]

Beckhoff Service

The Beckhoff Service Center supports you in all matters of after-sales service:

• on-site service

• repair service

• spare parts service

• hotline service

Hotline: [phone]
Fax: [phone]
e-mail: [e-mail]

EL2911 55Version: 1.0.0

Appendix

5.2 Certificates

EL291156 Version: 1.0.0

List of figures

List of figures

Fig. 1 Slot and key system and screwless (spring-loaded) connection system..................................... 9

Fig. 2 Bus Coupler (EtherCAT).............................................................................................................. 10

Fig. 3 Overview of EtherCAT Terminals ................................................................................................ 11

Fig. 4 EL2911 - TwinSAFE potential supply terminal with 4 fail-safe inputs.......................................... 14

Fig. 5 External load................................................................................................................................ 17

Fig. 6 protected wiring ........................................................................................................................... 18

Fig. 7 Characteristic curve of the inputs ................................................................................................ 21

Fig. 8 EL2911 dimensions ..................................................................................................................... 21

Fig. 9 Spring contacts of Beckhoff I/O components............................................................................... 23

Fig. 10 Installation position and minimum distances ............................................................................... 24

Fig. 11 Thermally unfavorable arrangement of the TwinSAFE terminals ................................................ 26

Fig. 12 Thermally favorable arrangement of the TwinSAFE terminals .................................................... 27

Fig. 13 Installation on the mounting rail................................................................................................... 28

Fig. 14 Removal of mounting rails ........................................................................................................... 28

Fig. 15 PE power contact......................................................................................................................... 30

Fig. 16 Connection of a cable to a terminal point .................................................................................... 31

Fig. 17 EL2911 - pin assignment............................................................................................................. 32

Fig. 18 Cable routing ............................................................................................................................... 33

Fig. 19 Adding an EL2911 ....................................................................................................................... 34

Fig. 20 Delete project data....................................................................................................................... 35

Fig. 21 Address settings on TwinSAFE terminals with 1023 possible addresses ................................... 36

Fig. 22 Starting the automatic import from the I/O configuration ............................................................. 37

Fig. 23 Selection from the I/O tree........................................................................................................... 37

Fig. 24 Creating alias devices by the user............................................................................................... 38

Fig. 25 Linking tab of the alias device...................................................................................................... 38

Fig. 26 Connection tab of the alias device............................................................................................... 39

Fig. 27 EL2911 parameters ..................................................................................................................... 39

Fig. 28 EL2911 process image................................................................................................................ 41

Fig. 29 Typical reaction time.................................................................................................................... 42

Fig. 30 Worst-case reaction time............................................................................................................. 43

Fig. 31 EL2911 status and diagnostics LEDs.......................................................................................... 44

Fig. 32 ESI/XML message text ................................................................................................................ 47

Fig. 33 Startup list.................................................................................................................................... 47

Fig. 34 Diag history.................................................................................................................................. 48

Fig. 35 Diag history – advanced settings................................................................................................. 48

Fig. 36 Unique serial number of a TwinSAFE terminal............................................................................ 51

Fig. 37 Firmware update of TwinSAFE products - Part 1 ........................................................................ 53

Fig. 38 Firmware update of TwinSAFE products - Part 2 ........................................................................ 54

Fig. 39 Firmware update of TwinSAFE products - Part 3 ........................................................................ 54

EL2911 57Version: 1.0.0
