BECKHOFF EL1819 User Manual
Digital input
EL1819
Signal LEDs
1…8
Signal LEDs
9…16
Power contact
+24 V
Power contact 0 V
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Input 8
Input 9
Input 10
Input 11
Input 12
Input 13
Input 14
Input 15
Input 16
Top view
Contact assembly

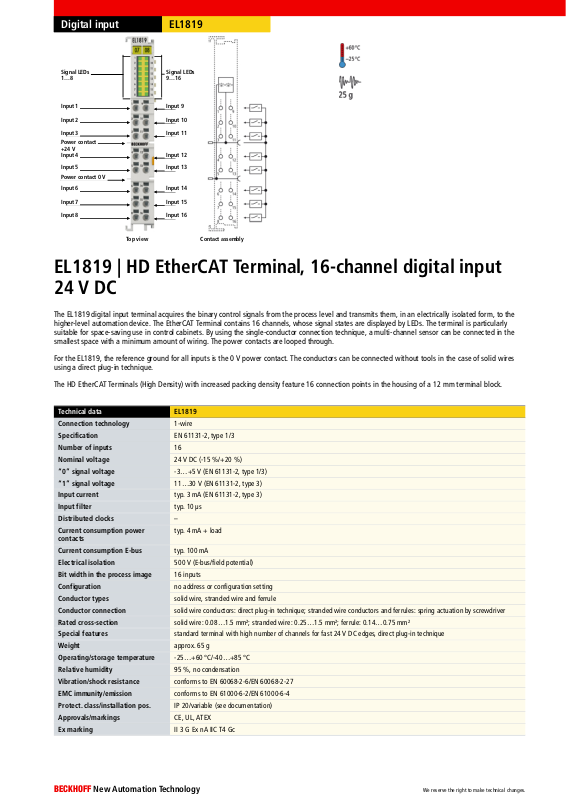

EL1819 | HD EtherCAT Terminal, 16-channel digital input
24 V DC
The EL1819 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the
higher-level automation device. The EtherCAT Terminal contains 16 channels, whose signal states are displayed by LEDs. The terminal is particularly
suitable for space-saving use in control cabinets. By using the single-conductor connection technique, a multi-channel sensor can be connected in the
smallest space with a minimum amount of wiring. The power contacts are looped through.
For the EL1819, the reference ground for all inputs is the 0 V power contact. The conductors can be connected without tools in the case of solid wires
using a direct plug-in technique.
The HD EtherCAT Terminals (High Density) with increased packing density feature 16 connection points in the housing of a 12 mm terminal block.
Technical data EL1819
Connection technology 1-wire
Specification EN 61131-2, type 1/3
Number of inputs 16
Nominal voltage 24 V DC (-15 %/+20 %)
“0” signal voltage -3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage 11…30 V (EN 61131-2, type 3)
Input current typ. 3 mA (EN 61131-2, type 3)
Input filter typ. 10 µs
Distributed clocks –
Current consumption power
contacts
typ. 4 mA + load
Current consumption E-bus typ. 100 mA
Electrical isolation 500 V (E-bus/field potential)
Bit width in the process image 16 inputs
Configuration no address or configuration setting
Conductor types solid wire, stranded wire and ferrule
Conductor connection solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver
Rated cross-section solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm²
Special features standard terminal with high number of channels for fast 24 V DC edges, direct plug-in technique
Weight approx. 65 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. IP 20/variable (see documentation)
Approvals/markings CE, UL, ATEX
Ex marking II 3 G Ex nA IIC T4 Gc
Digital input EL1819
Signal LEDs
1…8
Signal LEDs
9…16
Power contact
+24 V
Power contact 0 V
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Input 8
Input 9
Input 10
Input 11
Input 12
Input 13
Input 14
Input 15
Input 16
Top view Contact assembly
Digital input
EL1819
BECKHOFF New Automation Technology
We reserve the right to make technical changes.
Accessories
Marking and coding printed and unprinted contact lables, coding pins and sockets, slide-in label covers
ZK2000-2200-0xxx M8, socket, straight, female, 3-pin – open end
ZK2020-3200-0xxx M8, socket, straight, female, 4-pin – open end
ZK2000-6200-0xxx M12, socket, straight, female, 4-pin, A-coded – open end
ZK2000-5200-0xxx M12, socket, straight, female, 5-pin, A-coded – open end, 5-wire
Cordsets cordsets and connectors
