BECKHOFF EL1094, ES1094 Technical data
Digital input
EL1094
Signal LED 4
Signal LED 2
Signal LED 3
Signal LED 1
Power contact
+24 V
Power contact 0 V
Input 1
Input 3
Input 2
0 V
0 V
Input 4
Top view
Contact assembly

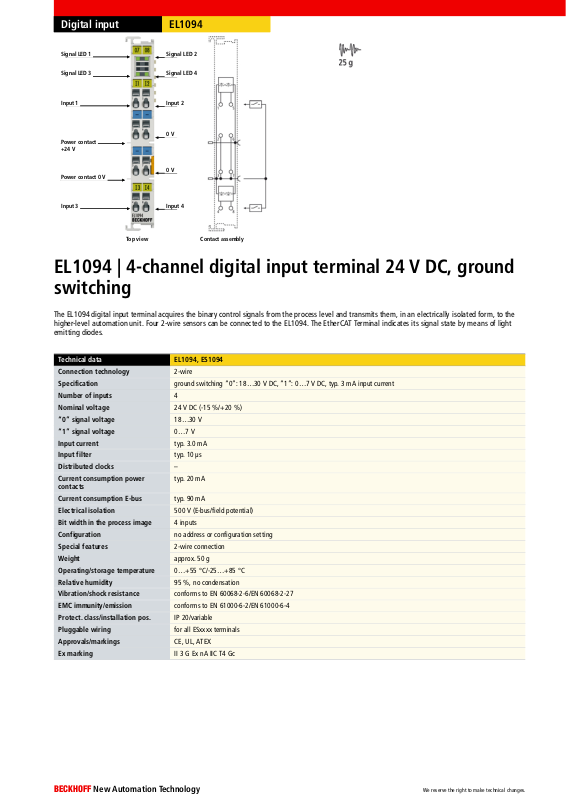

EL1094 | 4-channel digital input terminal 24 V DC, ground
switching
The EL1094 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the
higher-level automation unit. Four 2-wire sensors can be connected to the EL1094. The EtherCAT Terminal indicates its signal state by means of light
emitting diodes.
Technical data EL1094, ES1094
Connection technology 2-wire
Specification ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs 4
Nominal voltage 24 V DC (-15 %/+20 %)
“0” signal voltage 18…30 V
“1” signal voltage 0…7 V
Input current typ. 3.0 mA
Input filter typ. 10 µs
Distributed clocks –
Current consumption power
contacts
typ. 20 mA
Current consumption E-bus typ. 90 mA
Electrical isolation 500 V (E-bus/field potential)
Bit width in the process image 4 inputs
Configuration no address or configuration setting
Special features 2-wire connection
Weight approx. 50 g
Operating/storage temperature 0…+55 °C/-25…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. IP 20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX
Ex marking II 3 G Ex nA IIC T4 Gc
EL1094
Digital input
Signal LED 4
Signal LED 2
Signal LED 3
Signal LED 1
Power contact
+24 V
Power contact 0 V
Input 1
Input 3
Input 2
0 V
0 V
Input 4
Top view Contact assembly
Digital input
EL1094
BECKHOFF New Automation Technology
We reserve the right to make technical changes.
