BECKHOFF EL1008 User Manual
Digital input
EL1008
Signal LED 8
Signal LED 6
Signal LED 4
Signal LED 2
Signal LED 7
Signal LED 5
Signal LED 3
Signal LED 1
Power contact
+24 V
Power contact 0 V
Input 1
Input 3
Input 5
Input 7
Input 2
Input 4
Input 6
Input 8
Top view
Contact assembly

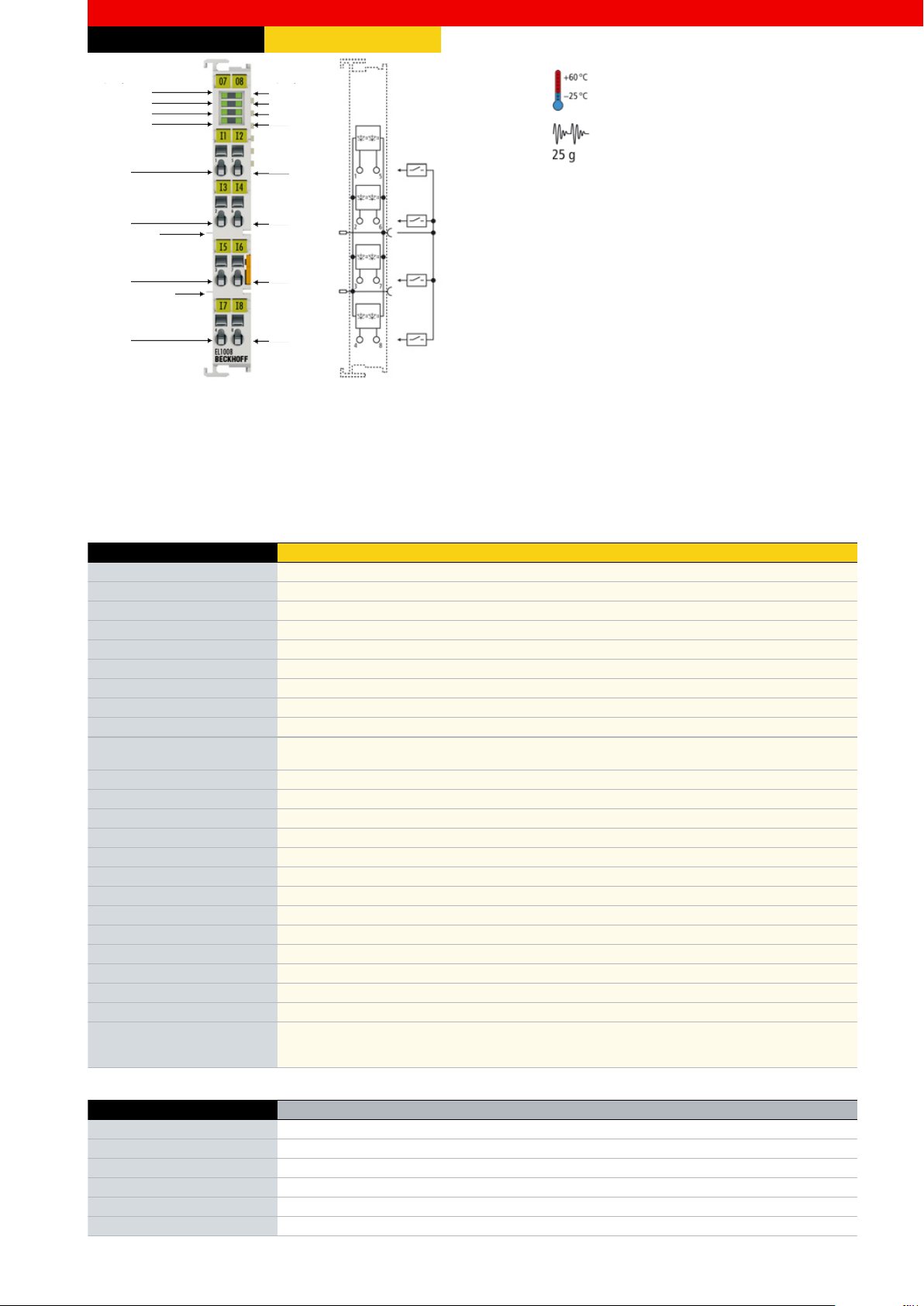

EL1008 | 8-channel digital input terminal 24 V DC, 3 ms
The EL1008 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the
higher-level automation unit. Digital input terminals from the EL100x series have a 3 ms input filter. The EtherCAT Terminals indicate their state via an
LED.
Technical data EL1008, ES1008
Connection technology 1-wire
Specification EN 61131-2, type 1/3
Number of inputs 8
Nominal voltage 24 V DC (-15 %/+20 %)
“0” signal voltage -3…+5 V (EN 61131-2, type 3)
“1” signal voltage 11…30 V (EN 61131-2, type 3)
Input current typ. 3 mA (EN 61131-2, type 3)
Input filter typ. 3.0 ms
Distributed clocks –
Current consumption power
contacts
typ. 2 mA + load
Current consumption E-bus typ. 90 mA
Electrical isolation 500 V (E-bus/field potential)
Bit width in the process image 8 inputs
Configuration no address or configuration setting
Special features standard input terminal for bouncing signals (filter 3 ms)
Weight approx. 55 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. IP 20/see documentation
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx
Ex marking II 3 G Ex nA IIC T4 Gc
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
Accessories
Marking and coding printed and unprinted contact lables, coding pins and sockets, slide-in label covers
ZK2000-2200-0xxx M8, socket, straight, female, 3-pin – open end
ZK2020-3200-0xxx M8, socket, straight, female, 4-pin – open end
ZK2000-6200-0xxx M12, socket, straight, female, 4-pin, A-coded – open end
ZK2000-5200-0xxx M12, socket, straight, female, 5-pin, A-coded – open end, 5-wire
Cordsets cordsets and connectors
EL1008
Digital input
Signal LED 8
Signal LED 6
Signal LED 4
Signal LED 2
Signal LED 7
Signal LED 5
Signal LED 3
Signal LED 1
Power contact
+24 V
Power contact 0 V
Input 1
Input 3
Input 5
Input 7
Input 2
Input 4
Input 6
Input 8
Top view Contact assembly
Digital input
EL1008
BECKHOFF New Automation Technology
We reserve the right to make technical changes.
