Installation and Operating instructions for

Control Panel CP77xx

Version: 1.6
Date: 2007-10-29

General Notes

Table of contents

1.

2.

3.

4.

5.

6.

General Notes 2

Notes on the documentation 2
Liability conditions 2
Description of safety symbols 2
Basic safety measures 3
Operator's obligation to exercise diligence 4
Operator requirements 4
UL-Certificate of Compilance 4

Product Description 5

Appropriate Use 5
Connections 5

Pin assignment 5

Connector description 6

Serial interface 6
Power supply 6
Network interfaces 6
Protective Earthing 6

Ethernet cable sets 6
RS 232-adapter cable 6

Installation Instructions 7

Transport and Unpacking 7
Transport 7
Unpacking 7
Assembly 8

Assembly dimensions 8

Connecting the Control Panel 9

Connecting cables 9
Protective Earthing 9

Operating Instructions 10

Functional description 10
Keyboard codes 10

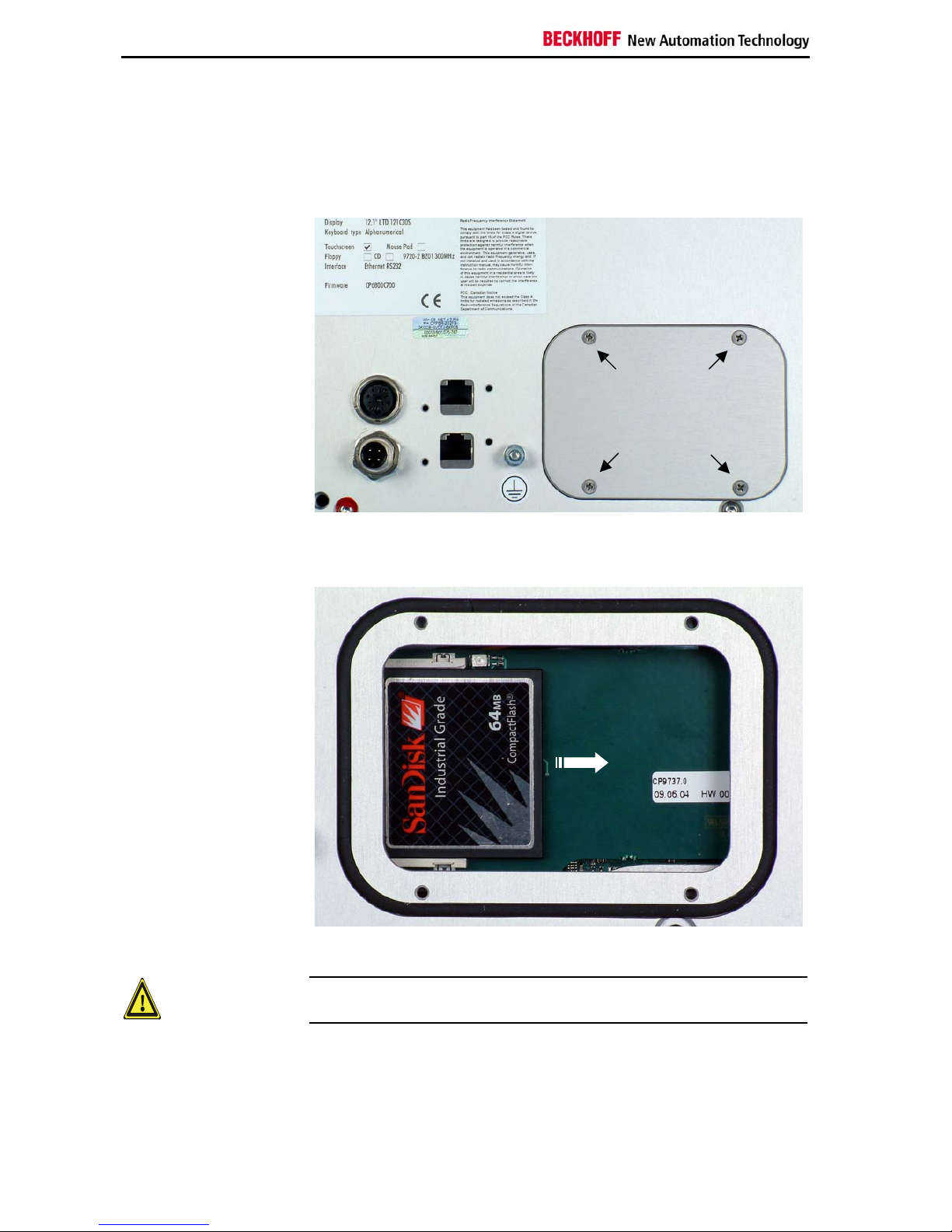

Compact Flash memory card 12
Servicing and maintenance 13

Cleaning the Control Panel 13
Servicing 13

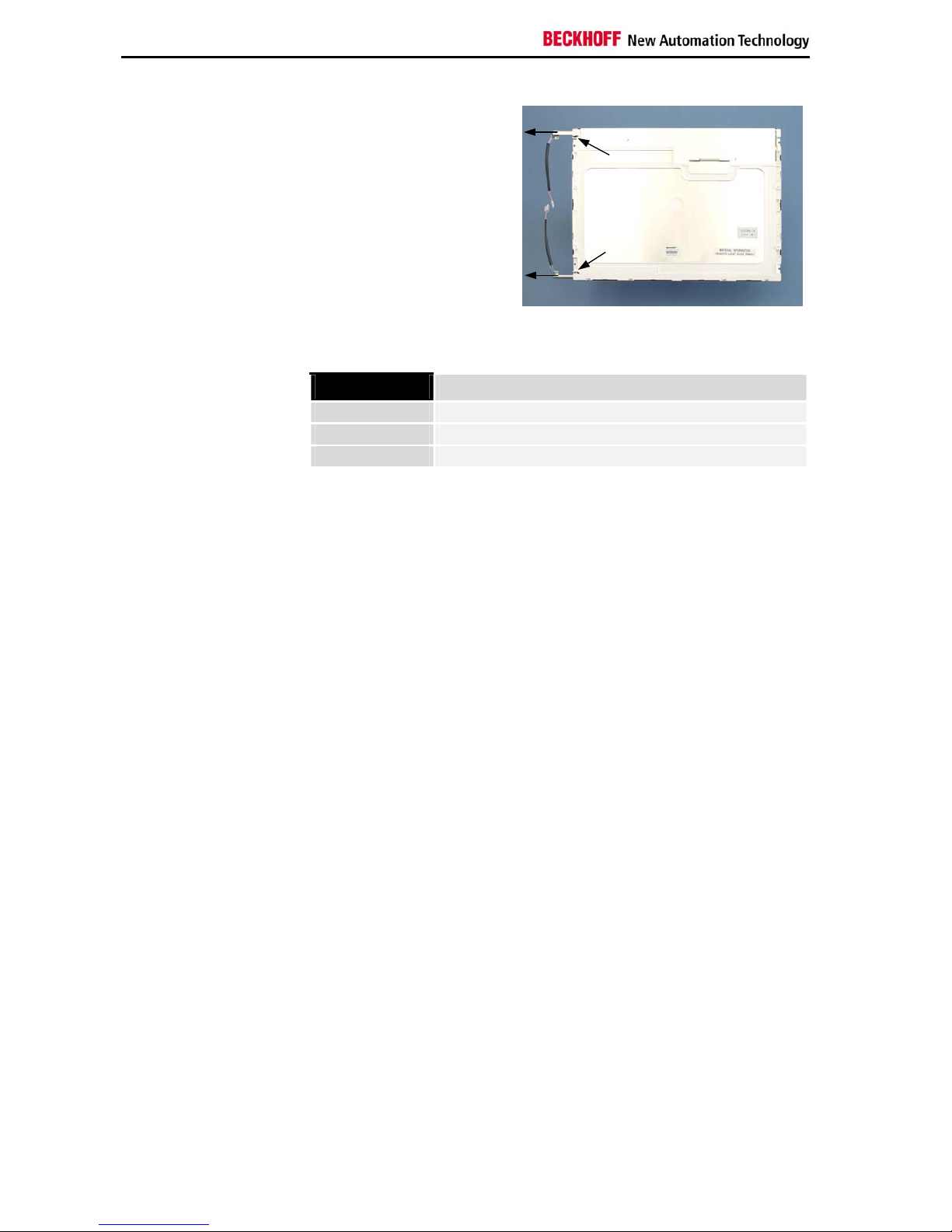

Replacing the fluorescent lamps in the display 13
Lamp sets 14

Emergency procedures 14
Shutting down 14

Disposal 14

Troubleshooting 15

Fault correction 15
Service and Support 16

Beckhoff's branch offices and representatives 16
Beckhoff headquarters 16
Beckhoff Support 16
Beckhoff Service 16

Appendix 17

Technical data 17
Approvals 17

FCC: Federal Communications Commission Radio Frequency Interference
Statement 17
FCC: Canadian Notice 17

CP77xx 1

General Notes

General Notes

Notes on the documentation

This description is only intended for the use of trained specialists in control
and automation engineering who are familiar with the applicable national
standards. It is essential that the following notes and explanations are
followed when installing and commissioning these components.

Liability conditions

The responsible staff must ensure that the application or use of the
products described satisfy all the requirements for safety, including all the
relevant laws, regulations, guidelines and standards.

The documentation has been prepared with care. The products described
are, however, constantly under development. For this reason, the
documentation may not always be have been fully checked for consistency
with the performance data, standards or other characteristics described.
None of the statements in this manual represent a guarantee for as set out
in § 443 of the German Civil Code or a statement about the assumed use
according to the contract as set out in § 434 para. 1 clause 1 no. 1 of the
German Civil Code. In the event that it contains technical or editorial errors,
we retain the right to make alterations at any time and without warning. No
claims for the modification of products that have already been supplied
may be made on the basis of the data, diagrams and descriptions in this
documentation.

© This documentation is protected by copyright. Any reproduction or third
party use of this publication, whether in whole or in part, without the written
permission of Beckhoff Automation GmbH, is forbidden.

Description of safety symbols

The following safety symbols are used in this operating manual. They are
intended to alert the reader to the associated safety instructions.

Danger

This symbol is intended to highlight risks for the life or health of personnel.

Warning

This symbol is intended to highlight risks for equipment, materials or the
environment.

i

Note

This symbol indicates information that contributes to better understanding.

2 CP77xx

General Notes

Basic safety measures

Warning

Before opening the control panel housing, and whenever the control
panel is not being used for control purposes (such as during
functional checks after a repair), all parts of the equipment must first
be switched off, after which the control panel is to be disconnected
from the equipment.

Disconnect the device by unplugging the connectors on the Control Panel
side.

Items of equipment that have been switched off must be secured
against being switched on again.

Danger

Displays used for the control panel’s LC-display are operated with a
voltage of up to 1000 V, depending on type. For that reason:

The supply voltage must be disconnected before the housing of the
Control Panel is opened.

i

Note

Assembly work on the Control Panel during operation may damage the
panel:

• if metal objects such as screws or tools fall onto operating circuit
boards.

• if connecting cables internal to the control panel are removed or
inserted during operation

CP77xx 3

General Notes

Operator's obligation to exercise diligence

The operator must ensure that

• the Control Panel is only used for its intended purpose (see

Product Description section);

• the Control Panel is only operated in a sound condition and in
working order;

• the instruction manual is in good condition and complete, and
always available for reference at the place of installation of the
Control Panel;

• the Control Panel is operated, maintained and repaired only by
suitably qualified and authorized personnel.

• the personnel is instructed regularly about relevant occupational
safety and environmental protection aspects, and is familiar with
the operating manual and in particular the safety notes contained
herein.

• none of the safety and warning notes attached to the Control Panel
are removed, and all notes remain legible.

National regulations
depending on the machine
type

Depending on the type of machine and plant in which the Control Panel is
used, national regulations governing the controllers of such machines will
apply, and must be observed by the operator. These regulations cover,
amongst other things, the intervals between inspections of the controller.

The operator must initiate such inspections in good time.

Procedure in the event of a
fault

In the event of faults at the Control Panel, the list in the section

Troubleshooting can be used to determine the measures to be taken.

Operator requirements

Read the operating
instructions

Anyone who uses the Control Panel must have read these operating
instructions.

Software knowledge

Every user must be familiar with all the functions of the software installed
on the Control Panel to which he has access.

UL-Certificate of Compilance

We herewith confirm that the Control Panel CP77xx of Beckhoff
Automation GmbH meets the requirements of the Underwriters
Laboratories Inc.

®

(UL)-standard:

Certificate Number: 280607 – E220403
Report Reference: E220403, April 16th, 2007
Issue Date: 2007 June 28

Standards for Safety

The correspondance of the mentioned product with these requirements is
proved by the fact that this product meets with the following single
standards:

• UL 60950-1, 1st Edition, 2006-07-07 (Information Technology
Equipment – Safety - Part 1: General Requirements)

• CSA C22.2 No. 60950-1-03, 1st Edition, 2006-07 (Information

Technology Equipment - Safety - Part 1: General Requirements)

4 CP77xx

Product Description

Product Description

Appropriate Use

The CP77xx Control Panel is designed for industrial application in machine
and plant engineering. In addition to the integrated PC, a TFT display,
touch screen/pad (optional) and a PC keyboard (optional) are
accommodated in an aluminium housing. The Control Panel is installed via
the 4 mounting holes in the backplane or the pivot arm adapter (optional).

Do not use the Control
Panel in areas of explosive
hazard

The Control Panel must not be used where there is a risk of
explosion.

Connections

Control Panel CP77XX
connections

Pin assignment

X 100
Serial interface

SG 12POL M16-built-in-PCB-sold. IP67
BINDER (BINDER 09-0463-90-19 prod.
723 M16X0,75)

For connecting use the provided

RS 232-adapter cable.

X 102, X 103
Network

RJ-45 connector (Ethernet 10/ 100 Mbit)

Pin Signal Pin Signal

housing

screen

5

n.c.

1

TD +

6

RD -

2

TD -

7

n.c.

3

RD +

8

n.c.

4

n.c.

Pin Signal Pin Signal

1

+ 24V

3

GND

2

NC

4

NC

X 101
Power supply

SG 4POL M12-built-in-PCB-sold. IP67
BINDER (BINDER 09-3431-90-04 prod. 763
M12X1)

CP77xx 5

Product Description

Connector description

Serial interface

Serial interface
COM1

The Control Panel is equipped with a COM1 (X 100) serial interface (Type
RS232) for the connection of serial peripheral devices.
The protection class of the circular plug-in connector accords to the IP67­standard.

Power supply

Power supply

The power supply for the Control Panel is established via the Cage clamp
socket (X 101).
The protection class of the circular plug-in connector accords to the IP67­standard.

Network interfaces

Network

The RJ-45 sockets (X 102, X 103) enable connection of the Control Panel
to an Ethernet network.
While using the FBS-RJ45-8-GS-connector (534494, Fa. Festo AG &
Co.KG) the protection class accords to the IP67-standard.

Protective Earthing

Protective Earthing

The low resistance protective earthing connection is
established via the ground bolt, which is located at the rear of
the housing.

Ethernet cable sets

Patch-

Cable

C9900-K411

Patchcable-Set CAT 7, length 5 m

C9900-K412

Patchcable-Set CAT 7, length 10 m

C9900-K413

Patchcable-Set CAT 7, length 15 m

C9900-K414

Patchcable-Set CAT 7, length 20 m

C9900-K415

Patchcable-Set CAT 7, length 25 m

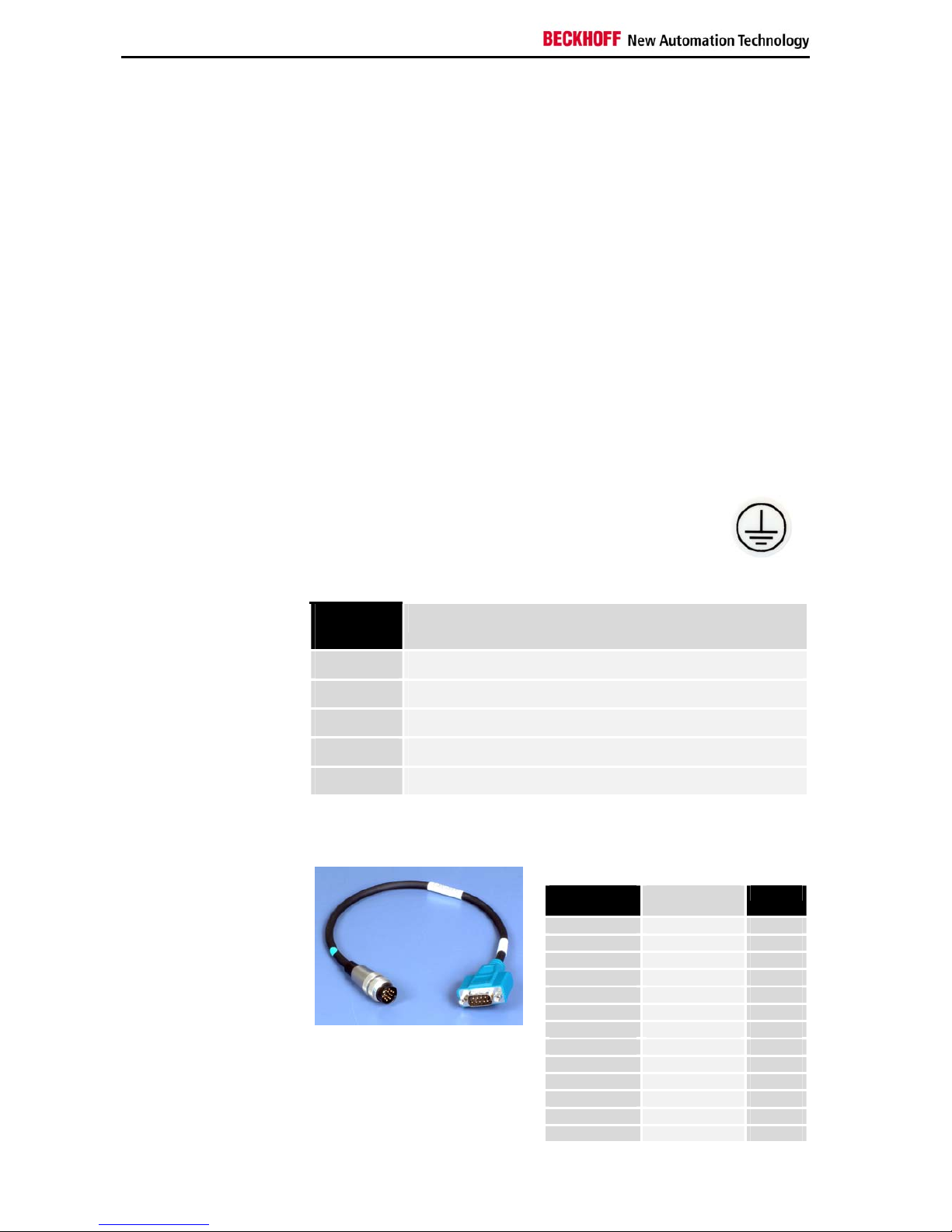

RS 232-adapter cable

RS 232-adapter cable

The provided RS 232-adapter
cable with the marking C9900­K234 allows connecting serial
peripheral devices with SUB-D­connector to the Control Panel.

Pin assignment:

12-pol. Cable

connector

9-pol. Sub-D-

connector

Signal

A 1

DCD

B 6

DSR

C 2

RxD

D 7

RTS

E 3

TxD

F 8

CTS

G 4

DTR

H 9

RI

J 5

GND

K -

n.c.

L -

n.c.

M -

n.c.

screen screen

screen

6 CP77xx

Installation Instructions

Installation Instructions

Please also refer to chapter General Notes.

Transport and Unpacking

The specified storage conditions must be observed (see chapter Technical

data).

Transport

Despite the robust design of the unit, the components are sensitive to
strong vibrations and impacts. During transport, your Control Panel should
therefore be protected from excessive mechanical stress. Therefore,
please use the original packaging.

Warning

Danger of damage to the unit!
If the device is transported in cold weather or is exposed to extreme
variations in temperature, make sure that moisture (condensation) does not
form on or inside the device.

Prior to operation, the unit must be allowed to slowly adjust to room
temperature. Should condensation occur, a delay time of approximately 12
hours must be allowed before the unit is switched on.

Unpacking

Proceed as follows to unpack the unit:

1. Remove packaging.

2. Do not discard the original packaging. Keep it for future relocation.

3. Check the delivery for completeness by comparing it with your order.

4. Please keep the associated paperwork. It contains important
information for handling the unit.

5. Check the contents for visible shipping damage.

6. If you notice any shipping damage or inconsistencies between the
contents and your order, you should notify Beckhoff Service.

CP77xx 7

Installation Instructions

Assembly

Assembly dimensions

All dimensions are in mm.

Control Panel CP77xx

Dimensions a b t A B

CP7709 6,5“ Display 267,9 173 38 241,9 149
CP7700 10“ Display 353,8 308,3 27,5 327,6 280,7
CP7701 12“ Display 353,8 326,3 27,5 327,6 303,7
CP7702 15“ Display 426 395 28,5 399,8 367,4

M6 screw thread

Control Panel CP771x

Dimensions a b t A B

CP7719 6,5“ Display 267,9 213 38 241,9 189
CP7710 10“ Display 353,8 308,3 27,5 327,6 280.7
CP7711 12“ Display 353,8 326,3 27,5 327,6 303,7
CP7712 15“ Display 426 395 28,5 399,8 367,4

Control Panel CP772x

Dimensions a b t A B

CP7729 6,5“ Display 336 213 38 310 189
CP7720 10“ Display 406 308,3 27,5 374,8 280,7
CP7721-0000/1 12“ Display 406 308,3 27,5 374,8 280,7
CP7721-0002 12“ Display 439,8 308,3 27,5 408,6 280,7
CP7722 15“ Display 515 370,2 28,5 483,8 342,6

Control Panel CP773x

Dimensions a b t A B

CP7730 10“ Display 403,2 368,2 27,5 372,15 340,6
CP7731-0000/1 12“ Display 406 370,2 27,5 379,8 342,6
CP7731-0002 12“ Display 426 370,2 27,5 399,8 342,6
CP7737 12” Display 426 370,2 27,5 399,8 342,6
CP7732 15“ Display 483 410,2 28,5 458,8 387,6

8 CP77xx

Installation Instructions

Connecting the Control Panel

Danger

The Control Panel must never be connected or disconnected in an area
that is subject to explosion hazard! Risk of explosion!

Warning

The mains plug of the Control Panel must be disconnected!

Please read the documentation for the external devices prior to connecting
them.

During thunderstorms, plug connector must neither be inserted nor
removed.

When disconnecting a plug connector, always handle it at the plug. Do not
pull the cable!

Connecting cables

The connections are located at the rear of the Control Panel and are
documented in the Product Description section.

When connecting cables to the Control Panel, please adhere to the
following order:

• Disconnect the Control Panel from the power supply

• Connect all cables at the Control Panel and at the devices to be

connected

• Ensure that all screw connections between connectors and

sockets are tight!

• Reconnect all devices to the power supply.

Protective Earthing

Protective Earthing

The low resistance protective earthing connection is
established via the ground bolt, which is located at the rear of
the housing.

CP77xx 9

Operating Instructions

Operating Instructions

Please also refer to chapter General Notes.

Functional description

Switch on

The Control Panel does not have its own mains power switch. As soon as
the power supply is switched on the control panel is activated.

Switching off

Control software, as typically applied in Control Panels, enables the
assignment of different rights to all users. A user who is not entitled to shut
down the software may not switch off the Control Panel as an attempt to
shut it down when the software is running could result in the loss of
software data on the Compact Flash memory card.

If the control panel is shut down while the software is writing a file onto the
Compact Flash memory card, the file will be destroyed. Control software
typically writes something to the CF memory card every few seconds, so
that the probability of causing damage by switching off while the software is
running is very high.

Operation

The Control Panel’s membrane keypad may only be actuated by fingertips.

i

Note

Attempts to actuate it with other objects can easily result in the destruction
of the device. Neither may the membrane keypad be operated with a touch
screen pen.

The touch screen may only be actuated by finger tips or with the touch
screen pen. The operator may wear gloves but there must be no hard
particles such as metal shavings, glass splinters embedded in the glove.

Keyboard codes

Type-dependent number of
keys

Depending on the precise type, the Control Panel can have fewer keys
than those described here.

Operation

The cursor is the blinking character that marks the point at which the next
character entered will be displayed. The cursor is also known as the
insertion point. The cursor keys each move the cursor one place in the
associated direction.

Hom e En d

The Home key moves the cursor to the beginning of the line, while the End
key moves it to the end of the line.

Pg Up Pg Dn

The Pg Up key scrolls one page back, the Pg Dn key scrolls one page
forward.

The Tab key takes the cursor to the next input field, while Shift and Tab
moves to the previous input field.

L

R

The mouse cursor can be moved over the screen with the aid of the touch
screen or of the touch pad (optional). The keys correspond to the left and
right hand keys of a Microsoft mouse.

Del

The Del key deletes the character to the right of the cursor.

Ins

The Ins key causes characters to the right of the cursor to be overwritten.
The overwrite mode is cancelled by pressing the key again.

10 CP77xx

Operating Instructions

Pr i n t

Print-Screen prints a hard copy of a text screen on the printer.

Pau se

The Pause key stops the computer until another key is pressed (only under
MS-DOS).

En t e r

Your input is confirmed with the Enter key.

Backspace deletes the character to the left of the cursor.

Sh i f t

If the Shift key is pressed at the same time as another key, then instead of
the numbers you obtain the character printed above the number, and you
obtain upper case letters instead of lower case letters.

Ca p s
Lock

Pressing the Caps Lock key once activates and locks the Shift key.
Pressing the Shift key cancels this function.

Ct r l Al t

Rather like the effect of the Shift key, Ctrl and Alt also change the meaning
of another key that is pressed at the same time.

This key brings up the Start menu of the operating system in use (Windows
95, 98, ME, NT, 2000, XP).

Pressing this key opens the property sheet of the active (or marked) object.

Esc

The Esc key has the effect of closing dialog windows and of interrupting
some of the computer’s working operations.

Q W

...

1

!

2

@

All other keys bring the character printed on them onto the display at the
position of the cursor.

F1 F2 F3 F4

F5 F6 F7 F8

F9 F1 0 F1 1 F1 2

The meaning of the function keys, F1 to F10, is determined by the software
and is displayed at the bottom edge of the display.

Ei n s ch u b
St r e i f e n

Ei n s ch u b
St r e i f e n

Ei nschub
St r e i f e n

Ein sch ub
St r e i f e n

The function of the special keys above the display is also determined by
the software. The function is displayed at the top edge of the display.
The special keys each have an orange LED controlled by the software.

CP77xx 11

Operating Instructions

Compact Flash memory card

Compact Flash card

A Compact Flash memory card (CF card) is located behind a cover at the
rear of the Control Panel. It is provided to save the operating system.
Only use memory cards with extended temperature ranges according to
industrial standards!

Removing the cover

To change the CF card, first of all unscrew the four screws (see above
photo) with a crosstip screwdriver. The aluminium cover can be removed
and enables access to the memory card (see below photo).

Removing the CF card

The CF card can be removed with due care along the guides.

Warning

Avoid any use of force! Otherwise the contact pins may be damaged!

Insertion of CF card

Installation is in reverse of the above order. Make sure that the
circumferential rubber seal fits correct while mounting the cover.

12 CP77xx

Operating Instructions

Servicing and maintenance

Please also refer to chapter General Notes.

Cleaning the Control Panel

First switch off the Control
Panel

Switch off the Control Panel and all devices connected to it, so that keys
cannot be unintentionally actuated.

The front of the Control Panel can be cleaned with a soft, damp cleaning
cloth. Do not use any aggressive cleaning materials, thinners, scouring
material or hard objects that could cause scratches.

Servicing

The Control Panel is maintenance-free.
A battery is installed on the motherboard to buffer data. This battery is
maintenance-free and may only be replaced by Beckhoff Service!

Replacing the fluorescent lamps in the display

Since fluorescent lamps represent a consumable item in a display, they
must be replaced after a few years, depending on the number of operating
hours.

The fluorescent lamps of the 6.5 inch, 12 inch and 15 inch displays can be
replaced by a technically competent person.

i

Note

Replacement of the fluorescent lamps may require partial
disassembly of the display!

Replacement for the

6.5 inch display

Press down the plastic clips
below the supply cable of the
lamps while you carefully pull
out the fluorescent lamps in
direction of the arrows.

After the exchange of the
fluorescent lamps the
installation takes place in
reverse order.

Replacement for the
12 inch display

First release the screw (2)
with a small Philips
screwdriver, then tilt the
fluorescent tubes with their
brackets (1) carefully
outwards.

After the exchange of the
fluorescent lamps the
installation takes place in
reverse order.

1

2

CP77xx 13

Operating Instructions

Replacement for the
15 inch display

First release the two screws
(1) and (2) with a small Philips
screwdriver, then carefully pull
out the fluorescent lamps in
direction of the arrows.

After the exchange of the
fluorescent lamps the
installation takes place in
reverse order.

1

2

Lamp sets

Order number

Background illumination unit for

C9900 - L360

6.5 inch TFT display NL6448BC20-08

C9900 - L364

12 inch TFT display LTD121C30S

C9900 - L366

15 inch TFT display LQ150X1LW71N

Emergency procedures

In case of fire, the control panel should be extinguished with powder or

nitrogen.

Shutting down

Disposal

Dismantle the Control
Panel

Observe national
electronics scrap
regulations

The device must be fully dismantled in order to dispose of it. The housing
can be sent for metal recycling.

Electronic parts such as lamps and circuit boards must be disposed of in
accordance with national electronics scrap regulations.

14 CP77xx

Troubleshooting

Troubleshooting

Please also refer to chapter General Notes.

i

Note

Pixel errors in the TFT display are production-caused and represent
no complaint-reason!

Fault correction

Fault Cause Measures

No Control Panel function No power supply to Control Panel

Cable not connected

Check power supply cable

1. Correctly connect cable

2. Call Beckhoff Service

Control Panel boots, software
starts, but control does not operate
correctly

The cause of the error is in the
software or in parts of the
equipment outside the control panel

Call the manufacturer of the
machine or the software

The Control Panel has only partial
function, or only functions some of
the time, for instance the picture is
dark or absent

Faulty fluorescent bulb in the
display

Defective components in control
panel

Replace fluorescent tube in
the display in accordance
with description

Call Beckhoff Service

CP77xx 15

Troubleshooting

Service and Support

Beckhoff and their partners around the world offer comprehensive service
and support, making available fast and competent assistance with all
questions related to Beckhoff products and system solutions.

Beckhoff's branch offices and representatives

Please contact your Beckhoff branch office or representative for local

support and service on Beckhoff products!

The addresses of Beckhoff's branch offices and representatives round the
world can be found on her internet pages:

http://www.beckhoff.com

You will also find further documentation

for Beckhoff components there.

Beckhoff headquarters

Beckhoff Automation GmbH
Eiserstraße 5
D-33415 Verl
Germany

Phone: [phone]
Fax: [phone]
e-mail: [e-mail]

Beckhoff Support

Support offers you comprehensive technical assistance, helping you no
only with the application of individual Beckhoff products, but also with
other, wide-ranging services:

• world-wide support

• design, programming and commissioning of complex automation

systems

• and extensive training program for Beckhoff system components

Hotline:

+49(0)5246/963-157

Fax: [phone]
e-mail: [e-mail]

Beckhoff Service

The Beckhoff Service Center supports you in all matters of after-sales
service:

• on-site service

• repair service

• spare parts service

• hotline service

Hotline:

+49(0)5246/963-460

Fax: [phone]
e-mail: [e-mail]

Quote the project number

If servicing is required, please quote the project number of your Industrial
PC.

16 CP77xx

Appendix

CP77xx 17

Appendix

Technical data

Dimensions

Dimensions (W x H x D): see section Assembly dimensions

Operation in areas that are
subject to explosion hazard

The Control Panel must not be used where there is a risk of
explosion.

The following conditions must be observed during operation:
Environmental conditions

Ambient temperature: 0 to 55°C
Atmospheric humidity: Maximum 95%, non-condensing

Shock resistance Sinusoidal vibration:

(EN 60068-2-6)

10 to 58 Hz: 0.035 mm

58 to 500 Hz: 0.5 G (~ 5 m/ s2)

Impact:
(EN 60068-2-27/ 29)

5 G (~ 50 m/ s²), duration: 30 ms

Protection class

Control Panel: IP65
Ethernet Connector: IP65

Power supply

Supply voltage: 24 V

DC

(20.4 – 28.8 VDC)
Power consumption: approx. 15 W with 6.5“ display
approx. 17 W with 10“ display
approx. 19 W with 12“ display
approx. 30 W with 15“ display

EMC compatibility

Resistance to interference: conforms to EN 61000-6-2

Emission of interference: conforms to EN 61000-6-4

Transport and storage

The same values for atmospheric humidity and shock resistance are to be
observed during transport and storage as in operation. Suitable packaging
of the Control Panel can improve the resistance to impact during transport.
The ambient temperature during storage and transport must be between

-20°C and +65°C.

i

Note

Pixel errors in the TFT display are production-caused and represent
no complaint-reason!

Approvals

FCC: Federal Communications Commission
Radio Frequency Interference Statement

FCC Approval for USA

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.

FCC: Canadian Notice

FCC Approval for Canada

This equipment does not exceed the Class A limits for radiated emissions
as described in the Radio Interference Regulations of the Canadian
Department of Communications.
