B&C Speakers 15PLB76 User Manual
Specification
Nominal Diameter 380 (15) mm (in)
Nominal Impedance (1) 8 Ohm
Minimum Impedence 6.2 Ohm
Nominal Power Handling (2) 400 W
Continuous Power Handling (3) 800 W
Sensitivity (1W/1m) (4) 100 dB
Frequency Range 40 - 2000 Hz
Voice Coil Diameter 76 (3) mm (in)
Winding Material Copper
Former Material Glass Fibre
Winding Depth 16 (5/8) mm (in)
Magnetic Gap Depth 10.5 (0.4) mm (in)
Flux Density 1.15 T
Thiele & Small Parameters
Fs 42 Hz
Re 5.0 Ohm
Qes 0.26
Qms 5.9
Qts 0.25
Vas 164 (5.8) dm3 (ft3)
Sd 855 (132.5) cm2 (in2)
Eta Zero 4.5 %
Xmax +/- 5 mm
Xvar +/- 8 mm
Mms 88 g
Bl 22.1 Txm
Le 1.3 mH

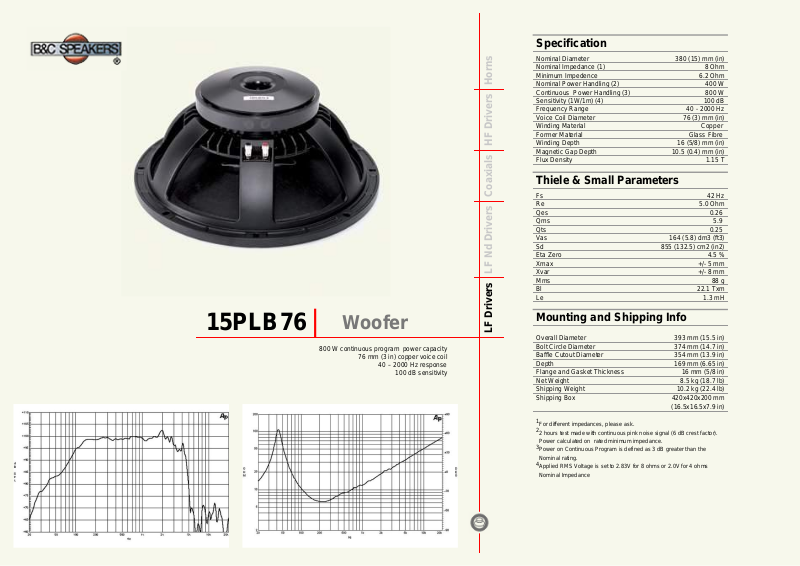

15PLB76
Woofer
800 W continuous program power capacity
76 mm (3 in) copper voice coil
40 – 2000 Hz response
100 dB sensitivity
LF Drivers LF Nd Drivers Coaxials HF Drivers Horns
Mounting and Shipping Info
Overall Diameter 393 mm (15.5 in)
Bolt Circle Diameter 374 mm (14.7 in)
Baffle Cutout Diameter 354 mm (13.9 in)
Depth 169 mm (6.65 in)
Flange and Gasket Thickness 16 mm (5/8 in)
Net Weight 8.5 kg (18.7 lb)
Shipping Weight 10.2 kg (22.4 lb)
Shipping Box 420x420x200 mm
1
For different impedances, please ask.
2
2 hours test made with continuous pink noise signal (6 dB crest factor).
Power calculated on rated minimum impedance.
3
Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.
4
Applied RMS Voltage is set to 2.83V for 8 ohms or 2.0V for 4 ohms
Nominal Impedance
(16.5x16.5x7.9 in)
