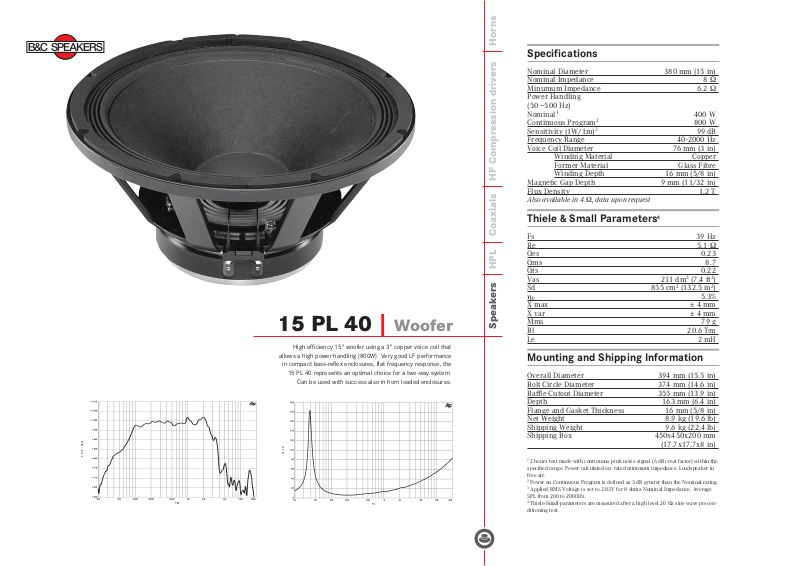

15 PL 40 | Woofer
High efficiency 15" woofer using a 3" copper voice coil that allows a high power handling (800W). Very good LF performance in compact bass-reflex enclosures, flat frequency response, the 15 PL 40 represents an optimal choice for a two-way system. Can be used with success also in horn loaded enclosures.
Speakers HPL Coaxials HF Compression drivers Horns
Specifications
Nominal Diameter |
380 mm (15 in) |
Nominal Impedance |
8 Ω |
Minumum Impedance |
6.2 Ω |
Power Handling |
|
(50 –500 Hz) |
|
Nominal1 |
400 W |
Continuous Program2 |
800 W |
Sensitivity (1W/1m)3 |
99 dB |
Frequency Range |
40-2000 Hz |
Voice Coil Diameter |
76 mm (3 in) |
Winding Material |
Copper |
Former Material |
Glass Fibre |
Winding Depth |
16 mm (5/8 in) |
Magnetic Gap Depth |
9 mm (11/32 in) |
Flux Density |
1.2 T |
Also available in 4 Ω, data upon request |
|
Thiele & Small Parameters4
Fs |
39 Hz |
Re |
5.1 Ω |
Qes |
0.23 |
Qms |
8.7 |
Qts |
0.22 |
Vas |
211 dm3 (7.4 ft3) |
Sd |
855 cm2 (132.5 in2) |
η0 |
5.3% |
X max |
± 4 mm |
X var |
± 4 mm |
Mms |
79 g |
Bl |
20.6 T·m |
Le |
2 mH |
Mounting and Shipping Information
Overall Diameter |
394 mm (15.5 in) |
Bolt Circle Diameter |
374 mm (14.6 in) |
Baffle Cutout Diameter |
355 mm (13.9 in) |
Depth |
163 mm (6.4 in) |
Flange and Gasket Thickness |
16 mm (5/8 in) |
Net Weight |
8.9 kg (19.6 lb) |
Shipping Weight |
9.6 kg (22.4 lb) |
Shipping Box |
450x450x200 mm |
|
(17.7x17.7x8 in) |
1 2 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range. Power calculated on rated minimum impedance. Loudspeaker in free air.
2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. 3 Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. Average SPL from 200 to 2000Hz.
4 Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
