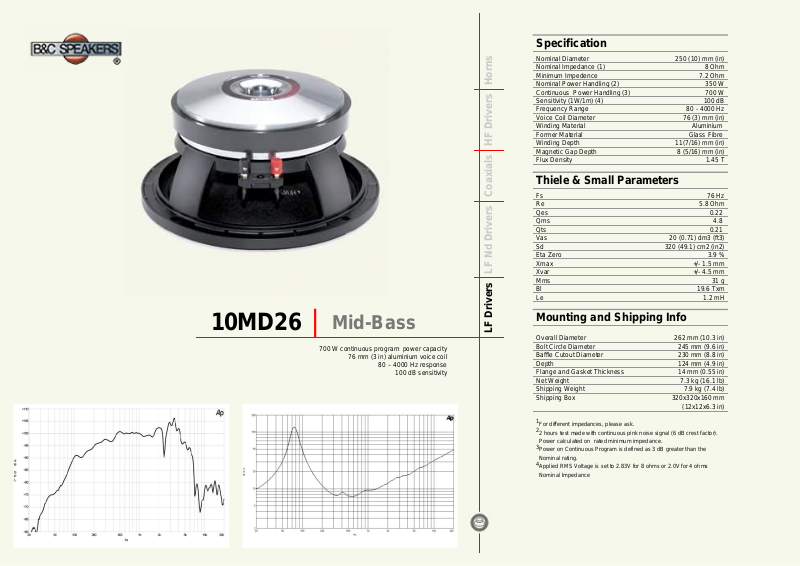

B&C Speakers 10MD26 User Manual
Specification
Nominal Diameter 250 (10) mm (in)
Nominal Impedance (1) 8 Ohm
Minimum Impedence 7.2 Ohm
Nominal Power Handling (2) 350 W
Continuous Power Handling (3) 700 W
Sensitivity (1W/1m) (4) 100 dB
Frequency Range 80 - 4000 Hz
Voice Coil Diameter 76 (3) mm (in)
Winding Material Aluminium
Former Material Glass Fibre
Winding Depth 11(7/16) mm (in)
Magnetic Gap Depth 8 (5/16) mm (in)
Flux Density 1.45 T
Thiele & Small Parameters
Fs 76 Hz
Re 5.8 Ohm
Qes 0.22
Qms 4.8
Qts 0.21
Vas 20 (0.71) dm3 (ft3)
Sd 320 (49.1) cm2 (in2)
Eta Zero 3.9 %
Xmax +/- 1.5 mm
Xvar +/- 4.5 mm
Mms 31 g
Bl 19.6 Txm
Le 1.2 mH
10MD26
Mid-Bass
700 W continuous program power capacity
76 mm (3 in) aluminium voice coil
80 – 4000 Hz response
100 dB sensitivity
LF Drivers LF Nd Drivers Coaxials HF Drivers Horns
Mounting and Shipping Info
Overall Diameter 262 mm (10.3 in)
Bolt Circle Diameter 245 mm (9.6 in)
Baffle Cutout Diameter 230 mm (8.8 in)
Depth 124 mm (4.9 in)
Flange and Gasket Thickness 14 mm (0.55 in)
Net Weight 7.3 kg (16.1 lb)
Shipping Weight 7.9 kg (7.4 lb)
Shipping Box 320x320x160 mm
1
For different impedances, please ask.
2
2 hours test made with continuous pink noise signal (6 dB crest factor).
Power calculated on rated minimum impedance.
3
Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.
4
Applied RMS Voltage is set to 2.83V for 8 ohms or 2.0V for 4 ohms
Nominal Impedance
(12x12x6.3 in)
