BC Biomedical CS-2000 User Manual

1 AMP
CURRENT SOURCE
USER MANUAL
BC BIOMEDICAL
CS-2000
TABLE OF CONTENTS
WARNINGS ................................................................................................................. 2
DESCRIPTION............................................................................................................. 3
OVERVIEW.................................................................................................................. 4
OPERATION ................................................................................................................ 5
TESTING...................................................................................................................... 7
MANUAL REVISIONS.................................................................................................. 8
WARRANTY................................................................................................................. 8
SPECIFICATIONS ....................................................................................................... 9
NOTES......................................................................................................................... 10
NOTICE
BC GROUP INTERNATIONAL, INC. RESERVES THE RIGHT TO
MAKE CHANGES TO ITS PRODUCTS OR SPECIFICATIONS AT
ANY TIME, WITHOUT NOTICE, IN ORDER TO IMPROVE THE
DESIGN OR PERFORMANCE AND TO SUPPLY THE BEST
POSSIBLE PRODUCT. THE INFORMATION IN THIS MANUAL
HAS BEEN CAREFULLY CHECKED AND IS BELIEVED TO BE
ACCURATE. HOWEVER, NO RESPONSIBILITY IS ASSUMED
FOR INACCURACIES.
1
All connections to patients must be removed
before connecting the Device Under Test (DUT).
A serious hazard may occur if the patient is
connected when testing.
The Current Source is not a continuous duty device. Do not leave the device under test (DUT) connected to this unit for extended periods. It is
intended for short duration testing within the
current limits and duty cycles specified.
CONTACT INFORMATION
BC GROUP INTERNATIONAL, INC.
WARNING
CAUTION
BC BIOMEDICAL
PO BOX 25125
9415 GENTRY AVE
ST. LOUIS, MO 63125
USA
1-800-242-8428
314-638-3800
www.bcgroupintl.com
sales@bcgroupintl.com
Manual CS-2000 Copyright © 2006
www.bcgroupintl.com Made in the USA
10/06 Rev 02
2
BC GROUP
CS-2000
1 AMP CURRENT SOURCE
The Model CS-2000 is a 1 amp current source for testing the ground continuity in equipment. This device facilitates testing to IEC601 requirements, where a 1 amp source current is required. This device interfaces directly with BC Biomedical SA series of Safety Analyzers as well as the Dale 544D, 544D Lite and 601/601E Safety Analyzers.
GENERAL
FACILITATES TESTING TO IEC601 REQUIREMENTS
INTERFACES DIRECTLY TO BC BIOMEDICAL SA-2000 SERIES
OF SAFETY ANALYZERS
INTERFACES TO DALE 544D, 544D LITE, 601 AND 601E SAFETY ANALYZERS
UNIVERSAL POWER SUPPLY (85 – 265 VAC, 50/60 Hz)
1 AMP CURRENT SOURCE FOR RESISTANCE MEASUREMENTS
NO PROTRUDING PUSH BUTTONS
LIGHT TOUCH KEY USED TO OPERATE
SMALL SIZE
CS-2000U FOR USA MARKET
CS-2000E FOR EUROPE (SCHUKO) MARKET
ACCESSORIES
BC20 - 30106 BC BIOMEDICAL MEDIUM SOFT SIDED CARRYING CASE
AVAILABLE MODELS
There are two models:
CS-2000U with USA power - plug configuration CS-2000E with Europe (Schuko) power - plug configuration
3

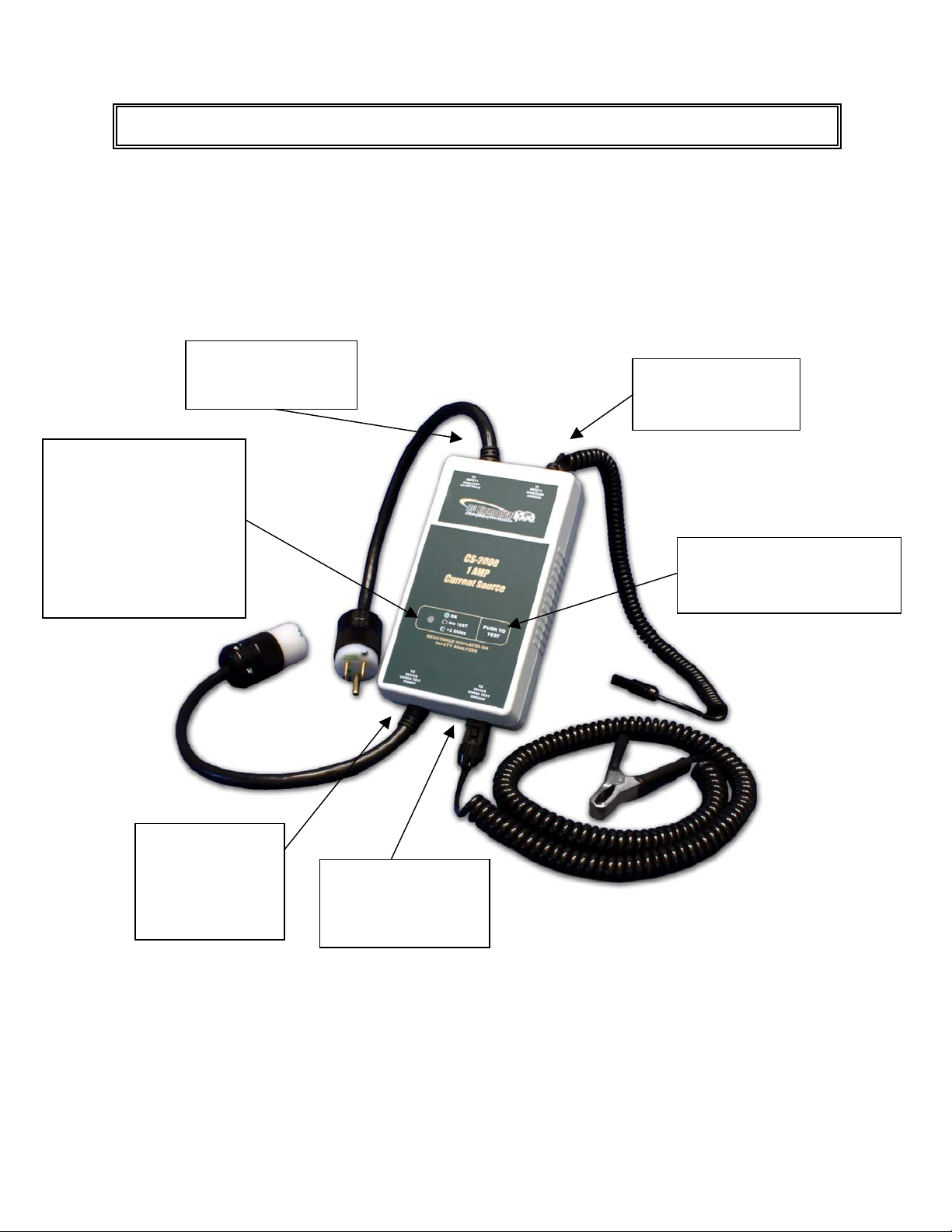

This section looks at the layout of the CS-2000 and gives descriptions of the elements that are present.
connection to Safety Analyzer Receptacle
Green LED indicator for visual feedback if a test is valid:
On = Valid Test Off = No Functional Test Flashing = Resistance is greater than
3.0 ohms
OVERVIEW
Male Cord for
Plug for connection to Safety Analyzer Chassis Port
PUSH TO TEST light touch key for pressing and holding to initiate a test
Female Receptacle for connection to Device Under Test (DUT) Power Cord
Kelvin Cable for connection to DUT for 1 Amp Ground Resistance Test
4
OPERATION
The CS-2000 1 amp current source is not a stand-alone device. It is designed to work with
a BC Biomedical SA-2000 Series of Safety Analyzers and the DALE 544D lite, 544D and
601/601E Safety Analyzers.
Push To Test Key
Pressing and holding this key, initiates a test.
This applies the 1 amp current source to the Device Under Test (DUT).
LED Indicator
This LED gives the operator visual feedback on the test status, according to the following
meanings:
LED OFF – The test is not functional.
LED ON – The test is valid.
LED BLINKING – The resistance being measured is greater than 3.0 ohms.
5
Connections
The line plug on the CS-2000 plugs into the safety analyzer receptacle.
The cable at the top of the unit plugs into the chassis port on the safety analyzer.
The receptacle of the CS-2000 is used to connect the device under test.
The detachable cable at the bottom of the unit is connected to the chassis of the device
under test.
Below is a typical example for wiring configuration of the safety analyzer, the CS-2000
current source and the device under test.
6
TESTING
WARNING
All connections to patients must be removed
before connecting the Device Under Test (DUT)
to the Current Source or Analyzer. A serious
hazard may occur if the patient is connected
when testing with the Analyzer.
Do not connect any leads from the patient
directly to the Analyzer or DUT.
1. Connect the CS-2000 to the Safety Analyzer and the Device Under Test as
indicated in the Connections portion of the Overview Section.
2. Set the Safety Analyzer to read earth resistance. The safety analyzer display will
read approximately 0.67 ohms.
NOTE: When the CS-2000 is connected to the Safety Analyzer
and the Push to Test button is not depressed, bias voltages cause
a reading to be displayed on the Safety Analyzer. This reading is
approximately 0.67 ohms. This is not a true reading of the DUT.
Valid tests are indicated by a continuously lit LED; readings on the
Safety Analyzer in all other situations should be ignored.
3. Set the Safety Analyzer for Forward Polarity with Hot and Neutral Closed.
4. On the CS-2000, press and hold the Push to Test key.
5. Verify the validity of the test by checking the LED on the CS-2000.
NOTE: A continuously lit LED indicates a valid test.
6. Read the resistance on the Safety Analyzer.
7
A
A
MANUAL REVISIONS
Revision #
Engineering # Revisions Made
Rev 01 DT7332X Origination
Rev 02 DT7332X Updated Pictures
LIMITED WARRANTY
WARRANTY
FROM DEFECTS IN MATERIALS AND WORKMANSHIP UNDER THE SERVICE FOR WHICH THEY
RE INTENDED. THIS WARRANTY IS EFFECTIVE FOR TWELVE MONTHS FROM THE DATE OF
SHIPMENT.
EXCLUSIONS: THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
BC GROUP INTERNATIONAL, INC. IS NOT LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.
NO PERSON OTHER THAN AN OFFICER IS AUTHORIZED TO GIVE ANY OTHER WARRANTY OR
SSUME ANY LIABILITY.
REMEDIES: THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY SHALL BE: (1) THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS OR PRODUCTS, WITHOUT CHARGE. (2) AT THE OPTION OF BC GROUP INTERNATIONAL, INC., THE REFUND OF THE PURCHASE PRICE.
: BC GROUP INTERNATIONAL, INC. WARRANTS ITS NEW PRODUCTS TO BE FREE
8
SPECIFICATIONS
CURRENT SOURCE 1 Amp DC
ACCURACY 1.00 to 1.02 Amps
VOLTAGE 85-265 VAC, 50/60 Hz
OPERATING RANGE 0 to 50 Degrees C
STORAGE RANGE -40 to 60 Degrees C
CONSTRUCTION Enclosure – ABS Plastic.
Face – Lexan, Back Printed
SIZE 7.09 x 3.94 x 1.56 inches 180 x 100 x 40 mm (HxWxD)
WEIGHT <
CONNECTIONS 3 Pin Locking Plug for Safety
Male Power Plug
Female Power Receptacle
Detachable Kelvin Cable for
POWER CONSUMPTION 100 mA
LOAD CURRENT 15 Amps @ 120 VAC 10 Amps @ 240 VAC
P:\MANUALS\BCGroup\…\SA2000\CS2000_UM_Rev02.doc
1 lbs. (0.45 kg)
Analyzer Chassis Port
Device Under Test Grounding
9
