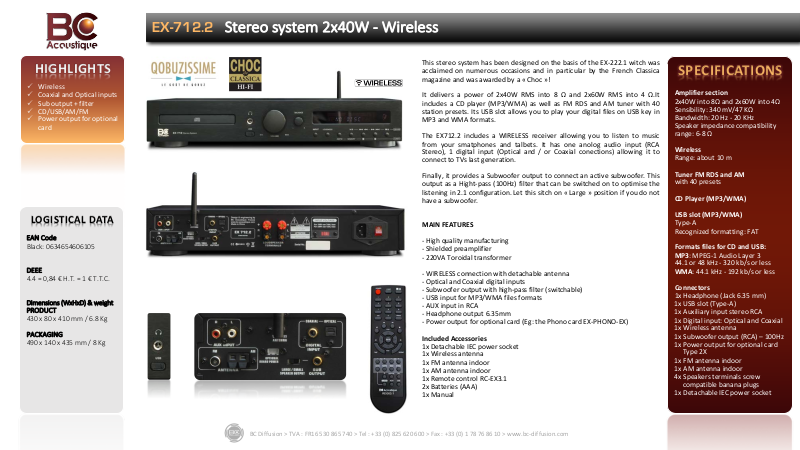

BC Acoustique EX-712.2 User Manual

EX-712.2

!"#$#% &'&"#()*+,-.)/ .0$#1#&&

HIGHLIGHTS

P Wireless
P Coaxial#and#Optical#inputs
P Sub output#+#filter
P CD/USB/AM/FM

P Power#output#for#optional

card

LOGIS TI C AL % DATA

234)5%6#

7189:;)-<=,<>,<-<?->)

@222

,A,)B)-CD,)E)FAGA B)?)E)GAGA5A

@0(#H&0%H&)I.+F+@J)K)L#0MN"
OPQ@R5G

,=-)+)D-)+),?-)(()S)<AD)TM

O35T3UV4U

,W-)+)?,-)+),=>)(()S)D)TM

This stereo system has been designed on the basis of the EX-222.1 witch was
acclaimed on numerous occasions and in particular by the French Classica
magazine and was awarded by a « Choc »!

It delivers a power of 2x40W RMS into 8 Ω and 2x60W RMS into 4 Ω.It
includes a CD player (MP3/WMA) as well as FM RDS and AM tuner with 40
station presets. Its USB slot allows you to play your digital files on USB key in

MP3 and WMA formats.

The EX712.2 includes a WIRELESS receiver allowing you to listen to music
from your smatphones and talbets. It has one anolog audio input (RCA

Stereo), 1 digital input (Optical and / or Coaxial conections) allowing it to
connect to TVs last generation.

Finally, it provides a Subwoofer output to connect an active subwoofer. This
output as a Hight-pass (100Hz) filter that can be switched on to optimise the
listening in 2.1 configuration. Let this sitch on « Large » position if you do not
have a subwoofer.

MAIN%FEATURES

- High#quality manufacturing

- Shielded preamplifier

- 220VA#Toroidal transformer

- WIRELESS#connection with detachable antenna

- Optical#and#Coaxial#digital#inputs

- Subwoofer output#with high-pass filter (switchable)

- USB#input#for#MP3/WMA#files#formats

- AUX#input#in#RCA

- Headphone output#6.35mm

- Power#output#for#optional card (Eg:#the#Phono#card EX-PHONO-EX)

Included Accessories

1x#Detachable IEC#power#socket
1x#Wireless#antenna

1x#FM#antenna indoor
1x#AM#antenna indoor#

1x#Remote control#RC-EX3.1
2x#Batteries#(AAA)
1x#Manual

SPECIFICATIONS

Amplifier%section

2x40W#into 8Ω#and#2x60W#into 4Ω#
Sensibility:#340#mV/47#KΩ
Bandwidth:#20#Hz#- 20#KHz

Speaker#impedance compatibility#
range:#6-8#Ω

Wireless

Range:#about#10#m

Tuner%FM%RDS%and%AM

with 40#presets

CD%Player%(MP3/WMA)

USB%slot%(MP3/WMA)

Type-A
Recognized formatting:#FAT

Formats%files%for%CD%and%USB:
MP3:#MPEG-1#Audio#Layer#3

44.1#or#48#kHz#- 320#kb/s#or#less

WMA:#44.1#kHz#- 192#kb/s#or#less

Connectors

1x#Headphone (Jack#6.35#mm)#
1x#USB#slot#(Type-A)#
1x#Auxiliary input#stereo RCA
1x#Digital#input:#Optical#and#Coaxial

1x#Wireless#antenna
1x#Subwoofer output#(RCA)#– 100Hz
1x#Power#output#for#optional card

Type#2X
1x#FM#antenna indoor
1x#AM#antenna indoor#
4x#Speakers#terminals screw

compatible#banana#plugs
1x#Detachable IEC#power#socket
