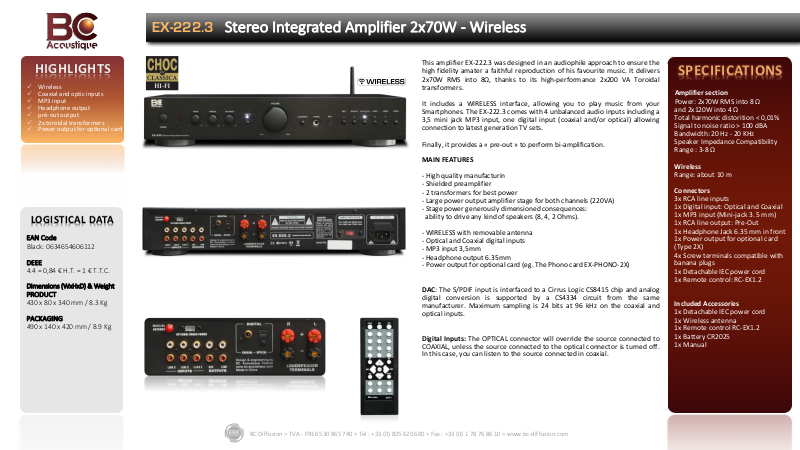

BC Acoustique EX-222.3 User Manual

EX-222.3

Stereo Integrated+Amplifier+2x70W+- Wireless

HIGHLIGHTS

P Wireless
P Coaxial#and#optic inputs

P MP3#input
P Headphone output#

P pré-out#output
P 2x#toroidal transformers

P Power#output#for#optional card

LOGIS TI C AL % DATA

EAN+Code

Black:+0634654606112

DEEE

4.4+=+0,84+€+H.T. =+1+€+T.T.C.

Dimensions+(WxHxD)+&+Weight
PRODUCT

430+x+80+x+340+mm+/+8.3+Kg

PACKAGING

490+x+140+x+420+mm+/+8.9+Kg

This amplifier EX-222.3 was designed in an audiophile approach to ensure the
high fideli ty amater a faithful reproduction of his favourite music. It delivers
2x70W RMS into 8Ω, thanks to its high-performance 2x200 VA Toroidal
transformers.

It includes a WIRELESS interface, allowing you to play music from your
Smartphones. The EX-222.3 comes with 4 unbalanced audio inputs including a

3,5 mini jack MP3 input, one digital input (coaxial and/or optical) allowing
connection to latest generation TV sets.

Finally, it provides a « pre-out » to perform bi-amplification.

MAIN%FEATURES

- High#quality manufacturin

- Shielded preamplifier

- 2#transformers for#best#power

- Large#power#output#amplifier#stage#for#both channels (220VA)

- Stage#power#generously dimensioned consequences:#
ability to#drive#any kind of#speakers#(8,#4,#2#Ohms).

- WIRELESS#with removable antenna

- Optical#and#Coaxial#digital#inputs

- MP3#input#3,5mm

- Headphone output#6.35mm

- Power#output#for#optional card (eg.#The#Phono#card EX-PHONO-2X)#

DAC: The S/PDIF input is interfaced to a Cirrus Logic CS8415 chip and analog
digital conversion is supported by a CS4334 circuit from the same

manufacturer. Maximum sampling is 24 bits at 96 kHz on the coaxial and
optical inputs.

Digital Inputs: The OPTICAL connector will override the source connected to
COAXIAL, unless the source connected to the optical connector is turned off.

In this case, you can listen to the source connected in coaxial.

SPECIFICATIONS

Amplifier%section

Power:#2x70W#RMS#into 8#Ω
and#2x120W#into 4#Ω
Total#harmonic distorition <#0,01%#

Signal#to#noise#ratio#>#100#dBA
Bandwidth:#20#Hz#- 20#KHz
Speaker#Impedance Compatibility#

Range#:#3-8#Ω

Wireless

Range:#about#10#m#

Connectors

3x#RCA#line#inputs
1x#Digital#input:#Optical#and#Coaxial

1x#MP3#input#(Mini-jack#3.#5#mm)
1x#RCA#line#output:#Pre-Out#
1x#Headphone Jack#6.35#mm in#front

1x#Power#output#for#optional card
(Type#2X)
4x#Screw terminals compatible#with

banana#plugs
1x#Detachable IEC#power#cord
1x#Remote control:#RC-EX1.2

Included Accessories

1x#Detachable IEC#power#cord
1x#Wireless#antenna

1x#Remote control#RC-EX1.2
1x#Battery CR2025
1x#Manual
