BBK Performance 1659 User Manual

INS-005

Step 1

Step 2

Step 3

Step 4 Reconnect factory air tube if installing on catalyst equipped pipes.

*

It may be necessary to use some WD-40 to aid in the hanger installation. Due to the metal to rubber slide mount these units

can become sticky.

INSTALLATION INSTRUCTIONS

www.BBKPERFORMANCE.com

IMPORTANT—All appropriate safety equipment (e.i., gloves, tools) must be used during the installation of this product(s).
BBK Performance, Inc. accepts no responsibility for injuries resulting in the installation of any product(s).

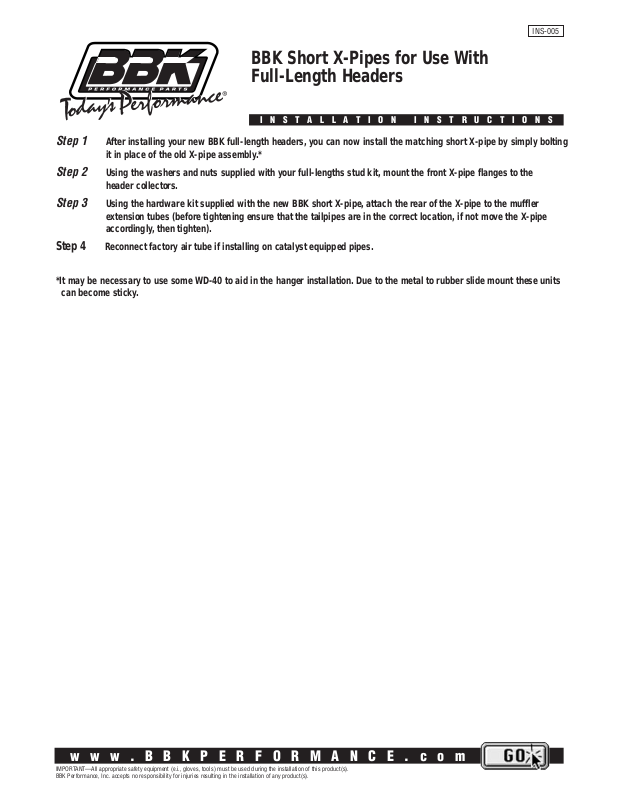

BBK Short X-Pipes for Use With
Full-Length Headers

After installing your new BBK full-length headers, you can now install the matching short X-pipe by simply bolting
it in place of the old X-pipe assembly.*

Using the washers and nuts supplied with your full-lengths stud kit, mount the front X-pipe flanges to the
header collectors.

Using the hardware kit supplied with the new BBK short X-pipe, attach the rear of the X-pipe to the muffler
extension tubes (before tightening ensure that the tailpipes are in the correct location, if not move the X-pipe
accordingly, then tighten).
