THE INDUSTRIAL NETWORK COMPANY
The
N-TRON
Ethernet Switch. It is housed in a ruggedized
DIN-RAIL enclosure, and is designed for use in industrial
data acquisition, control, and Ethernet I/O applications.
®
306TX
is an unmanaged six port Industrial
PRODUCT FEATURES
• Compact Size, Small Footprint
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS) T ype Approval
• Extended Environmental Specifi cations
• Six 10/100 BaseTX RJ-45 Ports
• Supports Full/Half Duplex Operation
• LED Link/Activity Status Indication
• Store-and-forward Technology
• Auto Senses Speed and Flow Control
• MDIX Auto Cable Sensing (RJ-45)
• Up to 1.0 Gb/s Maximum Throughput
• Rugged Industrial DIN-RAIL Enclosure
• Redundant Power Inputs (10-30 VDC)
• N-View™ OPC Switch Monitoring Option
PRODUCT OVERVIEW
The
306TX
and exceed the most demanding industrial communication
requirements while providing high throughput and minimum
downtime.
The
306TX
ports. All ports are full/half duplex capable, using "state
of the art" Ethernet switching technology. The
auto-negotiates the speed and fl ow control capabilities of the
TX copper port connection, and confi gures itself automatically .
The
306TX
extensive wiring changes if upgrades are made to host
computers, plant systems, or Ethernet I/O modules. The
switching fabric simply scales up or down automatically to
match network environments.
306TX
The
these products to support extremely sophisticated and
complex network architectures.
The
306TX
and repeaters to increase bandwidth and determinism by virtually eliminating network collisions. The product provides
a cost effective solution while maintaining the plug & play
simplicity of an unmanaged hub.
Industrial Network Switch is designed to meet
provides six RJ-45 auto sensing 10/100BaseTX
306TX
is auto sensing, so there will be no need to make
supports up to 4,000 MAC addresses, enabling
is an ideal candidate for upgrading existing hubs
306TX
The
need to bring data acquisition and control network
connections back to a climate controlled environment. The
306TX
meet the harsh needs of the industrial environment. For cost
savings and convenience the network switch can be DIN-RAIL
mounted alongside Ethernet I/O or other Industrial Equipment.
The unique compact size provides a small footprint,
conserving space in the most critical dimension.
306TX
The
To increase reliability, the
power inputs. LED's are provided to display power on/off
status as well as the link status and activity of each port.
N-VIEW OPC PORT MONITORING (With -N Option Only)
The
N-TRON
Server Software can be combined with popular HMI software
packages to add network traffi c monitoring, trending and alarm-
ing to any application using
the N-View option.
different traffi c variables per port and 5 system level variables
per switch. This information can provide a complete overview
of the network load, service quality, and packet traffi c. OPC
client software can use N-View OPC Server data to resolve
network problems quickly and improve system reliability.
simplifies plant wiring by eliminating the
has extended operating environmental specifi cations to
can also be panel mounted if desired.
306TX
N-View OLE for Process Control (OPC)
N- TRON
N- TRON's
N-View OPC Server collects 41
contains redundant
switches confi gured with
THE INDUSTRIAL NETWORK COMPANY
306TX SPECIFICATIONS

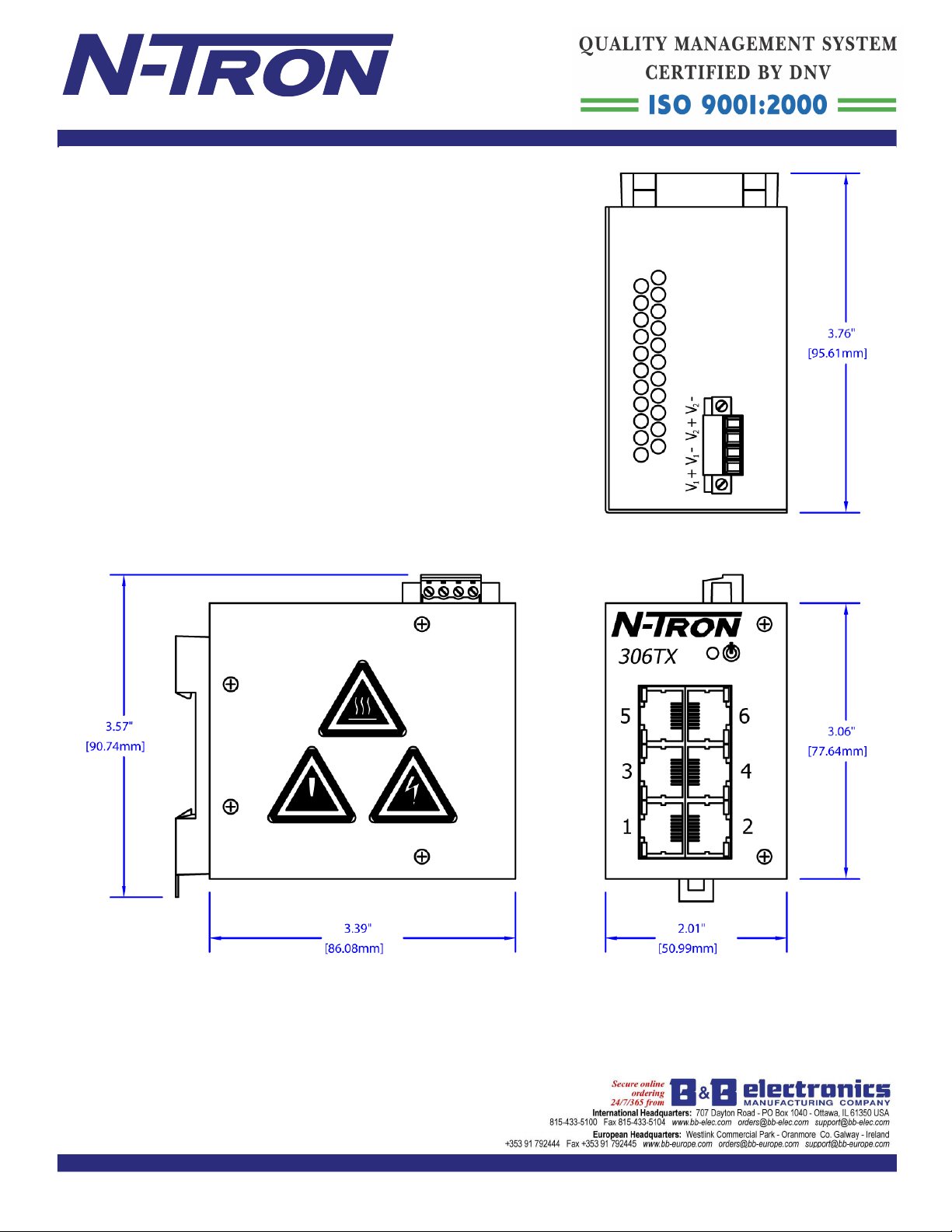

Case Dimensions
Height: 3.1" (7.8 cm)
Width: 2.0" (5.1 cm)
Depth: 3.4" (8.6 cm)
Weight: 0.75 lbs (0.3 kg)
Electrical
Input Voltage: 10-30 VDC
Input Current: 250 mA@24V
Inrush: 8.0Amp/0.6ms@24V
Environmental
Operating Temperature: -20oC to 70oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Shock and Vibration (bulkhead mounting)
Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial
Network Media
10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
BENEFITS
Industrial Network Switch
• Compact Size, Small Footprint
• High Reliability/Availability
• Extended Environmental Specifi cations
• Ruggedized DIN-RAIL Enclosure
• High Performance
• High MTBF >2M Hours (measured)
Ease of Use
• Plug & Play Operation
• 6 Auto Sensing 10/100BaseTX RJ-45 Ports
• Auto Sensing Duplex, Speed, and Cable Type
• Unmanaged Operation
• Compact DIN-RAIL Package
Increased Performance
• Full Wire Speed Capable
• Full Duplex Capable
• Eliminates Network Collisions
• Increases Network Determinism
• N-View Switch Viewing Option
Connectors
10/100BaseTX: Six (6) RJ-45 TX Ports
Ordering Information
Recommended Wiring Clearance
Front: 4" (10.16 cm)
Top: 1" (2.54 cm)
Regulatory Approvals
FCC Part 15 Class A
UL Listed 1604 (US and Canada)
CLASS I, DIV 2, GROUPS A,B,C,D,T4A;
CE:EN61000-6-2,4
EN61000-4-2,3,4,5,6;
EN55011
ABS Type Approval for Shipboard Applications
GOST-R Certifi ed
RoHS Compliant
® 2009
N-TRON
, Corp.
may be trademarks and/or registered trademarks of their respective company. Specifi cations subject to change without notice. The responsibility for the use and application
N-TRON
of
shall not be liable for any damage resulting from the installation, use, or misuse of this product.
products rests with the end user.
, N-TRON
and the
N-TRON
N-TRON
logo are trademarks of
makes no warranties as to the fi tness or suitability of any
N-TRON
306TX Six 10/100BaseTX Ports
306TX-N with N-View Firmware Option
Contact Information
N-TRON Corp. N-TRON Europe GmbH
820 S. University Blvd., Suite 4E Alte Steinhauserstr 19
Mobile, AL36609USA 6330 Cham / Zg Switzerland
TEL: (251) 342-2164 TEL: +41 41 7406636
FAX: (251) 342-6353 FAX: +41 41 7406637
Website: www.n-tron.com
Email: N-TRON_info@n-tron.com
, Corp. Product names mentioned herein are for identifi cation purposes only and
N-TRON
Printed in USA.
product for any specifi c application.
REV 090804
