CATALOG OF
REPLACEMENT
PARTS
OV450 SERIES DECK OVENS
SINGLE DOOR DECK
OV450W
OV450N
DOUBLE DOOR DECK
OV452N
A product of BAXTER MFG. CO., INC. 19220 STATE ROUTE 162 EAST, ORTING, WA 98360
FORM 43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
F-43282 Rev. E (February 2015) - 2 - © BAXTER MFG. 2015
OV450 SERIES DECK OVENS REPLACEMENT PARTS
Table of Contents
5 PANELS AND DECKS
7 ELECTRICAL AND STEAM COMPONENTS
9 SINGLE POINT POWER CONNECTIONS
11 INTERIOR LIGHT
13 POWER VENT
15 HOOD

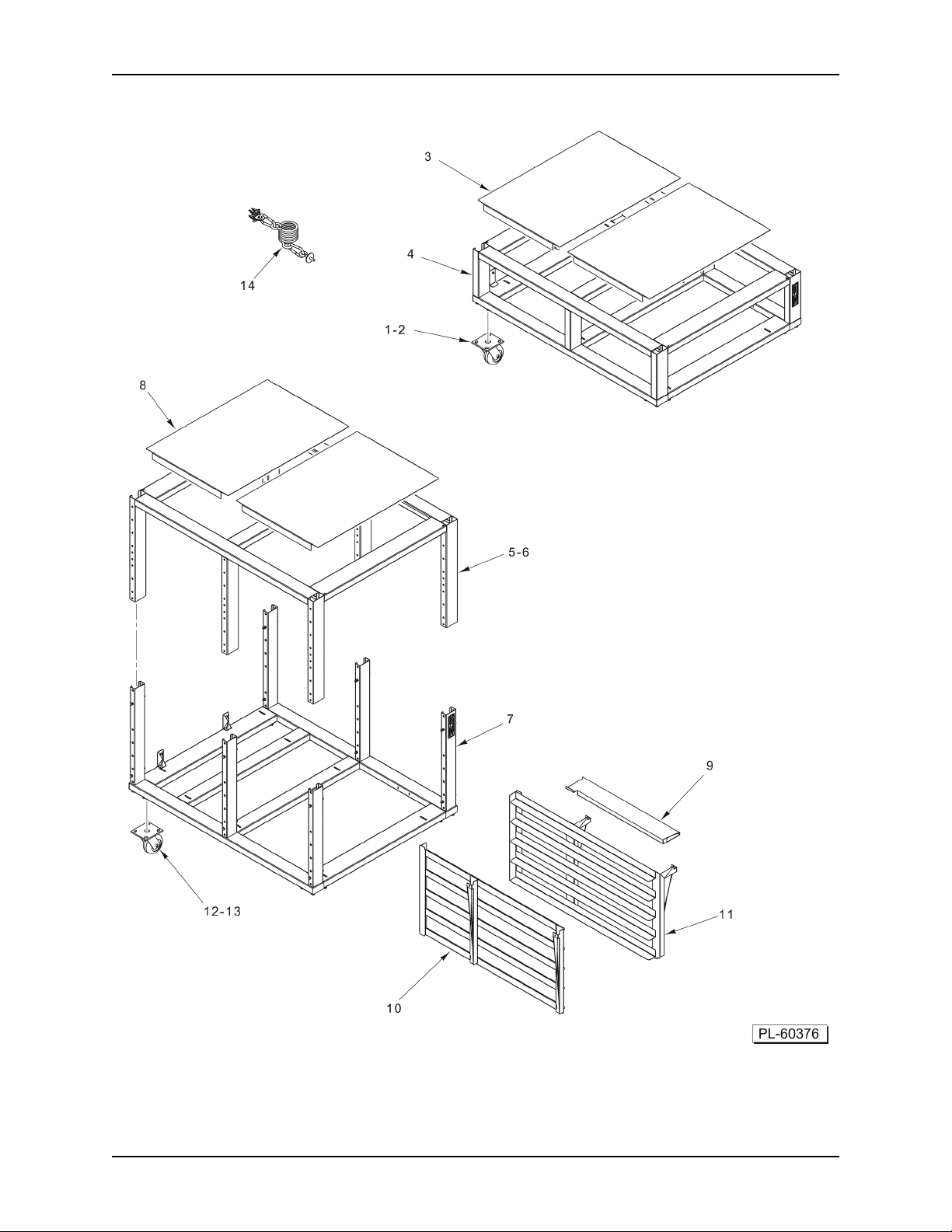

17 STAND ASSEMBLY (OV450W)
19 STAND ASSEMBLY (OV450N)
- 3 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
PANELS AND DECKS
F-43282 Rev. E (February 2015) - 4 -
OV450 SERIES DECK OVENS REPLACEMENT PARTS
PANELS AND DECKS
ILLUS.
PL-60280
10 01-1M6854-00001 Panel - Service Access (LH) (OV450W)....................................................................................1
11 01-1M6854-00002 Panel - Service Access (LH) (OV450N).....................................................................................1
12 01-1M6854-00003 Panel - Service Access (LH) (OV452N).....................................................................................1
13 01-1M6856-00001 Cover - Light Access...............................................................................................................AR
14 01-1000V4-00377 Thumb Screw M6 x 10mm x 1mm Knurled Hd. (SST)............................................................AR
15 01-1M6856-00002 Cover - Breaker Access..........................................................................................................AR
16 01-100V16-00944 Panel - Interior (Heater) (OV450N & OV452N).......................................................................AR
17 01-100V16-00974 Panel - Interior (Heater) (OV450W).........................................................................................AR
18 01-1M6855-00004 Panel - Cover (Rear) (OV450W)................................................................................................1
19 01-1M6855-00002 Panel - Cover (Rear) (OV450N).................................................................................................1
20 01-1M6855-00003 Panel - Cover (Rear) (OV452N).................................................................................................1
21 01-1000V4-00377 Thumb Screw M6 x 10mm x 1mm Knurled Hd. (SST)............................................................AR
*22 01-100V21-00195 Kit - Stone (23-5/8 x 34)..........................................................................................................AR
23 01-100V16-00973 Edge - Front Bake Chamber (OV450W)....................................................................................1
24 01-100V16-00946 Edge - Front Bake Chamber (OV450N & OV452N)................................................................AR
25 01-1M6873-00001 Cover - Bottom (OV450N & OV452N)........................................................................................1
26 01-1M6873-00002 Cover - Bottom (OV450W).........................................................................................................1
27 01-1M6870-00001 Cover - Top (OV450N & OV452N).............................................................................................1
28 01-1M6870-00002 Cover - Top (OV450W)..............................................................................................................1
29 01-1M6853-00002 Panel - Cover (RH) (OV450N & OV450W).................................................................................1
30 01-1M6853-00004 Panel - Cover (RH) (OV452N)....................................................................................................1
31 01-1M6989-00001 Door - Control Panel (OV450N & OV450W)..............................................................................1
32 01-1M6989-00002 Door - Control Panel (OV452N).................................................................................................2
33 01-100V18-00201 Hinge.......................................................................................................................................AR
34 Screw M6 x 7 Phil. Flat Hd. (SST)...........................................................................................AR
35 01-1M6517-00001 Support - Outer Handle (Door Glass) (OV450W)....................................................................AR
36 01-1M7173-00001 Support - Inner Handle (Door Glass) (OV450W).....................................................................AR
PART NO. NAME OF PART AMT.
1 01-100V18-00191 Handle - Door..........................................................................................................................AR
2 01-100V18-00197 Handle - Body..........................................................................................................................AR
3 01-100V20-00030 Spring - Loading Door.............................................................................................................AR
4 01-100V16-00968 Glass - Loading Door (8.15 In. x 23.46 In.) (OV450N & OV450W).........................................AR
5 01-100V16-00954 Glass - Loading Door (6.02 In. x 23.46 In.) (OV452N)...............................................................2
6 01-100V16-00969 Control Panel Assy. (Incls. Item 7)..........................................................................................AR
7 01-1M6930-00001 Keypad Assy. - Control............................................................................................................AR
8 01-100V11-00215 Cable - Serial (3 Ft.) (9-Pin) (Control to Control)........................................................................1
9 01-1000V4-00377 Thumb Screw M6 x 10mm x 1mm Knurled Hd. (SST)............................................................AR
* (Qty. = 1 for OV450N & OV452N) (Qty. = 2 for OV450W)
- 5 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
ELECTRICAL AND STEAM COMPONENTS
F-43282 Rev. E (February 2015) - 6 -
OV450 SERIES DECK OVENS REPLACEMENT PARTS
ELECTRICAL AND STEAM COMPONENTS
ILLUS.
PL-60281
10 01-1000V6-00358 Bus Bar - Manual Starter (63 Amp., 600 VAC)........................................................................AR
11 01-1000V6-00353 Coil - Suppressor.....................................................................................................................AR
12 01-1000V5-00252 Stop - Terminal Section End...................................................................................................AR
13 01-100V10-00298 Supply - Power (Power Vent) (One on top deck per stack)........................................................1
14 01-100V11-00216 Cable - Serial (6 Ft.) (9-Pin) (Used with Item 13 on Top Deck Only).........................................1
15 01-100V17-00696 Tee - Pipe................................................................................................................................AR
16 01-100V17-00697 Pipe 1/2 x 4-3/4.......................................................................................................................AR
17 01-1000V1-00033 Clamp - Band..........................................................................................................................AR
18 01-100V17-00700 Hose - Water Supply (6 Ft. per deck)......................................................................................AR
19 01-100V17-00598 Regulator - Flow (0.5 G.P.M.) (OV450N & OV452N)..............................................................AR
20 01-100V17-00645 Regulator - Flow (1.0 G.P.M.) (OV450W)..................................................................................1
21 01-100V17-00275 Strainer (Y) - Liquid (Brass).....................................................................................................AR
22 01-100V17-00681 Adaptor - Swivel......................................................................................................................AR
23 01-100V10-00334 Transformer (250VA) (OV450W, 480 V.)...................................................................................1
24 01-100V17-00695 Module - Switching..................................................................................................................AR
25 01-100V17-00676 Valve - Solenoid (3/4)..............................................................................................................AR
26 01-100V17-00679 Gasket.....................................................................................................................................AR
27 01-1M6869-00001 Steam Generator (OV450N & OV452N).................................................................................AR
28 01-1M6869-00002 Steam Generator (OV450W)......................................................................................................1
29 01-100V10-00310 Thermocouple Assy. (Steam System).....................................................................................AR
30 01-100V16-00970 Gasket - Steam Generator......................................................................................................AR
31 01-100V16-00930 Steam Pipe Assy. (OV450N & OV452N) (Incls. Item 48)........................................................AR
32 01-100V16-00931 Steam Pipe Assy. (OV450W) (Incls. Item 48)............................................................................1
33 01-100V10-00311 Element - Heating (230/208 V.) (1050/860 W.) (OV450W).....................................................AR
34 01-100V10-00312 Element - Heating (230/208 V.) (800/655 W.) (OV450W).......................................................AR
35 01-100V10-00313 Element - Heating (230/208 V.) (700/570 W.) (OV450W).......................................................AR
36 01-100V10-00314 Element - Heating (230/208 V.) (650/530 W.) (OV450W).......................................................AR
37 01-100V10-00318 Element - Heating (230/208 V.) (450/370 W.) (OV450N & OV452N)......................................AR
38 01-100V10-00319 Element - Heating (230/208 V.) (350/285 W.) (OV450N & OV452N)......................................AR
39 01-100V10-00317 Element - Heating (230/208 V.) (550/450 W.) (OV450N & OV452N)......................................AR
40 01-100V10-00325 Element - Heating (480 V.) (OV450W)....................................................................................AR
41 01-100V10-00326 Element - Heating (480 V.) (OV450W)....................................................................................AR
42 01-100V10-00327 Element - Heating (480 V.) (OV450W)....................................................................................AR
43 01-100V10-00328 Element - Heating (480 V.) (OV450W)....................................................................................AR
44 01-100V16-00972 Gasket - Heating Element.......................................................................................................AR
45 01-1000V5-00326 Block - Terminal (10 Amp.).........................................................................................................1
46 01-1000V5-00325 Block - Terminal (20 Amp.)......................................................................................................AR
47 01-1000V5-00322 Terminal Block (50 Amp., 600 V.)...........................................................................................AR
48 01-100V17-00678 Hose - Flex (Water Inlet).........................................................................................................AR
49 01-1000V6-00352 Switch - Snap (Hi Limit)..............................................................................................................1
50 01-100V16-00979 Bottle - Drain (Plastic)................................................................................................................1
51 01-1000V5-00322 Terminal Block (50 Amp., 600 V.)...........................................................................................AR
52 01-100V10-00315 Element - Heating (Steam) (1100/900 W.) (OV450W)............................................................AR
53 01-100V10-00316 Element - Heating (Steam) (700/570 W.) (OV450W)..............................................................AR
54 01-100V10-00320 Element - Heating (Steam) (700/570 W.) (OV450N & OV452N).............................................AR
55 01-100V10-00321 Element - Heating (Steam) (500/410 W.) (OV450N & OV452N).............................................AR
56 01-100V10-00329 Element - Heating (Steam) (OV450W, 480 V.).......................................................................AR
57 01-100V10-00330 Element - Heating (Steam) (OV450W, 480 V.).......................................................................AR
PART NO. NAME OF PART AMT.
1 01-100V10-00309 Thermocouple Assy. (Upper & Lower)....................................................................................AR
2 01-1000V4-00375 Nut - Sensor............................................................................................................................AR
3 01-100V16-00976 Board - Relay..........................................................................................................................AR
4 01-100V16-00927 Cable Assy. (9-Pin).................................................................................................................AR
5 01-100V10-00298 Supply - Power (Controls) (One per deck).................................................................................1
6 01-1000V6-00350 Breaker - Circuit (2-Pole) (10 Amp.) (208 V.).............................................................................1
7 01-1000V6-00381 Breaker - Circuit (OV450W, 480 V.)...........................................................................................1
8 01-1000V6-00351 Contactor (230 V.)...................................................................................................................AR
9 01-1000V6-00357 Terminal Block (63 Amp., 600 V.)...........................................................................................AR
- 7 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
SINGLE POINT POWER CONNECTIONS
F-43282 Rev. E (February 2015) - 8 -
OV450 SERIES DECK OVENS REPLACEMENT PARTS
SINGLE POINT POWER CONNECTIONS
ILLUS.
PL-60606
10 01-1000V5-00037 Lug - Terminal............................................................................................................................1
11 Screw.........................................................................................................................................1
12 01-1000V5-00252 Stop - Terminal Section End......................................................................................................2
13 01-1000V6-00361 Lug - Power Feed.......................................................................................................................3
14 01-1000V6-00363 Busbar (600 V., 115 Amp.).........................................................................................................1
15 01-1M6968-0020A Cover Assy.................................................................................................................................1
16 SC-115-51 Mach. Screw 10-32 x 1/2 Phil. Truss Hd....................................................................................3
17 01-1000V5-00337 Bracket - Din Support.................................................................................................................2
18 SC-115-51 Mach. Screw 10-32 x 1/2 Phil. Truss Hd....................................................................................4
19 01-100V18-00115 Din Rail (14 In.)..........................................................................................................................1
20 01-1000V4-00395 Self-Tapping Screw 1/4-14 x 3/4 Phil. Pan Hd...........................................................................2
21 01-1000V6-00305 Breaker - Circuit (30 Amp.) (208 V., 60 Hz., 3 Ph.) (OV450W)..................................................4
22 01-1000V6-00375 Breaker - Circuit (20 Amp.) (208 V., 60 Hz., 3 Ph.) (OV450N & OV452N).................................4
23 01-1000V6-00287 Breaker - Circuit (15 Amp.) (480 V., 60 Hz., 3 Ph.)....................................................................4
*24 01-100V11-00218 Cable (4 Wire).........................................................................................................................AR
25 01-1M6968-0001P Kit - Single Point Power (208 V., 60 Hz., 3 Ph.) (OV450W) (Incls. Items 1 thru 21 &
26 01-1M6968-0002P Kit - Single Point Power (208 V., 60 Hz., 3 Ph.) (OV450N & OV452N) (Incls. Items 1
27 01-1M6968-0003P Kit - Single Point Power (480 V., 60 Hz., 3 Ph.) (Incls. Items 1 thru 20, 23, & 24).....................1
PART NO. NAME OF PART AMT.
1 01-1M6968-00010 Box Assy....................................................................................................................................1
2 01-1M6668-00030 Bracket - Mounting.....................................................................................................................2
3 SC-115-51 Mach. Screw 10-32 x 1/2 Phil. Truss Hd....................................................................................4
4 Self-Tapping Screw #10 x 3/4 Hex Hd.......................................................................................4
5 01-1000V4-00165 Nut Hex 10-32............................................................................................................................2
6 01-100V11-0199N Nut - Strain (Locking).................................................................................................................4
7 01-100V11-00199 Relief - Strain (1 In.)...................................................................................................................4
8 01-1000V5-00342 Bar - Ground...............................................................................................................................1
9 Screw 10-32 x 5/8 Flat Hd..........................................................................................................2
24)..............................................................................................................................................1
thru 20, 22, & 24)........................................................................................................................1
* (Sold Per Inch; Order 01-1M6968-00201 for a 30 Ft. section of cable)
- 9 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
INTERIOR LIGHT
F-43282 Rev. E (February 2015) - 10 -
OV450 SERIES DECK OVENS REPLACEMENT PARTS
INTERIOR LIGHT
ILLUS.
PL-60287
PART NO. NAME OF PART AMT.
1 01-1000V7-00045 Socket - Oven Light.................................................................................................................AR
2 01-1000V7-00049 Lamp (12 V., 14 W.)................................................................................................................AR
3 01-1000V7-00046 Frame - Lamp Glass................................................................................................................AR
4 01-1000V7-00047 Gasket - Window.....................................................................................................................AR
5 01-1000V7-00044 Glass - Oven Light...................................................................................................................AR
6 01-1000V7-00048 Gasket - Window.....................................................................................................................AR
- 11 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
POWER VENT
F-43282 Rev. E (February 2015) - 12 -
OV450 SERIES DECK OVENS REPLACEMENT PARTS
POWER VENT
ILLUS.
PL-60288
PART NO. NAME OF PART AMT.
1 01-1M6864-00001 Tube - Steam Vent Connecting (250mm)................................................................................AR
2 01-1M6864-00002 Tube - Steam Vent Connecting (189mm)................................................................................AR
3 01-1M6862-00001 Cap - End (Steam Vent Tube)....................................................................................................1
4 01-100V16-00971 Adaptor - Power Vent Motor....................................................................................................AR
5 01-1000V8-00164 Motor - Power Vent.................................................................................................................AR
6 01-1M6863-00001 Adaptor - Steam Duct..............................................................................................................AR
- 13 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
HOOD
F-43282 Rev. E (February 2015) - 14 -
HOOD
OV450 SERIES DECK OVENS REPLACEMENT PARTS
ILLUS.
PL-60354
10 01-1M6925-00031 Hood Spacer Assy. (Front) (3-1/2 In.) (OV452N/OV450N Combo) (Incls. Item 13)
11 01-1M6925-00032 Hood Spacer Assy. (Front) (11 In.) (OV452N/OV450N Combo) (Incls. Item 13).......................1
12 01-1M6925-00033 Hood Spacer Assy. (Front) (13-1/2 In.) (OV452N/OV450N Combo) (Incls. Item 13)
13 01-100V16-0168C Label - Caution...........................................................................................................................1
14 01-1M6924-00001 Hood Spacer - Side (3-1/2 In.)...................................................................................................2
15 01-1M6924-00002 Hood Spacer - Side (5 In.)..........................................................................................................2
16 01-1M6924-00003 Hood Spacer - Side (8 In.)..........................................................................................................2
17 01-1M6924-00004 Hood Spacer - Side (11 In.)........................................................................................................2
18 01-1M6924-00005 Hood Spacer - Side (13-1/2 In.).................................................................................................2
19 01-1000V8-00165 Guard - Fan (3.15 In. Dia.).........................................................................................................1
20 01-1000V9-00200 Duct - Flexible (3 In. x 15 Ft.).....................................................................................................1
21 01-1000V1-00084 Clamp - Quick Release..............................................................................................................1
22 01-1000V8-00155 Motor - Duct Fan (8 In. Dia.).......................................................................................................1
23 01-1M6399-00003 Kit - Duct Fan (Incls. Items 22 & 29)..........................................................................................1
24 01-1M6876-00102 Trim - Rear (Hood) (OV450N & OV452N)..................................................................................1
25 01-1M6876-00103 Trim - Rear (Hood) (OV450W)...................................................................................................1
26 01-1M6875-00105 Collar - Flanged..........................................................................................................................1
27 01-1M6875-00107 Collar - Flanged..........................................................................................................................1
28 01-1000V8-00141 Fan Guard (11.02 In. Dia.).........................................................................................................1
29 01-1000V9-00205 Clamp (8 In.)...............................................................................................................................1
PART NO. NAME OF PART AMT.
1 01-1M6875-00101 Hood Body (OV450N & OV452N)..............................................................................................1
2 01-1M6875-00201 Hood Body (OV450W)................................................................................................................1
3 01-1M6874-00002 Panel - Side (Hood) (RH)...........................................................................................................1
4 01-1M6874-00001 Panel - Side (Hood) (LH)............................................................................................................1
5 01-1M6876-00101 Trim - Side (Hood)......................................................................................................................2
6 01-1M6925-00011 Hood Spacer Assy. (Front) (5 In.) (OV450N) (Incls. Item 13)....................................................1
7 01-1M6925-00012 Hood Spacer Assy. (Front) (8 In.) (OV450N) (Incls. Item 13)....................................................1
8 01-1M6925-00021 Hood Spacer Assy. (Front) (5 In.) (OV450W) (Incls. Item 13)....................................................1
9 01-1M6925-00022 Hood Spacer Assy. (Front) (8 In.) (OV450W) (Incls. Item 13)....................................................1
...................................................................................................................................................1
...................................................................................................................................................1
- 15 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
STAND ASSEMBLY (OV450W)
F-43282 Rev. E (February 2015) - 16 -
OV450 SERIES DECK OVENS REPLACEMENT PARTS
STAND ASSEMBLY (OV450W)
ILLUS.
PL-60375
10 01-1M6939-00001 Support - Shelf...........................................................................................................................2
11 01-1M6937-00002 Slide - Weldment (RH)...............................................................................................................1
12 01-1M6937-00001 Slide - Weldment (LH)................................................................................................................1
13 01-100V14-00046 Caster - Swivel Plate..................................................................................................................4
14 01-1A2309-00001 Kit - Shim Caster.....................................................................................................................AR
15 01-100V17-00605 Cable - Restraining.....................................................................................................................1
PART NO. NAME OF PART AMT.
1 01-100V14-00046 Caster - Swivel Plate..................................................................................................................4
2 01-1A2309-00001 Kit - Shim Caster.....................................................................................................................AR
3 01-1M6934-00001 Cover - Top................................................................................................................................2
4 01-1M6950-00003 Stand Assy. (18 In.) (Fixed Height) (Incls. Items 1, 3, & Hardware)...........................................1
5 01-1M6950-00001 Stand Assy. (Adjustable Height) (Incls. Items 6 thru 13 & Hardware)........................................1
6 01-1M6931-00001 Stand - Weldment (Top).............................................................................................................1
7 01-1M6935-00001 Stand - Weldment (Bottom)........................................................................................................1
8 01-1M6934-00001 Cover - Top................................................................................................................................2
9 01-1M6938-00001 Shelf - Storage...........................................................................................................................1
- 17 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
STAND ASSEMBLY (OV450N)
F-43282 Rev. E (February 2015) - 18 -
OV450 SERIES DECK OVENS REPLACEMENT PARTS
STAND ASSEMBLY (OV450N)
ILLUS.
PL-60376
10 01-1M6937-00001 Slide - Weldment (LH)................................................................................................................1
11 01-1M6937-00003 Slide - Weldment (RH)...............................................................................................................1
12 01-100V14-00046 Caster - Swivel Plate..................................................................................................................4
13 01-1A2309-00001 Kit - Shim Caster.....................................................................................................................AR
14 01-100V17-00605 Cable - Restraining.....................................................................................................................1
PART NO. NAME OF PART AMT.
1 01-100V14-00046 Caster - Swivel Plate..................................................................................................................4
2 01-1A2309-00001 Kit - Shim Caster.....................................................................................................................AR
3 01-1M6934-00002 Cover - Top................................................................................................................................2
4 01-1M6950-00004 Stand Assy. (18 In.) (Fixed Height) (Incls. Items 1, 3, & Hardware)...........................................1
5 01-1M6950-00002 Stand Assy. (Adjustable Height) (Incls. Items 6 thru 13 & Hardware)........................................1
6 01-1M6931-00002 Stand - Weldment (Top).............................................................................................................1
7 01-1M6935-00002 Stand - Weldment (Bottom)........................................................................................................1
8 01-1M6934-00002 Cover - Top................................................................................................................................2
9 01-1M6937-00301 Tray - Peel Storage....................................................................................................................1
- 19 - F-43282 Rev. E (February 2015)
OV450 SERIES DECK OVENS REPLACEMENT PARTS
FORM 43282 Rev. E FEBRUARY 2015 PRINTED IN U.S.A.
Loading...
