CATALOG OF
REPLACEMENT
PARTS
PROOFING CABINET BASE
ML-132184 PC800
ML-132514 MB300
A product of BAXTER MFG. CO., INC. 19220 STATE ROUTE 162 EAST, ORTING, WA 98360
FORM 43055 Rev. A (November 2013)
PROOFING CABINET BASE REPLACEMENT PARTS
F-43055 Rev. A (November 2013) - 2 - © BAXTER MFG. 2013
PROOFING CABINET BASE REPLACEMENT PARTS
Table of Contents
5 CABINET UNIT
7 CONTROL PANEL ASSEMBLY (PREVIOUS CONSTRUCTIONS)
9 CONTROL PANEL ASSEMBLY MB300 (CURRENT CONSTRUCTION)
11 HUMIDIFIER UNIT
13 WATER SUPPLY
- 3 - F-43055 Rev. A (November 2013)
PROOFING CABINET BASE REPLACEMENT PARTS
CABINET UNIT
F-43055 Rev. A (November 2013) - 4 -
CABINET UNIT
PROOFING CABINET BASE REPLACEMENT PARTS
ILLUS.
PL-56354A
10 01-1P1652-00001 Deflector - Moisture....................................................................................................................2
11 01-1P1572-00001 Drain Pipe Assy..........................................................................................................................1
PART NO. NAME OF PART AMT.
1 01-100V18-00118 Hinge - Oven Door.....................................................................................................................4
2 01-1P1814-00001 Door Assy. (LH) (Incls. Item 4) (Not Shown)..............................................................................1
3 01-1P1814-00002 Door Assy. (RH) (Incls. Item 4)..................................................................................................1
4 01-100V16-0271D Gasket - Door (Four Sided).....................................................................................................AR
5 01-1P1571-00002 Rack - Side (RH)........................................................................................................................2
6 01-1P1571-00001 Rack - Side (LH).........................................................................................................................2
7 01-100V14-00046 Caster - Plate Swivel (W/Brake).................................................................................................2
8 01-100V14-00047 Caster - Plate Rigid....................................................................................................................2
9 01-1A2309-00001 Kit - Shim Caster........................................................................................................................1
01-1M3475-00001 Retainer......................................................................................................................................2
01-1000V5-00035 Bushing - Snap (1 In. Hole)........................................................................................................3
01-1000V5-00059 Bushing - Snap (0.88 In. Hole)...................................................................................................1
01-100V10-00194 Transformer (115/230 V.)...........................................................................................................1
- 5 - F-43055 Rev. A (November 2013)
PROOFING CABINET BASE REPLACEMENT PARTS

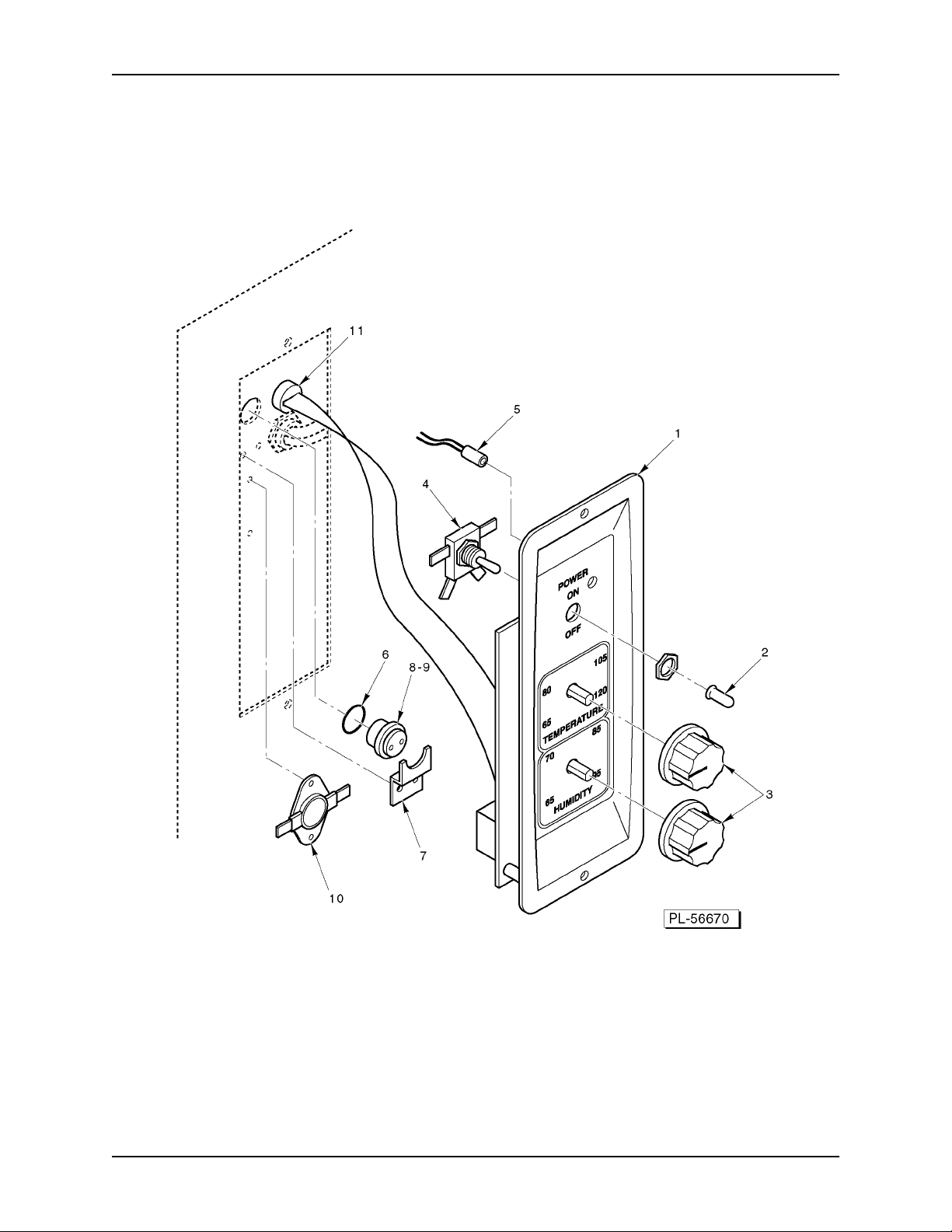

CONTROL PANEL ASSEMBLY
(PREVIOUS CONSTRUCTIONS)
F-43055 Rev. A (November 2013) - 6 -
PROOFING CABINET BASE REPLACEMENT PARTS
CONTROL PANEL ASSEMBLY
(PREVIOUS CONSTRUCTIONS)
ILLUS.
PL-56670A
10 01-1000V6-00205 Switch - Hi-Limit Temperature....................................................................................................1
11 01-1P1540-00001 Sensor - Temperature................................................................................................................1
PART NO. NAME OF PART AMT.
1 01-1P1541-00001 Control Panel Assy. (Incls. Items 2 thru 5).................................................................................1
2 01-1000V4-00019 Boot - Toggle Switch..................................................................................................................1
3 01-100V10-00040 Knob (1/4 Shaft).........................................................................................................................2
4 01-1000V6-00151 Switch - Toggle (On/Off).............................................................................................................1
5 01-1000V7-00022 Light - Indicator (RFD) (On/Off)..................................................................................................1
6 01-1000V1-00022 O-Ring........................................................................................................................................1
7 01-10P551-00001 Bracket - Humidity Base.............................................................................................................1
8 01-100V10-00056 Base - Humidity..........................................................................................................................1
9 01-1P1483-00001 Sensor - Humidity.......................................................................................................................1
- 7 - F-43055 Rev. A (November 2013)
PROOFING CABINET BASE REPLACEMENT PARTS

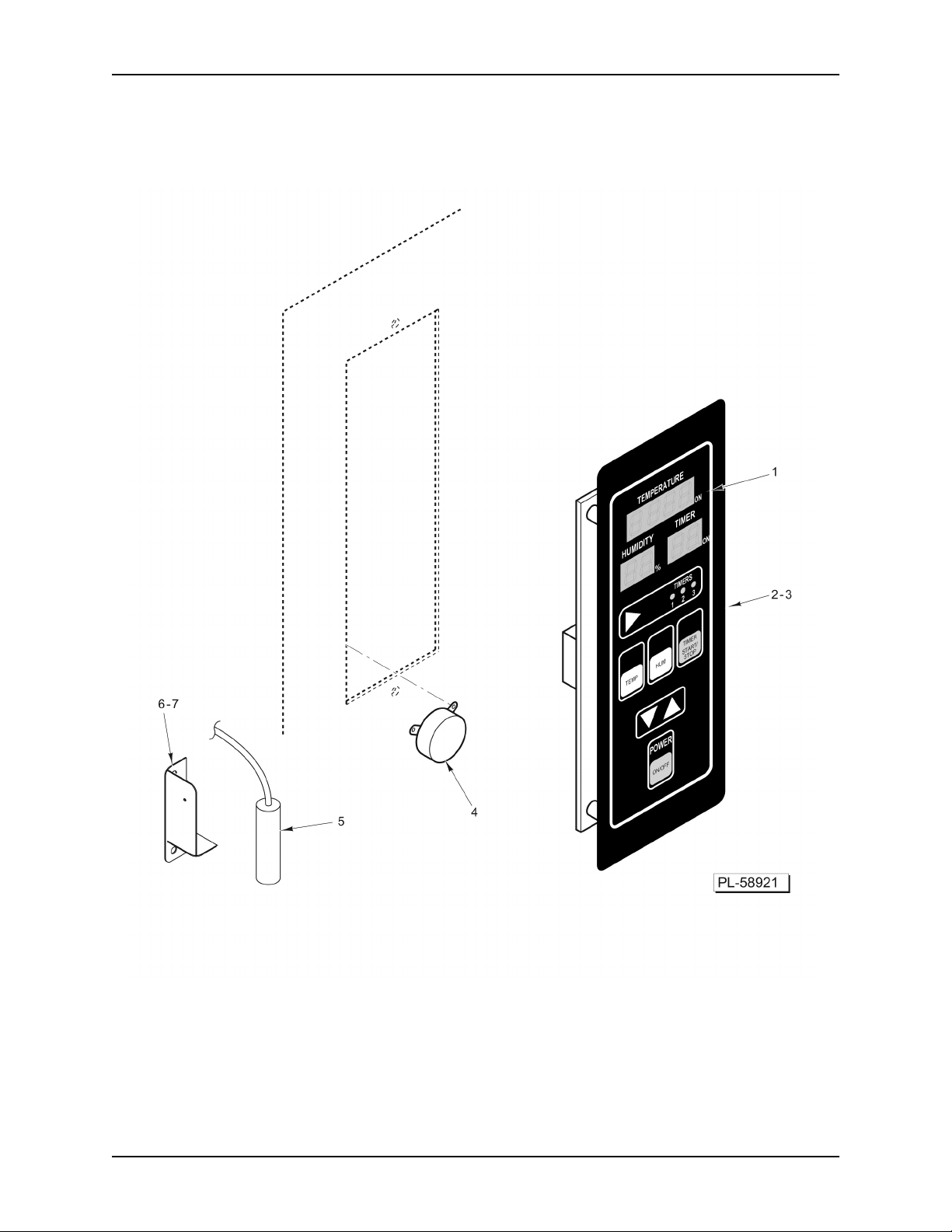

CONTROL PANEL ASSEMBLY MB300
(CURRENT CONSTRUCTION)
F-43055 Rev. A (November 2013) - 8 -
PROOFING CABINET BASE REPLACEMENT PARTS
CONTROL PANEL ASSEMBLY MB300
(CURRENT CONSTRUCTION)
ILLUS.
PL-58921
PART NO. NAME OF PART AMT.
1 01-1P2444-00001 Panel - Control (Incls. Items 2, 3, & 4).......................................................................................1
2 01-100V16-00673 Overlay - Membrane...................................................................................................................1
3 01-100V16-00672 Board - PCB...............................................................................................................................1
4 01-1P2445-00001 Buzzer........................................................................................................................................1
5 01-1P1875-00002 Sensor Assy. - Humidity With Filter............................................................................................1
6 01-1P1905-00003 Bracket - Sensor Assy................................................................................................................1
7 SD-033-84 Screw 10-32 x 1/2 Phil. Truss Hd. (SST)...................................................................................2
- 9 - F-43055 Rev. A (November 2013)
PROOFING CABINET BASE REPLACEMENT PARTS
HUMIDIFIER UNIT
F-43055 Rev. A (November 2013) - 10 -
HUMIDIFIER UNIT
PROOFING CABINET BASE REPLACEMENT PARTS
ILLUS.
PL-56671A
10 01-100V10-00170 Element - Heater (120 V., 810 W.).............................................................................................2
PART NO. NAME OF PART AMT.
1 01-1P1566-00001 Housing - Fan.............................................................................................................................1
2 01-1P1647-00001 Motor Mount - Fan......................................................................................................................1
3 01-1P1648-00001 Fan Motor Enclosure..................................................................................................................1
4 01-1000V8-0079M Blower Motor..............................................................................................................................1
5 01-1000V8-0079B Blower Wheel (Fan)....................................................................................................................1
6 01-1P1646-00001 Fan Guard..................................................................................................................................1
7 01-1P1574-00001 Pressure Panel...........................................................................................................................1
8 01-1P1708-00002 Plate - Heater Element (Outer)...................................................................................................1
9 01-1P1708-00001 Plate - Heater Element (Inner)...................................................................................................1
01-1P1582-00001 Fan Housing Assy. (Incls. Items 1 thru 6)..................................................................................1
01-1P1581-00001 Heat Plate Assy. (Incls. Items 8, 9, & 10)...................................................................................1
- 11 - F-43055 Rev. A (November 2013)
PROOFING CABINET BASE REPLACEMENT PARTS
WATER SUPPLY
F-43055 Rev. A (November 2013) - 12 -
WATER SUPPLY
PROOFING CABINET BASE REPLACEMENT PARTS
ILLUS.
PL-56620A
PART NO. NAME OF PART AMT.
1 01-1P1782-00001 Box - Cover................................................................................................................................1
2 01-1P1783-00001 Angle - Cover.............................................................................................................................1
3 01-1P1784-00001 Plate - Cover..............................................................................................................................1
4 01-1P1787-00001 Bracket - Solenoid Mounting......................................................................................................1
5 01-100V17-00075 Valve - Solenoid (120 V.)...........................................................................................................1
6 01-100V17-00073 Elbow 1/4 x 90 Deg....................................................................................................................1
7 01-100V17-00032 Tube - Copper............................................................................................................................1
8 01-1P1363-00002 Spray Nozzle - Air Duct..............................................................................................................1
9 01-1P1575-00001 Terminal Block............................................................................................................................1
01-100V11-00149 Tubing.....................................................................................................................................AR
01-100V11-00150 Connector...................................................................................................................................2
01-100V15-00038 Grommet....................................................................................................................................1
- 13 - F-43055 Rev. A (November 2013)
PROOFING CABINET BASE REPLACEMENT PARTS
FORM 43055 Rev. A NOVEMBER 2013 PRINTED IN U.S.A.
