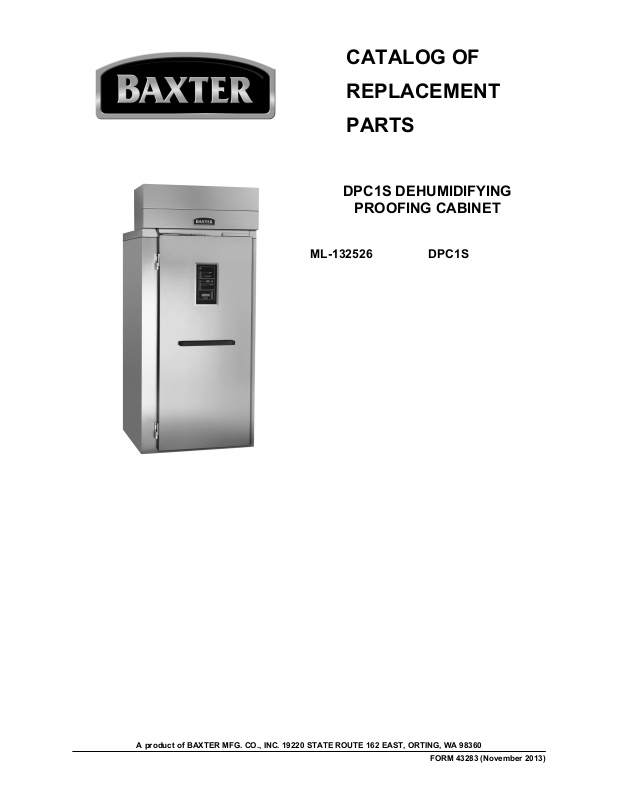

Baxter DPC1S Parts List

CATALOG OF

REPLACEMENT

PARTS

DPC1S DEHUMIDIFYING

PROOFING CABINET

ML-132526 DPC1S

A product of BAXTER MFG. CO., INC. 19220 STATE ROUTE 162 EAST, ORTING, WA 98360

FORM 43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

F-43283 (November 2013) - 2 - © BAXTER MFG. 2013

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

Table of Contents

5 CONTROL PANEL AND DOOR ASSEMBLY
7 COMPONENT BOX ASSEMBLY

9 PANELS AND FLOOR
11 DEHUMIDIFYING ASSEMBLY
13 EXTERIOR WATER SUPPLY
15 VENT STACK ASSEMBLY

- 3 - F-43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

CONTROL PANEL AND DOOR ASSEMBLY

F-43283 (November 2013) - 4 -

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

CONTROL PANEL AND DOOR ASSEMBLY

ILLUS.
PL-60282

10 01-1P2832-00002 Bracket - Control........................................................................................................................1

11 01-1P2865-00004 Cover - Control (Incls. Item 15)..................................................................................................1

12 01-1P2410-00017 Kit - Control Panel Conduit (Incls. Items 2, 10, & 11)..............................................................AR

13 01-1P2830-00001 Board - Control...........................................................................................................................1

14 01-100V16-00904 EPROM......................................................................................................................................1

15 01-100V16-00831 Overlay.......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 01-1P1485-00002 Clamp - Wire Tube, Door...........................................................................................................1

2 01-1P1383-00003 Conduit - Wire............................................................................................................................1

3 01-1P1471-00002 Magnet Assy. (Door)..................................................................................................................1

4 01-1P2461-00001 Bracket - High Limit Thermostat Assembly................................................................................1

5 01-1P1837-00011 Bumper - Door............................................................................................................................1

6 01-1P2833-00002 Door Assy. (With Control) (No Window).....................................................................................1

7 01-1P2833-00001 Door Assy. (With Control) (Window)..........................................................................................1

8 01-1P1867-00001 Hinge - Package......................................................................................................................AR

9 01-1P2756-00001 Handle - Door Loading (SST).....................................................................................................1

- 5 - F-43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

COMPONENT BOX ASSEMBLY

F-43283 (November 2013) - 6 -

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

COMPONENT BOX ASSEMBLY

ILLUS.
PL-60283

10 01-1000V5-00096 Block - Distribution.....................................................................................................................1

11 01-100V10-00234 Terminal - Section (Flat Mount) (600 V.).................................................................................AR

12 01-100V10-00245 Fuse (25 Amp.) (Used with Item 11 on 208-240 V. Units)..........................................................1

13 01-100V10-00235 End - Section (Flat Mount) (600 V.)............................................................................................1

14 01-1P2726-00001 Cover Assy. - Componet Box (1 Ph.).........................................................................................1

15 01-1P2726-00003 Cover Assy. - Componet Box (3 Ph.).........................................................................................1

16 01-1000V5-00105 Terminal - Section Flat Mount (600 V.)......................................................................................5

17 01-1000V5-00106 End - Section Flat Mount (600 V.)..............................................................................................1

18 01-1000V6-00191 Breaker - Circuit (15 Amp., 120/240 V.).....................................................................................1

19 01-100V11-00139 Box - Breaker.............................................................................................................................1

20 01-1000V5-00164 Spacer........................................................................................................................................4

21 01-100V16-00627 Board - Power Supply................................................................................................................1

22 01-1000V5-00037 Lug - Terminal............................................................................................................................1

23 01-1P2380-00001 Box - Control (1-Duct Unit, 3 Ph.) (Incls. Items 1 thru 5, 7 thru 14, & 16 thru 22)......................1

24 01-1P2381-00001 Box - Control (1-Duct Unit, 1 Ph.) (Incls. Items 1 thru 5, 7 thru 13, & 15 thru 22)......................1

PART NO. NAME OF PART AMT.

1 01-100V17-00075 Valve - Solenoid (2-Way)...........................................................................................................1

2 01-100V17-00633 Fitting - Straight..........................................................................................................................1

3 01-100V11-00102 Nipple - Bushed Chase..............................................................................................................1

4 01-1P2382-00001 Base (Component Box)..............................................................................................................1

5 01-1P2383-00001 End (Component Box)................................................................................................................2

6 01-1P1749-00002 Beeper Assy...............................................................................................................................1

7 01-1000V5-00059 Bushing - Snap (Plastic).............................................................................................................1

8 01-1000V6-00271 Relay DPDT (1/2 Hp., 120 VAC)................................................................................................2

9 01-1000V6-00225 Relay - Power.............................................................................................................................2

- 7 - F-43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

PANELS AND FLOOR

F-43283 (November 2013) - 8 -

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

PANELS AND FLOOR

ILLUS.
PL-60286

10 01-1P2496-00001 Wall............................................................................................................................................1

11 01-1P2493-00003 Corner - Rear.............................................................................................................................1

12 01-1P2496-00001 Wall............................................................................................................................................1

13 01-1P2872-00001 Duct - Exhaust............................................................................................................................1

14 01-1P2326-00002 Bumper (13-1/2 In. Panel)..........................................................................................................3

15 01-1P2326-00001 Bumper (20 In. Panel)................................................................................................................3

16 01-1P2493-00003 Corner - Rear.............................................................................................................................1

17 01-1P2496-00001 Wall............................................................................................................................................1

18 01-1P2493-00001 Corner - Front Right...................................................................................................................1

19 01-1P2367-00001 Angle - Floor (40-1/2 In.)............................................................................................................1

20 01-1P2368-00002 Angle - Floor (42 In.)..................................................................................................................1

21 01-1P2367-00001 Angle - Floor (40-1/2 In.)............................................................................................................1

22 01-1P2018-00002 Angle - Retainer.........................................................................................................................1

23 01-1P2364-00001 Trim - Outer Base (40-1/2 In.)....................................................................................................1

24 01-1P2365-00001 Bracket - Floor Retainer Assy....................................................................................................1

25 01-1P2365-00001 Bracket - Floor Retainer Assy....................................................................................................1

26 01-1P2018-00002 Angle - Retainer.........................................................................................................................1

27 01-1P2366-00001 Trim - Jamb (Front) (LH)............................................................................................................1

28 01-1P2366-00002 Trim - Jamb (RH) (Front)............................................................................................................1

29 01-1P2365-00001 Bracket - Floor Retainer Assy....................................................................................................1

30 01-1P2364-00001 Trim - Outer Base (40-1/2 In.)....................................................................................................1

31 01-1P2326-00003 Bumper (Jamb)...........................................................................................................................2

32 01-1P2327-00001 Bracket - Jamb Bumper..............................................................................................................1

33 01-1P2366-00003 Trim - Rear Corner.....................................................................................................................1

34 01-1P2370-00040 Floor - Single..............................................................................................................................1

35 01-1000V4-0073A Tool - Setting..............................................................................................................................1

36 01-1000V4-00073 Anchor - Drop-In 1/4-20 (Quantity of 10)....................................................................................1

37 00-913116 Trowel (For Floor Adhesive)....................................................................................................AR

38 01-100V21-00057 Adhesive - Floor (11 Oz. Tube)...............................................................................................AR

PART NO. NAME OF PART AMT.

1 01-1P2376-00001 Retainer - Upper Forward Trim Assy..........................................................................................1

2 01-1P2376-00001 Retainer - Upper Forward Trim Assy..........................................................................................1

3 01-1P2374-00002 Trim - Front.................................................................................................................................1

4 01-1P2362-00002 Trim - Front.................................................................................................................................1

5 01-100V16-0772A Nameplate - Baxter (9 In.)..........................................................................................................1

6 01-1P2366-00003 Trim - Rear Corner.....................................................................................................................1

7 01-1P2867-00001 Ceiling - Rear.............................................................................................................................1

8 01-1P2502-00001 Ceiling - Front.............................................................................................................................1

9 01-1P2493-00002 Corner - Front Left......................................................................................................................1

- 9 - F-43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

DEHUMIDIFYING ASSEMBLY

F-43283 (November 2013) - 10 -

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

DEHUMIDIFYING ASSEMBLY

ILLUS.
PL-60284

10 01-1P2450-01900 Tube - Drain (19 In.)...................................................................................................................1

11 01-1P2450-00302 Drain - Ell Assy. (Incls. Items 8, 9, & 10)....................................................................................1

12 01-1P2330-00101 Drain - Tee Assy. (Incls. Items 13 thru 18).................................................................................1

13 01-100V17-00583 Clamp - Pipe Joining..................................................................................................................1

14 01-1P2450-00400 Tube - Drain (4 In.).....................................................................................................................2

15 01-100V17-00583 Clamp - Pipe Joining..................................................................................................................1

16 01-100V17-00586 Tee.............................................................................................................................................1

17 01-1P2450-00400 Tube - Drain (4 In.).....................................................................................................................1

18 01-100V17-00583 Clamp - Pipe Joining..................................................................................................................1

19 01-1P2341-00001 Pan - Drain.................................................................................................................................1

20 01-1P2331-00001 Plate - Base Assy.......................................................................................................................1

21 01-1P2462-00002 Nozzle Assy. - Spray (Incls. Items 22 thru 26)...........................................................................1

22 01-1P2463-00001 Bracket - Mounting Spray Nozzle...............................................................................................1

23 01-100V17-00591 Tee - Swivel 3/8 x 3/8.................................................................................................................1

24 01-100V17-00592 Coupling - Hex 3/8 NPTF (Brass)...............................................................................................2

25 01-100V17-00281 Coupler - Reducer 3/8 In. to 1/4 In.............................................................................................1

26 01-100V17-00378 Nozzle - Spray Built-In................................................................................................................1

27 01-1P2332-00001 Heater Assy. - Air Duct (Incls. Items 28 thru 32)........................................................................1

28 01-1P2333-00002 Plate - Heater Mounting.............................................................................................................1

29 01-1M2454-00001 Element - Heating (Requires Water-Tight Connectors)..............................................................2

30 01-1P2334-00002 Clamp - Heater (Top).................................................................................................................2

31 01-1P2335-00002 Clamp - Heater (Middle).............................................................................................................1

32 01-1P2336-00001 Shield - Spray.............................................................................................................................1

33 01-1P2712-00001 Fan Assy. (Incls. Items 3 & 4)....................................................................................................2

34 01-1P2450-00301 Drain - Cap Assy. (Incls. Items 35 & 36)....................................................................................1

35 01-1P2450-00400 Tube - Drain (4 In.).....................................................................................................................1

36 01-100V17-00587 Cap - Pipe..................................................................................................................................1

37 01-1P2456-00001 Switch - High Limt Thermostat Assembly...................................................................................1

PART NO. NAME OF PART AMT.

1 01-1P2328-00002 Duct - Ceiling (1-Wide)...............................................................................................................1

2 01-1P1875-00002 Sensor Assy. - Humidity W/Filter................................................................................................1

3 01-1P2713-00101 Bracket - Motor Mounting...........................................................................................................2

4 01-1P2455-00002 Motor - Blower............................................................................................................................2

5 01-1P2339-00001 Panel - Intermediate...................................................................................................................1

6 01-1P2340-00001 Panel - Intake.............................................................................................................................1

7 01-1P2326-00001 Bumper (20 In. Panel)................................................................................................................1

8 01-100V17-00313 Elbow..........................................................................................................................................1

9 01-100V17-00589 Fitting..........................................................................................................................................1

- 11 - F-43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

EXTERIOR WATER SUPPLY

F-43283 (November 2013) - 12 -

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

EXTERIOR WATER SUPPLY

ILLUS.
PL-60285

10 01-1P2384-00001 Water Supply Assy. (1-Duct Unit) (Incls. Item 9)........................................................................1

11 01-100V17-00633 Fitting - Straight..........................................................................................................................1

PART NO. NAME OF PART AMT.

1 01-1P2676-00400 Tubing........................................................................................................................................1

2 01-100V17-00580 Elbow 3/8 x 90 Deg....................................................................................................................1

3 00-893520 Ball Valve 1/2.............................................................................................................................1

4 01-100V17-00288 Pipe 1/2 Dia. Close (Brass)........................................................................................................1

5 01-100V17-00322 Elbow 1/2 In. Street (Brass).......................................................................................................1

6 01-100V17-00275 Strainer (Y) - Liquid (Brass)........................................................................................................1

7 01-100V17-00424 Pipe - Hex 1/4 In. NPT x 1/2 In. NPT.........................................................................................1

8 01-100V17-00075 Valve - Solenoid - 2 Way (120 V.)..............................................................................................1

9 01-1P2384-00102 Tube - Water Supply 3/8 In. x 23 In. (Nylon)..............................................................................1

- 13 - F-43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

VENT STACK ASSEMBLY

F-43283 (November 2013) - 14 -

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

VENT STACK ASSEMBLY

ILLUS.
PL-60289

10 01-1P2878-00001 Vent Stack Weldment.................................................................................................................1

11 01-1P2871-00001 Flange - Mounting......................................................................................................................1

12 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................1

13 01-1P2871-00001 Flange - Mounting......................................................................................................................1

14 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................1

15 01-1000V4-00304 Pins - Hinge (Shoulder Bolt).......................................................................................................2

16 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................3

17 Nut 6-32 Hex..............................................................................................................................2

18 Lockwasher #6 Internal..............................................................................................................2

19 Mach. Screw 6-32 x 3/8 Phil. Pan Hd.........................................................................................2

20 01-1P2880-00102 Cover - Stepper Motor................................................................................................................1

21 01-1000V4-00381 Shoulder Screw 1/4 x 3/4 Lg. 10-32 Hex Socket Hd..................................................................1

22 01-1P2881-00001 Vent Flange Weldment...............................................................................................................1

23 01-1P2873-00001 Elbow Weldment - Vent..............................................................................................................1

24 Mach. Screw 6-32 x 1-3/4 Phil. Pan Hd.....................................................................................4

25 01-1P2884-00001 Fan - Axial..................................................................................................................................1

26 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................2

27 01-1P2883-00101 Cover - Electric Box....................................................................................................................1

28 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................2

29 01-1P2883-00102 Body - Electrical Box..................................................................................................................1

30 01-1000V5-00143 Bushing - Snap 5/8.....................................................................................................................1

31 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................1

32 01-1P2874-00001 Cover - Fan................................................................................................................................1

33 Nut 6-32 Hex..............................................................................................................................4

34 01-1P2879-00001 Harness - Conduit (40 In.)..........................................................................................................1

35 01-1P2879-00002 Harness - Conduit (5 In.)............................................................................................................1

PART NO. NAME OF PART AMT.

1 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................3

2 01-1M6779-00001 Motor - Stepper..........................................................................................................................1

3 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................3

4 01-1P2880-00101 Bracket - Mounting.....................................................................................................................1

5 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................1

6 01-1P2880-00103 Arm - Actuator............................................................................................................................1

7 01-1P2871-00001 Flange - Mounting......................................................................................................................1

8 SC-125-56 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. (SST)...........................................................................1

9 01-1P2871-00001 Flange - Mounting......................................................................................................................1

- 15 - F-43283 (November 2013)

DPC1S DEHUMIDIFYING PROOFING CABINET REPLACEMENT PARTS

FORM 43283 NOVEMBER 2013 PRINTED IN U.S.A.
