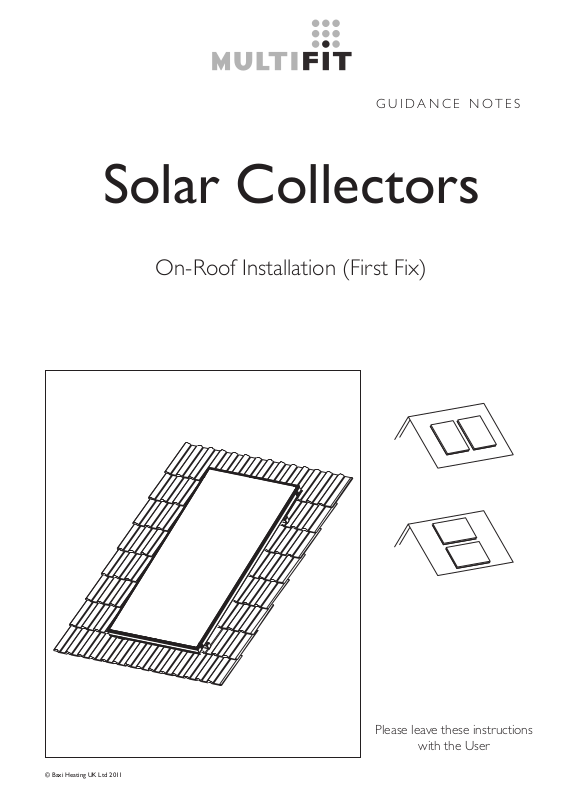

Baxi Solarflo On Roof Quick Start Manual

GUIDANCE NOTES

Solar Collectors

On-Roof Installation (First Fix)

Please leave these instructions

with the User

2

Contents

3

4

5

6

8

11

12

13

16

21

25

26

1.0 Regulations & General Guidance

2.0 General Layout

3.0 Icon Quick Reference Guide

4.0 Dimensions

5.0 Health & Safety

6.0 Snow & Wind Load

7.0 Optimum Pipework Assembly

8.0 Kit Contents and Components

9.0 Installation of the Mounting System

10.0 Installation of the Collector

11.0 Maintenance

12.0 Notes

3

1.0 Regulations & General Guidance

Please note the following instructions regarding laws, regulations and technical rules.

When setting up solar energy installations, the laws and regulations at local, state, European and international level that apply to the country in question must be observed. Generally acknowledged technical regulations apply; these are usually formulated in the form of standards, guidelines, provisions, regulations and technical rules laid down by local and national bodies, energy supply companies, trade organisations and technical committees in the relevant fields. The installation of solar units may require improved rain resistance with regard to roof, wall and sealing technology and this must be taken into account accordingly. To meet regulations for the prevention of accidents, it may be necessary to use safety equipment (straps, scaffolding, supports, etc.). Such safety equipment is not supplied and must be ordered separately. Installation must only be carried out by technically qualified and authorised personnel with a recognised qualification (verified by a state or national body) in the relevant technical area.

Guidance Notes

Use a safety harness when working at height. The structure of the roof must be assessed for its suitability prior to commencing work. Consult a Structural Engineer if you are unsure of the collector’s siting. Loading due to snow may exceed the capability of the property’s structure. Wind loads may cause excess forces on the structure and cause damage. The Installer is responsible for the suitability of the site and its sub-structure. The collector should be sited to avoid damage from falling debris and vandalism. All pipe work within this installation must be Earth bonded. In exposed areas, the collector must be protected against the risk of lightning. It is recommended that a minimum of 2 people are used to lift this product. The collector must not be lifted by its pipe connections. Ensure all hydraulic connections are securely fixed and are free of leaks. The system must be inspected on completion of the work. A further inspection is recommended annually. Avoid installing the collector in shaded areas. The general recommended torque setting for nuts and bolts is 10Nm. A separate second array can be installed behind the first if necessary. Large arrays will require specialist piping, pump groups and design. The collector must not be installed on an uneven roof surface. Do not apply excessive force when installing the collector. Hot, exposed surfaces that can be touched must be insulated to protect against injury. Lubrication is not required for the ‘O’ ring connections.

4

2.0 General Layout

20° to 55°

North

Angle of tilt

90°

40°40°

30°30°

20°20°

10°10°

90°

80°80°

70°70°

60°60°

50°50°

Wes t

South

less than optimum by 0-5% 5-10% 10-20%

East

S.E.S.W.

5

3.0 Icon Quick Reference Guide

3A 3B 3C

3D 3E 3F

3G

3H 3J

3K 3L 3M

3N

R/H

L/H

3A - Contents

3B - Page Reference Number

3C - Measure

3D - Specialist Advice Required

3E - Materials to be Provided by Installer

3F - Spanner Tight

3G - Information or Advice

3H - Screwdriver

3J - Hammer

3K - 1 Collector

3L - 2 Collectors

3M - Right Hand Side

3N - Left Hand Side

3P - Caution

3Q - Drill - Ø 4mm

3R - Tile Cutter

3Q

13mm

3P

!

Ø 4mm

3R

6

4.0 Dimensions

< 300 < 300600 - 1000

< 300 < 300600 - 1000 600 - 1000

< 300 < 300600 - 1000 600 - 1000 600 - 1000

600 - 1000

SOL 200

kg

!

10

0

bar

35kg

10bar

SOL 200H SOL 250 SOL 250H

36kg

10bar

48kg

10bar

49kg

10bar

7

4.0 Dimensions

a

b

c

d

a

b

c

d

a

b

c

d

a

b

c

d

a

b

c

d

a

b

c

d

a

b

c

d

a

b

c

d

a

b

c

d

a

b

c

d

1753

1147

1232

1610

1753

2334

2419

1610

1753

3481

3606

1610

1753

4628

4793

1610

1753

5775

5980

1610

1753

6922

7167

1610

1753

8069

8354

1610

1753

9216

9541

1610

1753

10363

10728

1610

1753

11510

11915

1610

Sol 200 Sol 200H Sol 250 Sol 250H

1147

1753

1838

1004

1147

3546

3631

1004

1147

5299

5424

1004

1147

7052

7217

1004

1147

8805

9010

1004

1147

10558

10803

1004

1147

12311

12596

1004

1147

14064

14389

1004

1147

15817

16182

1004

1147

17570

17975

1004

2187

1147

1232

2044

2187

2334

2419

2044

2187

3481

3606

2044

2187

4628

4793

2044

2187

5775

5980

2044

2187

6922

7167

2044

2187

8069

8354

2044

2187

9216

9541

2044

2187

10363

10728

2044

2187

11510

11915

2044

1147

2187

2272

1004

1147

4414

4499

1004

1147

6601

6726

1004

1147

8788

8953

1004

1147

10975

11180

1004

1147

13162

13407

1004

1147

15349

15634

1004

1147

17536

17861

1004

1147

19723

20088

1004

1147

21910

22315

1004

1

2

3

4

5

6

7

8

9

10

6

mm

8

5.0 Health and Safety

!

9

5.0 Health and Safety

!
