Baumatic STD6SS User Manual
STD6SS Cooker
Hood
User Manual for your Baumatic
STD6SS Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
1
CONTENTS
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5

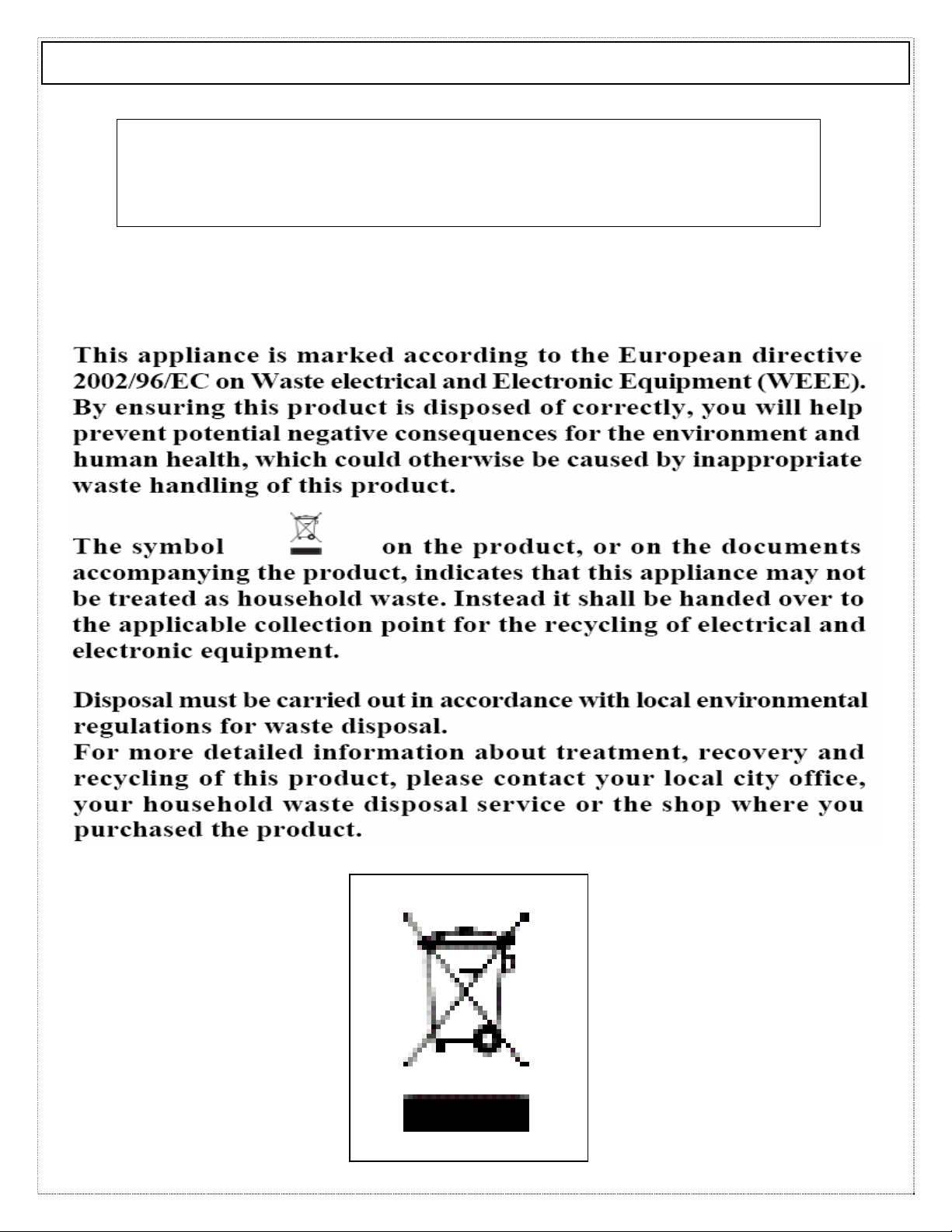

ENVIRONMENTAL NOTE ………….…………………………………………6
USING YOUR COOKER HOOD……………………………...……………..7

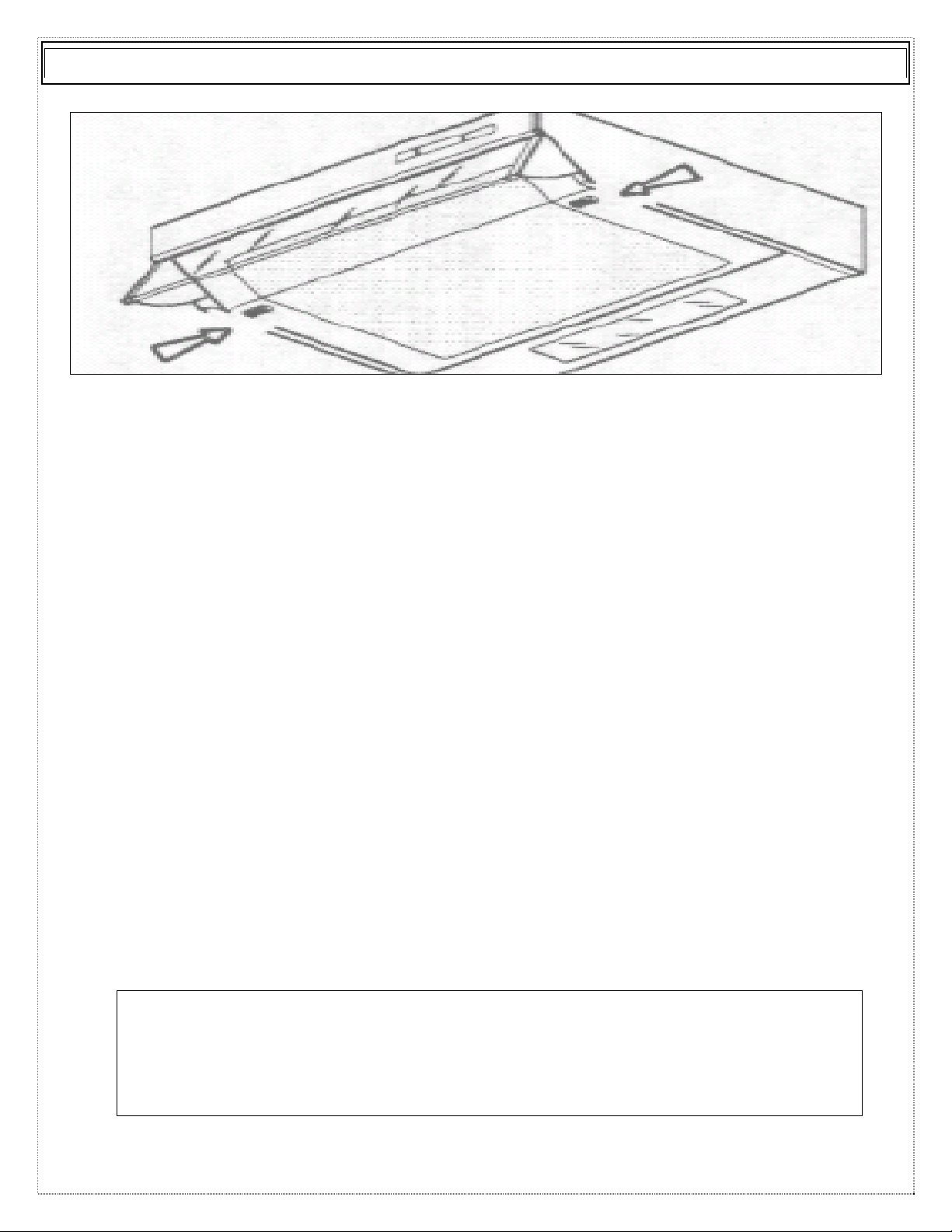

MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10
INSTALLATION INSTRUCTIONS ……………………….……...….11-14

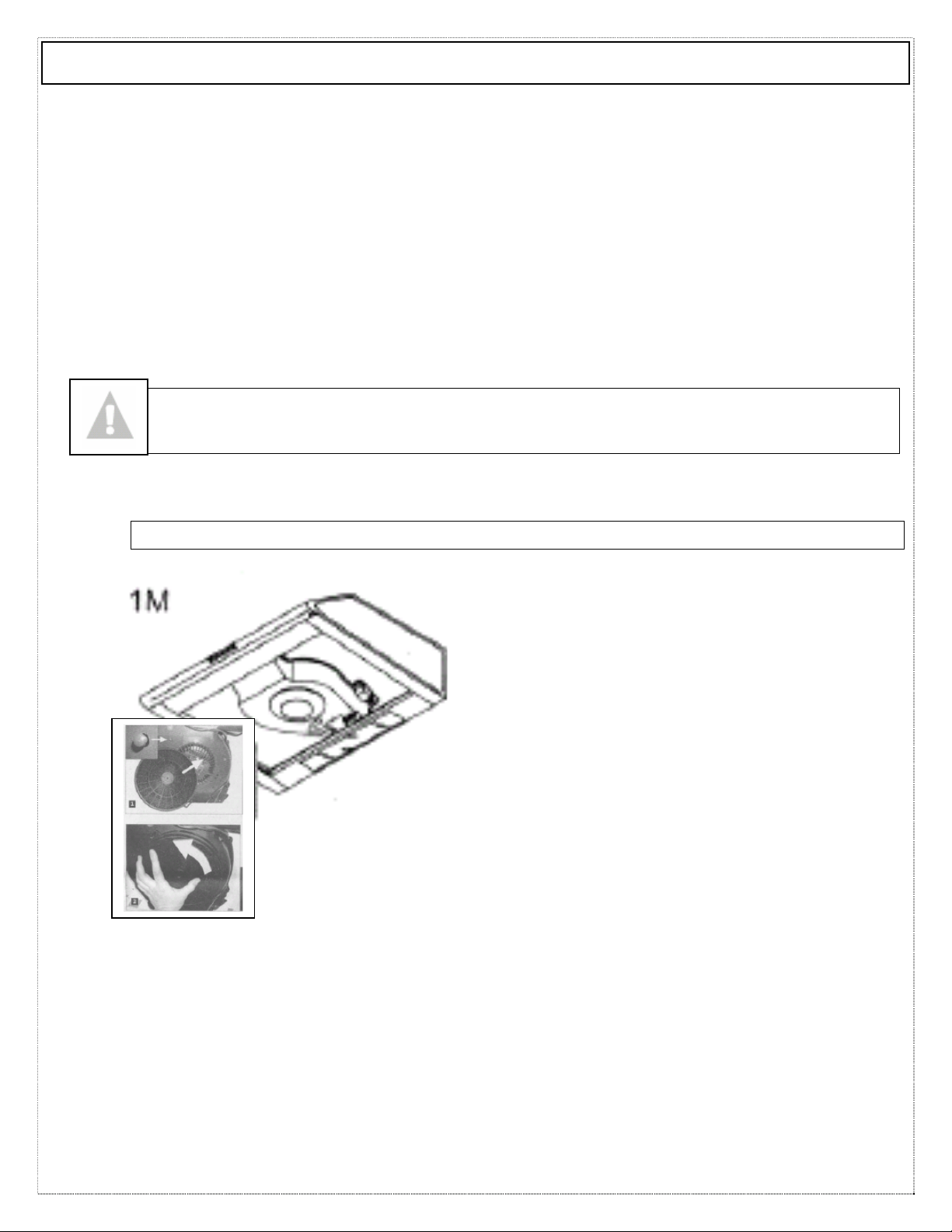

CARBON FILTER ………….……..11

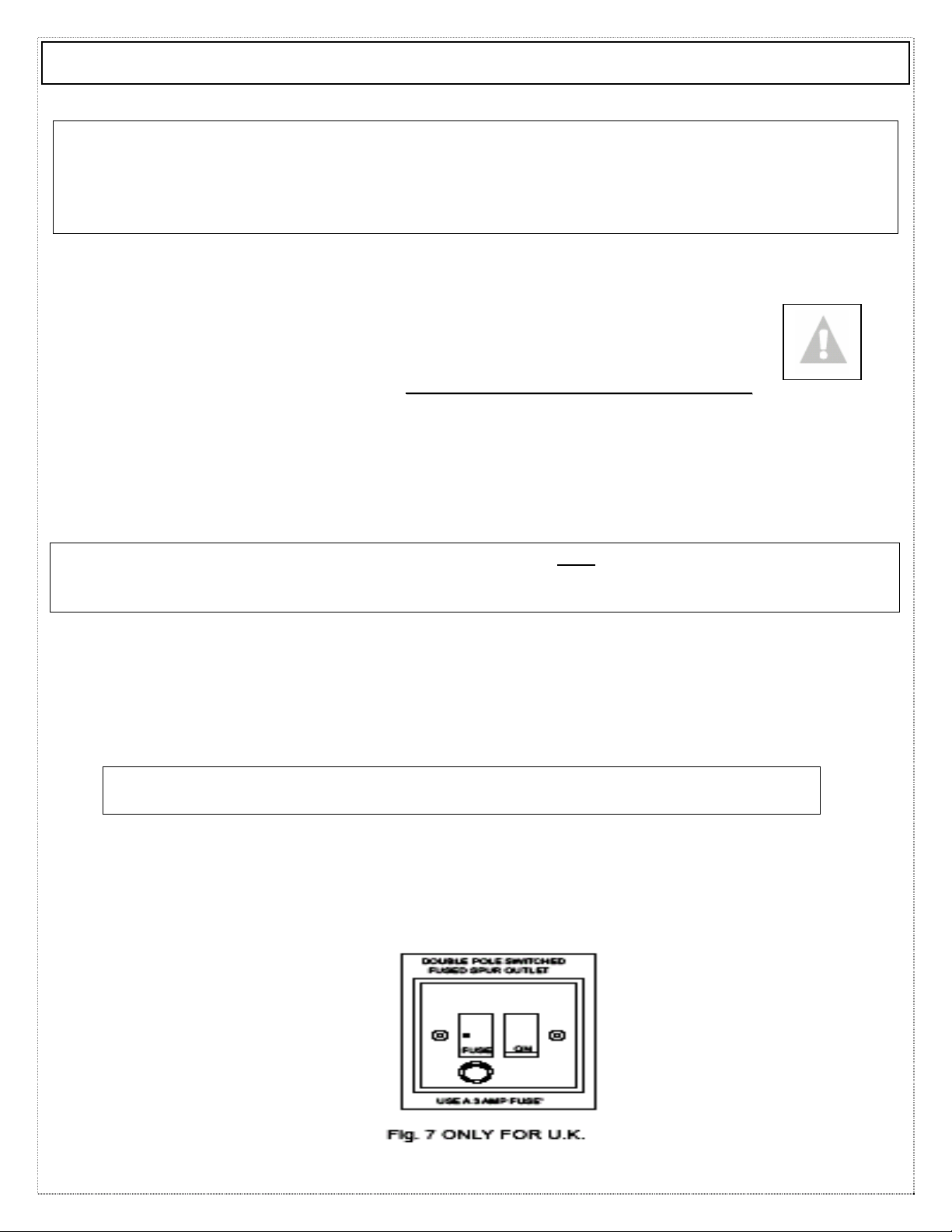

ELECTRICAL CONNECTION………….………12

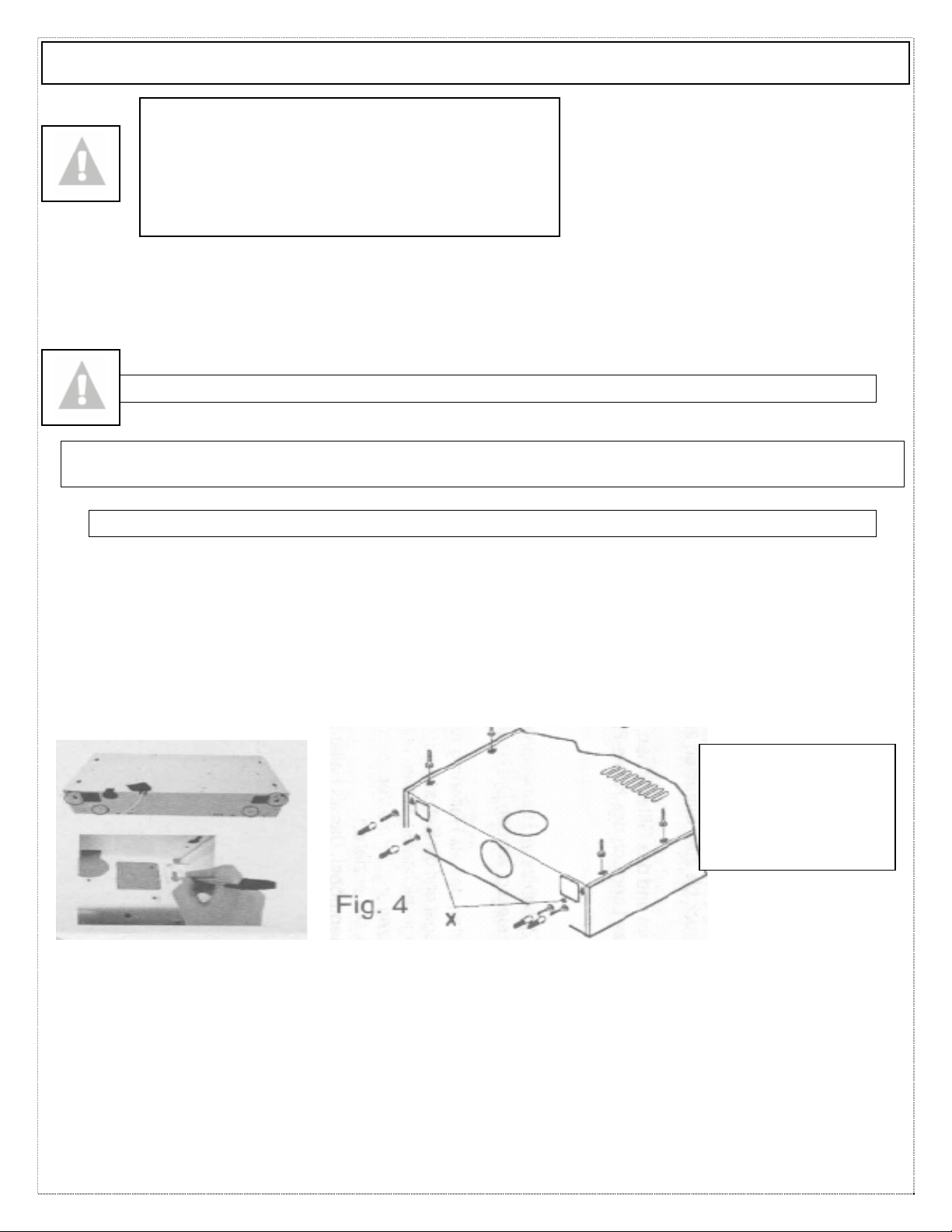

INSTALLING THE COOKER HOOD………….…13-14
TROUBLESHOOTING ……………………………………………15
CONDITIONS OF GUARANTEE……………………………………………16
CONTACT DETAILS…………………………………………………………..17
2
Specifications of your STD6SS Cooker Hood
Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
Your cooker hood can work either as an extraction fan or as
an air recirculator. Whichever mode you choose, you will
need to bear in mind that the extractor calls for ducting (not
included) to be worked from the exhaust of your fan, while
the recirculation function will require the replacement of
carbon filters.
Please see the installation section of this manual for details.
DIMENSIONS
Width: 600 mm (at rear)
Depth: 485 mm (top); 540 (bottom)
Height: 150 mm
Your stainless steel Cooker Hood is fitted with:

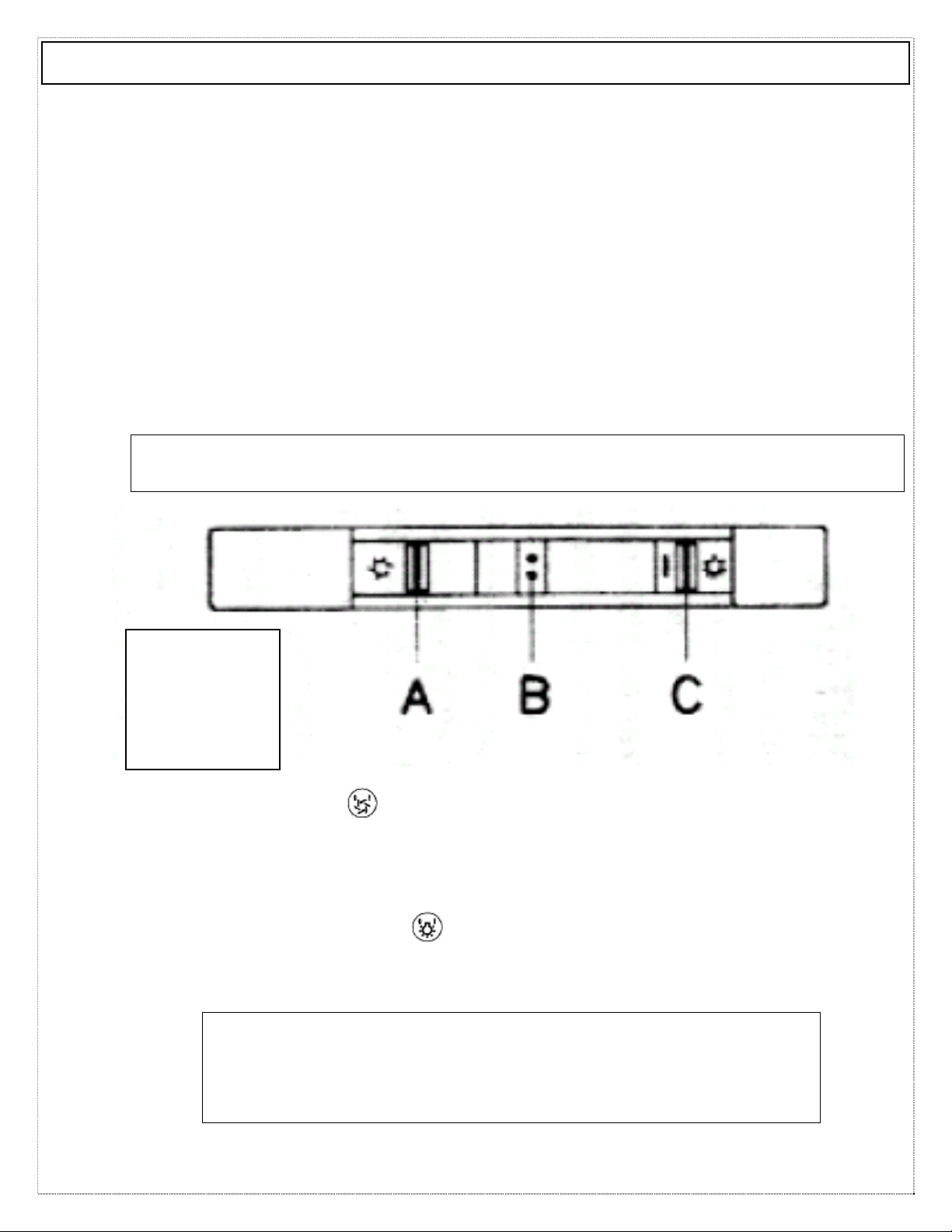

• Slider control operation
• 3 speeds
• 2 lights
Extraction capacity: 290 m
Optional Extra: 1 x UCF1 Carbon filter for air
recirculation.
³/hr
3
Important Safety Information: Please Read this before installing & using.
o
o
o If the cooker hood is installed
o It is dangerous to alter the
o When installing the hood,
Any installation work must be
carried out by a qualified
electrician or competent person.
The hood must be installed in
accordance with the installation
instructions and all measurements
followed.
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
ensure that the following
recommended distances are being
observed between the cooker top
and the bottom of the cooker hood:
9 Electric cookers:
700 mm
9 Gas cookers
700 mm
9 Coal/ oil cookers
800 mm
:
:
* NOTE -
DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
o When installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob and
their undersides must be
at least 50 mm off from
the hob edges.
o The edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
o If the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
o If other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
o When the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
degrees as this will
reduce the efficiency of
the hood.
4
Important Safety Information: Please Read this before installing & using.
o Ensure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o
Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o
Your cooker hood is for
domestic use only.
o
Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o
Dirty oil is an even
greater fire risk.
o
Always put lids on pots
and pans when cooking
on a gas cooker.
o
The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o
Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
o Warning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
: Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
: Do not install above a
cooker with a high level
grill.
:
Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
:
Do not leave naked
flames under the cooker
hood.
: Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
:
Never flambé cook under
this cooker hood
.
5
