RETRO2BL/RETRO2IV
Fridge freezer
USER MANUAL FOR YOUR BAUMATIC
RETRO2BL/RETRO2IV
256 Litre retro style fridge
freezer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance.
DD 13/03/08
2
Contents
Environmental note 4
Important safety information 5 – 6
Specifications of your fridge freezer 7
Description of the appliance 8
Description of the product features 9
Using your Baumatic fridge freezer 10
Before switching on 10
During first use 10
Turning on the appliance and setting the thermostat 11-12
Arranging and storing food in the fridge section 12-13
The freezer compartment 13
Freezing fresh food 13-14
Tips on freezing 14
Making ice cubes 15
Cleaning and maintenance 16
Defrosting the refrigerator compartment 16-17
Defrosting the freezer compartment 17-18
Replacing the light bulb 19
Installation 20
Electrical connection 20-21
Positioning 21-22
Troubleshooting 23-24
Contact details 25
3
Environmental note
Note
: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
o Please discard all packaging material with due regard for the
environment.
4
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Technical
Department.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
Use of the appliance
o Your appliance is only designed to be used in the
home. It is suitable for storing food that needs to
be chilled and refrigerated. If it is used for any
other purpose or it is not used correctly, then
Baumatic Ltd. will accept no liability for any
damage that is caused.
o Altering the specification of the appliance must not be attempted
for reasons of safety.
Before using your appliance
o Check the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your retailer.
Refrigerant
o Your appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sure that the refrigeration pipework
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
o Do not place any objects on top of the appliance,
as this may damage the table top.
5
Child safety
o Packaging material should be kept away from
children.
o Children should not be allowed to touch the
controls or play with the appliance.
General safety
o Do not pull on the power supply cable to remove the plug from
your mains supply socket.
o Do not pull out or insert the plug with wet hands.
o Do not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
o Before cleaning the appliance or performing
maintenance work, ensure that the appliance has been
disconnected from your mains supply.
o Never allow the back coils of the appliance to come into contact
with the wall surface.
o Always ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
o Never block the ventilation openings of the appliance, either on
the inside or its exterior.
o It is vital to keep your appliance well ventilated,
so that there is proper air flow between the
bottom of the unit and the plinth/kick plate
which it is sitting on.
o Do not place electrical devices inside of the appliance, such as
mixers or ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Baumatic Service Department.
6
Specifications of your RETRO2BL/RETRO2IV
Congratulations on purchasing a Baumatic fridge freezer
o Total gross/net capacity: 265/256 litres
o Gross capacity (fridge/freezer): 220/45 litres
o Net capacity (fridge/freezer): 216/40 litres
o Energy efficiency: A
o Star rating: ****
o 4 Safety glass shelves
o 2 Salad crispers
o Butter compartment
o Egg rack
o Bottle rack
o Shelf in freezer compartment
o 2 General racks
Dimensions of appliance
Height: 1570 mm
Width: 540 mm
Depth: 620 mm
* Please refer to the installation instructions for more specific
information on the size of aperture that you will require.
IMPORTANT: When you install your appliance it is important to bear
in mind its climatic rating.
In order to find out the climatic rating of your appliance, you should
check the rating plate. The rating plate is located on the front left edge
of the inside of the fridge section. You will need to open the door of
your appliance to be able to find it. The rating plate will indicate the
ambient temperature range that your appliance will function correctly
within.
7
Description of the appliance
1) Dairy section
2) Middle shelf
3) Bottle shelf
4) Doors
5) Salad crisper drawers
6) Fridge shelves
7) Thermostat and light
8) Freezer compartment
8
Description of the product features
1) Shelves
o The shelves may be placed in any of the guide slots within the
interior of the appliance. They are protected from sliding out.
o To remove a shelf: Take off all of the items that are stored on
the shelf that you want to remove. Then lift the front of the shelf
and carefully pull it out of the grooves.
2) Defrost water outlet

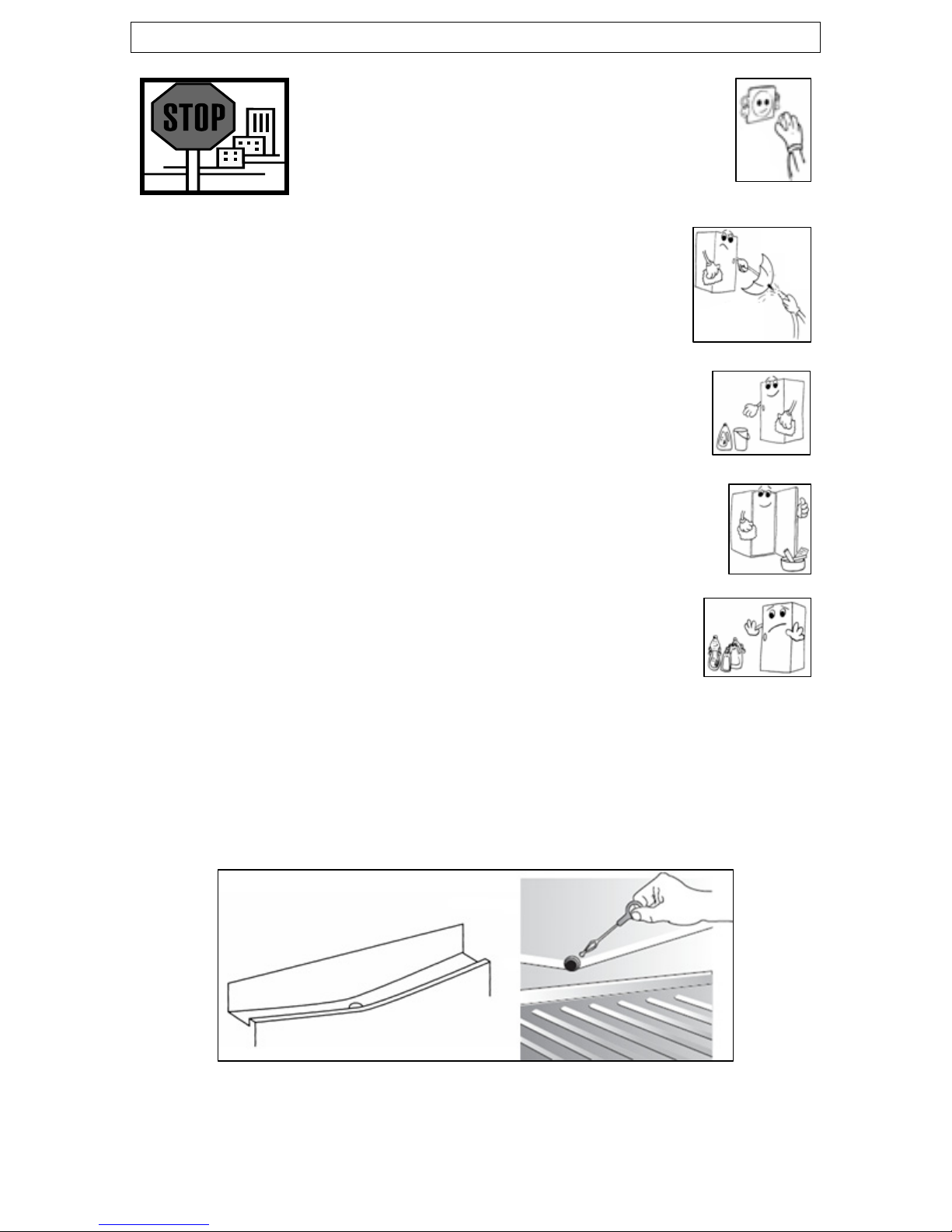

o The interior of the refrigerator is cooled by the cooling plate that
is on the rear wall. Beneath this there is a channel and an outlet
for the defrost water.
o It is important that this channel never becomes clogged, see
“Defrosting the refrigerator compartment” for a detailed
explanation of how to keep the channel clear.
3) Salad crisper drawers and cover
o The salad crisper drawers are in the bottom of your refrigerator
and there is a cover that goes over them.
o The cover helps to prevent fruit and vegetables from drying out
prematurely.
4) Door shelves
o The door liner holds various shelves, which are suitable for
storing eggs, cheese, butter and yogurt. As well as smaller
packages, tubes, cans etc.
5) Bottle shelf
o The lowest door shelf should be used for storing reasonably sized
bottles.
o IMPORTANT: IT IS IMPORTANT THAT NONE OF THE
SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS
THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.
6) Freezer compartment
o A freezer section, with a net capacity of 40 litres.
9
Using your Baumatic fridge freezer
Before switching on
o Make sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
o After delivery, wait for eight hours before connecting the
appliance to your mains supply. This will allow any refrigerant
gasses that may have been disturbed during the transportation
process to settle.
o The outside of the appliance and the removable accessories
contained within it, should be cleaned with a solution of liquid
detergent and water.
o The interior of the appliance should be cleaned
with a solution of sodium bicarbonate dissolved in
lukewarm water. The interior and accessories
should be thoroughly dried, after the cleaning
process has been completed.
o There can be an odour when you first switch on the appliance. It
will lessen as the appliance starts to cool.
During first use
o When you first switch on the appliance, the compressor will run
continuously for approximately 24 hours or until the fridge
freezer reaches a cool enough temperature.
o During this period of time, you should try not to open the door
frequently or place a large amount of food within the appliance.
o If the unit is switched off or unplugged, you must allow at least 5
minutes before restarting the appliance on the thermostat or
reconnecting it to your mains supply.
10
Turning on the appliance and setting the thermostat
You switch on your appliance by connecting it to your mains supply
and setting the thermostat. The thermostat control (B) is located on
the upper right hand side of the inside of the cabinet, next to the
interior light.
o The thermostat automatically regulates the temperature inside
the fridge freezer, depending on what number you have turned
the thermostat control dial (K) to. A green light (V) will switch
on to indicate that the fridge freezer is cooling.
o Position <0> means that the appliance will not cool. However
the light will still function.
o Position <1> will give you a higher temperature inside the fridge
freezer.
o Position <5> will give you a lower temperature inside the fridge
freezer.
o Ideally the thermostat should be set to position <3>.
o The fridge section can maintain a temperature of between 4 – 6
degrees centigrade.
o The freezer section can cool down to -18°C and lower.
11
o IMPORTANT: The ambient temperature of the room,
the temperature of food and the amount of food that
has been placed in the fridge freezer and how often the
door is opened, will all affect the temperature being
maintained by the appliance.
o On the maximum setting (position <5>), your fridge freezer will
work harder to maintain a lower temperature. There is no need
to run your appliance on this setting for prolonged periods.
Unless you are freezing fresh food, you should have the
thermostat knob set to <3>
o IMPORTANT: Do not run the thermostat at position 5 for
prolonged periods of time, otherwise the defrost drainage hole
may freeze.
Arranging and storing food in the fridge section
o Warm food or evaporating liquids should not be stored in your
refrigerator, as this will increase the humidity inside of the
appliance.
o All foods should be wrapped or covered, this is particularly
important if the food has a strong flavour. You should use
polythene bags or sheets, aluminium foil, wax paper. Liquids
should be stored in covered containers or bottles.
o To maximise the space inside of the fridge section, any excessive
packaging on the food should be removed.
o Quickly perishable food should be stored at the back of the
refrigerator, which is the coldest part of the appliance.
o No food items should be allowed to come into contact with the
back wall of the refrigerator.
o Make sure that you arrange food in such a way that the door can
close completely. Particular attention should be given to bottles
that may protrude when placed on shelves inside the main
section of the refrigerator.
o Some organic solutions, such as the oils in lemon/orange peel
and acid in butter, can cause damage to the plastic parts
contained inside of the refrigerator.
o Do not open the refrigerator door too often or leave the door
open for long periods of time, as this will increase the
temperature inside of the appliance.
12
o Meat should be wrapped in polythene bags and then placed on
the glass shelf above the salad drawers.
(Meat should only be stored in this manner for one or two
days at the most).
o Cold dishes/cooked food should be covered and can be placed
on any shelf.
o Fruit and vegetables should be cleaned thoroughly and placed
in the salad drawer.
o Cheese and butter should be placed in airtight containers, or
they can be wrapped in aluminium foil or polythene bags. As
much air as possible should be removed from the bags.
o Milk bottles should have a cap on them and be stored on the
bottle shelf that sits in the door.
o Garlic, potatoes, onions and bananas should only be
stored in a refrigerator IF they are kept in airtight
containers.
The freezer compartment
The freezer compartment is suitable for storing and freezing food.
o The freezer compartment temperature must have already
reached -18 degrees centigrade (or lower) before you attempt to
store food that is already frozen or freezing fresh food.
o The freezer compartment is only able to freeze a certain quantity
of food at one time. You should not attempt to freeze more than
3 kilograms of fresh food within a 24 hour period.
o Warm food should be allowed to cool down before you attempt
to freeze it. If you place warm food in the freezer compartment,
then the increased humidity will cause quicker ice formation and
increase the amount of power that the appliance uses.
o The guidance of the food manufacturer should be followed, in
regard to the maximum storage time.
o Thawed foods must not be frozen for a second time.
13
Freezing fresh food
o To freeze the maximum quantity of fresh food specified above,
you should turn the thermostat dial (K) past position <5>, at
least 3 hours prior to attempting freezing.
o The orange super freeze light (A) will switch on to indicate that
fast freezing has been selected.
o Super freeze will remain operational for 24
hours, after which time it will switch off
automatically.
o Fresh food should be packed into airtight
containers or packaging. This will help to make
sure that the food doesn’t dry out or lose its
flavour. It will also ensure that flavour does not
transfer from other foods.
o Do not allow fresh food to touch items that are
already frozen.
14
o After 24 hours you should check that the fresh food is
satisfactorily frozen. If it is then the thermostat dial should be
turned down to its normal setting (<3>).
o It is possible to turn off the super freeze at any time by turning
the thermostat dial back down from position <5>, the orange
super freeze light will go out.
Tips on freezing
o Freezer bags, polythene wraps, aluminium foil (extra thick) and
special cans for frozen foods are suitable packaging for storing
frozen goods in.
o Tape, rubber bands or plastic clips are
suitable for sealing bags and wrappings.
o Before sealing a suitable bag, you should
compress the air out of it, as this will help
the food to freeze more easily.
o Flat packages freeze more easily.
o If you are freezing liquid, then do not fill the
container to the brim. Liquids will expand when
being frozen.
o Do not place bottles (glass or tin)
containing liquids (especially sparkling
liquids) into the freezer as they could
cause the bottle to burst during freezing.
Making ice cubes
o Fill the ice cube tray with water and place it in the freezer
compartment.
o After the water is completely frozen and turned to ice, you can
twist the ice cube tray (as shown in the drawing below) to
dispense the ice.
15
Cleaning and maintenance
WARNING: PLEASE ENSURE THAT YOUR
APPLIANCE IS DISCONNECTED FROM
YOUR MAINS SUPPLY BEFORE
ATTEMPTING TO CLEAN IT.
o Do not clean the appliance by pouring water onto
it or spraying water over it.
o The refrigerator and freezer compartment should be
cleaned periodically, using a solution of bicarbonate
of soda and lukewarm water.
o Clean the accessories separately with soap and water.
Do not clean them in a dishwasher.
o Do not use abrasive products, detergents or soaps.
o After washing the appliance, wipe over the area that you have
cleaned with a damp cloth and then dry it thoroughly.
o When cleaning is complete, dry your hands and then reconnect
the plug to your mains supply.
Defrosting the refrigerator compartment
o Defrosting occurs automatically in the refrigerator section during
operation. The defrost water is collected by the evaporating tray
and evaporates automatically.
16
o The evaporating tray and defrost water drain hole should be
cleaned periodically with the defrost drain plug. This will prevent
water from collecting in the bottom of the refrigerator, instead of
flowing down the defrost drainage channel and drain hole.
o You can also pour a small amount of water down the drain hole
to clean inside of it.
o You should be careful to make sure that food packages do not
touch the rear wall of the appliance, as this can interrupt the
automatic defrosting process and deflect water into the base of
your refrigerator.
Defrosting the
freezer compartment
The frost in the freezer compartment should be
removed periodically. You can use a plastic scraper to
keep down the amount of frost that builds.
IMPORTANT: The freezer compartment should be defrosted at least
twice a year. The number of times that you need to defrost it, will
depend on the setting of your thermostat and how much food you
freeze and store in the compartment.
o The day before you defrost, turn the thermostat dial to position
<5>, this will make sure that the food contained in the
compartment is frozen properly.
o Whilst defrosting the appliance, the food should be removed
from the compartment and wrapped in several layers of paper
and stored in a cool place. The foods rise in temperature will
shorten its storage life and therefore the food should be used
within a relatively short period of time.
o DO NOT PLACE FOOD BACK IN THE FREEZER
COMPARTMENT THAT HAS STARTED TO THAW.
o Set the thermostat knob to position <0> and disconnect the
appliance from your mains supply.
o Remove the drawers from the freezer section and leave the door
to the freezer compartment open. You can place a bowl of warm
water inside the freezer compartment to speed up the defrost
process.
17
o You can use a sponge to mop up the defrost water that will run
into the bottom of the freezer section.
o IMPORTANT: You should place some old towels on the flooring
that is immediately in front of the appliance. In case any defrost
water comes out of the freezer section and onto the floor.
o Once all the ice that has built up has melted, then the inside of
the freezer compartment should be dried thoroughly. Failure to
do this will result in immediate ice build when the appliance is
turned back on.
o With dry hands, reconnect your appliance to your mains supply.
Set the thermostat knob to position <5> for a 24 hour period,
before returning it to the normal setting of <3>.
o You should not attempt to freeze fresh food inside the freezer
compartment until this 24 hour time period has elapsed.
o Do not defrost the appliance with other electrical devices
(e.g. hair dryer). Do not use sharp metal objects to
remove the ice on the freezer, as this could cause damage
to the refrigerant system.
18
Replacing the light bulb
WARNING: PLEASE ENSURE THAT YOUR
APPLIANCE IS DISCONNECTED FROM
YOUR MAINS SUPPLY BEFORE
ATTEMPTING TO REPLACE THE LIGHT
BULB.
o There is an interior light next to the thermostat dial.
o Use a screwdriver to undo the screw in the light bulb cover, then
gently slide off the light bulb cover.
o Change the present light bulb with a new one. The replacement
bulb should not have a greater rating than 15 W.
o Replace the light bulb cover and retighten the screw that holds
the light cover in place. After waiting five minutes, reconnect
your plug to your mains supply.
19
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found on the front left edge of the
inside of the refrigerator.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR FRIDGE FREEZER IS INTENDED FOR FITTED
AND PERMANENT INSTALLATION.
We recommend that the appliance is connected by a
qualified electrician, who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E. and local regulations.
o Your refrigerator comes supplied with a 13 amp plug fitted. If in
future you need to change the fuse in this plug, then a 13 amp
ASTA approved (BS 1362) fuse must be used.
The wiring in the mains
lead is coloured as follows:
Brown- Live
Blue- Neutral
Green and yellow- Earth
o As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
The brown wire must be connected to the terminal marked “L”
(live), or coloured red.
The blue wire must be connected to the terminal marked “N”
(neutral), or coloured black.
20
The green and yellow wire must be connected to the terminal
marked “E” (earth), or by the earth symbol, or coloured green
and yellow.
o When the connection is completed, no stray strands or cut wire
should be present. The cord clamp must be secured over the
outer sheath.
Positioning
o It is advisable that your appliance is only installed in a location
where the ambient temperature of the room, corresponds with
the climate classification that is stated on the rating plate of your
appliance. Your appliance may not function correctly if the
ambient temperature falls outside of the following ranges.
Climate classification Appropriate ambient temperature
SN +10 to +32 degrees centigrade
N +16 to +32 degrees centigrade
ST +18 to +38 degrees centigrade
T +18 to +43 degrees centigrade
o Positioning the appliance requires two people in order to avoid
injuries or damage to the appliance.
o Your appliance should not be located in direct sunlight or
exposed to continuous heat or extremes of temperature (e.g.
next to a radiator or boiler). If this is not feasible, then you
should install an insulation plate between the appliance and the
adjacent heat source.
o You should check whether there is an electrical socket available,
which will be accessible after your appliance is installed.
o Place the appliance
flatly and firmly on
a solid base. The
appliance is fitted
with adjustable feet
at the front, which
should be used to
level off the
appliance.
21
o Anything positioned above the appliance must be at least 15 cm
away to allow sufficient cooling of the condenser. You must allow
a 5 cm gap to the rear and either side of the appliance.
o If supplied, you should fit two spacers to the back of the cabinet,
at the top of the condenser. This will ensure that the correct
distance is maintained at the rear of the appliance.
o If you are placing another cooling appliance next door to this
product, then there must be a gap of at least 2cm between the
appliances. This will help to prevent condensation from forming.
o Be sure to leave enough space for the opening of the door, to
avoid damage to the appliance or personal injury.
22
Troubleshooting
IMPORTANT: If your fridge freezer appears not to be
operating properly, before contacting the Baumatic
Service Department, please refer to the checklist
below.
My fridge freezer does not appear to be working/there
is no power to my appliance.
o Check that the plug is fully inserted into the power socket.
o Check that there is power to your mains supply (e.g. that there
hasn’t been a power cut or that the fuse hasn’t blown).
o Check that the thermostat inside the appliance has not been
turned to the off position.
o Check that your mains supply voltage, corresponds to the
voltage stated on the rating plate of your appliance.
My fridge freezer appears to be performing poorly
o Check that the appliance isn’t overloaded and that food hasn’t
been packed too tightly into it.
o The thermostat setting is too low; you should turn the
thermostat up higher.
o Ensure that the door is closing properly and that the door has
not been opened for a prolonged period in error.
o Ensure that there is adequate ventilation for your appliance.
My fridge freezer is noisy
o The refrigerant gas that circulates the pipework of the appliance
may make a slight noise, even if the compressor is not running.
o If the noise worsens or the appliance gets louder than normal;
check that it is leveled off correctly, that nothing is touching the
rear of the fridge freezer and that nothing placed inside the
appliance is rattling.
Ice has formed on the inner back wall of my fridge
o Check that food has not been pushed too far back inside
the appliance, so that it is in contact with the inner back
wall.
There is water in the base of the fridge or leaking out
of my fridge.
o Follow the “Defrosting the refrigerator compartment” section on
pages 16 - 17.
23
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact the
Baumatic Service Department on telephone
number (0118) 933 6911.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then he will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by Baumatic Ltd. has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
24
United Kingdom
Baumatic Ltd.,
Baumatic Buildings,
6 Bennet Road,
Reading, Berkshire
RG2 0QX
United Kingdom
Sales Telephone
(0118) 933 6900
Sales Fax
(0118) 931 0035
Service Telephone
(0118) 933 6911
Service Fax
(0118) 986 9124
Spares Telephone
(01235) 437244
Technical Advice Telephone
(0118) 933 6933
E-mail:
sales@baumatic.co.uk
technical@baumatic.co.uk
Website:
www.baumatic.co.uk
Republic of Ireland
01- 6266 798
Czech Republic
Baumatic CR spol s.r.o.
Amperova 495
46215, Librec
Czech Republic
+420 800 185 263
www.baumatic.cz
Slovak Republic
Baumatic Slovakia, s.r.o.
Skultetyho 1
831 04 Bratislava 3
Slovakia
+421 255 640 618
Germany
Baumatic Gmbh
Janderstrasse 9
Mannheim, 68199
Germany
+4962 112 9190
www.baumatic.de
Italy
Baumatic Italia S.R.L.
Via Caltana 129
Campodarsego (Padova), 35011
Italy
+3904 9920 2297
www.baumatic.it
Holland
Baumatic Benelux B.V.
Grindzuigerstraat 22
1333 MS ALMERE
The Netherlands
+3136 549 1555
www.baumatic.nl
26
27
28
28
Loading...
