B40DSS
570 Litre 4 door
frost free
fridge-freezer
s
USER MANUAL FOR YOUR BAUMATIC
B40DSS
570 Litre 4 door
frost free fridge-freezer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance.
JW 11/06/13
2
Contents
Environmental note 4
Important safety information 5-6
Specifications of your fridge freezer 7-12
Description of the appliance 8
Product features (fridge section) 9-12
Product features (freezer section 12
Using your Baumatic fridge freezer 13-18
Before switching on 13
During first use 13
Control panel 14-18
Switching on the appliance 15
Manually setting the temperature (fridge) 15
Manually setting the temperature (freezer) 15
Switching on Super Cool mode 16
Switching on Super Freeze mode 16
Switching on energy saving mode 16
rning off the fridge section 17
Tu
Switching on the control panel lock 17
Returning the appliance to normal operation 17
Door open alarm 18
Temperature rise alarm 18
Arranging and storing food in the fridge section 18-19
The **** freezer section 20-24
Freezing fresh food 20
Tips on freezing 21
Storing commercially frozen food 21
Defrosting frozen food 22
In the event of power failure 22
Using the twist ice maker 23
Normal operating noises
Important user information 24
Saving energy when using your fridge-freezer 24-25
Cleaning and maintenance 26-28
General cleaning 26-28
Replacing the light bulb 28
Adjusting the fridge doors 28
Installation 29-33
Electrical connection 29
Positioning 30
Installation preparation 31
Installing the fridge door/freezer drawer handles 31-32
Installing the decorative plinth 33
23-24
Troubleshooting 33-35
Techni cal data
Contact details
36
38
3
Environmental note
Note
: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
o Please discard all packaging material with due regard for the
environment.
4
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be carried
out by a qualified electrician or competent person.
Use of the appliance
o Your appliance is only designed to be used in the
home. It is suitable for storing food that needs to
be chilled and refrigerated. If it is used for any
other purpose or it is not used correctly, then
Baumatic
. will accept no liability for any
damage that is caused.
o Altering the specification of the appliance must not be attempted
for reasons of safety.
Before using your appliance
o Check the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your retailer.
Refrigerant
o Your appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it
taken:
is a flammable substance, therefore care should be
During the transportation and installation of the
appliance, make sure that the refrigeration pipework does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
o Do not place any objects on top of the appliance,
as this may damage the table top.
5
Child safety
o Packaging material should be kept away from
children.
o Children should not be allowed to touch the
controls or play with the appliance.
General safety
o Do not pull on the power supply cable to remove the plug from
your mains supply socket.
o Do not pull out or insert the plug with wet hands.
o Do not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
o Before cleaning the appliance or performing maintenance work,
ensure that the appliance has been disconnected from your
mains supply.
o Never allow the back coils of the appliance to come into contact
with the wall surface.
o Always ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
o Never block the ventilation openings of the appliance, either on
the inside or its exterior.
o It is vital to keep your appliance well ventilated, so
that there is proper air flow between the bottom of
the unit and the plinth/kick plate which it is sitting
on.
o Do not place electrical devices inside of the appliance, such as
mixers or ice cream makers.
o Do not store aerosol cans with a flammable propellant in this
appliance.
Service
You should not attempt to repair the appliance yourself,
as this could cause injury or a more serious malfunction.
If you require a service call then please contact the
Baumatic Customer Care Department.
6
Specifications of your fridge freezer
Dimensions of your appliance
o Height: 1775 mm
o Width: 911 mm
o Depth: 728.5 mm (excluding handles)
Energy efficiency class
o Energy class: A+
Cubic capacities
o Total gross/net capacity: 570/542 litres
o Gross capacity (fridge/freezer): 425/145 litres
o Net capacity (fridge/freezer): 422/120 litres
Specifications of the appliance
o Frost free fridge and freezer
o Star rating ****
o Multi airflow cooling system
o Electronic temperature control
o Digital control panel
o Adjustable thermostat
o Fast cooling switch
o Fast Freeze switch
o Fast freeze indicator light
o Door open warning indicator
o Temperature rise warning indicator
o Adjustable feet
o Mark resistant coating
o 4 Adjustable fridge safety glass shelves
o 1 Salad crisper shelf (Safety glass)
o 2 Salad crispers
o 1 Full width pantry drawer
o 2 Bottle racks
o 4 General door racks
o 2 Butter and cheese compartments
o 2 Egg racks
o 1 Wine rack
o 2 Non-transparent freezer drawers
o Twist ice maker
7
IMPORTANT: When you install your appliance it is important to bear
in mind its climatic rating.
In order to find out the climatic rating of your appliance, you should
check the rating plate. The rating plate is located inside of the fridge
section, on the left side. You will need to open the door of the fridge
section and you may need to remove one of the middle safety glass
shelves. The rating plate will indicate the ambient temperature range
that your appliance will function correctly within.
Description of the appliance
1) Pantry drawer
2) Storage compartment
3) Salad crisper (x2)
4) Wine rack
5) Adjustable safety glass shelf
6) Vertical girder
7) Adjustable safety glass shelf
8) Left refrigerator door
9) Top interior light
10) Light switch/door close sensor
11) Right refrigerator door
12) Dairy compartment
13) Rear wall airflow cover plate
14) Adjustable safety glass shelf
15) Interior side light
16) Bottle rack
17) General door rack
18) Freezer interior light
19) Upper freezer drawer
20) Lower freezer drawer
21) Bottom beam/ kick plate
22) Adjustable feet
23) Freezer door handles
8
Description of product features (fridge)
Adjustable safety glass shelves
o The shelves may be placed in any of the guide slots within the
interior of the appliance. They are protected from sliding out.
o To remove a shelf: Take off all of the items that are stored on
the shelf that you want to remove. Then whilst lifting the front of
the shelf, pull it forwards to unhook it from the slots at the rear
of the cabinet.
o To refit a shelf: When placing a shelf back inside the fridge
compartments, place the hooks into the slots at the rear of the
cabinet. Lower the front of the shelf back down again.
IMPORTANT: You must ensure that both of the hooks are in slots
that are at the same height; otherwise the shelf will not be level.
Salad crispers
o These drawers are suitable for storing fruits, salad and
vegetables. They are designed to keep the contents fresh for as
long as possible.
o Care should be taken when storing tropical fruit (bananas and
pineapples etc) and tomatoes. As these types of items can easily
deteriorate at a lower temperature.
9

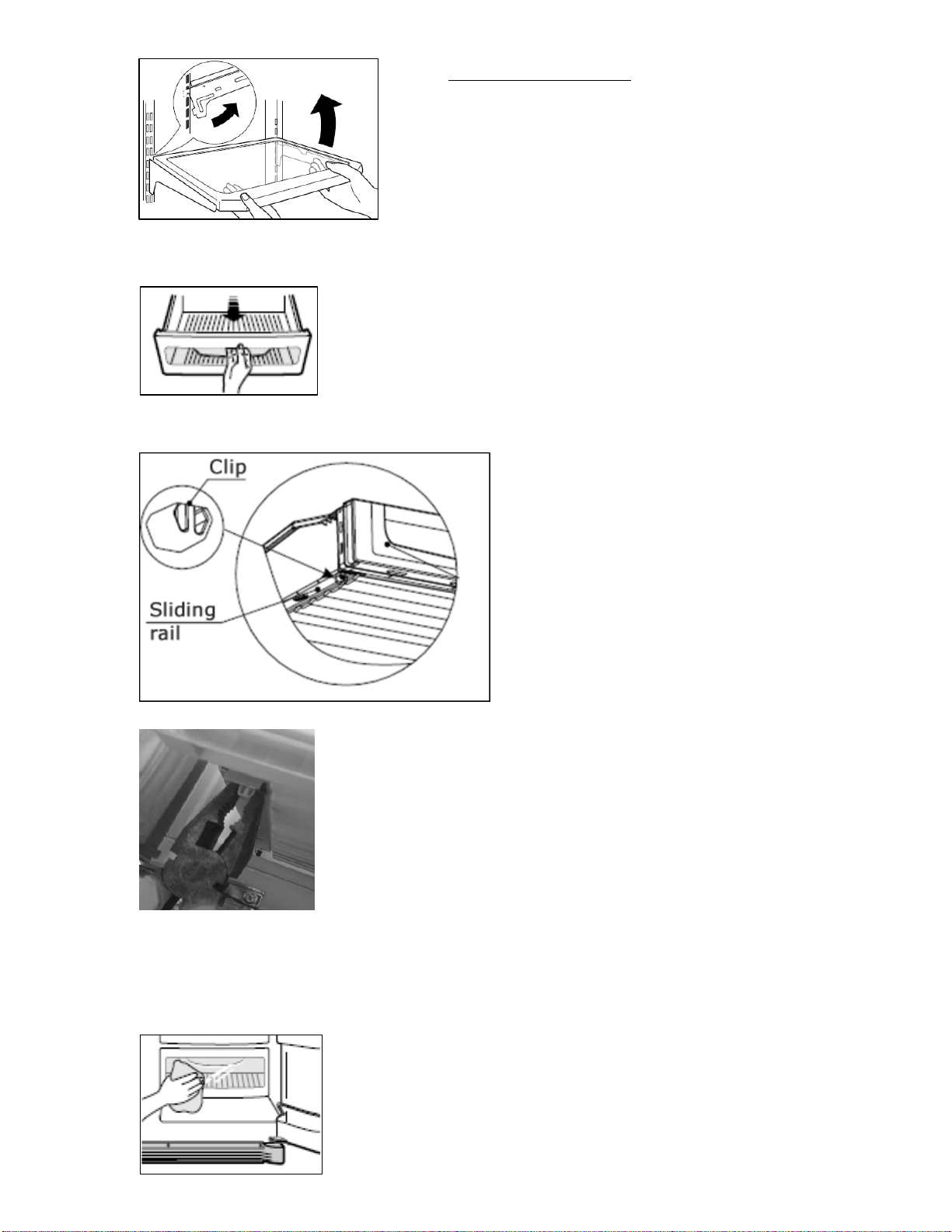

o To remove the safety glass crisper cover, remove the salad
crisper drawers, lift up the cover and then pull it towards you (as
shown in the line drawing below).
o For the storage of meat and fish, we would recommend that they
are stored in a foil cover or a vinyl wrap.
Full width pantry
o For the storage of meat and fish, we would recommend that they
are stored in a foil cover or a vinyl wrap.
o Care should be taken when storing tropical fruit (bananas and
pineapples etc) and tomatoes. As these types of items can easily
deteriorate in a lower temperature.
10
General door racks*
o The door liners hold various racks, which are suitable for storing
eggs, cheese, butter, yogurt, smaller packages, tubes, cans etc.
Bottle racks*
o The upper middle door racks in each door should be used for
storing reasonably sized bottles.
o IMPORTANT: IT IS IMPORTANT THAT NONE OF THE
SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS
THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.
General and bottle door rack height adjustment
It is possible to adjust the height of the general door racks and bottle
racks in the doors.
o Remove all items from the rack that you want to adjust the
height of.
o Hold both sides of the shelf then lift it upwards and pull it
towards you.
o Place the shelf back into the door at the height that you require
and then push it downwards until it locates into position.
*NOTE: By adjusting the position of the door racks you will
increase / decrease the storage height of adjacent racks. The
upper and lower middle door racks can be used as bottle racks,
providing there is suitable storage/height space.
11
