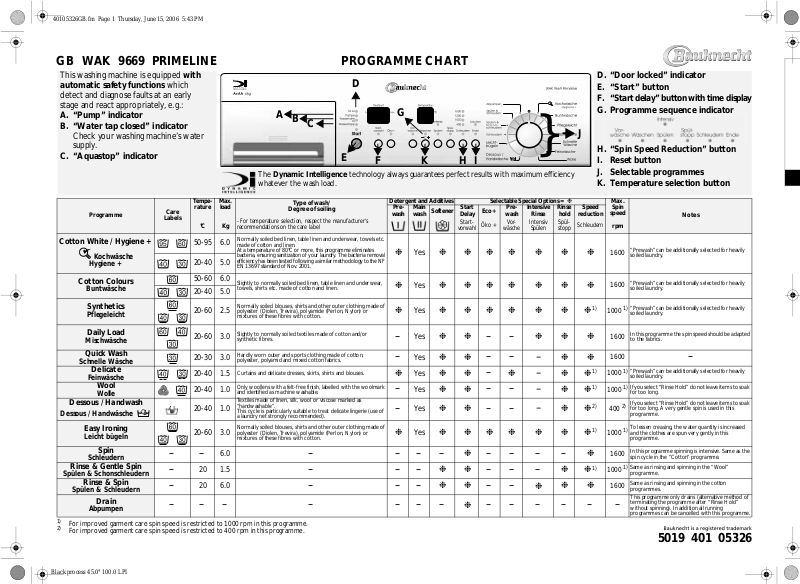

GB WAK 9669 PRIMELINE PROGRAMME CHART

This washing machine is equipped

automatic safety functions

detect and diagnose faults at an early stage and react appropriately, e.g.:

A. “Pump” indicator B. “Water tap closed” indicator

Check your washing machine’s water supply.

C. “Aquastop” indicator

with

which

Dynamic Intelligence

The whatever the wash load.

technology always guarantees perfect results with maximum efficiency

F K

H I

D. “Door locked” indicator E. “Start” button F. “Start delay” button with time display G. Programme sequence indicator

{

H. “Spin Speed Reduction” button I. Reset button J. Selectable programmes K. Temperature selection button

Tempe-

Max.

rature

Programme

Care

Labels

Cotton White / Hygiene +

Kochwäsche

Hygiene +

Cotton Colours

Buntwäsche

Synthetics

Pflegeleicht

Daily Load

Mischwäsche

Quick Wash

Schnelle Wäsche

Delicate

Feinwäsche

Wool

Wolle

Dessous / Handwash

Dessous / Handwäsche

Easy Ironing

Leicht bügeln

Spin

Schleudern

Rinse & Gentle Spin

Spülen & Schonschleudern

Rinse & Spin

Spülen & Schleudern

Drain

Abpumpen

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

–– – –

––– – –––❉–– – – – –

load

°C

50-95 6.0

20-40 5.0 50-60 6.0

20-40 5.0

20-60 2.5

20-60 3.0

20-30 3.0 20-40 1.5 20-40 1.0

20-40 1.0

20-60 3.0

6.0 20 1.5 20 6.0

- For temperature selection, respect the manufacturer's recommendations on the care label

Normally soiled bed linen, table linen and underwear, towels etc. made of cotton and linen. At a temperature of 80°C or more, this programme eliminates bacteria, ensuring sanitization of your laundry. The bacteria removal efficiency has been tested following a similar methodology to the NF EN 13697 standard of Nov. 2001.

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of these fibres with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetic fibres.

Hardly worn outer and sports clothing made of cotton, polyester, polyamid and mixed cotton fabrics.

Curtains and delicate dresses, skirts, shirts and blouses. Only woollens with a felt-free finish, labelled with the woolmark

and identified as machine washable. Textiles made of linen, silk, wool or viscose marked as

“handwashable”. This cycle is particularly suitable to treat delicate lingerie (use of a laundry net strongly recommended).

Normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of these fibres with cotton.

Type of w ash/

Degree of soiling

–––– ––– –––

Detergent and Additives Selectable Special Options =

Pre-

wash

❉

– –

❉

– –

❉

Main wash

Yes

Yes Yes Yes

Yes

Softener

Start

Delay

Start-

vorwahl

❉❉❉❉❉❉ ❉

❉❉❉❉❉❉❉

❉❉ ❉❉

❉❉

❉❉❉❉❉❉❉

❉ ❉❉ ❉❉

Pre-

Eco +

wash

Vor-

Öko +

wäsche

–– ––

❉

– ––

––

Intensive

Intensiv

Spülen

Rinse

hold

Spül-

stopp

❉❉❉

❉❉

–

❉❉

–

❉❉

–

❉❉

–

–– – –

❉

❉❉ ❉❉

–– – ––

❉

Speed

reduction

Schleudern

❉

Max.

Spin

speed

rpm

“Prewash” can be additionally selected for heavily

1600

soiled laundry.

“Prewash” can be additionally selected for heavily

1600

soiled laundry.

“Prewash” can be additionally selected for heavily

1000

soiled laundry.

In this programme the spin speed should be adapted

1600

to the fabrics.

1600

“Prewash” can be additionally selected for heavily

1000

soiled laundry. If you select “Rinse Hold” do not leave items to soak

1000

for too long. If you select “Rinse Hold” do not leave items to soak

for too long. A very gentle spin is used in this

400

programme. To lessen creasing, the water quantity is increased

and the clothes are spun very gently in this

1000

programme. In this programme spinning is intensive. Same as the

1600

spin cycle in the “Cotton” programme. Same as rinsing and spinning in the “Wool”

1000

programme. Same as rinsing and spinning in the cotton

1600

programmes. This programme only drains (alternative method of

terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

Notes

–

5019 401 05326

Black process 45.0° 100.0 LPI

40105326GB.fm Page 2 Thursday, June 15, 2006 5:43 PM

CONSUMPTION DA TA

Programme Temperature

(°C)

CottonWhite/Hygiene+

Cotton Colours

Cotton with “Eco +” ****

Cotton Colours

Synthetics Synthetics Daily Load

Quick Wash

Delicate

Wool

Dessous / Handwash

Easy Ironing

The

* **

*** ****

consumption values

The

programme duration

household conditions and to adapt the programme run time accordingly. To r e du ce t he drains the water out. Reference programme for energy label.

water temperature

were measured in normalized conditions in compliance with Standard IEC/EN 60456.

may also vary from the chart values. The washing machine is able to allow for particular

95 6.0 49 60 6.0 44 1.14 2:20 60 6.0 44 1.02 2:30 40 5.0 42 0.70 2:05 60 2.5 60 40 2.5 55 0.60 1:30 40 3.0 48 0.55 1:00 30 3.0 37 0.30 0:30 30 1.5 60 0.50 0:45 40 1.0 60 0.50 0:40 30 1.0 45 0.40 0:35 40 3.0 60 0.60 1:30

, some cold water is added at the end of the main wash cycle, before the pump

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the instructions for use.

1. Turn the

programme selector knob

to the

desired programme.

2. The

remaining time display

shows the duration of the chosen programme (in hours and minutes), and the lamp over the

3. The

programme sequence indicator

“Start”

button flashes.

and the predefined spin speed indication corresponding to the selected programme lights up. The recommended temperature (see the indicator) can be altered by pressing the temperature selection button under the temperature display.

USING CHLORINE BLEACH

• Wash your laundry in the desired programme (Cotton, Synthetics), adding an appropriate amount of chlorine bleach to the SOFTENER chamber (close the detergent dispenser carefully).

• Immediately after end of programme, start the “Rinse and Spin” programme to eliminate any residual bleach smell; if you want, you can add softener .

SELECT SPECIAL OPTIONS The corresponding lights go on (if not selectable: rapid flashing for 3 seconds)

“Eco +” button

• With a modified temperature profile and a slightly prolonged washing duration, the optimum combination of excellent washing result and even lower energy consumption can be achieved.

Wash

Water

Energy

Programme duration

approx.**

(kg)

(l)

***

(kWh)

1.90 2:00

0.90 1:45

(hours : minutes)

“Prewash” button

• Only for heavily soiled laundry (e.g. sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This option is particularly suitable for areas with very soft water, washing baby linen and helps people with detergent allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This option is particularly recommended for the programme “Synthetic” or “Delicate”.

• This function is particularly useful if you want to postpone spinning to a later time.

The programme has reached the “Rinse

Note:

Hold” when the corresponding light flashes.

Ter minate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

• If you do not wish to spin the clothes, turn the programme selector knob to “Drain” and press the

“Start”

button again.

“Spin Speed Reduction” button

• A maximum spin speed is assigned to each programme.

• Press the button to set another speed for the spin cycle.

• If no light goes on, the final spin is cancelled. The water is only drained out.

START DELAY

With the “Start Delay” function the appliance can be run cheaply e.g. at night, when the electricity is cheaper.

• Press the “Start Delay” button. Select the programme start from 1 to 24 hours ahead by pressing the button again.

• Press the

“Start”

button. The Start Delay indicator light flashes until the programme starts.

“Start Delay” correction.

• Before “Start” has been pressed: The preset number of hours can be altered by continuously pressing the “Start Delay” button. By pressing the Start Delay button again after the “24” setting, the time delay can be deleted again or set again. After “Start” has been pressed: The preset number of hours can be reduced by pressing the “Start Delay” button again; please note, however, that the washing programme starts IMMEDIATELY, as soon as you operate it again with the Start Delay switch 01 setting. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and eventually the additional options, the indicator light over the

button flashes. Turn on the tap and start the

“Start”

programme by pressing the

“Start”

button. Now the indicator light over the button goes on. In addition, all programme phases are indicated by the associated lights. After the end of a programme phase, the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme, only the “End” indicator is still on.

“DOOR LOCKED” INDICATOR

As long as a washing programme is running, the lamp lights up to show that the door cannot be opened. When the lamp goes off, the door can be opened again. If

has been pressed, but the door is not latched,

“Start”

the “Door Locked” indicator flashes for 10 seconds. The door must be pushed shut within this time. After the 10 seconds, the “Door Locked” indicator goes out and the

“Start”

button flashes. The door

must then be opened and closed again and the

“Start”

button must be pressed.

“TROUBLE” INDICATORS

“Pump”

Waste water is not pumped out. Check wether the drain hose is kinked or the filter must be cleaned; in the latter case refer to the Instructions for Use (“Removing the Filter”).

“Water Tap”

The appliance has no or insufficient water supply. Open the water tap; if the indication still lights up, refer to the “Troubleshooting Guide" in the Instructions for Use.

“Aquastop“

Lighting up of the Aquastop indication can be caused by a leak in the appliance or hose. Please refer to the “Troubleshooting Guide" in the Instructions for Use.

PROGRAMME END

• The “End” indicator goes on.

1. Switch the washing machine off by turning the programme selector to the “O”-position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the

“Start”

button to interrupt the

programme. The light flashes.

2. Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3. Press the

“Start”

button again to restart the

programme.

• If you are in the “Prewash” programme step, this

additional option cannot be deselected as described (to do this see “Cancel/Reset a running programme before the end”).

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

Press the

“Reset”

button for at least 2 seconds. Any existing water is drained out before the door can be opened.
