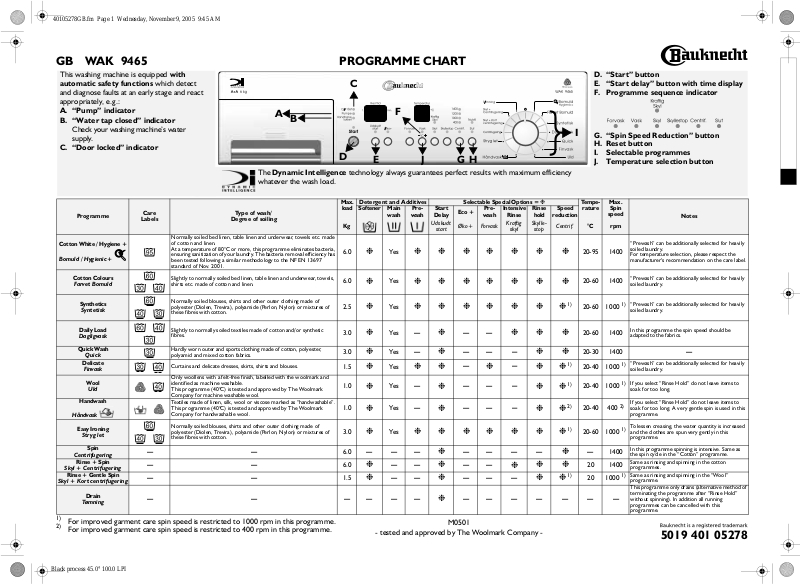

bauknecht WAK 9465 PROGRAMME CHART
40105278GB.fm Page 1 Wednesday, November 9, 2005 9:45 AM
GB WAK 9465 PROGRAMME CHART
This washing machine is equipped
automatic safety functions
and diagnose faults at an early stage and react
appropriately, e.g.:
A. “Pump” indicator
B. “Water tap closed” indicator
Check your washing machine’s water
supply.
C. “Door locked” indicator
with
which detect
A
B
Dynamic Intelligence
The
whatever the wash load.
C
F
D
E J
technology always guarantees perfect results with maximum efficiency
G H
{
D. “Start” button
E. “Start delay” button with time display
F. Programme sequence indicator
I
G. “Spin Speed Reduction” button
H. Reset button
I. Selectable programmes
J. Temperature selection button
Programme
Cotton White / Hygiene +
Bomuld / Hygienic+
Cotton Colours
Farvet Bomuld
Synthetics
Syntetisk
Daily Load
Dagligvask
Quick Wash
Quick
Delicate
Finvask
Woo l
Uld
Handwash
Håndvask
Easy Ironing
Stryg let
Spin
Centrifugering
Rinse + Spin
Skyl + Centrifugering
Rinse + Gentle Spin
Skyl + Kort centrifugering
Drain
Tø m n i n g
1)
For improved garment care spin speed is restricted to 1000 rpm in this programme.
2)
For improved garment care spin speed is restricted to 400 rpm in this programme.
Care
Labels
Normally soiled bed linen, table linen and underwear, towels etc. made
of cotton and linen.
At a temperature of 80°C or more, this programme eliminates bacteria,
ensuring sanitization of your laundry. The bacteria removal efficiency has
been tested following a similar methodology to the NF EN 13697
standard of Nov. 2001.
Slightly to normally soiled bed linen, table linen and underwear, towels,
shirts etc. made of cotton and linen.
Normally soiled blouses, shirts and other outer clothing made of
polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of
these fibres with cotton.
Slightly to normally soiled textiles made of cotton and/or synthetic
fibres.
Hardly worn outer and sports clothing made of cotton, polyester,
polyamid and mixed cotton fabrics.
Curtains and delicate dresses, skirts, shirts and blouses.
Only woollens with a felt-free finish, labelled with the woolmark and
identified as machine washable.
This programme (40°C) is tested and approved by The Woolmark
Company for machine washable wool.
Textiles made of linen, silk, wool or viscose marked as “handwashable”.
This programme (40°C) is tested and approved by The Woolmark
Company for handwashable wool.
Normally soiled blouses, shirts and other outer clothing made of
polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of
these fibres with cotton.
––
––
––
––––––
Type of wash/
Degree of soiling
Max.
Detergent and Additives Selectable Special Options =
load
Softener Main
Kg
6.0
❉
6.0
❉
2.5
❉
3.0
❉
3.0
❉
1.5
❉
1.0
❉
1.0
❉
3.0
❉
6.0
–––
6.0
❉
1.5
❉
Pre-
wash
wash
Ye s
❉❉❉❉❉❉❉
Ye s
❉❉❉❉❉❉❉
Ye s
❉❉❉❉❉❉❉
Ye s
–
Ye s
–
Ye s
❉❉
Ye s
–
Ye s
–
Ye s
❉❉❉❉❉❉❉
––
––
Start
Delay
Udskudt
start
❉
❉
❉
❉
❉
❉
❉
❉
Pre-
Eco +
wash
Øko+ Forvask
––
––
❉
–
––
––
––––
––
–––
–––– – ––
M0501
- tested and approved by The Woolmark Company -
Intensive
Rinse
Kraftig
skyl
Rinse
hold
Skylle-
stop
❉
Speed
reduction
Centrif.
❉❉❉
❉❉
`
❉❉
`
❉❉
`
❉❉
`
❉
❉❉
❉
❉❉
Te m p e -
rature
20-95 1400
20-60 1400
1)
20-60 1000
20-60 1400
20-30 1400
1)
20-40 1000
1)
20-40 1000
2)
20-40 400
1)
20-60 1000
1)
Max.
Spin
speed
°C rpm
1400
–
20 1400
20 1000
Notes
“Prewash” can be additionally selected for heavily
soiled laundry.
For temperature selection, please respect the
manufacturer's recommendation on the care label.
“Prewash” can be additionally selected for heavily
soiled laundry.
“Prewash” can be additionally selected for heavily
1)
soiled laundry.
In this programme the spin speed should be
adapted to the fabrics.
–
“Prewash” can be additionally selected for heavily
1)
soiled laundry.
If you select “Rinse Hold” do not leave items to
1)
soak for too long.
If you select “Rinse Hold” do not leave items to
2)
soak for too long. A very gentle spin is used in this
programme.
To lessen creasing, the water quantity is increased
1)
and the clothes are spun very gently in this
programme.
In this programme spinning is intensive. Same as
the spin cycle in the “Cotton” programme.
Same as rinsing and spinning in the cotton
programmes.
Same as rinsing and spinning in the “Wool”
1)
programme.
This programme only drains (alternative method of
terminating the programme after “Rinse Hold”
without spinning). In addition all running
programmes can be cancelled with this
programme.
5019 401 05278
Black process 45.0° 100.0 LPI
40105278GB.fm Page 2 Wednesday, November 9, 2005 9:45 AM
CONSUMPTION DATA
*
Programme Te m p e r a t u r e
(°C)
Cotton White / Hygiene +
Cotton Colours
Cotton with “Eco +” ****
Cotton Colours
Synthetics
Synthetics
Daily Load
Quick Wash
Delicate
Woo l
Handwash
*
**
***
****
Easy Ironing
consumption values
The
programme duration
The
household conditions and to adapt the programme run time accordingly.
To red uce th e
drains the water out.
Reference programme for energy label.
water temperature
were measured in normalized conditions in compliance with Standard IEC/EN 60456.
may also vary from the chart values. The washing machine is able to allow for particular
95 6.0 49
60 6.0 44 1.14 2:20
60 6.0 44 1.02 2:30
40 5.0 42 0.70 2:05
60 2.5 60
40 2.5 55 0.60 1:30
40 3.0 48 0.55 1:00
30 3.0 37 0.30 0:30
30 1.5 60 0.50 0:45
40 1.0 60 0.50 0:40
30 1.0 45 0.40 0:35
40 3.0 60 0.60 1:30
, some cold water is added at the end of the main wash cycle, before the pump
POUR IN DETERGENT, CLOSE THE
DOOR AND SELECT A PROGRAMME
Add the detergent as described in the chapter
“Detergent and Additives” in the instructions for use.
1. Turn the
programme selector knob
to the
desired programme.
2. The
remaining time display
shows the duration
of the chosen programme (in hours and minutes),
and the lamp over the
3. The
programme sequence indicator
“Start”
button flashes.
and the
predefined spin speed indication corresponding
to the selected programme lights up.
The recommended temperature (see the
indicator) can be altered by pressing the
temperature selection button under the
temperature display.
USING CHLORINE BLEACH
• Wash your laundry in the desired programme
(Cotton, Synthetics), adding an appropriate
amount of chlorine bleach to the SOFTENER
chamber (close the detergent dispenser carefully).
• Immediately after end of programme, start the “Rinse
+ Spin” programme to eliminate any residual bleach
smell; if you want, you can add softener.
SELECT SPECIAL OPTIONS The corresponding lights go on (if not
selectable: rapid flashing for 3 seconds)
“Eco +” button
•With a modified temperature profile and a slightly
prolonged washing duration, the optimum
combination of excellent washing result and even
lower energy consumption can be achieved.
Wash
Water
Energy
Programme duration
approx.**
(kg)
(l)
***
***
(kWh)
1.90 2:00
0.90 1:45
(hours : minutes)
“Prewash” button
• Only for heavily soiled laundry (e.g. sand or
granular dirt). Programme duration is increased
by some 15 min.
“Intensive Rinse” button
• An additional rinse cycle is carried out.
• This option is particularly suitable for areas with
very soft water, washing baby linen and helps
people with detergent allergies.
“Rinse Hold” button
• The laundry remains in the last rinse water
without being spun: discoloration of the laundry
and additional creasing are prevented.
• This option is particularly recommended for the
programme “Synthetic” or “Delicate”.
• This function is particularly useful if you want to
postpone spinning to a later time.
The programme has reached the “Rinse
Note:
Hold” when the corresponding light flashes.
Terminate the “Rinse Hold” option:
• Press the “Rinse Hold” button again; the
programme will terminate automatically with the
appropriate spin cycle for the current programme.
• If you do not wish to spin the clothes, turn the
programme selector knob to “Drain” and press
the
“Start”
button again.
“Spin Speed Reduction” button
• A maximum spin speed is assigned to each
programme.
• Press the button to set another speed for the
spin cycle.
• If no light goes on, the final spin is cancelled.
The water is only drained out.
START DELAY
With the “Start Delay” function the appliance can be run
cheaply e.g. at night, when the electricity is cheaper.
• Press the “Start Delay” button. Select the
programme start from 1 to 24 hours ahead by
pressing the button again.
•Press the
“Start”
button.
The Start Delay indicator light flashes until the
programme starts.
“Start Delay” correction.
• Before “Start” has been pressed:
The preset number of hours can be altered by
continuously pressing the “Start Delay” button.
By pressing the Start Delay button again after the
“24” setting, the time delay can be deleted again
or set again.
After “Start” has been pressed:
The preset number of hours can be reduced by
pressing the “Start Delay” button again; please
note, however, that the washing programme
starts IMMEDIATELY, as soon as you operate it
again with the Start Delay switch 01 setting.
To increase the number of hours preselected,
first turn the programme selector switch to the
“Off” position. Then set the programme and the
additional options again and select the desired
number of hours.
PROGRAMME START
After you have selected the programme and
eventually the additional options, the indicator light
over the
“Start”
and start the programme by pressing the
button flashes. Turn on the tap
“Start”
button. Now the indicator light over the button
goes on.
In addition, all programme phases are indicated by
the associated lights. After the end of a programme
phase, the associated indicator light goes out. Thus
the programme sequence indicator moves from left
to right across the wash, rinse and spin phases. At
the end of the programme, only the “End” indicator
is still on.
“DOOR LOCKED” INDICATOR
As long as a washing programme is running, the
lamp lights up to show that the door cannot be
opened. When the lamp goes off, the door can be
opened again.
If
has been pressed, but the door is not latched,
“Start”
the “Door Locked” indicator flashes for 10 seconds.
The door must be pushed shut within this time.
After the 10 seconds, the “Door Locked” indicator
goes out and the
“Start”
button flashes. The door
must then be opened and closed again and the
“Start”
button must be pressed.
“TROUBLE” INDICATORS
“Pump”
Waste water is not pumped out. Check wether the
drain hose is kinked or the filter must be cleaned; in
the latter case refer to the Instructions for Use
(“Removing the Filter”).
“Water Tap”
The appliance has no or insufficient water supply.
Open the water tap; if the indication still lights up,
refer to the “Troubleshooting Guide" in the
Instructions for Use.
PROGRAMME END
• The “End” indicator goes on.
1. Switch the washing machine off by turning the
programme selector to the “O”-position.
2. Turn off the tap.
3. Open the door and unload the machine.
RESELECT AFTER PROGRAMME START
A newly-selected programme will continue in the
same programme section during which the current
programme was interrupted. Therefore do not add
any more detergent.
1. Press the
“Start”
button to interrupt the
programme. The light flashes.
2. Select the new programme (with temperature),
any additional options and - if you wish - another
spin speed.
3. Press the
programme.
“Start”
button again to restart the
• If you are in the “Prewash” programme step, this
additional option cannot be deselected as
described (to do this see “Cancel/Reset a
running programme before the end”).
CANCEL (RESET) A RUNNING
PROGRAMME BEFORE THE END
Press the
“Reset”
button for at least 2 seconds.
Any existing water is drained out before the door
can be opened.
5019 401 05278
Black process 45.0° 100.0 LPI
Loading...
