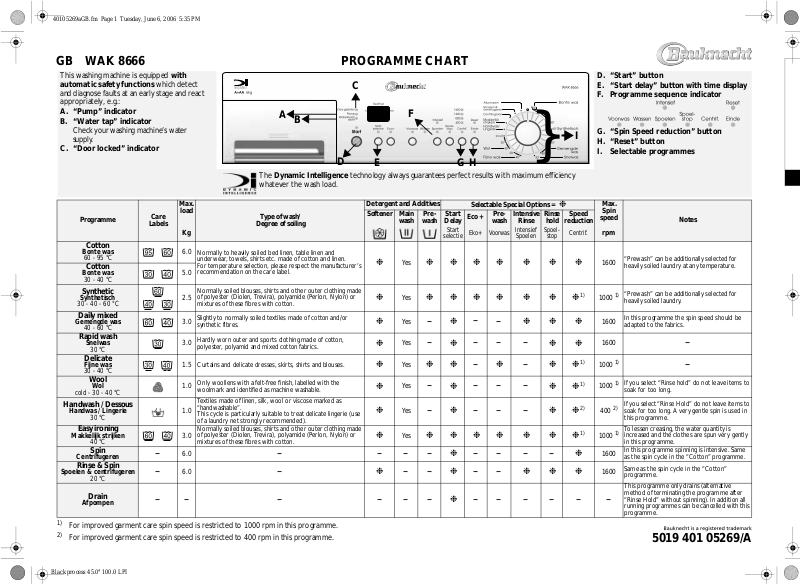

bauknecht WAK 8666 PROGRAMME CHART
40105269aGB.fm Page 1 Tuesday, June 6, 2006 5:35 PM
GB WAK 8666 PROGRAMME CHART
This washing machine is equipped
automatic safety functions
and diagnose faults at an early stage and react
appropriately, e.g.:
A. “Pump” indicator
B. “Water tap” indicator
Check your washing machine’s water
supply .
C. “Door locked” indicator
with
which detect
A
B
The
Dynamic Intelligence
whatever the wash load.
C
F
D
technology always guarantees perfect results with maximum efficiency
D. “Start” button
E. “Start delay” button with time display
F. Programme sequence indicator
{
G. “Spin Speed reduction” button
I
H. “Reset” button
I. Selectable programmes
G HE
Max.
Programme
Cotton
Bonte was
60 - 95 °C
Cotton
Bonte was
30 - 40 °C
Synthetic
Synthetisch
30 - 40 - 60 °C
Daily mixed
Gemengde was
40 - 60 °C
Rapid wash
Snelwas
30 °C
Delicate
Fijne was
30 - 40 °C
Wool
Wol
cold - 30 - 40 °C
Handwash / Dessous
Handwas / Lingerie
30 °C
Easy ironing
Makkelijk strijken
40 °C
Spin
Centrifugeren
Rinse & Spin
Spoelen & centrifugeren
1)
2)
20 °C
Drain
Afpompen
For improved garment care spin speed is restricted to 1000 rpm in this programme.
For improved garment care spin speed is restricted to 400 rpm in this programme.
Care
Labels
load
Kg
6.0
Normally to heavily soiled bed linen, table linen and
underwear, towels, shirts etc. made of cotton and linen.
For temperature selection, please respect the manufacturer’s
recommendation on the care label.
5.0
Normally soiled blouses, shirts and other outer clothing made
of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or
2.5
mixtures of these fibres with cotton.
Slightly to normally soiled textiles made of cotton and/or
3.0
synthetic fibres.
Hardly worn outer and sports clothing made of cotton,
3.0
polyester, polyamid and mixed cotton fabrics.
Curtains and delicate dresses, skirts, shirts and blouses.
1.5
Only woollens with a felt-free finish, labelled with the
1.0
woolmark and identified as machine washable.
Textiles made of linen, silk, wool or viscose marked as
“handwashable”.
1.0
This cycle is particularly suitable to treat delicate lingerie (use
of a laundry net strongly recommended).
Normally soiled blouses, shirts and other outer clothing made
of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or
3.0
mixtures of these fibres with cotton.
–
–
6.0
6.0
Type of wash/
Degree of soiling
––––
–
–– – –––
Detergent and Additives
Softener Main
❉
❉
❉
❉
❉
❉
❉
❉
❉
Pre-
wash
wash
Yes
❉❉❉❉ ❉ ❉ ❉
Yes
❉❉❉❉ ❉ ❉❉
Yes
–
Yes
–
Yes
❉❉
Yes
–
Yes
–
Yes
❉❉❉❉ ❉ ❉❉
––
Start
Delay
Start
selectie
❉
❉
❉
❉
❉
❉
❉
Selectable Special Options =
Pre-
wash
–
Intensive
Intensief
Spoelen
Eco +
Eko+ Voorwas
–
–– –
❉
–
–– –
–– –
Rinse
Rinse
hold
Spoel-
stop
❉❉❉
❉❉
❉❉
–
❉❉
❉❉
–– – –
––
❉❉❉
❉
Speed
reduction
Centrif.
Max.
Spin
speed
rpm
1600
1)
1000
1600
1600
1)
1000
1)
1000
2)
400
1)
1000
1600
❉
1600
–– – – – –
Notes
“Prewash” can be additionally selected for
heavily soiled laundry at any temperature.
“Prewash” can be additionally selected for
1)
heavily soiled laundry.
In this programme the spin speed should be
adapted to the fabrics.
–
1)
If you select “Rinse hold” do not leave items to
1)
soak for too long.
If you select “Rinse Hold” do not leave items to
2)
soak for too long. A very gentle spin is used in
this programme.
To lessen creasing, the water quantity is
1)
increased and the clothes are spun very gently
in this programme.
In this programme spinning is intensive. Same
as the spin cycle in the “Cotton” programme.
Same as the spin cycle in the “Cotton”
programme.
This programme only drains (alternative
method of terminating the programme after
“Rinse Hold” without spinning). In addition all
running programmes can be cancelled with this
programme.
–
5019 401 05269/A
Black process 45.0° 100.0 LPI
40105269aGB.fm Page 2 Tuesday, June 6, 2006 5:35 PM
CONSUMPTION DA TA
*
Programme Temp eratu re
(°C)
Cotton
Cotton
Cotton with “Eco +” ****
Cotton
Synthetic
Synthetic
Daily Mixed
Rapid wash
Delicate
Wool
Dessous / Handwash
Easy ironing
The
*
**
***
****
consumption values
The
programme duration
household conditions and to adapt the programme run time accordingly.
To re duc e th e
drains the water out.
Reference programme for energy label.
water temperature
were measured in normalized conditions in compliance with Standard IEC/EN 60456.
may also vary from the chart values. The washing machine is able to allow for particular
95 6.0 49
60 6.0 44 1.14 2:20
60 6.0 44 1.02 2:30
40 5.0 42 0.70 2:05
60 2.5 60
40 2.5 55 0.60 1:35
40 3.0 48 0.55 1:00
30 3.0 37 0.30 0:30
30 1.5 60 0.50 0:45
40 1.0 60 0.50 0:40
30 1.0 45 0.40 0:35
40 3.0 60 0.60 1:30
, some cold water is added at the end of the main wash cycle, before the pump
POUR IN DETERGENT, CLOSE THE
DOOR AND SELECT A PROGRAMME
Add the detergent as described in the chapter
“Detergent and Additives” in the instructions for
use.
1. Turn the
programme selector knob
to the
desired programme and temperature.
2. The
remaining time display
shows the
duration of the chosen programme (in hours and
minutes), and the lamp over the
“Start”
button
flashes.
The programme sequence indicator and the
predefined spin speed indication corresponding
to the selected programme lights up.
USING CHLORINE BLEACH
• Wash your laundry in the desired programme
(Cotton, Synthetics), adding an appropriate
amount of chlorine bleach to the SOFTENER
chamber (close the detergent dispenser
carefully).
• Immediately after end of programme, start the
“Rinse and Spin” programme to eliminate any
residual bleach smell; if you want, you can add
softener.
Wash
Water
Energy
Programme duration
approx.**
(kg)
(l)
***
***
(kWh)
(hours : minutes)
1.90 2:00
0.90 1:45
SELECT SPECIAL OPTIONS - The
corresponding lights go on (if not selectable:
rapid flashing for 3 seconds)
“Eco +” button
• With a modified temperature profile and a
slightly prolonged washing duration, the
optimum combination of excellent washing
result and even lower energy consumption can
be achieved.
“Prewash” button
• Only for heavily soiled laundry (e.g. sand or
granular dirt). Programme duration is increased
by some 15 min.
“Intensive Rinse” button
• An additional rinse cycle is carried out.
• This option is particularly suitable for areas with
very soft water, washing baby linen and helps
people with detergent allergies.
“Rinse Hold” button
• The laundry remains in the last rinse water
without being spun: discoloration of the laundry
and additional creasing are prevented.
• This option is particularly recommended for the
programme “Synthetic” or “Delicate”.
• This function is particularly useful if you want to
postpone spinning to a later time.
The programme has reached the “Rinse
Note:
Hold” when the corresponding light flashes.
Terminate the “Rinse Hold” option:
• Press the “Rinse Hold” button again; the
programme will terminate automatically with the
appropriate spin cycle for the current programme.
• If you do not wish to spin the clothes, turn the
programme selector knob to “Drain” and press
the
“Start”
button again.
“Spin Speed Reduction” button
• A maximum spin speed is assigned to each
programme.
• Press the button to set another speed for the
spin cycle.
• If no light goes on, the final spin is cancelled.
The water is only drained out.
START DELAY
With the “Start Delay” function the appliance can be
run cheaply e.g. at night, when the electricity is cheaper.
• Press the “Start Delay” button. Select the
programme start from 1 to 24 hours ahead by
pressing the button again.
• Press the
“Start”
button.
The Start Delay indicator light flashes until the
programme starts.
“Start Delay” correction.
• Before “Start” has been pressed:
The preset number of hours can be altered by
continuously pressing the “Start Delay” button.
By pressing the Start Delay button again after the
“24” setting, the time delay can be deleted again
or set again.
After “Start” has been pressed:
The preset number of hours can be reduced by
pressing the “Start Delay” button again; please
note, however, that the washing programme
starts IMMEDIATELY, as soon as you operate it
again with the Start Delay switch 01 setting.
To increase the number of hours preselected,
first turn the programme selector switch to the
“Off” position. Then set the programme and the
additional options again and select the desired
number of hours.
PROGRAMME START
After you have selected the programme and the
additional option, the indicator light over the
“Start”
the programme by pressing the
button flashes. Turn on the tap and start
“Start”
button.
Now the indicator light above the button goes on.
In addition, all programme phases are indicated by the
associated lights. After the end of a programme phase,
the associated indicator light goes out. Thus the
programme sequence indicator moves from left to
right across the wash, rinse and spin phases. At the end
of the programme, only the “End” indicator is still on.
“DOOR LOCKED” INDICATOR
As long as a washing programme is running, the lamp
lights up to show that the door cannot be opened.
When the lamp goes off, the door can be opened again.
If
“Start”
has been pressed, but the door is not
latched, the “Door Locked” indicator flashes for 10
seconds. The door must be pushed shut within this
time. After the 10 seconds, the “Door Locked”
indicator goes out and the
“Start”
button flashes.
The door must then be opened and closed again and
the
“Start”
button must be pressed.
“TROUBLE” INDICATORS
“Pump”
Waste water is not pumped out. Check wether the
drain hose is kinked or the filter must be cleaned; in
the latter case refer to the Instructions for Use
(“Removing the Filter”).
“Water Tap”
The appliance has no or insufficient water supply.
Open the water tap; if the indication still lights up,
refer to the “Troubleshooting Guide” in the
Instructions for Use.
PROGRAMME END
• The “End” indicator goes on.
1. Set the programme selector knob to the
“Off” position.
2. Turn off the tap.
3. Open the door and unload the machine.
RESELECT AFTER PROGRAMME START
A newly-selected programme will continue in the
same programme section during which the current
programme was interrupted. Therefore do not add
any more detergent.
1. Press the
“Start”
button to interrupt the
programme. The light flashes.
2. Select the new programme (with temperature),
any additional options and - if you wish - another
spin speed.
3. Press the
“Start”
button again to restart the
programme.
• If you are in the “P rewash” programme step, this
additional option cannot be deselected as
described (to do this see “Cancel (Reset) a
running programme before the end”).
CANCEL (RESET) A RUNNING
PROGRAMME BEFORE THE END
Press the
“Reset”
button for at least 2 seconds.
Any existing water is drained out before the door
can be opened.
5019 401 05269/A
Black process 45.0° 100.0 LPI
Loading...
