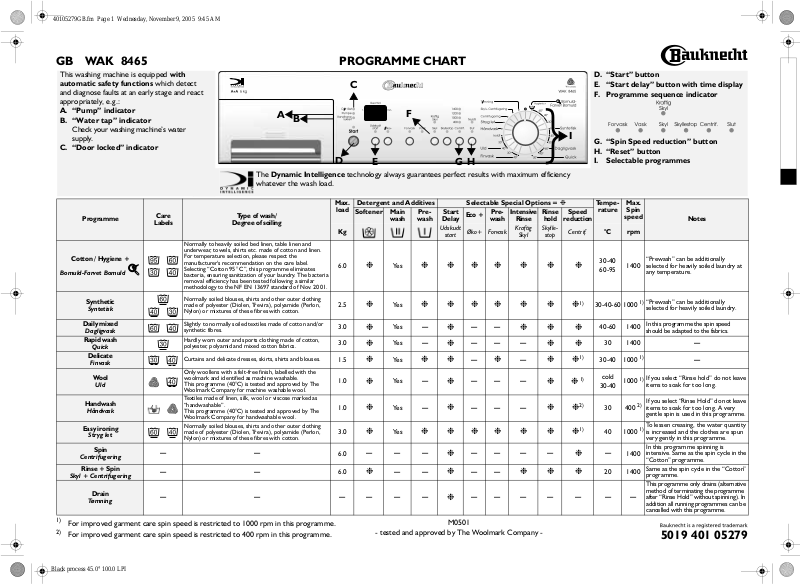

bauknecht WAK 8465 PROGRAMME CHART

40105279GB.fm Page 1 Wednesday, November 9, 2005 9:45 AM

GB WAK 8465 PROGRAMME CHART

This washing machine is equipped

automatic safety functions

and diagnose faults at an early stage and react appropriately, e.g.:

A. “Pump” indicator B. “Water tap” indicator

Check your washing machine’s water supply.

C. “Door locked” indicator

Programme

Cotton / Hygiene +

Bomuld-Farvet Bomuld

Synthetic

Syntetisk

Daily mixed

Dagligvask

Rapid wash

Quick

Delicate

Finvask

Woo l

Uld

Handwash

Håndvask

Easy ironing

Stryg let

Spin

Centrifugering

Rinse + Spin

Skyl + Centrifugering

Drain

Tø m n i n g

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

with

which detect

Dynamic Intelligence

The whatever the wash load.

Care

Labels

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. For temperature selection, please respect the manufacturer's recommendation on the care label. Selecting “Cotton 95° C”, this programme eliminates bacteria, ensuring sanitization of your laundry. The bacteria removal efficiency has been tested following a similar methodology to the NF EN 13697 standard of Nov. 2001.

Normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of these fibres with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetic fibres.

Hardly worn outer and sports clothing made of cotton, polyester, polyamid and mixed cotton fabrics.

Curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable. This programme (40°C) is tested and approved by The Woolmark Company for machine washable wool.

Textiles made of linen, silk, wool or viscose marked as “handwashable”. This programme (40°C) is tested and approved by The Woolmark Company for handwashable wool.

Normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of these fibres with cotton.

Type of wash/

Degree of soiling

–– ––

––––––

technology always guarantees perfect results with maximum efficiency

Max.

Detergent and Additives Selectable Special Options =

load

Softener Main

6.0

2.5

3.0

1.5

1.0

3.0

6.0

❉

❉ ❉ ❉

❉

–––

❉

wash

Pre-

wash

Ye s

❉❉❉❉❉❉❉

– –

❉❉

–

❉❉❉❉❉❉❉

––

Start

Delay

Udskudt

start

❉ ❉

❉

❉ ❉

❉

M0501

- tested and approved by The Woolmark Company -

D. “Start” button E. “Start delay” button with time display F. Programme sequence indicator

{

G. “Spin Speed reduction” button H. “Reset” button

G HE

❉

Pre-

wash

–

Intensive

Rinse

Kraftig

Eco +

Øko+ Forvask

– –– –

❉

– –– –

–– –

Rinse

hold

reduction

Skylle-

Skyl

stop

❉❉❉

❉❉

–

❉❉

–– – – ––

❉❉❉

–– – – – – –

I. Selectable programmes

Te m p e -

❉

rature

°C rpm

30-40 60-95

30-40-60 1000

40-60 1400

30 1400

30-40 1000

cold

30-40

30 400

40 1000

–

20 1400

Speed

Centrif.

Max.

Spin

speed

“Prewash” can be additionally selected for heavily soiled laundry at

1400

any temperature.

“Prewash” can be additionally

selected for heavily soiled laundry.

In this programme the spin speed should be adapted to the fabrics.

Notes

–

If you select “Rinse hold” do not leave

1000

items to soak for too long.

If you select “Rinse Hold” do not leave

items to soak for too long. A very gentle spin is used in this programme.

To lessen creasing, the water quantity

is increased and the clothes are spun very gently in this programme.

In this programme spinning is intensive. Same as the spin cycle in the

1400

“Cotton” programme. Same as the spin cycle in the “Cotton”

programme. This programme only drains (alternative

method of terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

–

5019 401 05279

Black process 45.0° 100.0 LPI

40105279GB.fm Page 2 Wednesday, November 9, 2005 9:45 AM

CONSUMPTION DATA

Programme Te m p e r a t u r e

(°C)

Cotton / Hygiene +

Cotton

Cotton with “Eco +” ****

Cotton Synthetic Synthetic

Daily Mixed

Rapid wash

Delicate

Woo l

Handwash

Easy ironing

* **

*** ****

consumption values

The

programme duration

The household conditions and to adapt the programme run time accordingly. To re d uc e th e drains the water out. Reference programme for energy label.

water temperature

were measured in normalized conditions in compliance with Standard IEC/EN 60456.

may also vary from the chart values. The washing machine is able to allow for particular

95 6.0 49 60 6.0 44 1.14 2:20 60 6.0 44 1.02 2:30 40 5.0 42 0.70 2:05 60 2.5 60 40 2.5 55 0.60 1:35 40 3.0 48 0.55 1:00 30 3.0 37 0.30 0:30 30 1.5 60 0.50 0:45 40 1.0 60 0.50 0:40 30 1.0 45 0.40 0:35 40 3.0 60 0.60 1:30

, some cold water is added at the end of the main wash cycle, before the pump

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the instructions for use.

1. Turn the

programme selector knob

to the

desired programme and temperature.

2. The

remaining time display

shows the duration of the chosen programme (in hours and minutes), and the lamp over the

“Start”

button flashes. The programme sequence indicator and the predefined spin speed indication corresponding to the selected programme lights up.

USING CHLORINE BLEACH

• Wash your laundry in the desired programme (Cotton, Synthetics), adding an appropriate amount of chlorine bleach to the SOFTENER chamber (close the detergent dispenser carefully).

• Immediately after end of programme, start the “Rinse and Spin” programme to eliminate any residual bleach smell; if you want, you can add softener.

SELECT SPECIAL OPTIONS - The corresponding lights go on (if not selectable: rapid flashing for 3 seconds)

“Eco +” button

• With a modified temperature profile and a slightly prolonged washing duration, the optimum combination of excellent washing result and even lower energy consumption can be achieved.

Wash

Water

Energy

Programme duration

approx.**

(kg)

(l)

***

(kWh)

1.90 2:00

0.90 1:45

(hours : minutes)

“Prewash” button

• Only for heavily soiled laundry (e.g. sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This option is particularly suitable for areas with very soft water, washing baby linen and helps people with detergent allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This option is particularly recommended for the programme “Synthetic” or “Delicate”.

• This function is particularly useful if you want to postpone spinning to a later time.

The programme has reached the “Rinse

Note:

Hold” when the corresponding light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

• If you do not wish to spin the clothes, turn the programme selector knob to “Drain” and press the

“Start”

button again.

“Spin Speed Reduction” button

• A maximum spin speed is assigned to each programme.

• Press the button to set another speed for the spin cycle.

• If no light goes on, the final spin is cancelled. The water is only drained out.

START DELAY

With the “Start Delay” function the appliance can be run cheaply e.g. at night, when the electricity is cheaper.

• Press the “Start Delay” button. Select the programme start from 1 to 24 hours ahead by pressing the button again.

•Press the

“Start”

button. The Start Delay indicator light flashes until the programme starts.

“Start Delay” correction.

• Before “Start” has been pressed: The preset number of hours can be altered by continuously pressing the “Start Delay” button. By pressing the Start Delay button again after the “24” setting, the time delay can be deleted again or set again. After “Start” has been pressed: The preset number of hours can be reduced by pressing the “Start Delay” button again; please note, however, that the washing programme starts IMMEDIATELY, as soon as you operate it again with the Start Delay switch 01 setting. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the

“Start”

the programme by pressing the

button flashes. Turn on the tap and start

“Start”

button. Now the indicator light above the button goes on. In addition, all programme phases are indicated by the associated lights. After the end of a programme phase, the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme, only the “End” indicator is still on.

“DOOR LOCKED” INDICATOR

As long as a washing programme is running, the lamp lights up to show that the door cannot be opened. When the lamp goes off, the door can be opened again. If

“Start”

has been pressed, but the door is not latched, the “Door Locked” indicator flashes for 10 seconds. The door must be pushed shut within this time. After the 10 seconds, the “Door Locked” indicator goes out and the

“Start”

button flashes. The door must then be opened and closed again and the

“Start”

button must be pressed.

“TROUBLE” INDICATORS

“Pump”

Waste water is not pumped out. Check wether the drain hose is kinked or the filter must be cleaned; in the latter case refer to the Instructions for Use (“Removing the Filter”).

“Water Tap”

The appliance has no or insufficient water supply. Open the water tap; if the indication still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

PROGRAMME END

• The “End” indicator goes on.

1. Set the programme selector knob to the

“Off” position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the

“Start”

button to interrupt the

programme. The light flashes.

2. Select the new programme (with temperature),

any additional options and - if you wish - another spin speed.

3. Press the

“Start”

button again to restart the

programme.

• If you are in the “Prewash” programme step, this

additional option cannot be deselected as described (to do this see “Cancel (Reset) a running programme before the end”).

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

Press the

“Reset”

button for at least 2 seconds. Any existing water is drained out before the door can be opened.
