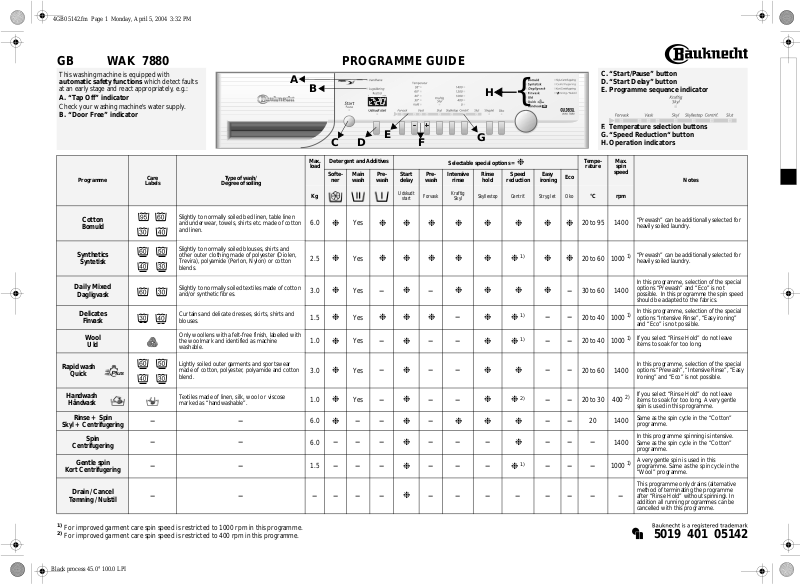

GB WAK 7880 PROGRAMME GUIDE

This washing machine is equipped with

automatic safety functions

at an early stage and react appropriately, e.g.:

A. “Tap Off” indicator

Check your washing machine's water supply.

B. “Door Free” indicator

Programme

which detect faults

Care

Labels

Type o f was h/

Degree of soiling

Max.

Detergent and Additives

load

Softe-

ner

Main wash

Pre-

wash

Selectable special options =

Start

Pre-

wash

Forvask

Intensive

delay

Udskudt

start

rinse

Kraftig

Skyl

{

❉

Rinse

hold

Skyllestop Centrif. Stryg let Oko

Speed

reduction

Easy

ironing

Eco

C. “Start/Pause” button D.“Start Delay” button E. Programme sequence indicator

F. Temperature selection buttons G. “Speed Reduction“ button H. Operation indicators

Tem pe -

rature

Max.

spin

speed

°C rpm

Notes

Cotton

Bomuld

Synthetics

Syntetisk

Daily Mixed

Dagligvask

Delicates

Finvask

Wool

Uld

Rapid wash

Quick

Handwash

Håndvask

Rinse + Spin

Skyl + Centrifugering

Spin

Centrifugering

Gentle spin

Kort Centrifuger ing

Drain / Cancel

Tømning / Nulstil

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Slightly to normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

Slightly to normally soiled textiles made of cotton and/or synthetic fibres.

Curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Lightly soiled outer garments and sportswear made of cotton, polyester, polyamide and cotton blend.

Textiles made of linen, silk, wool or viscose marked as “handwashable”.

–– ––

––

––––––

6.0

❉

2.5

❉

3.0

❉

1.5

❉

1.0

❉

3.0

❉

1.0

❉

6.0

❉

6.0

–––

1.5

–––

Yes

❉❉❉ ❉ ❉ ❉ ❉❉

Yes

❉❉❉ ❉ ❉ ❉ 1)❉❉

Yes

––

❉

–

❉❉❉

❉

–

––

❉

––

❉

––

❉

–

❉

–– –

❉

–– –

❉

–– – – ––––

❉❉❉❉

–

❉

❉❉

❉

20 to 95 1400

20 to 60 1000

30 to 60 1400

–

–– ––

––

–– ––

20 to 40 1000

20 to 60 1400

20 to 3 0 400

20 1400

––– –––

“Prewash” can be additionally selected for heavily soiled laundry.

“Prewash” can be additionally selected for

heavily soiled laundry.

In this programme, selection of the special options “Prewash” and “Eco” is not possible. In this programme the spin speed should be adapted to the fabrics.

In this programme, selection of the special

options “Intensive Rinse”, “Easy ironing” and “Eco” is not possible.

If you select “Rinse Hold” do not leave

items to soak for too long.

In this programme, selection of the special options “Prewash”, “Intensive Rinse”, “Easy Ironing” and “Eco” is not possible.

If you select “Rinse Hold” do not leave

items to soak for too long. A very gentle spin is used in this programme.

Same as the spin cycle in the “Cotton” programme.

In this programme spinning is intensive. Same as the spin cycle in the “Cotton”

1400

programme. A very gentle spin is used in this

programme. Same as the spin cycle in the

1000

“Wool” programme. This programme only drains (alternative

method of terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Black process 45.0° 100.0 LPI

5019 401 05142

4GB05142.fm Page 2 Monday, April 5, 2004 3:32 PM

CONSUMPTION DATA

Programme Tem p era t ure

Cotton 95 6.0 54*** 1.90 1:55 Cotton 60 6.0 49 1.14 2:20

Cotton 40 5.0 47 0.70 2:00 Synthetics 60 2.5 55 0.70 1:30 Synthetics 40 2.5 50 0.50 1:15

Daily Mixed 40 3.0 48 0.55 1:00

Delicates 30 1.5 60 0.50 0:45

Wool 40 1.0 60 0.50 0:40

Rapid wash 30 3.0 37 0.40 0:30

Handwash 30 1.0 45 0.40 0:35

Consumption values

programme duration

** The

conditions and to adapt the programme run time accordingly.

*** T o reduce

the water out.

the water temperature

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1. Turn the

programme selector knob

direction to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the flashing.

2. The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3. The temperature can be altered by pressing the

“+”

button under the corresponding LED

“-”

display.

SELECT SPECIAL OPTIONS The indicator lights go on.

“Prewash” button

• Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

Load

(°C)

were measured in normalized conditions in compliance with Standard IEC 60456.

may also vary from the chart values. The washing machine is able to allow for particular household

, some cold water is added at the end of the main wash cycle, before the pump drains

(kg)

Water

(l)

Energy

(kWh)

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This additional option is particularly

in any

recommended for the programme “Synthetics” or “Delicates”.

• This additional function is particularly useful if you want to postpone spinning to a later time.

The programme has reached the “Rinse

“Start/Pause”

button is

Note:

Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

• I f you do not wish to spin the clothes, turn the programme selector knob to “Drain/Cancel” and press the “

Start/Pause

“Speed Reduction“ button

• A maximum spin speed is assigned to each programme.

• Press the button to set another speed for the spin cycle.

• If the spin speed "0" is selected, the final spin is cancelled. The water is only drained out.

• An additional rinse cycle is carried out.

• This additional option is particularly suitable for areas with very soft water , for washing baby linen and helping people with detergent allergies.

Programme duration **

approx.

(hours : minutes)

” button again.

“Easy Ironing” button

• To lessen creasing, the water quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

“Eco Wash” button

• The duration of the wash is extended and the temperature reduced. This saves you up to 40% energy and maintains good washing results.

START DELAY

The “Start Delay” allows to run the machine at the consumer's convenience, for example at night when electricity is cheaper.

• Press the “Start Delay” button. Select the programme start from 1 to 19 hours ahead by pressing the button again.

•Press the

“Start/Pause”

button. The Start Delay indicator light flashes until the programme starts.

• During programme start the remaining time appears in the digital display.

“Start Delay” correction.

• Before the "Start Delay" has been started: The preset number of hours can be altered by continuously pressing the “Start Delay” button. The number of hours can be reduced by first turning the programme selector switch to the “Off” position. Then set the programme again and select the desired number of hours.

• After the "Start Delay" has been started: The preset number of hours can be reduced by pressing the “Start Delay” button again. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the

button flashes. Turn on the tap and start the

Pause”

programme by pressing the

“Start/Pause”

“Start/

button.

Now the indicator light above the button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the “Cotton” and “Synthetics” programmes the door can be opened to add further laundry. This is not possible if "Rapid Wash" is selecte.

PROGRAMME END

• The remaining time display shows "0:00" and the "End" indicator lights up.

1. Turn the programme selector knob to the "Off" position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the

“Start/Pause”

button to interrupt the

programme. The indicator light flashes.

2. Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3. Press the

“Start/Pause”

button again to restart

the programme.

•If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Cancel/Delete Programme).

CANCEL/DELETE PROGRAMME

1. Press the

“Start/Pause”

button to interrupt the

programme. The indicator light flashes.

2. Set the programme selector to “Drain/Cancel”. The spin speed

and the remaining time “2

“0”

minutes” are displayed.

3. Press the

“Start/Pause”

button to start the

“Drain/Cancel” programme.
