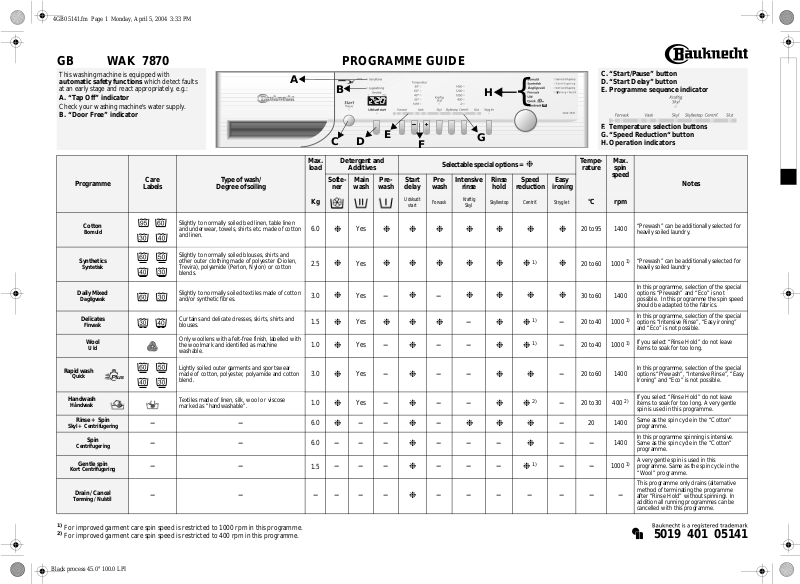

bauknecht WAK 7870 PROGRAMME GUIDE

4GB05141.fm Page 1 Monday, April 5, 2004 3:33 PM

GB

WAK 7870

This washing machine is equipped with automatic safety functions which detect faults at an early stage and react appropriately, e.g.:

A. “Tap Off” indicator

Check your washing machine's water supply.

B. “Door Free” indicator

PROGRAMME GUIDE

A					{
B				H
C	D	E	F	G

C.“Start/Pause” button

D.“Start Delay” button

E.Programme sequence indicator

F.Temperature selection buttons

G.“Speed Reduction“ button

H.Operation indicators

Max.

Detergent and

Selectable special options =

Tempe-

Max.

load

Additives

rature

spin

speed

Programme

Care

Type of wash/

Softe-

Main

Pre-

Start

Pre-

Intensive

Rinse

Speed

Easy

Notes

Labels

Degree of soiling

ner

wash

wash

delay

wash

rinse

hold

reduction

ironing

Kg

Udskudt

Forvask

Kraftig

Skyllestop

Centrif.

Stryg let

°C

rpm

start

Skyl

Cotton

Slightly to normally soiled bed linen, table linen

6.0

Yes

20 to 95

1400

“Prewash” can be additionally selected for

and underwear, towels, shirts etc. made of cotton

Bomuld

heavily soiled laundry.

and linen.

Slightly to normally soiled blouses, shirts and

Synthetics

other outer clothing made of polyester (Diolen,

2.5

Yes

1)

20 to 60

1000 1)

“Prewash” can be additionally selected for

Syntetisk

Trevira), polyamide (Perlon, Nylon) or cotton

heavily soiled laundry.

blends.

–

–

In this programme, selection of the special

Daily Mixed

Slightly to normally soiled textiles made of cotton

3.0

Yes

30 to 60

1400

options “Prewash” and “Eco” is not

Dagligvask

and/or synthetic fibres.

possible. In this programme the spin speed

should be adapted to the fabrics.

Delicates

Curtains and delicate dresses, skirts, shirts and

1.5

Yes

–

1)

–

20 to 40

1000

1)

In this programme, selection of the special

options “Intensive Rinse”, “Easy ironing”

Finvask

blouses.

and “Eco” is not possible.

Wool

Only woollens with a felt-free finish, labelled with

1.0

Yes

–

–

–

1)

–

20 to 40

1000

1)

If you select “Rinse Hold” do not leave

the woolmark and identified as machine

Uld

items to soak for too long.

washable.

Rapid wash

Lightly soiled outer garments and sportswear

3.0

Yes

–

–

–

–

20 to 60

1400

In this programme, selection of the special

Quick

made of cotton, polyester, polyamide and cotton

options “Prewash”, “Intensive Rinse”, “Easy

blend.

Ironing” and “Eco” is not possible.

Handwash

Textiles made of linen, silk, wool or viscose

1.0

Yes

–

–

–

2)

–

20 to 30

400

2)

If you select “Rinse Hold” do not leave

items to soak for too long. A very gentle

Håndvask

marked as “handwashable”.

spin is used in this programme.

Rinse + Spin

–

–

6.0

–

–

–

–

20

1400

Same as the spin cycle in the “Cotton”

Skyl + Centrifugering

programme.

Spin

–

–

6.0

–

–

–

–

–

–

–

–

1400

In this programme spinning is intensive.

Same as the spin cycle in the “Cotton”

Centrifugering

programme.

Gentle spin

–

–

1.5

–

–

–

–

–

–

1)

–

–

1000

1)

A very gentle spin is used in this

programme. Same as the spin cycle in the

Kort Centrifugering

“Wool” programme.

This programme only drains (alternative

Drain / Cancel

–

–

–

–

–

–

–

–

–

–

–

–

–

method of terminating the programme

after “Rinse Hold” without spinning). In

Tømning / Nulstil

addition all running programmes can be

cancelled with this programme.

1)

For improved garment care spin speed is restricted to 1000 rpm in this programme.

5019 401 05141

2)

For improved garment care spin speed is restricted to 400 rpm in this programme.

Black process 45.0° 100.0 LPI

4GB05141.fm Page 2 Monday, April 5, 2004 3:33 PM

CONSUMPTION DATA *

Programme	Temperature	Load	Water	Energy	Programme duration **
					approx.
	(°C)	(kg)	(l)	(kWh)	(hours : minutes)
Cotton	95	6.0	54***	1.90	1:55
Cotton	60	6.0	49	1.14	2:20
Cotton	40	5.0	47	0.70	2:00
Synthetics	60	2.5	55	0.70	1:30
Synthetics	40	2.5	50	0.50	1:15
Daily Mixed	40	3.0	48	0.55	1:00
Delicates	30	1.5	60	0.50	0:45
Wool	40	1.0	60	0.50	0:40
Rapid wash	30	3.0	37	0.40	0:30
Handwash	30	1.0	45	0.40	0:35

*Consumption values were measured in normalized conditions in compliance with Standard IEC 60456.

**The programme duration may also vary from the chart values. The washing machine is able to allow for particular household conditions and to adapt the programme run time accordingly.

***To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1.Turn the programme selector knob in any direction to the desired programme.

The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause”button is flashing.

2.The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3.The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.

SELECT SPECIAL OPTIONS -

The indicator lights go on.

“Prewash” button

•Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

•An additional rinse cycle is carried out.

•This additional option is particularly suitable for areas with very soft water, for washing baby linen and helping people with detergent allergies.

“Rinse Hold” button

•The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

•This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

•This additional function is particularly useful if you

want to postpone spinning to a later time. Note: The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

•Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

•If you do not wish to spin the clothes, turn the programme selector knob to “Drain/Cancel”

and press the “Start/Pause” button again.

“Speed Reduction“ button

•A maximum spin speed is assigned to each programme.

•Press the button to set another speed for the spin cycle.

•If the spin speed "0" is selected, the final spin is cancelled. The water is only drained out.

“Easy Ironing” button

•To lessen creasing, the water quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

START DELAY

The “Start Delay” allows to run the machine at the consumer's convenience, for example at night when electricity is cheaper.

•Press the “Start Delay” button. Select the programme start from 1 to 19 hours ahead by pressing the button again.

•Press the “Start/Pause”button. The Start Delay indicator light flashes until the programme starts.

•During programme start the remaining time appears in the digital display.

“Start Delay” correction.

•Before the "Start Delay" has been started:

The preset number of hours can be altered by continuously pressing the “Start Delay” button. The number of hours can be reduced by first turning the programme selector switch to the “Off” position. Then set the programme again and select the desired number of hours.

•After the "Start Delay" has been started:

The preset number of hours can be reduced by pressing the “Start Delay” button again. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the “Start/ Pause” button flashes. Turn on the tap and start the programme by pressing the “Start/Pause” button. Now the indicator light above the button goes on. In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the “Cotton” and “Synthetics” programmes the door can be opened to add further laundry. This is not possible if "Rapid Wash" is selecte.

PROGRAMME END

•The remaining time display shows "0:00" and the "End" indicator lights up.

1.Turn the programme selector knob to the "Off" position.

2.Turn off the tap.

3.Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1.Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.

2.Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3.Press the “Start/Pause”button again to restart the programme.

•If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Cancel/Delete Programme).

CANCEL/DELETE PROGRAMME

1.Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.

2.Set the programme selector to “Drain/Cancel”. The spin speed “0” and the remaining time “2 minutes” are displayed.

3.Press the “Start/Pause”button to start the “Drain/Cancel” programme.
