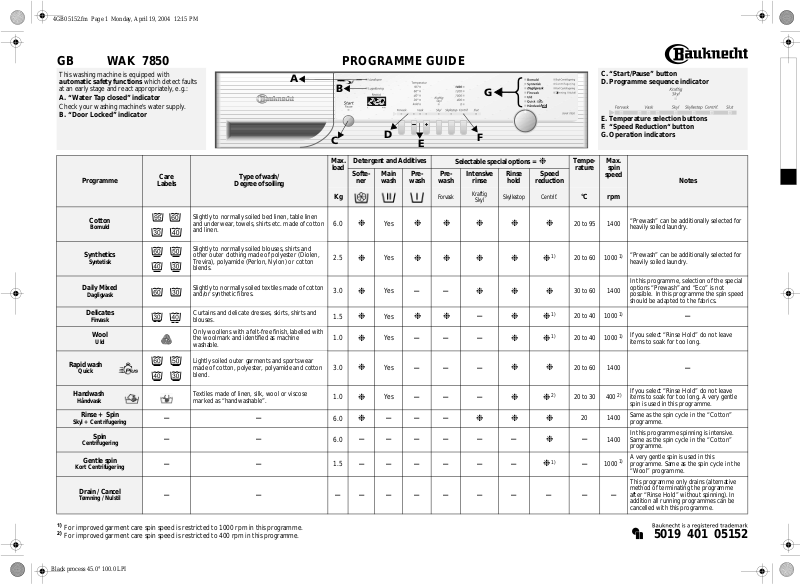

bauknecht WAK 7850 PROGRAMME GUIDE

4GB05152.fm Page 1 Monday, April 19, 2004 12:15 PM

GB WAK 7850 PROGRAMME GUIDE

This washing machine is equipped with

automatic safety functions

at an early stage and react appropriately, e.g.:

A. “Water Tap closed” indicator

Check your washing machine's water supply.

B. “Door Locked” indicator

Programme

which detect faults

Care

Labels

Type of wash/

Degree of soiling

Max.

Detergent and Additives

load

Softe-

ner

Main wash

Pre-

wash

Pre-

wash

Forvask

{

Selectable special options =

Intensive

rinse

Kraftig

Skyl

Rinse

hold

Skyllestop Centrif.

❉

Speed

reduction

Tem pe-

rature

°C rpm

C. “Start/Pause” button D.Programme sequence indicator

E. Temperature selection buttons F. “Speed Reduction“ button G. Operation indicators

Max.

spin

speed

Notes

Cotton

Bomuld

Synthetics

Syntetisk

Daily Mixed

Dagligvask

Delicates

Finvask

Wool

Uld

Rapid wash

Quick

Handwash

Håndvask

Rinse + Spin

Skyl + Centrifugering

Spin

Centrifugering

Gentle spin

Kort Centrifugering

Drain /Cancel

Tømni ng / Nul stil

Slightly to normally soiled bed linen, table linen and underwear , towels, shirts etc. made of cotton and linen.

Slightly to normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

Slightly to normally soiled textiles made of cotton and/or synthetic fibres.

Curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Lightly soiled outer garments and sportswear made of cotton, polyester, polyamide and cotton blend.

Textiles made of linen, silk, wool or viscose marked as “handwashable”.



6.0

2.5

3.0

1.5

1.0

3.0

1.0

6.0

1.5

Yes

❉

Yes

❉

Yes

❉

Yes

❉

Yes

❉

Yes

❉

Yes

❉ ❉



❉❉ ❉ ❉ ❉



❉❉

 

❉❉❉



❉❉

❉

❉❉

    

❉

20 to 95 1400

20 t o 60 1000

30 to 60 1400

20 t o 40 1000

20 to 60 1400

20 to 30 400

20 1400





“Prewash” can be additionally selected for heavily soiled laundry.

“Prewash” can be additionally selected for

heavily soiled laundry.

In this programme, selection of the special options “Prewash” and “Eco” is not possible. In this programme the spin speed should be adapted to the fabrics.

If you select “Rinse Hold” do not leave

items to soak for too long.



If you select “Rinse Hold” do not leave

items to soak for too long. A very gentle spin is used in this programme.

Same as the spin cycle in the “Cotton” programme.

In this programme spinning is intensive.

1400

Same as the spin cycle in the “Cotton” programme.

A very gentle spin is used in this

1000

programme. Same as the spin cycle in the “Wool” programme.

This programme only drains (alternative method of terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Black process 45.0° 100.0 LPI

5019 401 05152

4GB05152.fm Page 2 Monday, April 19, 2004 12:15 PM

CONSUMPTION DATA

Programme Temperature

Load

Water

Energy

Programme duration **

approx.

(°C)

(kg)

(l)

(kWh)

(hours : minutes)

Cotton 95 6.0 54*** 1.90 1:55 Cotton 60 6.0 49 1.14 2:20

Cotton 40 5.0 47 0.70 2:00 Synthetics 60 2.5 55 0.70 1:30 Synthetics 40 2.5 50 0.50 1:15

Daily Mixed 40 3.0 48 0.55 1:00

Delicates 30 1.5 60 0.50 0:45

Wool 40 1.0 60 0.50 0:40

Rapid wash 30 3.0 37 0.40 0:30

Handwash 30 1.0 45 0.40 0:35

* Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60456. ** The programme duration may also vary from the chart values. The washing machine is able to allow for particular

household conditions and to adapt the programme run time accordingly .

*** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the

pump drains the water out.

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1. Turn the programme selector knob in any direction to the desired programme.

The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause”button is flashing.

2. The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3. The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.

SELECT SPECIAL OPTIONS The indicator lights go on.

“Prewash” button

• Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This additional option is particularly suitable for areas with very soft water, for washing baby linen and helping people with detergent allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This additional function is particularly useful if you want to postpone spinning to a later time.

Note: The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

• If you do not wish to spin the clothes, turn the programme selector knob to “Drain/Cancel” and press the “Start/Pause” button again.

“Speed Reduction“ button

• A maximum spin speed is assigned to each programme.

• Press the button to set another speed for the spin cycle.

• If the spin speed "0" is selected, the final spin is cancelled. The water is only drained out.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the “Start/Pause” button flashes. Turn on the tap and start the programme by pressing the “Start/ Pause” button. Now the indicator light above the button goes on. In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCKED

In the first 15 minutes after the start of the “Cotton” and “Synthetics” programmes the door can be opened to add further laundry. This is not possible if "Rapid Wash" is selecte.

PROGRAMME END

• The remaining time display shows "0:00" and the "End" indicator lights up.

1. Turn the programme selector knob to the "Off" position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.

2. Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3. Press the “Start/Pause”button again to restart the programme.

• If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Cancel/Delete Programme).

CANCEL/DELETE PROGRAMME

1. Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.

2. Set the programme selector to “Drain/Cancel”. The spin speed “0” and the remaining time “2 minutes” are displayed.

3. Press the “Start/Pause”button to start the “Drain/Cancel” programme.
