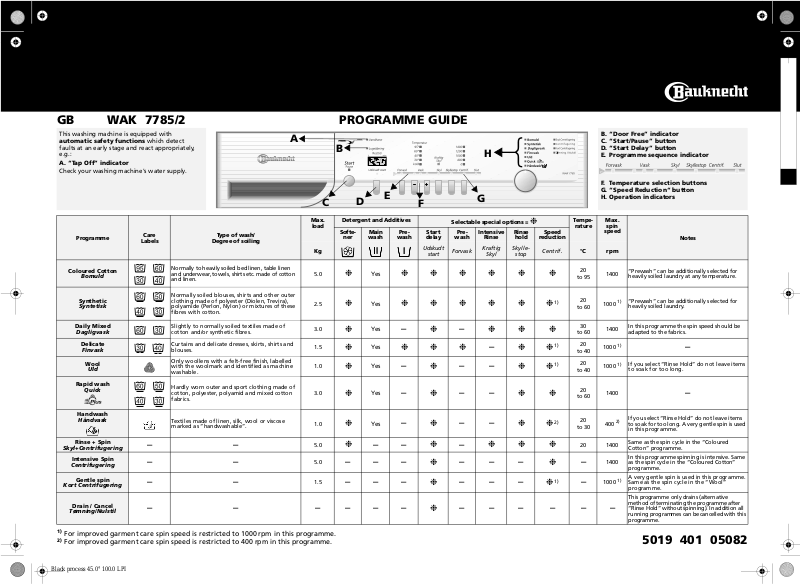

bauknecht WAK 7785/2 PROGRAMME GUIDE

4gb05082.fm Page 1 Thursday, May 15, 2003 12:41 PM

GB WAK 7785/2 PROGRAMME GUIDE

This washing machine is equipped with

automatic safety functions

faults at an early stage and react appropriately,
e.g.:

A. “Tap Off” indicator

Check your washing machine's water supply.

which detect

A

C

B

D

E

F

G

H

{

B. “Door Free” indicator
C. “Start/Pause” button
D. “Start Delay” button
E. Programme sequence indicator

F. Temperature selection buttons
G. “Speed Reduction“ button
H. Operation indicators

Max.

load

Programme

Coloured Cotton

Bomuld

Synthetic

Syntetisk

Daily Mixed

Dagligvask

Delicate

Finvask

Wool

Uld

Rapid wash

Quick

Handwash

Håndvask

Rinse + Spin

Skyl+Centrifugering

Intensive Spin

Centrifugering

Gentle spin

Kort Centrifugering

Drain / Cancel

Tømning/Nulstil

1)

For improved garment care spin speed is restricted to 1000 rpm in this programme.

2)

For improved garment care spin speed is restricted to 400 rpm in this programme.

Care

Labels

Normally to heavily soiled bed linen, table linen
and underwear, towels, shirts etc. made of cotton
and linen.

Normally soiled blouses, shirts and other outer
clothing made of polyester (Diolen, Trevira),
polyamide (Perlon, Nylon) or mixtures of these
fibres with cotton.

Slightly to normally soiled textiles made of
cotton and/or synthetic fibres.

Curtains and delicate dresses, skirts, shirts and
blouses.

Only woollens with a felt-free finish, labelled
with the woolmark and identified as machine
washable.

Hardly worn outer and sport clothing made of
cotton, polyester, polyamid and mixed cotton
fabrics.

Textiles made of linen, silk, wool or viscose
marked as “handwashable”.

––
––

––

––––––

Type of wash/

Degree of soiling

Kg

5.0

2.5

3.0

1.5

1.0

3.0

1.0

5.0

5.0

1.5

Detergent and Additives

Softe-

ner

❉

❉

❉
❉

❉

❉

❉
❉

Main
wash

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Pre-

wash

❉❉❉❉❉ ❉

❉❉❉❉❉❉

–

❉❉❉

–

–

–

––

–––

–––

Start

delay

Udskudt

start

❉

❉

❉

❉
❉

❉
❉

❉

Selectable special options =

Pre-

Intensive

wash

Forvask

Rinse

Kraftig

Skyl

–

––

––

––

–

Rinse

hold

Skylle-

stop

❉❉❉

–

❉❉
❉❉

❉❉

❉❉

❉❉❉

–––

–––

❉

reduction

Speed

Centrif.

1)

1)

1)

2)

❉

1)

❉

Te mp e-

rature

to 95

to 60

to 60

to 40

to 40

to 60

to 30

Max.

spin

speed

°C rpm

20

1400

20

1000

30

1400

20

1000

20

1000

20

1400

20

400

20 1400

1400

–

1000

–

2)

––– – ––

Notes

“Prewash” can be additionally selected for
heavily soiled laundry at any temperature.

“Prewash” can be additionally selected for

1)

heavily soiled laundry.

In this programme the spin speed should be
adapted to the fabrics.

1)

If you select “Rinse Hold” do not leave items

1)

to soak for too long.

–

–

If you select “Rinse Hold” do not leave items
to soak for too long. A very gentle spin is used
in this programme.

Same as the spin cycle in the “Coloured
Cotton” programme.

In this programme spinning is intensive. Same
as the spin cycle in the “Coloured Cotton”
programme.

A very gentle spin is used in this programme.

1)

Same as the spin cycle in the “Wool”
programme.

This programme only drains (alternative
method of terminating the programme after
“Rinse Hold” without spinning). In addition all
running programmes can be cancelled with this
programme.

5019 401 05082

Black process 45.0° 100.0 LPI

4gb05082.fm Page 2 Thursday, May 15, 2003 12:41 PM

CONSUMPTION DATA

Programme Temp er at ure

(°C)
Coloured Cotton
Coloured Cotton
Coloured Cotton

Daily Mixed

Synthetic
Synthetic

Rapid wash

Delicate

Wool

Handwash

* Consumption

programme duration

** The

particular household conditions and to adapt the programme run time accordingly.

*** To reduce

the pump drains the water out.

values

were measured in normalized conditions in compliance with Standard IEC 60456.

the water temperature

95 5.0 44*** 1.60 1:55
60 5.0 39 0.95 2:00
40 5.0 39 0.55 2:00
40 3.0 45 0.50 1:00
60 2.5 55*** 0.70 1:30
40 2.5 50 0.50 1:15
30 3.0 35 0.40 0:30
30 1.5 50 0.50 0:45
40 1.0 50 0.50 0:40
30 1.0 35 0.40 0:35

may also vary from the chart values. The washing machine is able to allow for

, some cold water is added at the end of the main wash cycle, before

POUR IN DETERGENT, CLOSE THE
DOOR AND SELECT A PROGRAMME

Add the detergent as described in the
chapter “Detergent and Additives” in the
booklet.

1. Turn the

programme selector knob

any direction to the desired programme.
The remaining time display shows the
duration of the chosen programme (in
hours and minutes) and the pilot lamp
above the

“Start/Pause”

button is

flashing.

2. The programme sequence indicator and
the indicator with the maximum possible
spin speed light up.

3. The temperature can be altered by
pressing the

“+”

“-”

or

button under the

corresponding LED display.

SELECT SPECIAL OPTIONS ­The indicator lights go on.

“Prewash” button

• Only for heavily soiled laundry (for
example sand or granular dirt).
Programme duration is increased by some
15 min.

Wash

(kg)

in

Water

(l)

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This additional option is particularly
suitable for areas with very soft water, for
washing baby linen and helping people
with detergent allergies.

“Rinse Hold” button

• The laundry remains in the last rinse
water without being spun: discoloration
of the laundry and additional creasing are
prevented.

• This additional option is particularly
recommended for the programme
“Synthetics” or “Delicates”.

• This additional function is particularly
useful if you want to postpone spinning
to a later time.

Note:

The programme has reached the
“Rinse Hold” when the “Rinse Hold” button
light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the

programme will terminate automatically
with the appropriate spin cycle for the
current programme.

• If you do not wish to spin the clothes, turn

the programme selector knob to “Drain/
Cancel” and press the “
button again.

Energy

(kWh)

Programme
duration **

approx.

(hours : minutes)

Start/Pause

”

“Speed Reduction“ button

• A maximum spin speed is assigned to each
programme.

• Press the button to set another speed for
the spin cycle.

• If the spin speed “0” is selected, the final
spin is cancelled. The water is only
drained out.

START DELAY

The “Start Delay” allows to run the machine
at the consumer's convenience, for example
at night when electricity is cheaper.

• Press the “Start Delay” button. Select the
programme start from 1 to 19 hours
ahead by pressing the button again.

• Press the

“Start/Pause”

button. The
Start Delay indicator light flashes until the
programme starts.

• During programme start the remaining
time appears in the digital display.

“Start Delay” correction.

• Before the “Start Delay” has been started:
The preset number of hours can be
altered by continuously pressing the
“Start Delay” button.
The number of hours can be reduced by
first turning the programme selector
switch to the “Off” position. Then set the
programme again and select the desired
number of hours.

• After the “Start Delay” has been started:
The preset number of hours can be
reduced by pressing the “Start Delay”
button again. To increase the number of
hours preselected, first turn the
programme selector switch to the “Off”
position. Then set the programme and
the additional options again and select
the desired number of hours.

PROGRAMME START

After you have selected the programme and
the additional option, the indicator light
over the

“Start/Pause”

button flashes. Turn
on the tap and start the programme by
pressing the

“Start/Pause”

button. Now the

indicator light above the button goes on.

In addition, all programme phases are
indicated by the associated lights. After the
end of a programme phase the associated
indicator light goes out. Thus the
programme sequence indicator moves from
left to right across the wash, rinse and spin
phases. At the end of the programme only
the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the
“Cotton”, “Cotton coloured” and
“Synthetic” programmes the door can be
opened to add further laundry. This is not
possible if “Rapid Wash” is selected.

PROGRAMME END

• The remaining time display shows “0:00”
and the “End” indicator lights up.

1. Turn the programme selector knob to the
“Off” position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in
the same programme section during which the
current programme was interrupted.
Therefore do not add any more detergent.

1. Press the

“Start/Pause”

button to
interrupt the programme. The indicator
light flashes.

2. Select the new programme (with
temperature), any additional options and

- if you wish - another spin speed.

3. Press the

“Start/Pause”

button again to

restart the programme.

• If you are in the “Prewash” programme
step this additional option can not be
deselected as described (to do this see
“Interrupt/Cancel Programme”).

CANCEL/DELETE PROGRAMME

1. Press the

“Start/Pause”

button to interrupt

the programme. The indicator light flashes.

2. Set the programme selector to “Drain/
Cancel”. The spin speed

“0”

and the

remaining time “2 minutes” are displayed.

3. Press the

“Start/Pause”

button to start

the “Drain/Cancel” programme.
