bauknecht EGZH 5400 IN, WAK 7778 PROGRAMME GUIDE

GB

WAK 7778

This washing machine is equipped with automatic safety functions which detect faults at an early stage and react appropriately, e.g.:

A. “Tap Off” indicator

Check your washing machine’s water supply.

B. “Water Stop” indicator

Can be released by excess foaming or a leak in the appliance (see also instructions for use “Troubleshooting”).

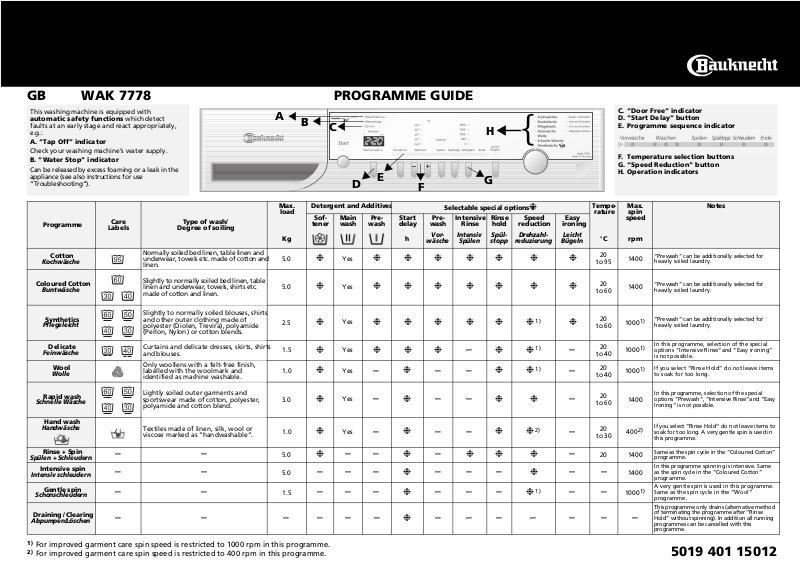

PROGRAMME GUIDE

A	B	C					{
						H
			D	E	F	G

C.“Door Free” indicator

D.“Start Delay” button

E.Programme sequence indicator

F.Temperature selection buttons

G.“Speed Reduction“ button

H.Operation indicators

Max.

Detergent and Additives

Selectable special options =

Tempe-

Max.

Notes

load

rature

spin

Care

Type of wash/

Sof-

Main

Pre-

Start

Pre-

Intensive

Rinse

Speed

Easy

speed

Programme

tener

wash

wash

delay

wash

Rinse

hold

reduction

ironing

Labels

Degree of soiling

Kg

h

Vor-

Intensiv

Spül-

Drehzahl-

Leicht

°C

rpm

wäsche

Spülen

stopp

reduzierung

Bügeln

Cotton

Normally soiled bed linen, table linen and

Yes

20

“Prewash” can be additionally selected for

underwear, towels etc. made of cotton and

5.0

1400

Kochwäsche

linen.

to 95

heavily soiled laundry.

Coloured Cotton

Slightly to normally soiled bed linen, table

Yes

20

1400

“Prewash” can be additionally selected for

linen and underwear, towels, shirts etc.

5.0

Buntwäsche

made of cotton and linen.

to 60

heavily soiled laundry.

Synthetics

Slightly to normally soiled blouses, shirts

20

and other outer clothing made of

2.5

Yes

1)

1000 1)

“Prewash” can be additionally selected for

Pflegeleicht

polyester (Diolen, Trevira), polyamide

to 60

heavily soiled laundry.

(Perlon, Nylon) or cotton blends.

Delicate

Curtains and delicate dresses, skirts, shirts

1.5

Yes

–

1)

–

20

1000 1)

In this programme, selection of the special

options “Intensive Rinse”and “Easy ironing”

Feinwäsche

and blouses.

to 40

is not possible.

Wool

Only woollens with a felt-free finish,

Yes

–

–

–

1)

–

20

1)

If you select “Rinse Hold” do not leave items

labelled with the woolmark and

1.0

1000

Wolle

to 40

to soak for too long.

identified as machine washable.

Rapid wash

Lightly soiled outer garments and

Yes

–

–

–

–

20

1400

In this programme, selection of the special

sportswear made of cotton, polyester,

3.0

options “Prewash”, “Intensive Rinse”and “Easy

Schnelle Wäsche

to 60

polyamide and cotton blend.

Ironing” is not possible.

Hand wash

If you select “Rinse Hold” do not leave items to

Handwäsche

Textiles made of linen, silk, wool or

1.0

Yes

–

–

–

2)

–

20

400 2)

viscose marked as “handwashable”.

to 30

soak for too long. A very gentle spin is used in

this programme.

Rinse + Spin

–

–

5.0

–

–

–

–

20

1400

Same as the spin cycle in the “Coloured Cotton”

Spülen + Schleudern

programme.

Intensive spin

–

–

5.0

–

–

–

–

–

–

–

–

1400

In this programme spinning is intensive. Same

as the spin cycle in the “Coloured Cotton”

Intensiv schleudern

programme.

Gentle spin

–

–

1.5

–

–

–

–

–

–

1)

–

–

1000

1)

A very gentle spin is used in this programme.

Same as the spin cycle in the “Wool”

Schonschleudern

programme.

This programme only drains (alternative method

Draining / Clearing

–

–

–

–

–

–

–

–

–

–

–

–

–

of terminating the programme after “Rinse

Hold” without spinning). In addition all running

Abpumpen/Löschen

programmes can be cancelled with this

programme.

1) For improved garment care spin speed is restricted to 1000 rpm in this programme.

5019 401 15012

2) For improved garment care spin speed is restricted to 400 rpm in this programme.

CONSUMPTION DATA

Programme	Temperature	Load	Water	Energy	Programme
					duration **
					approx.
	(°C)	(kg)	(l)	(kWh)	(hours : minutes)
White Cotton	95	5.0	44***	1.60	1:55
Coloured cotton	60	5.0	39	0.95	2:00
Coloured cotton	40	5.0	39	0.55	1:45
Synthetic	60	2.5	55	0.70	1:30
Synthetic	40	2.5	50	0.50	1:15
Rapid Wash	30	3.0	35	0.40	0:30
Delicate	30	1.5	50	0.50	0:45
Wool	40	1.0	50	0.50	0:40
Handwash	30	1.0	35	0.40	0:35

* Consumptionvalueswere measured in normalized conditions in compliance with Standard IEC 60456. ** The programme durationmay also vary from the chart values. The washing machine is able to allow for

particular household conditions and to adapt the programme run time accordingly.

***To reducethe water temperature, some cold water isadded at the end of the main wash cycle, before the pump drains the water out.

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1.Turn the programme selector knob in any direction to the desired programme.

•The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause” button is flashing.

2.The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3.The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.

SELECT SPECIAL OPTIONS - The indicator lights go on.

An acoustic signal sounds if the selected combination of programme, special options and temperature is not possible.

“Prewash” button

•Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

•An additional rinse cycle is carried out.

•This additional option is particularly suitable for areas with very soft water, for washing baby linen and helping people

with detergent allergies.

“Rinse Hold” button

•The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

•This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

•This additional function is particularly

useful if you want to postpone spinning to a later time.

Note: The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

•Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

•If you do not wish to spin the clothes, turn the programme selector knob to “Drain/ Cancel” and press the “Start/Pause”

button again.

“Speed Reduction” button

•A maximum spin speed is assigned to each programme.

•Press the button to set another speed for the spin cycle.

•If the spin speed “0” is selected, the final spin is cancelled. The water is drained out

only.

“Easy Ironing” button

•To lessen creasing, the water quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

START DELAY

The “Start Delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

•Press the “Start Delay” button. Select the programme start from 1 to 19 hours ahead by pressing the button again.

•Press the “Start/Pause” button. The Start Delay indicator light flashes until the programme starts.

•During programme start the remaining

time appears in the digital display.

“Start Delay” correction.

•Before the “Start Delay” has been started: The preset number of hours can be altered by continuously pressing the “Start Delay” button.

The number of hours can be reduced by first turning the programme selector switch to the “Off” position. Then set the programme again and select the desired number of hours.

•After the “Start Delay” has been started:

The preset number of hours can be reduced by pressing the “Start Delay” button again. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the “Start/Pause” button flashes. Turn on the tap and start the programme by pressing the “Start/Pause” button. Now the indicator light above the button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the “Cotton”, “Cotton coloured” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if “Rapid Wash” is selected.

PROGRAMME END

• The remaining time display shows “0:00” and three short signals sound. The “End” display lights up.

1.Turn the programme selector knob to the “Off” position.

2.Turn off the tap.

3.Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1.Press the “Start/Pause” button to interrupt the programme. The indicator light flashes.

2.Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3.Press the “Start/Pause” button again to

restart the programme.

•If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Interrupt/Cancel Programme”).

CANCEL/DELETE PROGRAMME

1.Press the “Start/Pause” button to interrupt the programme. The indicator lamp flashes.

2.Set the programme selector to “Drain/ Cancel”. The spin speed “0” and the remaining time “2 minutes” are displayed.

3.Press the “Start/Pause” button to start the “Drain/Cancel” programme.
