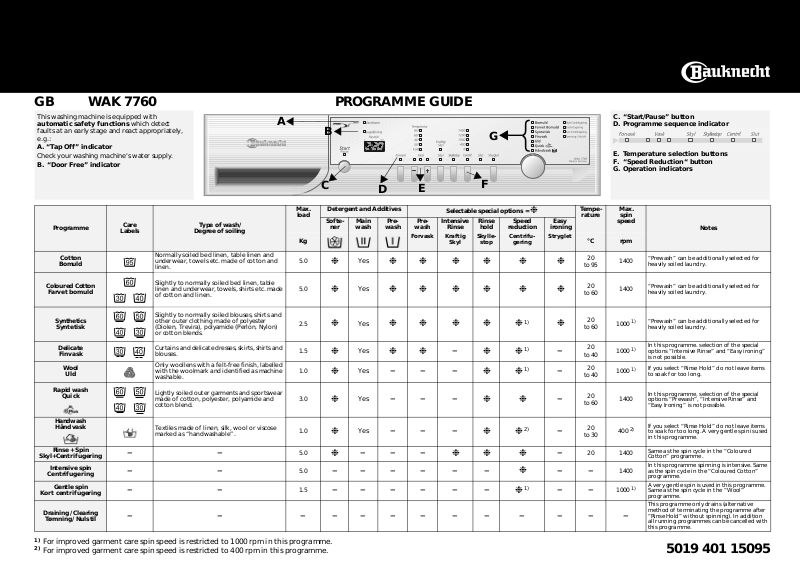

bauknecht WAK 7760 PROGRAMME GUIDE

GB WAK 7760 PROGRAMME GUIDE

This washing machine is equipped with

automatic safety functions

faults at an early stage and react appropriately, e.g.:

A. “Tap Off” indicator

Check your washing machine's water supply.

B. “Door Free” indicator

which detect

C. “Start/Pause” butt on D. Programme sequence indicator

{

E. Temperature selection button s F. “Speed Reduction“ button G. Operation indicators

Max.

load

Programme

Cotton

Bomuld

Coloured Cotton

Farvet bomuld

Synthetics

Syntetisk

Delicate

Finvask

Wool

Uld

Rapid wash

Quick

Handwash

Håndvask

Rinse + Spin

Skyl+Centrifugering

Intensive spin

Centrifugering

Gentle spin

Kort centrifugering

Draining / Clearing

Tømning/ Nulstil

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Care

Labels

Normally soiled bed linen, table linen and underwear, towels etc. made of cotton and linen.

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Slightly to normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

Curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Lightly soiled outer garments and sportswear made of cotton, polyester, polyamide and cotton blend.

Textiles made of linen, silk, wool or viscose marked as “handwashable”.

–– ––

–– –––––––––––––

Type of wash/

Degree of soiling

5.0

2.5

1.5

1.0

3.0

1.0

5.0

1.5

Detergent and Additives

Softe-

ner

❉

❉ ❉

❉

❉ ❉

Main wash

Yes

–––

Selectable special options =

Pre-

wash

Pre-

Intensive

wash

Forvask Kraftig

Rinse

Skyl

❉❉ ❉❉ ❉ ❉

❉❉ ❉❉ ❉ 1)❉

❉❉

–

–– –

❉❉ ❉

Rinse

hold

Skylle-

stop

❉❉ ❉❉

❉❉

–––– – – –––– – –

Speed

reduction

Centrifu-

gering

❉

Easy

ironing

Stryglet

– –

–

– –

–– ––

Tempe-

rature

°C rpm

to 95

to 60

to 40

to 60

to 30

20 1400

Max.

spin

speed

1400

1000

1400

400

1400

1000

Notes

“Prewash” can be additionally selected for heavily soiled laundry.

“Prewash” can be additionally selected for

heavily soiled laundry.

In this programme. selection of the special

options “Intensive Rinse” and “Easy ironing” is not possible.

If you select “Rinse Hold” do not leave items

to soak for too long.

In this programme, selection of the special options “Prewash”, “Intensive Rinse” and “Easy Ironing” is not possible.

If you select “Rinse Hold” do not leave items

to soak for too long. A very g entle s pin is used in this programme.

Same as the spin cycle in the “Coloured Cotton” programme.

In this programme spinning is intensive. Same as the spin cycle in the “Coloured Cotton” programme.

A very gentle spin is used in this programme.

Same as the spin cycle in the “Wool” programme.

This programme only drains (alternative method of terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

5019 401 15095

CONSUMPTION DATA

Programme Temperature

White Cotton Coloured cotton Coloured cotton

Synthetics Synthetics

Rapid wash

Delicate

Wool

Handwash

Consumption values

programme duration

** The

particular household conditions and to adapt the programme run time accordingly.

***To reduce

the pump drains the water out.

the water temperature

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1. Turn the programme selector knob in any direction to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause” button is flashing.

2. The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3. The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.

SELECT SPECIAL OPTIONS - The indicator lights go on.

Load

(°C)

95 5.0 44*** 1.60 1:55 60 5.0 39 0.95 2:00 40 5.0 39 0.55 2:00 60 2.5 55*** 0.70 1:30 40 2.5 50 0.50 1:15 30 3.0 35 0.40 0:30 30 1.5 50 0.50 0:45 40 1.0 50 0.50 0:40 30 1.0 35 0.40 0:35

were measured in normalized conditions in compliance with Standard IEC 60456.

may also vary from the chart values. The washing machine is able to allow for

(kg)

, some cold water is added at the end of the main wash cycle, before

Water

(l)

Energy

(kWh)

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This additional option is particularly suitable for areas with very soft water, for washing baby linen and helping people with detergent allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This additional function is particularly useful if you want to postpone spinning to a later time.

Note: the programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically

“Prewash” button

• Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

with the appropriate spin cycle for the current programme.

• If you do not wish to spin the clothes, turn the programme selector knob to “Drai ning/ Clearing” and press the “Start/Pause” button again.

Programme duration **

approx.

(hours : minutes)

“Speed Reduction” button

• A maximum spin speed is assigned to each programme.

• Press the button to set another speed for the spin cycle.

• If the spin speed “0” is selected, the final spin is cancelled. The water is drained out only.

“Easy Ironing” button

• To lessen creasing, the water quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the “Start/Pause” button flashes. Turn on the tap and start the programme by pressing the “Start/Pause” button. Now the indicator light above the button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the “Cotton”, “Coloured Cotton” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if “Rapid Wash” is selected.

PROGRAMME END

• The remaining time display shows “0:00” and the “End” display lights up.

1. Turn the programme selector knob to the “Off” position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the “Start/Pause” button to interrupt the programme. The indicator light flashes.

2. Select the new programme (with temperature), any additional options and

- if you wish - another spin speed.

3. Press the “Start/Pause” button again to restart the programme.

• If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Interrupt/Cancel Programme).

CANCEL/DELETE PROGRAMME

1. Press the “Start/Pause” button to interrupt the programme. The indicator light flashes.

2. Set the programme selector to “Draining/ Clearing”. The spin speed “0” and the remaining time “2 minutes” are displayed.

3. Press the “Start/Pause” button to start the “Draining/Clearing” programme.

5019 401 15095
