GB WAK 7678

This washing machine is equipped with automatic safety functions which detect faults at an early stage and react appropriately, e.g.:

A.“Water Tap closed” indicator

Check your washing machine’s water supply.

B.“Water Stop” indicator

Can be released by excess foaming or a leak in the appliance (see also instructions for use “Troubleshooting”).

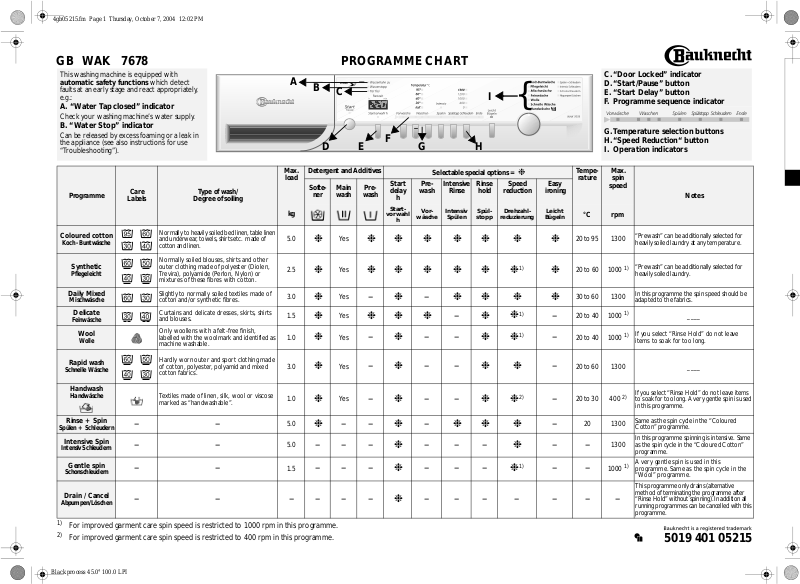

PROGRAMME CHART

A	B	C			{
				I
	D	E	F	H
			G

C. “Door Locked” indicator D.“Start/Pause” button

E.“Start Delay” button

F.Programme sequence indicator

G.Temperature selection buttons H.“Speed Reduction“ button

I.Operation indicators

Max.

Detergent and Additives

Selectable special options =

Tempe-

Max.

load

rature

spin

Softe-

Main

Pre-

Start

Pre-

Intensive

Rinse

Speed

Easy

speed

Care

Type of wash/

delay

wash

Rinse

hold

reduction

ironing

Programme

ner

wash

wash

Notes

Labels

Degree of soiling

h

kg

Start-

Vor-

Intensiv

Spül-

Drehzahl-

Leicht

°C

rpm

vorwahl

wäsche

Spülen

stopp

reduzierung

Bügeln

h

Coloured cotton

Normally to heavily soiled bed linen, table linen

5.0

Yes

20 to 95

1300

“Prewash” can be additionally selected for

and underwear, towels, shirts etc. made of

KochBuntwäsche

cotton and linen.

heavily soiled laundry at any temperature.

Synthetic

Normally soiled blouses, shirts and other

outer clothing made of polyester (Diolen,

2.5

Yes

1)

20 to 60

1000 1)

“Prewash” can be additionally selected for

Pflegeleicht

Trevira), polyamide (Perlon, Nylon) or

heavily soiled laundry.

mixtures of these fibres with cotton.

Daily Mixed

Slightly to normally soiled textiles made of

3.0

Yes

–

–

30 to 60

1300

In this programme the spin speed should be

Mischwäsche

cotton and/or synthetic fibres.

adapted to the fabrics.

Delicate

Curtains and delicate dresses, skirts, shirts

1.5

Yes

–

1)

–

20 to 40

1000

1)

____

Feinwäsche

and blouses.

Wool

Only woollens with a felt-free finish,

1.0

Yes

–

–

–

1)

–

20 to 40

1000

1)

If you select “Rinse Hold” do not leave

labelled with the woolmark and identified as

Wolle

items to soak for too long.

machine washable.

Rapid wash

Hardly worn outer and sport clothing made

3.0

Yes

–

–

–

–

20 to 60

1300

____

of cotton, polyester, polyamid and mixed

Schnelle Wäsche

cotton fabrics.

Handwash

Textiles made of linen, silk, wool or viscose

If you select “Rinse Hold” do not leave items

Handwäsche

1.0

Yes

–

–

–

2)

–

20 to 30

400

2)

to soak for too long. A very gentle spin is used

marked as “handwashable”.

in this programme.

Rinse + Spin

–

–

5.0

–

–

–

–

20

1300

Same as the spin cycle in the “Coloured

Spülen + Schleudern

Cotton” programme.

Intensive Spin

–

–

5.0

–

–

–

–

–

–

–

–

1300

In this programme spinning is intensive. Same

as the spin cycle in the “Coloured Cotton”

Intensiv Schleudern

programme.

Gentle spin

–

–

1.5

–

–

–

–

–

–

1)

–

–

1000

1)

A very gentle spin is used in this

programme. Same as the spin cycle in the

Schonschleudern

“Wool” programme.

This programme only drains (alternative

Drain / Cancel

–

–

–

–

–

–

–

–

–

–

–

–

–

method of terminating the programme after

“Rinse Hold” without spinning). In addition all

Abpumpen/Löschen

running programmes can be cancelled with this

programme.

1)

For improved garment care spin speed is restricted to 1000 rpm in this programme.

2)

5019 401 05215

For improved garment care spin speed is restricted to 400 rpm in this programme.

Black process 45.0° 100.0 LPI

4gb05215.fm Page 2 Thursday, October 7, 2004 12:02 PM

CONSUMPTION DATA *

Programme	Temperature	Wash	Water	Energy	Programme
					duration **
					approx.
	(°C)	(kg)	(l)	(kWh)	(hours : minutes)
Coloured Cotton	95	5.0	44***	1.60	1:55
Coloured Cotton	60	5.0	39	0.95	2:00
Coloured Cotton	40	5.0	39	0.55	2:00
Synthetic	60	2.5	55***	0.70	1:30
Synthetic	40	2.5	50	0.50	1:15
Daily Mixed	40	3.0	45	0.50	1:00
Delicate	30	1.5	50	0.50	0:45
Wool	40	1.0	50	0.50	0:40
Rapid wash	30	3.0	35	0.40	0:30
Handwash	30	1.0	35	0.40	0:35

*Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60456.

**The programme duration may also vary from the chart values. The washing machine is able to allow for particular household conditions and to adapt the programme run time accordingly.

***To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1.Turn the programme selector knob in any direction to the desired programme.

The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause” button is flashing.

2.The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3.The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.

SELECT SPECIAL OPTIONS -

The indicator lights go on.

“Prewash” button

•Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

•An additional rinse cycle is carried out.

•This additional option is particularly suitable for areas with very soft water, for washing baby linen and helping people with detergent allergies.

“Rinse Hold” button

•The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

•This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

•This additional function is particularly useful if you want to postpone spinning to a later time.

Note: The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

•Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

•If you do not wish to spin the clothes, turn the programme selector knob to “Drain/Cancel” and press the “Start/Pause” button again.

“Speed Reduction“ button

•A maximum spin speed is assigned to each programme.

•Press the button to set another speed for the spin cycle.

•If the spin speed “0” is selected, the final spin is cancelled. The water is only drained out.

“Easy Ironing” button

•To lessen creasing, the water quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

START DELAY

The “Start Delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

•Press the “Start Delay” button. Select the programme start from 1 to 19 hours ahead by pressing the button again.

•Press the “Start/Pause”button. The Start Delay indicator light flashes until the programme starts.

•During programme start the remaining time appears in the digital display.

“Start Delay” correction.

•Before the “Start Delay” has been started:

The preset number of hours can be altered by continuously pressing the “Start Delay” button. The number of hours can be reduced by first turning the programme selector switch to the “Off” position. Then set the programme again and select the desired number of hours.

•After the “Start Delay” has been started:

The preset number of hours can be reduced by pressing the “Start Delay” button again. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the “Start/Pause” button flashes. Turn on the tap and start the programme by pressing the “Start/Pause” button. Now the indicator light above the button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCKED

In the first 15 minutes after the start of the “Coloured Cotton” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if “Rapid Wash” is selected.

PROGRAMME END

•The remaining time display shows “0:00” and the “End” indicator lights up.

1.Turn the programme selector knob to the “Off” position.

2.Turn off the tap.

3.Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1.Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.

2.Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3.Press the “Start/Pause”button again to restart the programme.

•If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Cancel/Delete Programme).

CANCEL/DELETE PROGRAMME

1.Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.

2.Set the programme selector to “Drain/Cancel”. The spin speed “0” and the remaining time

“2 minutes” are displayed.

3.Press the “Start/Pause”button to start the “Drain/Cancel” programme.
