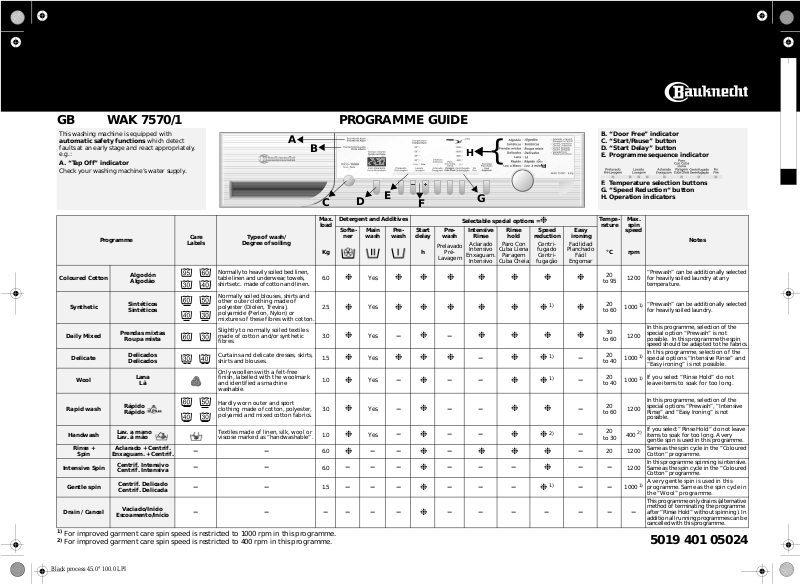

bauknecht WAK 7570/1 PROGRAMME GUIDE

4gb05024.fm Page 1 Thursday, September 19, 2002 11:47 AM

GB WAK 7570/1 PROGRAMME GUIDE

This washing machine is equipped with

automatic safety functions

faults at an early stage and react appropriately, e.g.:

A. “Tap Off” indicator

Check your washing machine’s water supply.

Programme

Coloured Cotton

Synthetic

Daily Mixed

Delicate

Wool

Rapid wash

Handwash

Rinse +

Spin

Intensive Spin

Gentle spin

Drain / Cancel

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Lav. a mano

Lav. á mão

Aclarado + Centrif.

Enxaguam. + Centrif.

Centrif. Intensivo

Centrif. Intensiva

Centrif. Delicado

Centrif. Delicada

Escoamento/Início

which detect

Algodón

Algodão

Sintéticos

Prendas mixtas

Roupa mista

Delicados

Lana

Lã

Rápido

Vaciado/Inicio

Care

Labels

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Normally soiled blouses, shirts and other outer clothing made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or mixtures of these fibres with cotton.

Slightly to normally soiled textiles made of cotton and/or synthetic fibres.

Curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Hardly worn outer and sport clothing made of cotton, polyester, polyamid and mixed cotton fabrics.

Textiles made of linen, silk, wool or viscose marked as “handwashable”.

Type of wash/

Degree of soiling

–– ––

–– ––––––

Max.

load

Kg h

6.0

2.5

3.0

1.5

1.0

3.0

1.0

6.0

1.5

Detergent and Additives

Softe-

ner

❉

❉ ❉

––– –––

Main wash

Yes

Pre-

wash

––

Start

delay

❉❉ ❉ ❉ ❉ ❉ ❉

❉❉ ❉ ❉ ❉ ❉ 1)❉

–

❉❉ ❉

–

– –

❉

❉ ❉ ❉

❉

Pre-

wash

Prelavado

Pré-

Lavagem

–

––

–– ––

– –––

––– ––– – –––

{

Selectable special options =

Intensive

Rinse

Aclarado Intensivo

Enxaguam.

Intensivo

Rinse

hold

Paro Con

Cuba Llena

Paragem

Cuba Cheia

❉❉❉❉

–

❉❉

❉

❉❉

❉

Speed

reduction

Centri-

fugado

Centri-

fugação

❉

ironing

Facilidad

Planchado

Engomar

B. “Door Free” indicator C. “Start/Pause” button D. “Start Delay” button E. Programme sequence indicator

F. Temperature selection buttons G. “Speed Reduction“ button H. Operation indicators

Tempe-

Easy

Fácil

rature

°C rpm

to 95

to 60

– –

–

to 40

to 60

to 30

20 1200

–– ––

Max.

spin

speed

Notes

“Prewash” can be additionally selected

1200

for heavily soiled laundry at any temperature.

“Prewash” can be additionally selected

1000

for heavily soiled laundry.

In this programme, selection of the special option “Prewash” is not

1200

possible. In this programme the spin speed should be adapted to the fabrics.

In this programme, selection of the

special options “Intensive Rinse” and

1000

“Easy ironing” is not possible. If you select “Rinse Hold” do not

1000

leave items to soak for too long.

In this programme, selection of the special options “Prewash”, “Intensive

1200

Rinse” and “Easy Ironing” is not possible.

If you select “Rinse Hold” do not leave

items to soak for too long. A very

400

gentle spin is used in this programme. Same as the spin cycle in the “Coloured

Cotton” programme. In this programme spinning is intensive.

1200

Same as the spin cycle in the “Coloured Cotton” programme.

A very gentle spin is used in this

1000

programme. Same as the spin cycle in the “Wool” programme.

This programme only drains (alternative method of terminating the programme after “Rinse Hold” without spinning). In addition all running programmes can be cancelled with this programme.

5019 401 05024

Black process 45.0° 100.0 LPI

4gb05024.fm Page 2 Thursday, September 19, 2002 11:47 AM

CONSUMPTION DATA

Programme Temperature

(°C) Coloured Cotton Coloured Cotton Coloured Cotton

Daily Mixed

Synthetic Synthetic

Rapid wash

Delicate

Wool

Handwash

* Consumption

programme duration

** The

particular household conditions and to adapt the programme run time accordingly.

***To reduce

the pump drains the water out.

values

were measured in normalized conditions in compliance with Standard I E C 60456.

the water temperature

95 6.0 52*** 2.00 2:00 60 6.0 49 1.14 2:20 40 5.0 43 0.50 1:58 40 3.0 48 0.55 1:00 60 2.5 50*** 0.70 1:30 40 2.5 45 0.50 1:15 30 3.0 37 0.30 0:30 30 1.5 60 0.50 0:45 40 1.0 42 0.60 0:40 30 1.0 45 0.40 0:35

may also vary from the chart values. The washing machine is able to allow for

, some cold water is added at the end of the main wash cycle , be fore

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1. Turn the programme selector knob in any direction to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause”button is flashing.

2. The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3. The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.

SELECT SPECIAL OPTIONS The indicator lights go on.

“Prewash” button

• Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some 15 min.

“Intensive Rinse” button

• An additional rinse cycle is carried out.

• This additional option is par ticularl y suitable for areas with very soft water, for washing baby linen and helping people with detergent allergies.

Wash

(kg)

Water

(l)

“Rinse Hold” button

• The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

• This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This additional function is particularly useful if you want to postpone spinning to a later time.

Note: The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

• If you do not wish to spin the clothes, turn the programme selector knob to “Drain/ Cancel” and press the “Start/Pause” button again.

“Speed Reduction“ button

• A maximum spin speed is assigned to each programme.

• Press the button to set another speed for the spin cycle.

• If the spin speed “0” is selected, the final spin is cancelled. The water is only drained out.

Energy

(kWh)

Programme duration **

approx.

(hours : minutes)

“Easy Ironing” button

• T o less en creasing, the wat er quantity is increased and the clothes are spun very gently at reduced power. This makes your laundry significantly damper at the end of the programme.

START DELAY

The “Start Delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

• Press the “Start Delay” button. Select the programme start from 1 to 19 hours ahead by pressing the button again.

• Press the “Start/Pause”button. The Start Delay indicator light flashes until the programme starts.

• During programme start the remaining time appears in the digital display.

“Start Delay” correction.

• Before the “Start Delay” has been started: The preset number of hours can be altered by continuously pressing the “Start Delay” button. The number of hours can be reduced by first turning the programme selector switch to the “Off” position. Then set the programme again and select the desired number of hours.

• After the “Start Delay” has been started: The preset number of hours can be reduced by pressing the “Start Delay” button again. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the “Start/Pause” button flashes. Turn on the tap and start th e pro gr amme by pre ssin g the “Start/Paus e” button. Now the indicator light above the button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the “Cotton”, “Cotton coloured” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if “Rapid Wash” is selecte.

PROGRAMME END

• The remaining time display shows “0:00” and the “End” indicator lights up.

1. Turn the programme selector knob to the “Off” position.

2. Turn off the tap.

3. Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1. Press the “Start/Pause” button to interrupt the programme. The indicator light flashes.

2. Select the new programme (with temperature), any additional options and

- if you wish - another spin speed.

3. Press the “Start/Pause” button again to restart the programme.

• If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Interrupt/Cancel Programme).

CANCEL/DELETE PROGRAMME

1. Press the “Start/Pause”button to interrupt the programme. The indicator light flashes.

2. Set the programme selector to “Drain/ Cancel”. The spin speed “0” and the remaining time “2 minutes” are displayed.

3. Press the “Start/Pause”button to start the “Drain/Cancel” programme.
