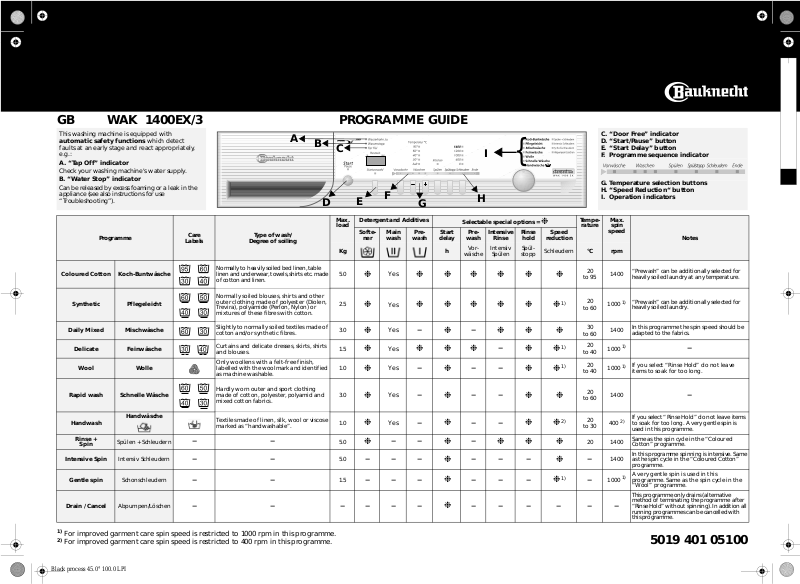

bauknecht WAK 1400 EX/3 PROGRAMME GUIDE

4gb05100.fm Page 1 Sunday, June 22, 2003 11:47 AM

GB	WAK 1400EX/3

This washing machine is equipped with automatic safety functions which detect faults at an early stage and react appropriately, e.g.:

A. “Tap Off” indicator

Check your washing machine's water supply.

B. “Water Stop” indicator

Can be released by excess foaming or a leak in the appliance (see also instructions for use “Troubleshooting”).

PROGRAMME GUIDE

A	B	C				{
					I
	D	E	F	G	H

C.“Door Free” indicator

D.“Start/Pause” button

E.“Start Delay” button

F.Programme sequence indicator

G.Temperature selection buttons

H.“Speed Reduction“ button

I.Operation indicators

Max.

Detergent and Additives

Selectable special options =

Tempe-

Max.

load

rature

spin

Care

Type of wash/

Softe-

Main

Pre-

Start

Pre-

Intensive

Rinse

Speed

speed

Programme

ner

wash

wash

delay

wash

Rinse

hold

reduction

Notes

Labels

Degree of soiling

Kg

h

Vor-

Intensiv

Spül-

Schleudern

°C

rpm

wäsche

Spülen

stopp

Coloured Cotton

Koch-Buntwäsche

Normally to heavily soiled bed linen, table

Yes

20

“Prewash” can be additionally selected for

linen and underwear, towels, shirts etc. made

5.0

1400

to 95

heavily soiled laundry at any temperature.

of cotton and linen.

Normally soiled blouses, shirts and other

20

“Prewash” can be additionally selected for

Synthetic

Pflegeleicht

outer clothing made of polyester (Diolen,

2.5

Yes

1)

1000 1)

to 60

Trevira), polyamide (Perlon, Nylon) or

heavily soiled laundry.

mixtures of these fibres with cotton.

Daily Mixed

Mischwäsche

Slightly to normally soiled textiles made of

3.0

Yes

–

–

30

1400

In this programme the spin speed should be

cotton and/or synthetic fibres.

to 60

adapted to the fabrics.

Delicate

Feinwäsche

Curtains and delicate dresses, skirts, shirts

1.5

Yes

–

1)

20

1000

1)

–

and blouses.

to 40

Wool

Wolle

Only woollens with a felt-free finish,

Yes

–

–

–

1)

20

1000

1)

If you select “Rinse Hold” do not leave

labelled with the woolmark and identified

1.0

to 40

items to soak for too long.

as machine washable.

Rapid wash

Schnelle Wäsche

Hardly worn outer and sport clothing

Yes

–

–

–

20

1400

–

made of cotton, polyester, polyamid and

3.0

to 60

mixed cotton fabrics.

Handwash

Handwäsche

Textiles made of linen, silk, wool or viscose

Yes

–

–

–

2)

20

2)

If you select “Rinse Hold” do not leave items

1.0

400

to soak for too long. A very gentle spin is

marked as “handwashable”.

to 30

used in this programme.

Rinse +

Spülen + Schleudern

–

–

5.0

–

–

–

20

1400

Same as the spin cycle in the “Coloured

Spin

Cotton” programme.

Intensive Spin

–

–

–

–

–

–

–

–

–

In this programme spinning is intensive. Same

Intensiv Schleudern

5.0

1400

as the spin cycle in the “Coloured Cotton”

programme.

Gentle spin

–

–

–

–

–

–

–

–

1)

–

1000 1)

A very gentle spin is used in this

Schonschleudern

1.5

programme. Same as the spin cycle in the

“Wool” programme.

This programme only drains (alternative

Drain / Cancel

Abpumpen/Löschen

–

–

–

–

–

–

–

–

–

–

–

–

method of terminating the programme after

“Rinse Hold” without spinning). In addition all

running programmes can be cancelled with

this programme.

1) For improved garment care spin speed is restricted to 1000 rpm in this programme.

5019 401 05100

2) For improved garment care spin speed is restricted to 400 rpm in this programme.

Black process 45.0° 100.0 LPI

4gb05100.fm Page 2 Sunday, June 22, 2003 11:47 AM

CONSUMPTION DATA

Programme	Temperature	Wash	Water	Energy	Programme
					duration **
					approx.
	(°C)	(kg)	(l)	(kWh)	(hours : minutes)
Coloured Cotton	95	5.0	44***	1.60	1:55
Coloured Cotton	60	5.0	39	0.95	2:20
Coloured Cotton	40	5.0	39	0.55	2:00
Daily Mixed	40	3.0	46	0.58	1:00
Synthetic	60	2.5	55***	0.70	1:30
Synthetic	40	2.5	50	0.50	1:15
Rapid wash	30	3.0	35	0.40	0:30
Delicate	30	1.5	50	0.50	0:45
Wool	40	1.0	50	0.50	0:40
Handwash	30	1.0	35	0.40	0:35

*Consumption values were measured in normalized conditions in compliance with Standard IEC 60456.

**The programme duration may also vary from the chart values. The washing machine is able to allow for particular household conditions and to adapt the programme run time accordingly.

***To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

POUR IN DETERGENT, CLOSE THE DOOR AND SELECT A PROGRAMME

Add the detergent as described in the chapter “Detergent and Additives” in the booklet.

1.Turn the programme selector knob in any direction to the desired programme. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the pilot lamp above the “Start/Pause” button is flashing.

2.The programme sequence indicator and the indicator with the maximum possible spin speed light up.

3.The temperature can be altered by pressing the “+” or “-” button under the corresponding LED display.

SELECT SPECIAL OPTIONS -

The indicator lights go on.

“Prewash” button

•Only for heavily soiled laundry (for example sand or granular dirt). Programme duration is increased by some

15 min.

“Intensive Rinse” button

• An additional rinse cycle is carried out.

•This additional option is particularly suitable for areas with very soft water, for washing baby linen and helping people with detergent allergies.

“Rinse Hold” button

•The laundry remains in the last rinse water without being spun: discoloration of the laundry and additional creasing are prevented.

•This additional option is particularly recommended for the programme “Synthetics” or “Delicates”.

•This additional function is particularly useful if you want to postpone spinning

to a later time.

Note: The programme has reached the “Rinse Hold” when the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

•Press the “Rinse Hold” button again; the programme will terminate automatically with the appropriate spin cycle for the current programme.

•If you do not wish to spin the clothes, turn the programme selector knob to “Drain/ Cancel” and press the “Start/Pause”

button again.

“Speed Reduction“ button

•A maximum spin speed is assigned to each programme.

•Press the button to set another speed for the spin cycle.

•If the spin speed “0” is selected, the final spin is cancelled. The water is only drained out.

START DELAY

The “Start Delay” allows to run the machine at the consumer's convenience, for example at night when electricity is cheaper.

•Press the “Start Delay” button. Select the programme start from 1 to 19 hours ahead by pressing the button again.

•Press the “Start/Pause” button. The Start Delay indicator light flashes until the programme starts.

•During programme start the remaining time appears in the digital display.

“Start Delay” correction.

•Before the “Start Delay” has been started: The preset number of hours can be altered by continuously pressing the “Start Delay” button.

The number of hours can be reduced by first turning the programme selector switch to the “Off” position. Then set the programme again and select the desired number of hours.

•After the “Start Delay” has been started: The preset number of hours can be reduced by pressing the “Start Delay” button again. To increase the number of hours preselected, first turn the programme selector switch to the “Off” position. Then set the programme and the additional options again and select the desired number of hours.

PROGRAMME START

After you have selected the programme and the additional option, the indicator light over the “Start/Pause” button flashes. Turn on the tap and start the programme by pressing the “Start/Pause” button. Now the indicator light above the button goes on.

In addition, all programme phases are indicated by the associated lights. After the end of a programme phase the associated indicator light goes out. Thus the programme sequence indicator moves from left to right across the wash, rinse and spin phases. At the end of the programme only the “End” indicator is still on.

DOOR LOCK

In the first 15 minutes after the start of the “Cotton”, “Cotton coloured” and “Synthetic” programmes the door can be opened to add further laundry. This is not possible if “Rapid Wash” is selected.

PROGRAMME END

•The remaining time display shows “0:00” and the “End” indicator lights up.

1.Turn the programme selector knob to the “Off” position.

2.Turn off the tap.

3.Open the door and unload the machine.

RESELECT AFTER PROGRAMME START

A newly-selected programme will continue in the same programme section during which the current programme was interrupted. Therefore do not add any more detergent.

1.Press the “Start/Pause” button to interrupt the programme. The indicator light flashes.

2.Select the new programme (with temperature), any additional options and - if you wish - another spin speed.

3.Press the “Start/Pause” button again to restart the programme.

•If you are in the “Prewash” programme step this additional option can not be deselected as described (to do this see “Interrupt/Cancel Programme”).

CANCEL/DELETE PROGRAMME

1.Press the “Start/Pause” button to interrupt the programme. The indicator light flashes.

2.Set the programme selector to “Drain/ Cancel”. The spin speed “0” and the remaining time “2 minutes” are displayed.

3.Press the “Start/Pause” button to start the “Drain/Cancel” programme.
