BAUKNECHT BIE 2B19 A Daily Reference Guide

EN

DAILY REFERENCE

GUIDE

THANK YOU FOR BUYING A BAUKNECHTPRODUCT.				You can download the Safety Instructions and the Use
In order to receive a more complete assistance, please				and Care Guide, by visiting our website
register your appliance on:				http://docs.bauknecht.eu and following the
www.bauknecht.eu/register				Instructions on the back of this booklet.

Before using the appliance carefully read Health and Safety guide.

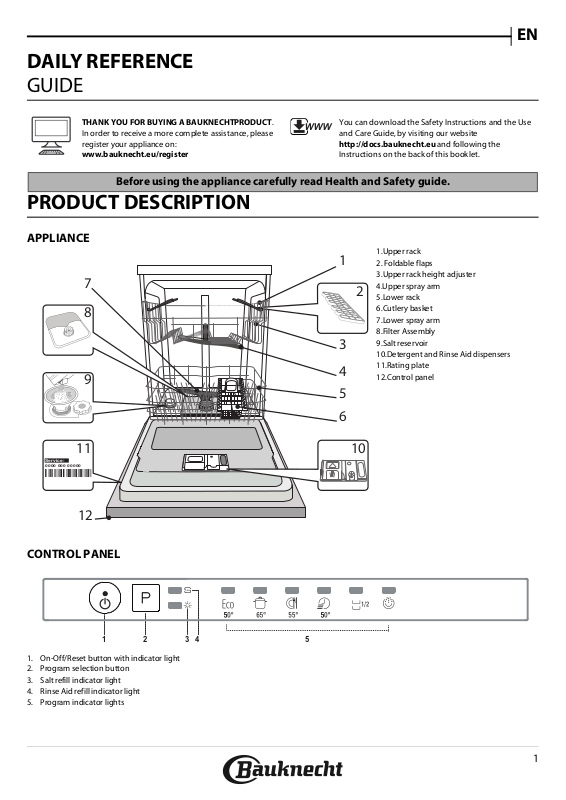

PRODUCT DESCRIPTION

APPLIANCE
1		1.Upper rack
		2. Foldable flaps
7		3.Upper rack height adjuster
	2	4.Upper spray arm
8		5.Lower rack
		6.Cutlery basket
		7.Lower spray arm
3		8.Filter Assembly
		9.Salt reservoir
		10.Detergent and Rinse Aid dispensers
4		11.Rating plate
		12.Control panel
5
6

11

10

Service:

0000 000 00000

12

CONTROL PANEL

1

2

3

4

5

1.On-Off/Reset button with indicator light

2.Program selection button

3.Salt refill indicator light

4.Rinse Aid refill indicator light

5.Program indicator lights

1

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine’s functional components.

•It is important that the salt reservoir be never empty.

•It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PROGRAMS DESCRIPTION) and should be filled when the SALT REFILL indicator light in the control panel is lit.

1.Remove the lower rack and unscrew the

reservoir cap (anticlockwise).

2.Position the funnel (see figure) and fill the salt

reservoir right up to its edge (approximately 1 kg);

it is not unusual for a little water to leak out.

3.Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, we recommend carrying out the procedure before the washing cycle is started.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory setting is for average (3) water hardness.

1.Switch on the appliance by pressing the ON/OFF button.

2.Switch off the appliance by pressing the ON/OFF button.

3.Hold down button P for 5 seconds, until you hear a beep.

4.Switch on the appliance by pressing the ON/OFF button.

5.The current selection level number and the salt indicator light both flash. The program indicator light of the current set level flashes.

6.Press button P to select the desired hardness level (see Water Hardness Table).

		Water Hardness Table
	Level	°dH			°fH
		German degrees			French degrees
1	Soft	0	- 6		0 - 10
2	Medium	7 - 11			11 - 20
3	Average	12	- 17		21 - 30
4	Hard	17	- 34		31 - 60
5	Very hard	35	- 50		61 - 90

7. Switch off the appliance by pressing the ON/OFF button. Setting is complete!

As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser AB should be filled when the RINSE AID REFILL indicator light in the control panel is lit.

35

25

A	X
M

B

A

1.Open the dispenser by turning the cap A in an anticlockwise direction. Open the dispenser B by pressing and pulling up the tab on the lid.

2.Carefully introduce the rinse aid as far as the maximum (110 ml) reference notch of the filling space - avoid spilling it. If this happens, clean the spill immediately with a dry cloth.

3.Screw the cap back on. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

•Switch the dishwasher on using the ON/OFF button.

•Switch it off using the ON/OFF button.

•Press button P three times - a beep will be heard.

•Switch it on using the ON/OFF button.

•The current selection level number and rinse aid indicator light flash. The program indicator light of the current set level flashes.

•Press button P to select the level of rinse aid quantity to be supplied.

•Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO 1 (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 4 levels can be set according to the dishwasher model. The factory setting is for a medium level.

•If you see bluish streaks on the dishes, set a low number (1-2)(2-3).

•If there are drops of water or limescale marks on the dishes, set a high number (3-4)(4-5).

2

FILLING THE DETERGENT DISPENSER

A

To open the detergent dispenser use the opening device A.

Introduce the detergent into the dry dispenser B only. Place the amount of detergent for pre-washing directly inside the tub.

EN

1.When measuring out the detergent refer to the (see PROGRAMS TABLE) to add the proper quantity. Compartment B comprises a level showing the maximum quantity of liquid or powder detergent that can be added to each cycle.

2.Remove detergent residues from the edges of the dispenser and close the cover until it clicks.

3.Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

PROGRAMS TABLE

	Program		Drying phase
1.	Eco	50°C
2.	Intensive	65°C
3.	Normal	55°C
4.	Rapid 40’	50°C	-
5.	Half Load	50°C
6.	PreWash	-	-

Detergent container		Duration of wash program	Water consumption	Energy consumption
Tub	B	(h:min)**)	(litres/cycle)	(kWh/cycle)
		3:10	11.0	1.04
		2:30	16.5	1.65
-		2:00	16.0	1.35
-		0:40	9.0	0.90
-		1:20	12.0	1.10
-	-	0:10	4.0	0.04

ECO program data is measured under laboratory conditions according to European Standard EN 50242. *) Not all options can be used simultaneously.

**) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

ECO

Normally soiled crockery. Standard program, the most efficient in terms of its combined energy and water consumption.

INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

Notes:

Optimum performance levels when using the “Rapid” program can be achieved by observing the maximum amounts of specified place settings.

To reduce consumption even further, only run the dishwasher when it is full.

NORMAL

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning performance in shorter time.

RAPID40’

Program to be used for lightly-soiled dishes with no dried food residues. Ideal for 2 place settings.

HALF LOAD

Ideal for washing a half load of lightly or normally soiled crockery.

PRE-WASH

Crockery to be washed later. No detergent to be used with this program.

3
