Bartscher STMS 1000 Operating instructions

STMS 1000

130154

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany

Phone: [phone]
Fax: [phone]
Service hotline: [phone]
www.bartscher.com

Version: 1.0
Date of preparation: 2023-08-24

Original instruction manual

EN

EN

Name:

Hand blender holder STMS 1000

Art. No.:

130154

Material:

stainless steel

Pot diameter, from-to, in mm:

400 - 690

Mixer, diameter, in mm:

42

Dimensions (W x D x H), in mm:

405 x 604 x 83

Weight, in kg:

1,3

Technical data

We reserve the right to implement technical modifications.

Version / features

• Designed for: set with immersion blender 1000

• Adjustable position and angle

• Saving time

• More flexibility in kitchen

Intended Use

As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.

The following is an intended use:

– Blender mounted on the pot.

Function

With this immersion blender holder the blender is fixed to the pot, and you can
chop, blend and heat up the food while it is being mixed, without the need to use
your hands.

130154 3 / 6

EN

Fig. 1

Fig. 2

Fig. 3

Equipment Included

Assembly

1. Assemble the immersion blender holder as shown in the figures below.

4 / 6 130154

EN

Fig. 4

Fig. 5

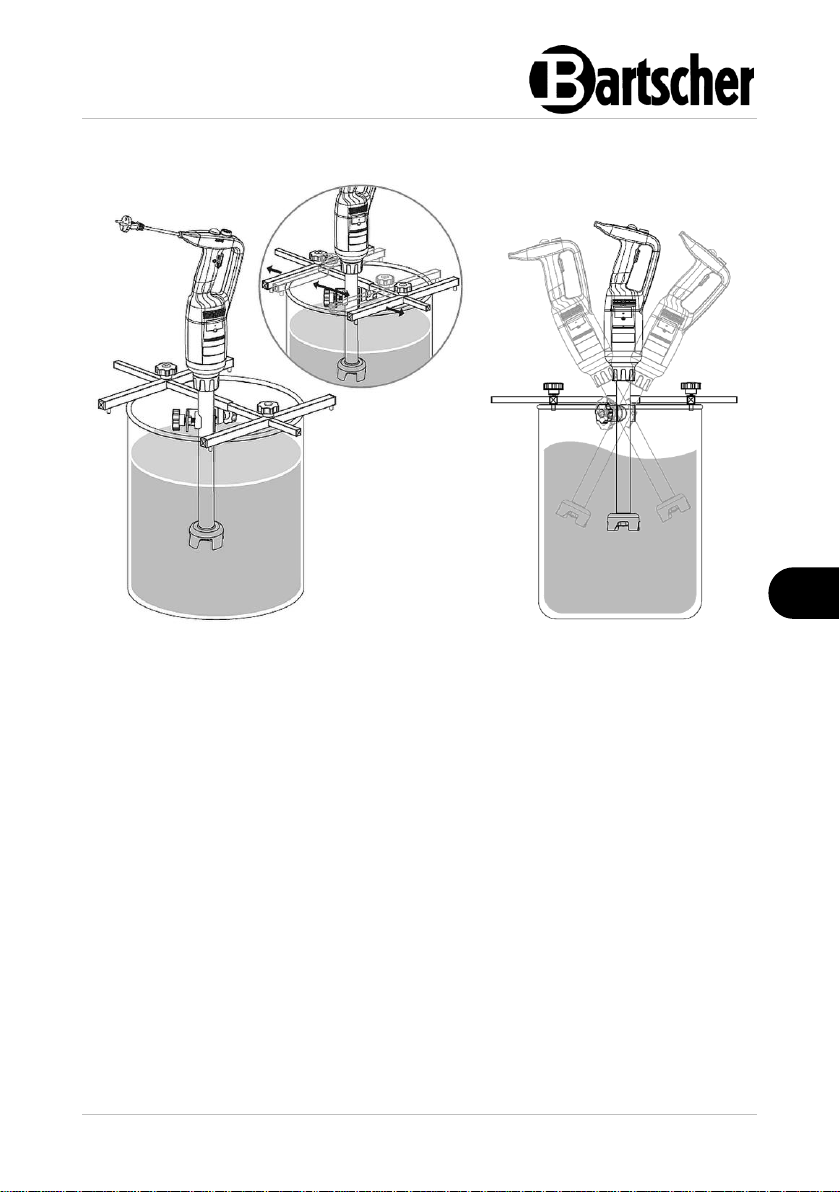

1. Place the immersion blender holder on the
edge of the pot.

2. Move the bars (2, Fig. 1) to the edge of the
pot, and fix them in this position with the
use of the screws (5).

3. Put the blender in the clamp (3)

4. Tighten the screw properly (4).

5. Slide the clamp (3) with the
blender attached on the rail
(1) to the desired position,
and fix it with the set screw
(4).

6. If needed, change the
blender fixing angle in the
clamp (3) by unscrewing the
set screw (4) and then
tightening it again.

Fixing the immersion blender holder to the pot

130154 5 / 6

EN

Cleaning

1. Immersion blender holder should be cleaned regularly with a soft, damp cloth.
Use a mild cleaning agent when required.

2. Dry the blender holder thoroughly with a soft cloth.
