Original
-
Gebrauchs
anleitung
ENK-3EB
300064
V1/1016

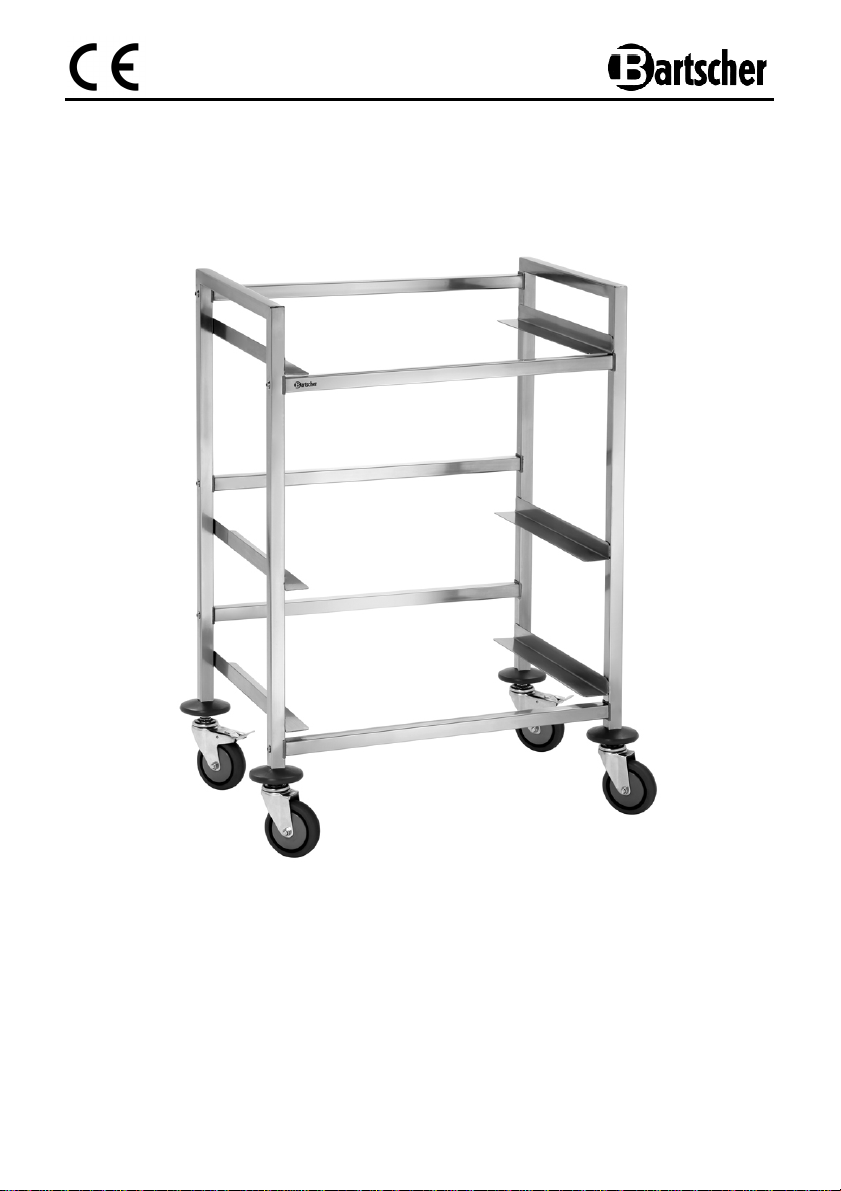

• Trolley for cleaning ENK
-
3EB crates
•
•
GB/UK
Technical data
---------------------------------------------------------------------------------------------------------------------
Name:
Art. number:
Material:
Realization:
Dimensions:
Maximum carrying
capacity:
Distance between slots:
Weight:
---------------------------------------------------------------------------------------------------------------------
We reserve the right to implement the technical modifications!
• Unpack the individual elements and remove the packaging material.
• Check completeness of delivery according to the list below.
• An additional spanner is required for the assembly of the trolley.
• Remove the protective foil from the trolley for cleaning crates.
•
300064
Nickel-chrome steel
•
Frame: pipes of square section 25.8 x 25.8 mm;
Suitable for Euro-Norm E1, E2, E3 crates
(meat / bakery products), dimensions: 600 x 400 mm
3 pairs of guides;
4 swivelling rubber castors, Ø 100 mm
1 buffer, 2 swivelling castors with stoppers;
Easy assembling kit
W 720 x D 500 x H 965 mm
•
100 kg in total, 40 kg per slot
•
118 mm at the top (E1),
380 mm in the middle (E1, E2, E3),
250 mm at the bottom (E1, E2)
9.4 kg
•
- 5 -

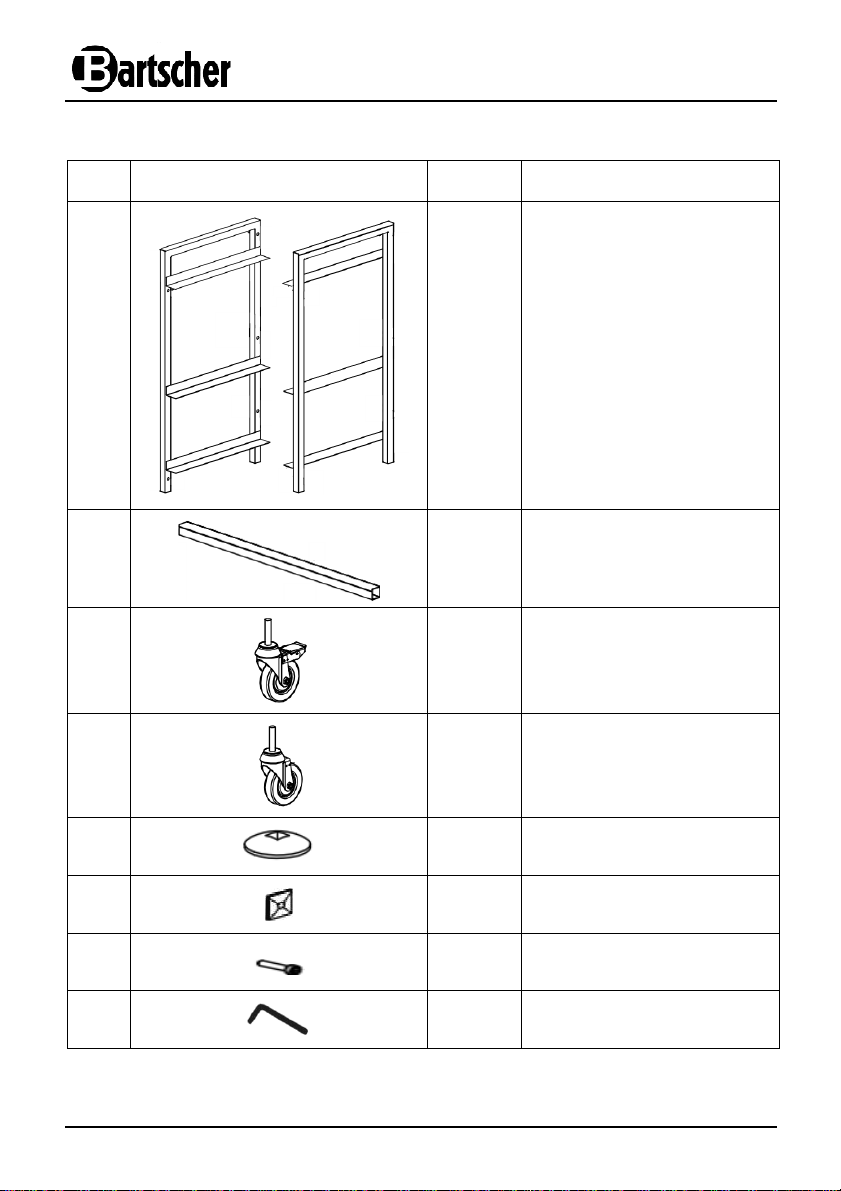

Delivery range / Part name
No. Element Number Name
1 + 2
3
4
5
6
7
2
5
Left and right side elements
with 3 initially mounted
guides
Cross members
2
2
4
20
Castors with stoppers
Castors without stoppers
Buffers for castors
Square washers
- 6 -
8
9
10
1
Bolts
Allen wrench

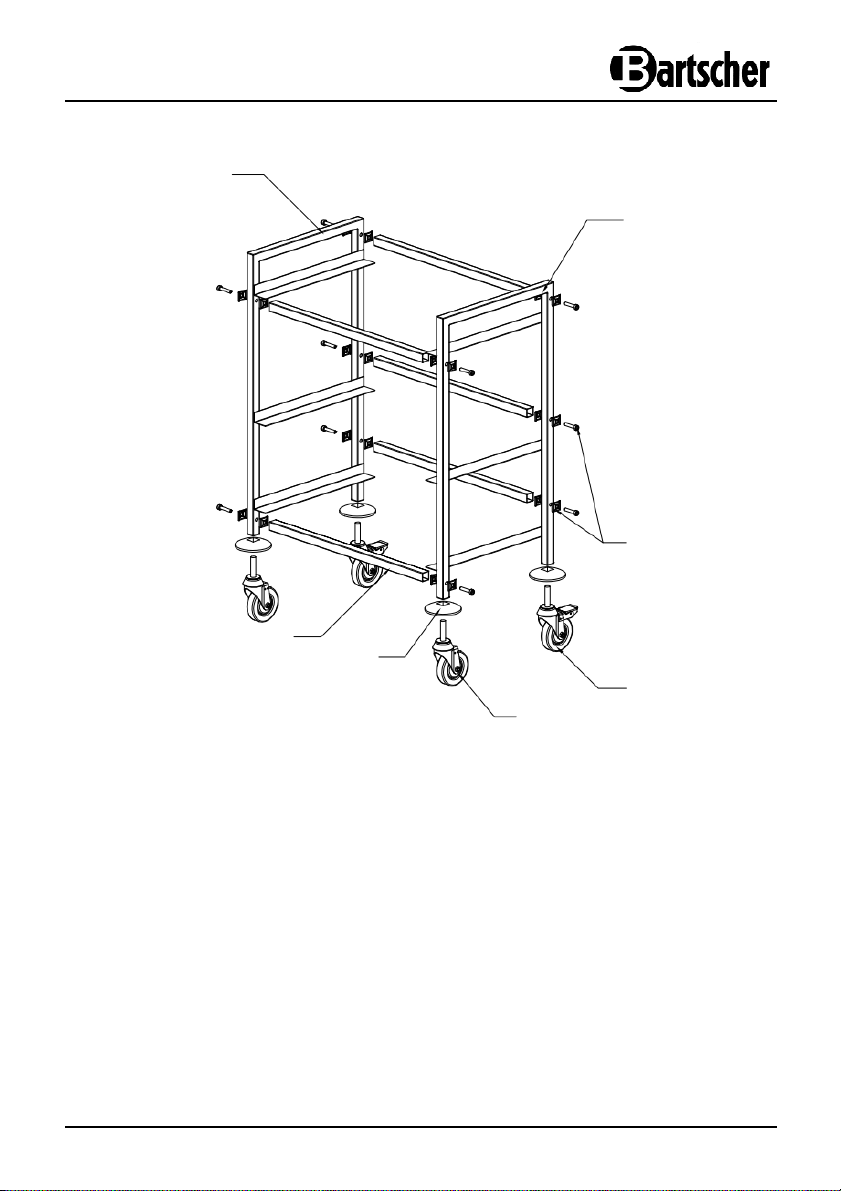

Assembly
1
2
7+8
3
1. First, fasten 5 crossbars (3) to the left side element (1). For this purpose, insert one
square washer (7) between the crossbar (3) and the side element (1) and between
the side element (1) and the bolt (8), and then tighten it with the Allen wrench.
2. Fasten the crossbar (3) to the right side element (2), as described in the previous
item.
3. Lay or place the trolley for cleaning crates on its side. Attach the buffers (6) to the
side elements (1+2). Next, screw 4 swivel castors (4 + 5) into the side elements.
4. Place the trolley for cleaning crates on the swivel castors and check its stability.
6
4
5
- 7 -
5. The trolley for cleaning carts may be aligned by adjusting swivel castors.
Secure their position with protective nuts.
6. When the trolley for cleaning carts is in the desired location, block the swivel
castors (4) with brakes, to prevent it from being accidentally moved or tipped.
Tips for the user

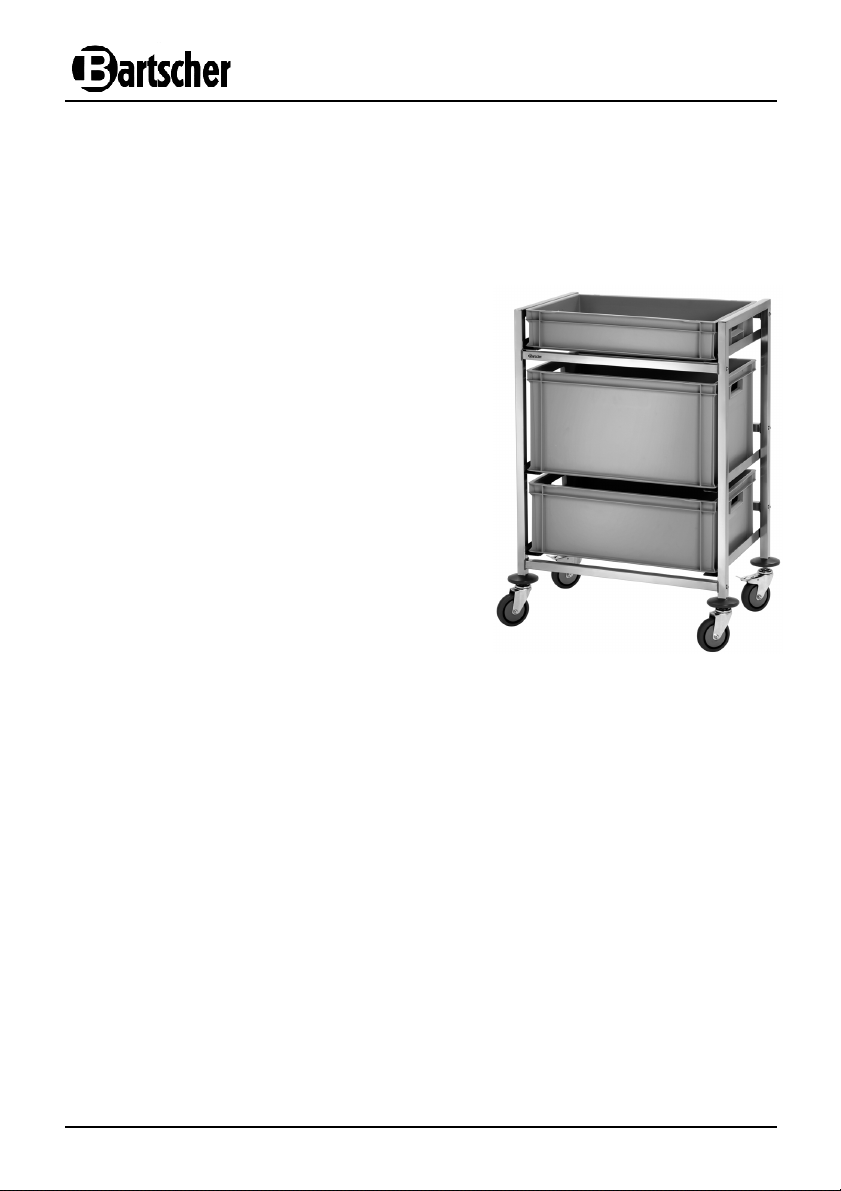

• The trolley is designed for transporting EuroNorm E1, E2, E3 crates (meat / bakery
products) with the dimensions: 600 x 400 mm:
• Place the appropriate Euro-Norm crate on the
appropriate guides.
• Distances between the guides in the trolley for
cleaning crates make it suitable for the
following Euro-Norm crates:
at the top (118 mm): E1
in the middle (380 mm): E1, E2, E3
at the bottom (250 mm): E1, E2
Cleaning instructions
• The trolley for cleaning crates should be regularly cleaned with a moist cloth and mild
cleaning agents.
• Never use harsh cleaning agents that may damage the surface of the trolley for
cleaning crates.
• Dry the trolley for cleaning crates with a soft cloth.
Bartscher GmbH
Franz-Kleine-Str. 28
33154 Salzkotten phone: +49 (0) 5258 971-0
Germany fax: +49 (0) 5258 971-120
