Name:

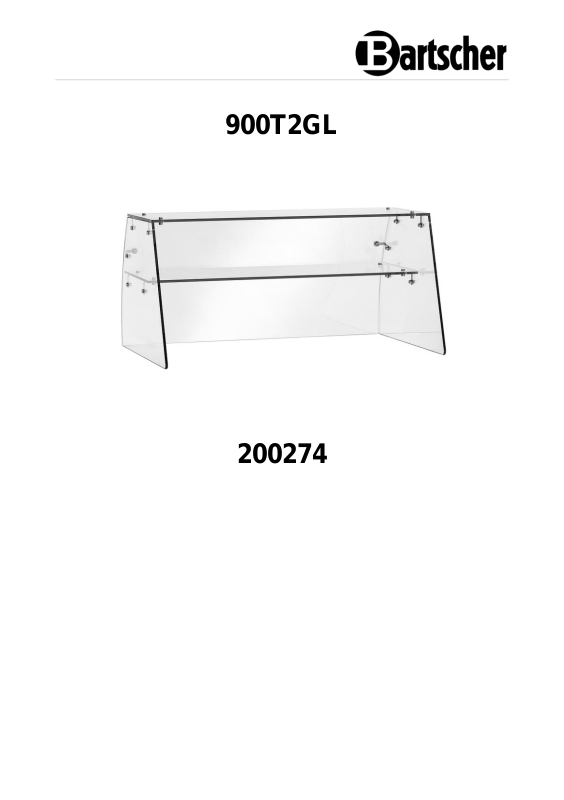

Glass top 900T2GL
Art. No.:
200274
Material:
glass
Number of intermediate shelves:
1
Dimensions intermediate shelf
(W x D) in mm:
856 x 298
Useful height inside:
below 230 mm, top 168 mm
Dimensions (W x D x H), in mm:
880 x 540 x 425
Weight, in kg:
25,4
Technical specification
We reserve the right to implement technical modifications.
Assembling the glass top on the Saladette 200575
NOTE!
The glass top should be assembled by 2 persons!
1. Unpack the device and dispose of all the packaging material.
2. Verify if a the accessories have been supplied.
200274 3 / 6
EN
Nr.
Name
Quantity
(pcs.)
Nr.
Name
Quantity
(pcs.)
1
Glass support
6
7
Glass shelf
1
2
Screws for the glass
support
12
8
Right glass
1
3
Threaded stud
6
9
Cylindrical head
screws
20
4
Left glass
1
10
Angle connectors for
glass
10
5
Upper glass
1
11
Nut
20
6
Rear glass
1
12
Rubber rings
20
Fig. 1
Scope of Delivery / Part Name
4 / 6 200274
EN
Fig. 2
1. First, attach the glass supports (1) (2 on the left, 2 on the right and 2 at the rear)
on the housing of the saladette. Use the supplied screws (2).
2. Fit the left (4) and right (8) glass in the mounted glass supports (1). Manually
tighten the threaded studs (3) of glass supports. Do not overtighten the studs
as the glass may break!
3. Using the supplied cylindrical head screws (9), rubber rings (12) and nuts (11)
mount two angle connectors (10) in the middle of the left (4) and right (8) glass.
Place the glass shelf (7) and fasten it by screwing.
4. Using the nuts (11), rubber rings (12) and screws (9) mount another 2 angle
connectors (10) in the rear part of the left (4) and right (8) glass. Fit the rear
glass (6) in the glass supports (1) and fasten the rear glass (6) with left (4) and
right (8) glass by screwing.
5. Using the nuts (11), rubber rings (12) and screws (9) mount 2 pairs of angle
connectors (10) in the upper areas of the left (4) and right (8) glass. Next, place
the upper glass (5) on the right (8), left (4) and rear (6) glass and fasten it to the
angle connectors on the right and left sides.
6. Finally, check whether all the glass panes have been tightly secured.
200274 5 / 6
EN
Cleaning
1. Clean regularly the interior and exterior of the glass top with a soft cloth and
food grad disinfectant.
2. Wipe the glass surfaces with a cloth soaked with clean water and dry
thoroughly.
