Page 1

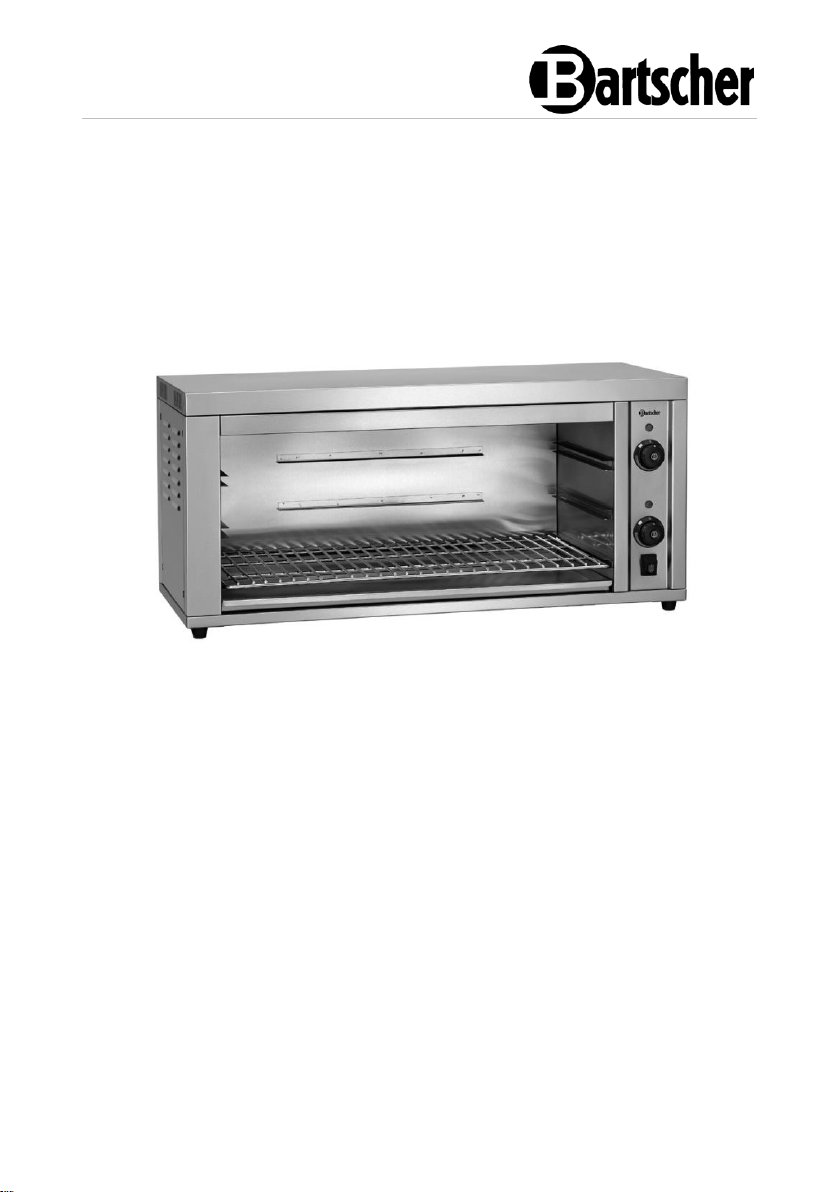

700-2Z II
100532
Page 2
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-
197
www.bartscher.com
Version: 1.0
Date of preparation: 2019-05-07
EN
Page 3
Original operating manual
1 Safety ............................................................................................................ 2
1.1 Explanation of signal words ..................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended use ............................................................................................ 5
1.4 Unintended Use ....................................................................................... 5
2 General information ....................................................................................... 6
2.1 Liability and warranty ................................ ............................................... 6
2.2 Copyright protection ................................................................................. 6
2.3 Declaration of conformity ......................................................................... 6
3 Transport, packaging and storage ................................................................. 7
3.1 Delivery Check ......................................................................................... 7
3.2 Packaging ................................................................................................ 7
3.3 Storage .................................................................................................... 7
4 Technical data ................................................................ ............................... 8
4.1 Technical specifications ........................................................................... 8

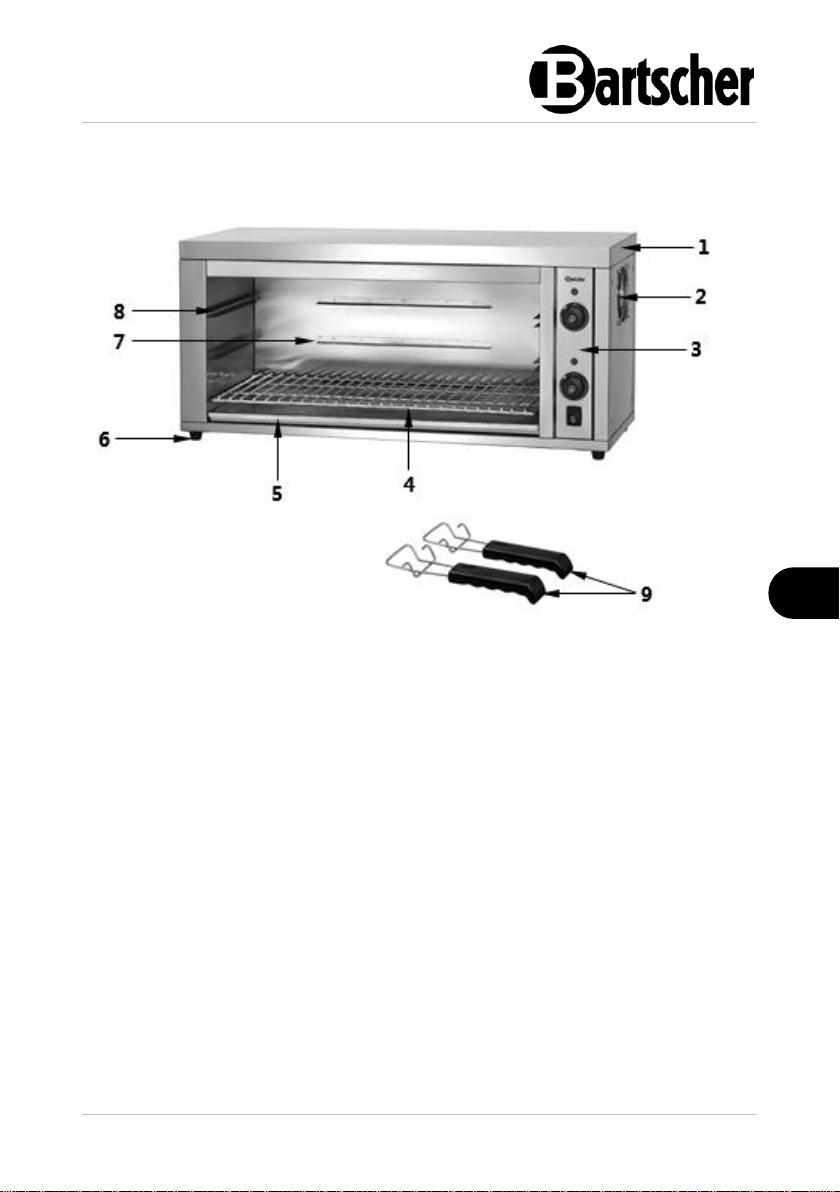

4.2 List of components of the appliance......................................................... 9
4.3 Functions of the appliance ....................................................................... 9
5 Installation and operation ............................................................................ 10
5.1 Installation .............................................................................................. 10
5.2 Operation ............................................................................................... 11
6 Cleaning ...................................................................................................... 14
6.1 Safety Instructions for cleaning .............................................................. 14
6.2 Cleaning ................................................................................................. 14
7 Possible Malfunctions .................................................................................. 15
8 Disposal ....................................................................................................... 16
100532 1 / 18
Page 4
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung d es Geräts und gilt als wichtige Inform ationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherheits hinweise und Handlungsanweisungen sch afft die Voraussetzung für das sich ere und sachgerechte Arbeiten mit d em Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts gelte nden örtlichen Unfallverhütungsvorsc hriften und allgemeinen Sicherheitsb estimmungen eingehalten werden. Diese Bedienungsanleitung ist Bestandt eil des Produkts und muss in unmitt elbarer Nähe des Geräts für das In¬stall ations-, Bedienungs-, Wartungs- und R einigungspersonal jederzeit zugängli ch auf¬bewahrt werden. Wenn das Gerät a n eine dritte Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 18 100532
Page 5
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
100532 3 / 18
Page 6
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
Flammable materials
• Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
• To avoid fire hazard, clean the appliance regularly.
• Do not cover the appliance with, e.g., aluminium foil or cloths.
• Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
• Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
• In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot surfaces
• Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
• Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
• You may transport and clean the appliance after it cools down entirely.
• It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
4 / 18 100532
Page 7
Safety
EN
Operating Personnel
• The appliance may only be operated by a qualified personnel and trained
specialist personnel.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your
own.
• Do not introduce any changes in the appliance nor modify it.
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Roasting, grilling, heating up and maintaining food warm in suitable
containers.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Preparation of food without suitable containers.
100532 5 / 18
Page 8
General information
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 18 100532
Page 9
Transport, packaging and storage
EN
3 Transport, packaging and storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
100532 7 / 18
Page 10
Technical data
EN
Name:
Salamander 700-2Z II
Art. No.:
100532
Material:
Stainless steel
Number of heating elements:
2
Number of heating zones:
2
Clearance height in mm:
285
Maximum temperature range, in °C:
250
Power supply:
4,4 kW / 400 V / 50 Hz
Dimensions (W x D x H) in mm:
910 x 375 x 425
Cooking grill dimensions:
705 x 320
Weight in kg:
29,5
4 Technical data
4.1 Technical specifications
We reserve the right to implement technical modifications!
Version / Characteristics
• Heat source: radiator
• Heating zones may be controlled separately
• Power regulation: stepless, continuous operation
• Height regulation of cooking grill
• Energy regulation: simmerstat
• Equipment connection: 3 NAC
• Control: knob
• Indicator lights: ON/OFF, heat-up
• The set includes: 1 grease drip tray, 1 grill, 2 grill handles
8 / 18 100532
Page 11
Technical data
EN
1. Housing
2. Fan
3. Control panel
4. Cooking grill
5. Grease drip tray
6. Adjustable feet (4 pcs)
7. Bearing rails
8. Cooking grill guide
9. Handles (2 pcs)
4.2 List of components of the appliance
4.3 Functions of the appliance
The appliance is intended for heating up, roasting and keeping food warm thanks to
efficient radiators located in the top section of the appliance.
100532 9 / 18
Page 12
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Keep minimum distance from flammable walls and objects; maintain space of 10
cm at both sides and 20 cm at the rear.
10 / 18 100532
Page 13
Installation and operation
EN
ATTENTION!
Grease and left-over food may enter the appliance.
During operation, always insert grease drip tray under the grill.
Connection
• Electrical connection of the appliance to mains power supply must be executed
by a qualified electrician, according to international, national and local
regulations in force.
• Do not use the appliance with an external timer or remote control.
5.2 Operation
• Przed pierwszym użyciem wyczyścić urzą dzenie i wypos ażenie zgodnie z e wskazówka mi zawartymi w punkcie 6 „Czyszczenie” . Make sure n o water enters electric installation and con nection box. Then, thoroughly dry the appliance and entire equipment.
• Insert the bottom cover in the appliance. The cover acts as a spacer between the heating element and left-over fo od tray.
• Carefully insert the connection box with th e heating element at the back edge of th e appliance. A pin in bottom part of th e connection box must enter a hole i n the main appliance. This way the con nection box is properly mounted.
Preparing the Appliance
1. Prior to first operation, clean the appliance and its equipment according to
instructions in section 6 “Cleaning”..
2. The appliance and entire equipment must be thoroughly dried.
3. Insert the cooking grill and grease drip tray.
4. Pay attention, so that during operation surfaces of the appliance are not subject
to influence of concentrated acids, vinegars, salt solutions nor herbal mixtures
for an extended period of time. If possible, such soilings should be wiped out
immediately, so that they do not damage the surface.
Settings
• The appliance is equipped with 2 radiators, located in its top section. They are
controlled with two separate energy regulators and provide for independent
regulation of temperature setting, depending from the type of the prepared food.
• Temperature may be set steplessly up to 250°C.
• If needed, a continuous operation may be set by rotating the energy regulator to
an adequately marked position.
100532 11 / 18
Page 14
Installation and operation
EN
10.
Heating up indicator lamp (orange),
right heating zone
11.
Energy regulator, right heating zone
12.
Heating up indicator lamp (orange),
left heating zone
13.
Energy regulator, left heating zone
14.
ON/OFF switch with integrated power
indicator light (green)
15.
Setting continuous operation
ATTENTION!
Direct preparation of food on cooking grill may cause damage to the
appliance.
Always use suitable utensil/container, resistant to high temperatures.
• For roasting and grilling the highest temperature should be set; for heating up
and keeping food warm — use the lowest temperature ranges.
• In order to switch off the radiators, the right temperature regulator should be set
to “0” (OFF) position.
Control Panel
Food Preparation
1. Depending on the type of prepared food or the height of a food container, select
suitable cooking grill guides (lower, central, upper).
2. Make sure the food does not come in contact with radiators.
3. Place food in a suitable container (plate, baking trays, etc.) on a cooking grill
and under the right heating zone.
4. Connect the appliance to a single grounded socket.
5. Turn the appliance on with the ON/OFF switch.
The green power indicator light in the ON/OFF switch lights up.
12 / 18 100532
Page 15
Installation and operation
EN
WARNING!
Risk of burns!
The appliance and food containers heat up considerably during
operation.
To remove the food, always use oven mitts that are resistant to high
temperatures.
The cooking grill heats up considerably during cooking.
To remove or relocate the cooking grill during operation, always use the
delivered handles.

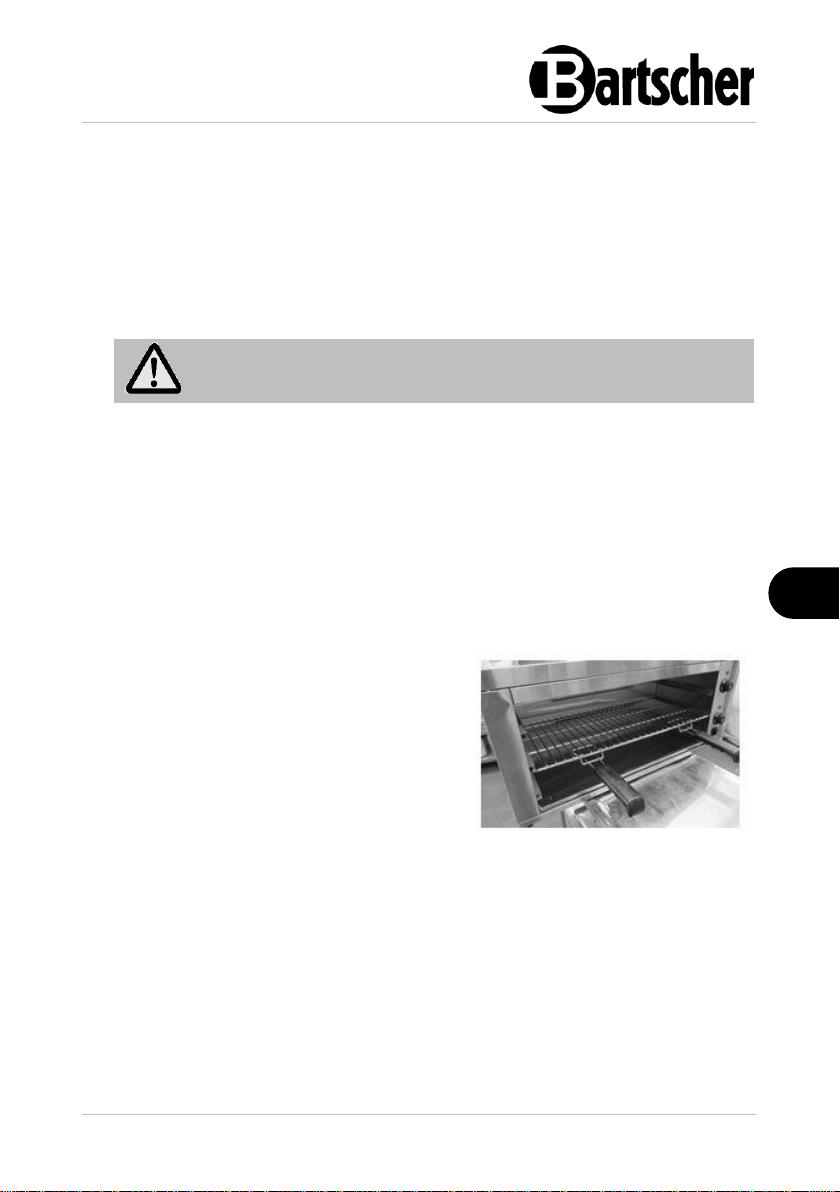

8. In order to remove the cooking grill during
operation, attach the handles (Fig. to the
right).
9. Carefully remove the cooking grill with the
use of handles and insert it again in guides
at a suitable level.
6. For each heating zone set a separate temperature, suitable for a given food,
selecting it within a range of 50°C – 250°C.
During heating up, a red indicator light of a given heating zone lights. As soon as
the set temperature is reached, the indicator light goes off. If a temperature in an
appliance drops and radiator is switched on again by the energy regulator, the
indicator light lights up again. This process is repeated until the temperature
regulator is rotated to “0” (OFF) position.
7. Remove the prepared food and serve.
100532 13 / 18
Page 16
Cleaning
EN
ATTENTION!
The cooking grill heats up considerably during cooking.
Always place a hot cooking grill on a pad resistant to high temperatures.
10. If an appliance is not used, rotate both temperature regulators to “0” (OFF)
position.
11. Switch the appliance off with the ON/OFF switch and disconnect them from the
power supply.
6 Cleaning
6.1 Safety Instructions for cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
1. At the end of the working day clean the appliance thoroughly.
2. Remove grease drip tray from the appliance. Empty the grease drip tray.
3. Remove the cooking grill.
4. Wash the cooking grill, handles and grease drip tray with mild washing agent.
Use a soft cloth, sponge or dish-washing brush.
5. Thoroughly rinse the cleaned elements in pure water.
6. Interior and exterior of the appliance should be cleaned with cleaning agents
that dissolve grease. Make sure that the cleaning agents used are food-grade.
Note: Follow the instructions of the cleaning agent’s manufacturer.
7. The washed surfaces should be thoroughly dried with a clean cloth.
8. Finally, dry all cleaned parts and surfaces with a soft cloth.
14 / 18 100532
Page 17
Possible Malfunctions
EN
Problem
Possible cause
Solution
The appliance is
connected to the power
supply; the appliance is
switched on but the green
indicator light in the
ON/OFF switch is off and
the appliance does not
heat up
The plug is not properly
connected to the socket
Remove the plug and
insert it properly in the
socket
Safety fuse tripped
Check the fuse, connect
the appliance to another
socket
Orange heating up
indicator light lights in
continuous mode: no
possibility of temperature
control
Interrupted contact with
the radiator
Contact the supplier
Damaged simmerstat
Contact the supplier
Orange heating up
indicator light does not
light, but a temperature
may be set
The preset temperature
has been reached
Check operation after
modification of settings
Damaged indicator light
Contact the supplier
9. Check the appliance’s ventilation slots at regular intervals; in case they are dirty,
clean them and thus providing for air circulation in the appliance. Clean with a
dry, plastic dish-washing brush.
10. Reinsert the cooking grill and grease drip tray.
7 Possible Malfunctions
Mögliche
100532 15 / 18
Page 18
Disposal
EN
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Disposal
Electrical appliance
Electrical appliances should be returned to designated collection points.
16 / 18 100532
Loading...
