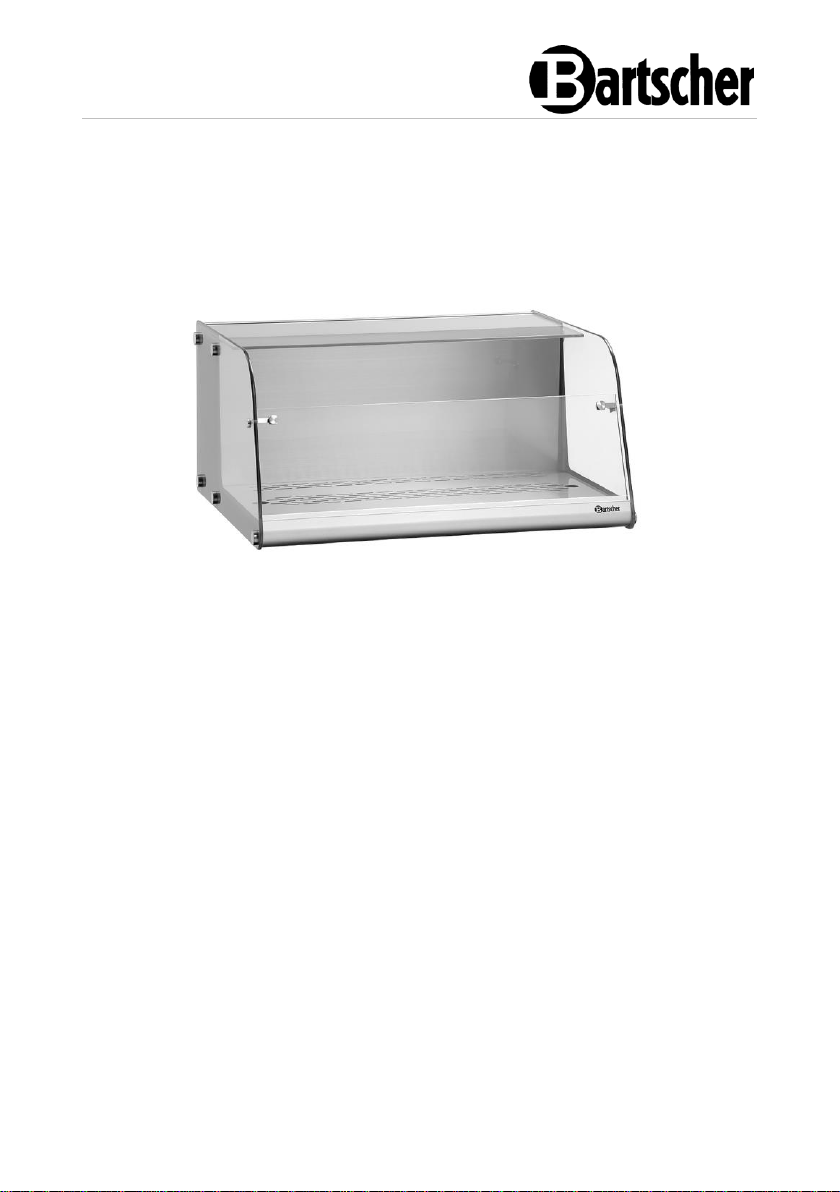

Page 1
40L-SBO
700239
Page 2
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2023-07-19
EN
2
Page 3
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 6
1.4 Unintended Use ....................................................................................... 6
2 General information ....................................................................................... 7
2.1 Liability and Warranty .............................................................................. 7
2.2 Copyright Protection ................................................................................ 7
2.3 Declaration of Conformity ........................................................................ 7
3 Transport, Packaging and Storage ................................................................ 8
3.1 Delivery Check ......................................................................................... 8
3.2 Packaging ................................................................................................ 8
3.3 Storage .................................................................................................... 8
4 Technical Data ............................................................................................... 9
4.1 Technical Specifications .......................................................................... 9
4.2 Functions of the Appliance ..................................................................... 10
4.3 List of Components of the Appliance ..................................................... 11
5 Installation and operation ............................................................................ 12
5.1 Installation .............................................................................................. 12
5.2 Operation ............................................................................................... 14
6 Cleaning and Maintenance .......................................................................... 18
6.1 Safety Instructions for Cleaning ............................................................. 18
6.2 Cleaning ................................................................................................. 19
6.3 Maintenance .......................................................................................... 20
7 Possible Malfunctions .................................................................................. 20
8 Disposal ....................................................................................................... 22
700239 1 / 22
Page 4
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung des Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisunge n schafft die Voraussetzung für d as sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalt en werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Ger äts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 22 700239
Page 5
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
700239 3 / 22
Page 6
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Incorrect operation of the appliance ma y cause fire or explosion hazard due to igniti on of its content.
Fire hazard / flammable materials hazard / explosion hazard!
• Do not use any electric devices in the appliance.
• Do not store nor use petrol or other flammable liquids and gases in the vicinity of
this or any other appliance. Those gases may cause fire or explosion hazard.
• Do not put into the appliance any explosive materials, like sprays filled with
flammable propellants. Contents of containers filled with flammable gases and
liquids may leak in low temperatures, and the contents may catch fire from
sparks generated by an electric appliance. Explosion hazard!
• In the case of coolant leakage, pull the plug from the socket. Remove all
sources of ignition in the vicinity, ventilate room and contact technical service.
Avoid coolant getting in contact with eyes, as it may cause serious eye damage.
• Never use any flammable liquids for cleaning the appliance or its parts. Gases
released may cause fire or explosion hazard.
• In the case of fire, disconnect the appliance from the power supply before
attempting adequate fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
• Defrosting process may not be sped up with mechanical means or heat energy
sources (candles or heaters) nor with any other means. Vapour produced may
cause short-circuit and too high temperatures may damage the appliance.
• All ventilation slots should not be obstructed during operation.
• Never attempt to damage cooling installation of the appliance.
4 / 22 700239
Page 7
Safety
EN
Operating personnel
• This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Children may only take dishes or food products from the device!
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your own.
• Do not introduce any changes in the appliance nor modify it.
• Do not drill hole in the appliance nor install any objects on it.
• Do not place any heavy objects on the appliance.
700239 5 / 22
Page 8
Safety
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Refrigeration of drinks, yoghurts, sandwich snacks, etc.
The appliance is intended for operation in maximum ambient temperature of 32°C
and relative humidity of 70%.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Storing flammable or explosive objects and liquids, such as ether,
petroleum or adhesives;
– Storing explosive materials, like sprays filled with flammable propellants;
– Storing pharmaceutical products or preserved blood;
– Storing live pets.
6 / 22 700239
Page 9
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
The warranty period for this appliance is 24 months, counted from the purchase
date.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
700239 7 / 22
Page 10
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
8 / 22 700239
Page 11
Technical Data
EN
Name:
Refrigerated display 40L-SBO
Art. No.:
700239
Material:
stainless steel, glass
Volume, in l:
40
Temperature range, min.–max., in °C:
2 - 6
Amount of coolant, in kg:
R600a / 0,040
Climate class:
4
Energy efficiency class:
C (EU Nr. 2019 / 2018)
Energy consumption, in kWh/year:
472
Baseplate material:
stainless steel
Display area dimensions (W x D), in mm:
645 x 300
Usable inner height:
260
Opening dimensions (W x D), in mm:
650 x 190
Power supply:
0,105 kW | 220-240 V | 50 Hz
Dimensions (W x D x H), in mm:
670 x 585 x 335
Weight, in kg:
24,8
4 Technical Data
4.1 Technical Specifications
We reserve the right to implement technical modifications.
700239 9 / 22
Page 12
Technical Data
EN
Version / Properties
• Colour: silver
• Temperature control: thermostatic, in 1°C increments
• Control: electronic
• Digital display
• ON/OFF switch
• Indicator light: ON/OFF
• Cooling: static
• Automatic defrost function
• Front pane: with opening for removing snacks
• Type of glazing:
– single glazing
– safety glass
• Features: Baseplate removable
More information on the appliance is available in our website www.bartscher.com
or, pursuant to the Regulation (EU) 2019/2018, in our product data base at
https://energy-label.ec.europa.eu/. Enter article number for a given model.
4.2 Functions of the Appliance
The display fridge case is ideal for the attractive presentation and cooling of drinks,
yoghurts or sandwiches in the self-service area. The user-friendly display fridge
case has an opening for removing chilled beverages or food items.
10 / 22 700239
Page 13
Technical Data
EN

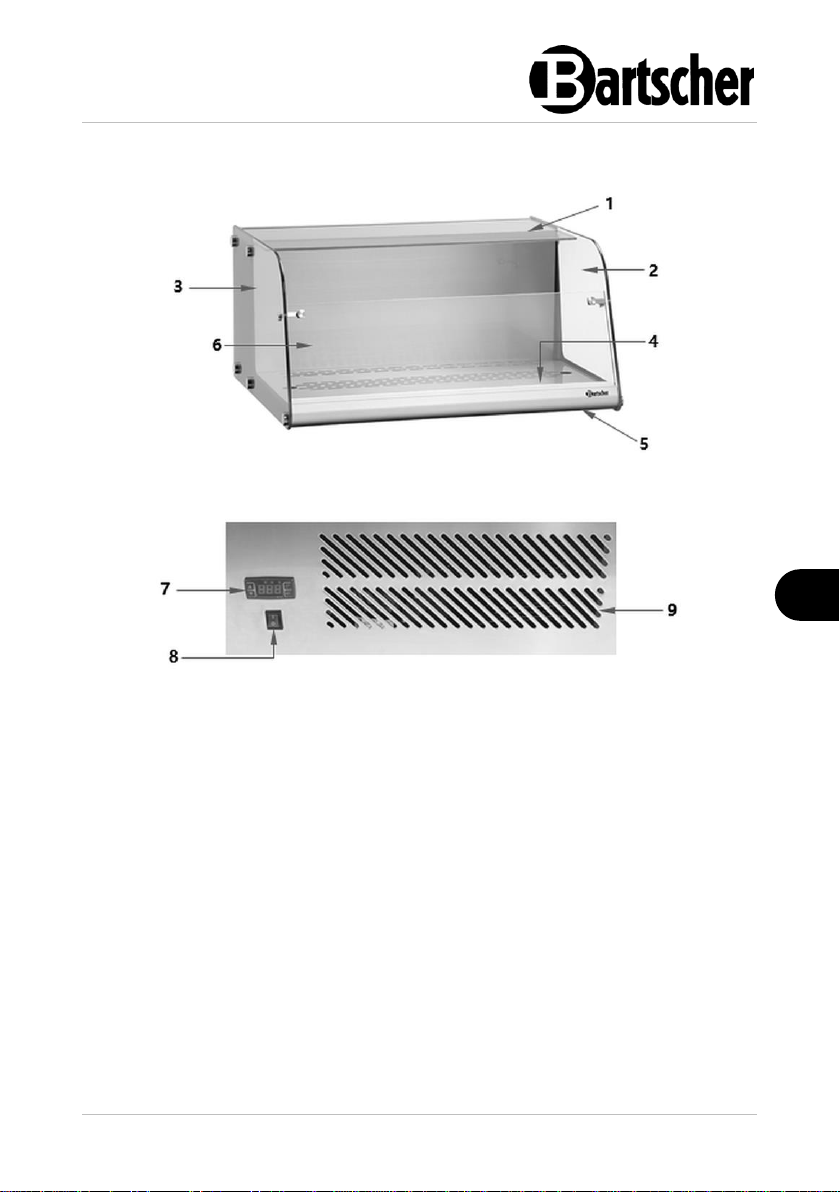

Operator side view
Fig. 1
1. Top glass, removable
2. Right side glass
3. Left side glass
4. Baseplate, removable
5. Housing
6. Left side glass
7. Digital temperature controller
8. ON/OFF switch with integrated
power indicator light (red)
9. Ventilation openings
4.3 List of Components of the Appliance
700239 11 / 22
Page 14
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Nie należy umieszczać urządzenia w gorąc ym otoczeniu a ni w pobliżu m ateriałów łat wopalnych.
• The appliance requires sufficient airflow f or proper operation. Assure a minim um lateral clearance of the appliance of 1 0 cm.
• Die Öffnungen am Gerät niemals abdec ken oder blockieren.
• In order to avoid damage to the compressor, do not tilt the appliance more than
45° when positioning or transporting it.
• The electric socket should be easil y accessible so it is possible to quickly discon nect the power cord when necessar y. The electric socket should be easil y accessible so it is possible to quickly discon nect the power cord when necessar y. The electric socket should be easil y accessible so it is possible to quickly discon nect the power cord when necessar y.
• Nie należy umieszczać urządzenia w gorąc ym otoczeniu a ni w pobliżu m ateriałów łat wopalnych.
• The appliance requires sufficient airflow f or proper operation. Assure a minimu m lateral clearance of the appliance of 10 c m.
• Die Öffnungen am Gerät niemals abdec ken oder blockieren.
• Do not place the appliance in direct sunlight or in the vicinity of heat sources
(cooker, radiator, heating devices, etc.). Heat sources may negatively affect
power consumption, and restrict functions of the appliance, too.
• The electric socket should be easil y accessible so it is possible to quickly discon nect the power cord when necessar y. The electric socket should be easil y accessible so it is possible to quickly discon nect the power cord when necessar y. The electric socket should be easil y accessible so it is possible to quickly discon nect the power cord when necessar y.
12 / 22 700239
Page 15
Installation and operation
EN
• Do not block nor cover the ventilation openings nor air inlet or air outlet of the
appliance.
• Nie należy umieszczać urządzenia w gorąc ym otoczeniu a ni w pobliżu m ateriałów łat wopalnych.
• The appliance requires sufficient airflow f or proper operation. Assure a minimu m lateral clearance of the appliance of 10 cm.
• Die Öffnungen am Gerät niemals abdec ken oder blockieren.
• Place the appliance so that sufficient air circulation is ensured. Do not block nor
cover ventilation openings in the rear wall of the appliance.
• Leave at least 10 cm clearance from walls and other objects.
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
• Prior to first use, the appliance should be installed and left standing upright for at
least 2 hours, before it is connected to power supply.
• After a power failure or when the plug is removed from the socket, do not
reconnect the appliance to power supply for at least 5 minutes.
700239 13 / 22
Page 16
Installation and operation
EN
5.2 Operation
Appliance Preparation
1. Before the first use, clean the appliance thoroughly according to the instructions
included in section 6. 'Cleaning'.
2. Then dry the appliance thoroughly.
3. Insert the baseplate into the appliance, placing it on the bottom surface.
4. Place the top glass on the housing.
Starting the appliance
1. Plug the appliance into a suitable single socket.
2. Switch the appliance on with the ON/OFF switch located at the service side.
The switch integrated power indicator (red light) comes on.
The appliance will be cooled down to the factory pre-set temperature.
The digital display shows current temperature inside the appliance.
The LCD cooling indicator is lit throughout the entire cooling process.
3. If needed, the temperature may be altered with digital temperature control
regulator keys. Observe indications set forth in 'Settings'.
4. Place suitable beverages and food in the refrigerated display only after the
device has reached sufficient cooling power. Observe information in the section
'Cooling beverages/food'.
14 / 22 700239
Page 17
Installation and operation
EN

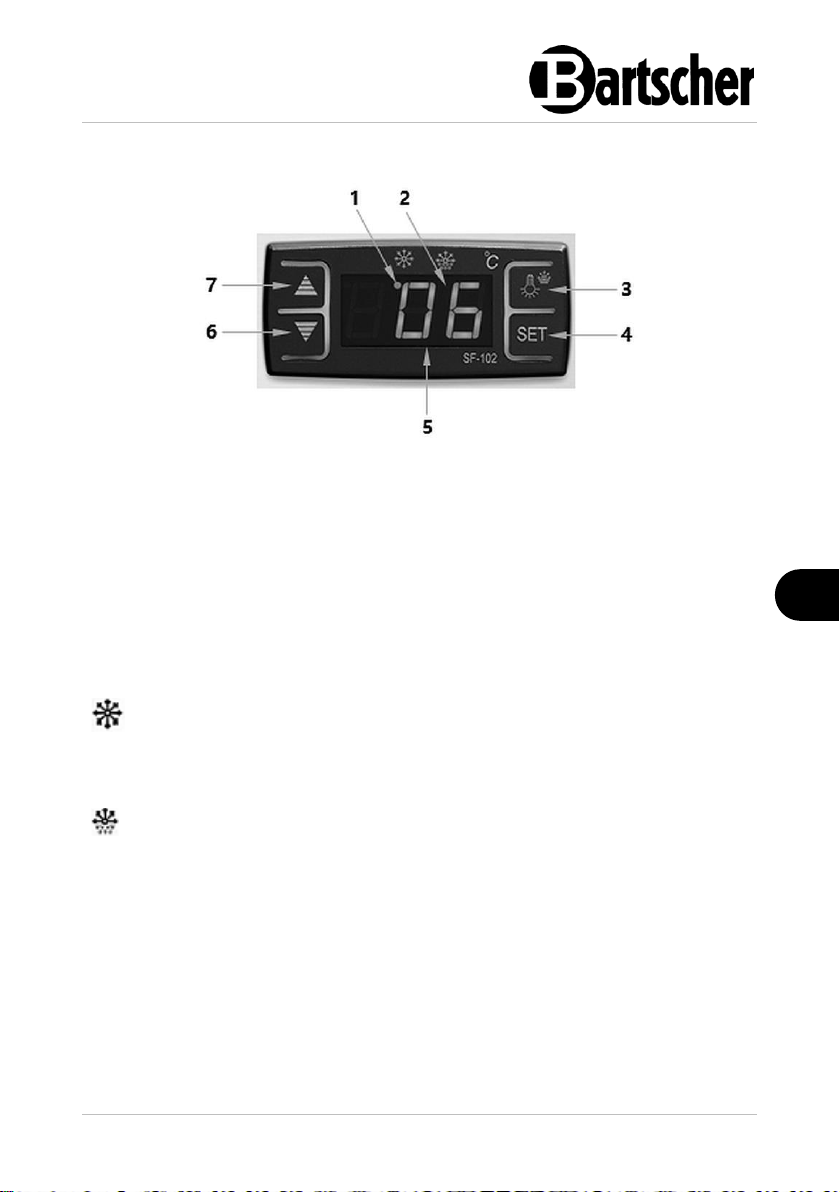

1. LCD cooling indicator
2. LCD defrosting indicator
3. Lighting / defrosting button
4. SET function button
5. Digital display
6. Temperature decrease button
7. Temperature increase button
LCD cooling indicator
This indicator is lit over cooling process;
it remains off as long as the cooling temperature remains at constant
level, and blinks during switch on delay.
LCD defrosting indicator
This indicator is lit over defrosting process;
goes off when the defrosting process is completed,
and flashes during defrost delay.
• Przed pierwszym użyciem wyczyścić urzą dzenie i wypos ażenie zgodnie z e wskazówka mi zawartymi w punkcie 6 „Czyszczenie” . Make sure n o water enters electric installati on and connectio n box. Nastę pnie dokładnie os uszyć urządze nie i element y wyposażenia .
• Setzen Sie die Boden-Abdeckung in das Becken ein. The cover acts as a spac er between the heating element and left- over food tray.
• Carefully insert the connection box with th e heating element at the back edge of t he appliance. A pin in bottom part of th e connection box must enter a hole in the main appliance. This way t he connection box is properly mounted.
Digital temperature control / button functions
LCD indicators
700239 15 / 22
Page 18
Installation and operation
EN
•
Settings
Setting the Set Value (Set Temperature Value)
The optimum temperature setting is factory default and it equals the appliance
operating temperature of 0–6°C (depending on the external temperature).
The set temperature may be changed the following way:
– press key shortly; the set value will start to flash immediately;
– use or keys to increase or decrease temperature value;
– use key to confirm the set temperature value.
NOTE!
If no other key is pressed within 10 seconds, the display jumps from the
temperature setting to the display of the temperature inside the
refrigerated display.
The displayed temperature value is the measured value in the area of the
temperature sensor. It serves the purpose of controlling the compressor.
Automatic Defrosting
The appliance defrosts automatically 3 times over a 24-hour period.
Manual Defrosting
If the cooling performance of the appliance drops, manual defrost is required.
Press the manual defrost key and hold it pressed for 6 seconds, to initiate
instant defrosting.
The defrosting LCD indicator light ' ' is lit.
Subsequent defrosting cycle is initiated after 8 hours.
16 / 22 700239
Page 19
Installation and operation
EN

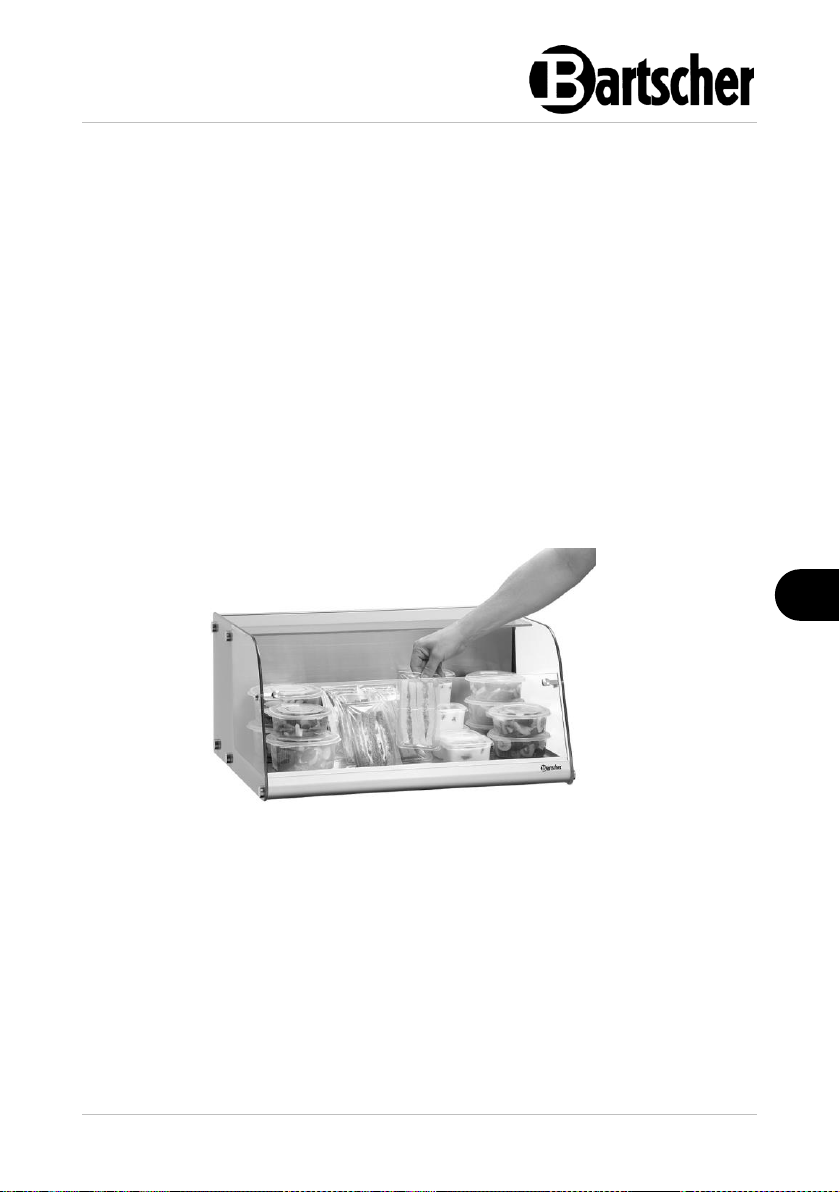

Fig. 2
Cooling of beverages/food products
1. Prepare suitable beverages/foods for refrigeration in the display fridge case.
2. Only put packaged drinks, salads, snacks, sandwiches, yoghurts, etc.
3. Immediately after the set temperature has been reached inside the appliance,
the LED cooling indicator light goes off and the appliance is ready for placing
relevant food products in.
4. The products in the refrigerated display should be placed by inserting them
through the large opening.
NOTE!
Do not overload the device, and leave enough space between the stored
food products to provide air circulation via the openings in the display
area.
Do not place warm dishes in the refrigerated display. Cool them down to
ambient temperature first.
5. Remove the food products when required.
Switching the Appliance Off
1. If the appliance is not to be used any more or is scheduled for cleaning, it should
be switched off with the ON/OFF switch.
2. Disconnect the appliance from the mains socket (pull the plug out).
700239 17 / 22
Page 20
Cleaning and Maintenance
EN

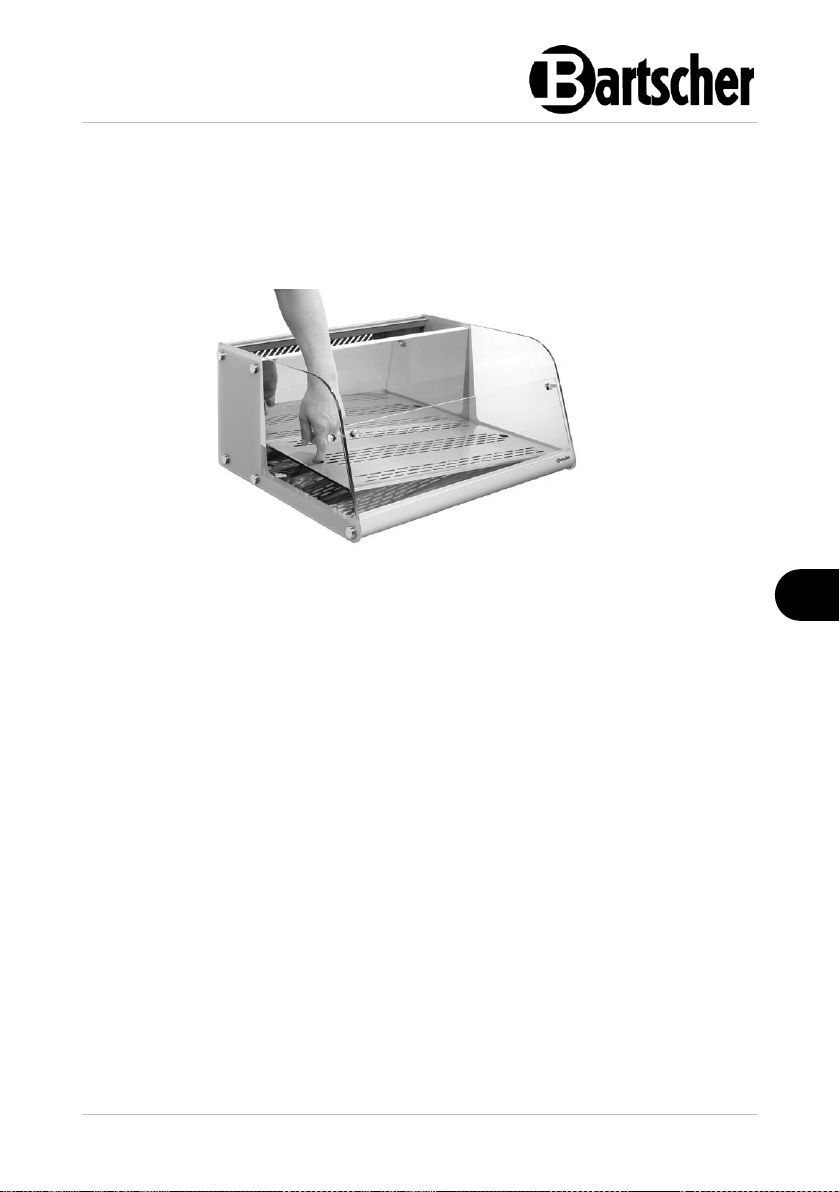

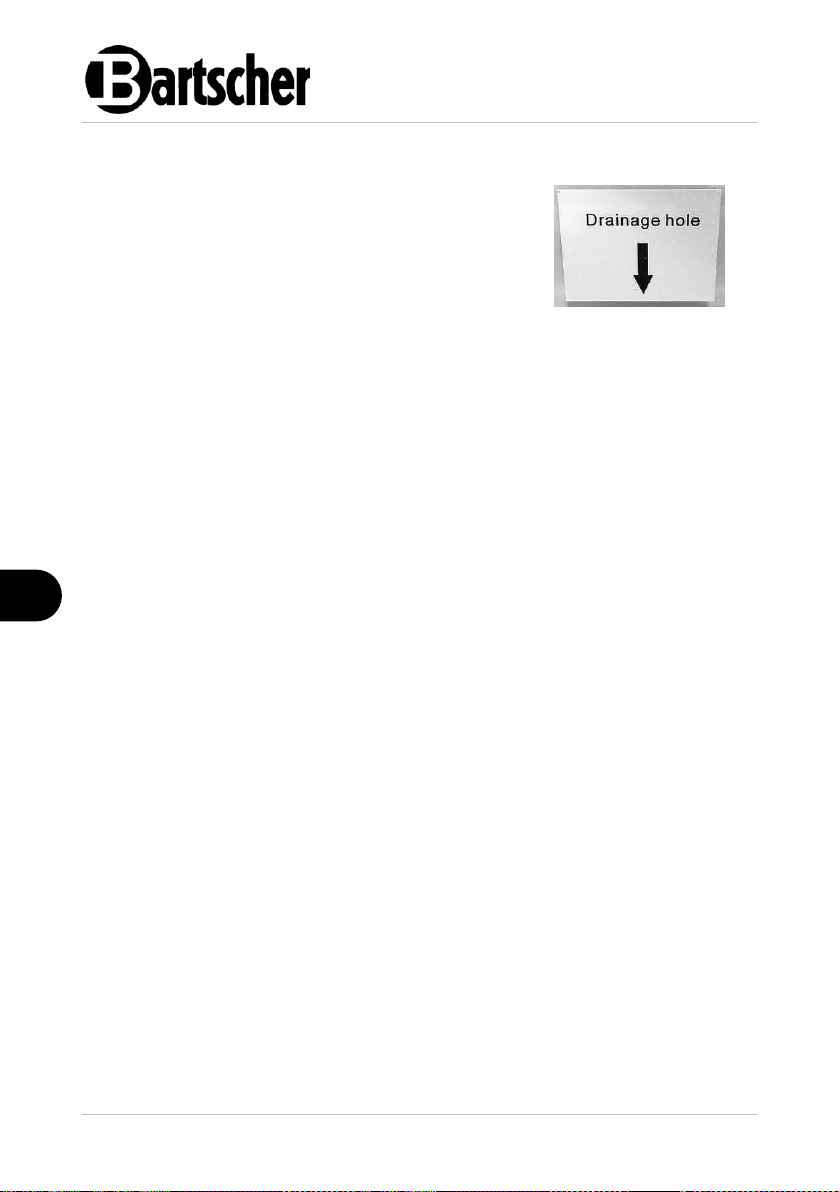

When condensed water has accumulated
underneath the baseplate, you can drain it with the
hose located on the left side of the device.
The hose location is marked as shown in the figure
on the right.
Fig. 3
Draining the condensed water
1. Pull the plug out of the hose.
2. Drain the condensed water into a suitable container.
3. Replace the stopper in the hose.
6 Cleaning and Maintenance
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
18 / 22 700239
Page 21
Cleaning and Maintenance
EN
Fig. 4
6.2 Cleaning
1. At the end of a working day, clean the appliance thoroughly.
2. Remove food products from the refrigerated display and store them temporarily
in a refrigerator to prevent their deterioration.
3. Remove the top glass and take the baseplate out of the device.
4. Clean the top glass pane and baseplate with warm water and a mild detergent,
using a soft cloth or sponge.
5. Rinse with fresh water to remove all traces of the cleaning agent.
6. Wipe the display fridge case thoroughly inside and out with a soft, damp cloth.
7. Wipe cleaned surfaces with a cloth moistened in fresh water.
8. Finally, thoroughly dry all cleaned parts and surfaces with a soft cloth.
9. Refrigerated display should be cleaned regularly from inside with a cleaning
disinfectant approved for contact with food.
10. Replace the baseplate and place the top glass on the body.
700239 19 / 22
Page 22
Possible Malfunctions
EN
Error
Possible Cause
Solution
No cooling
Plug not connected properly
Check the plug and insert it
properly in a socket
Electric power supply safety
fuse damaged
Check a fuse, connect the
appliance to another socket
and check it
No power supply.
Check the electric power
supply
Damaged temperature
controller
Contact the supplier
Loss of the coolant
Contact the supplier
6.3 Maintenance
Let the appliance to be inspected by professional technician at least once a year or
as required.
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
20 / 22 700239
Page 23
Possible Malfunctions
EN
Malfunction
Possible cause
Solution
Insufficient cooling
efficiency
Heat source or direct sunlight
nearby
Move the appliance away
from heat sources
Poor air circulation around
the appliance
Ensure sufficient clearances
from walls or other objects
Incorrect temperature setting
Check the setting, set a
lower temperature if
necessary
Too little clearance between
objects inside the appliance
Provide for sufficient
clearance between objects
inside the appliance
Appliance is overfilled
Remove unnecessary items
Appliance
generates loud
noises
Appliance is not placed on
an even surface
Place the appliance on an
even surface
Appliance touches walls or
other objects
Ensure sufficient clearances
from walls or other objects
Spare Parts
Spare parts for the purpose of repairing this appliance, as stipulated in Annex II to
the REGULATION (EU) 2019/2018, are available for at least eight years, counted
from the date of introduction of the last appliance of this model to market.
700239 21 / 22
Page 24
Disposal
EN
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Disposal
Electrical Appliance
Electrical appliances should be returned to designated collection points.
Coolant
The propellant used in the appliance is flammable. It should be utilised pursuant to
national regulations in force.
22 / 22 700239
