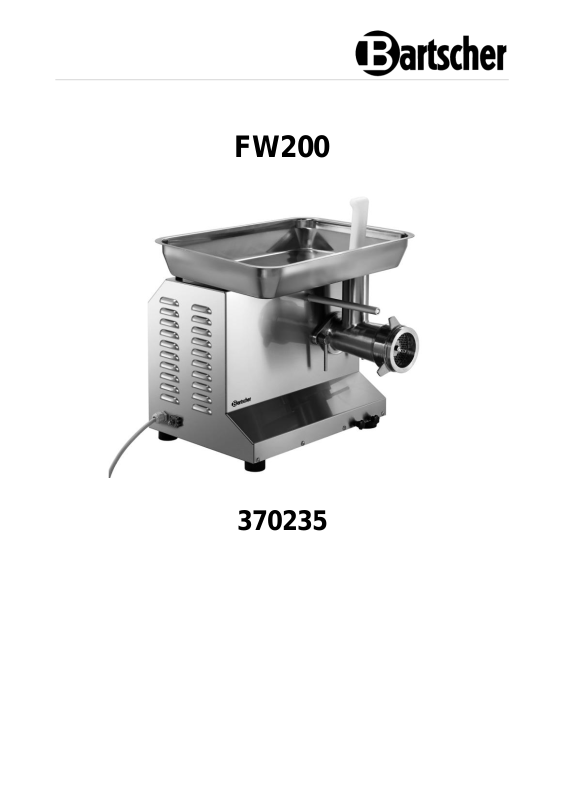

FW200
370235
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2019-06-11
EN
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of signal words ..................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended use ............................................................................................ 5
1.4 Unintended Use ....................................................................................... 5
2 General information ....................................................................................... 6
2.1 Liability and warranty ................................ ............................................... 6
2.2 Copyright protection ................................................................................. 6
2.3 Declaration of conformity ......................................................................... 6
3 Transport, packaging and storage ................................................................. 7
3.1 Delivery Check ......................................................................................... 7
3.2 Packaging ................................................................................................ 7
3.3 Storage .................................................................................................... 7
4 Technical data ................................................................ ............................... 8
4.1 Technical specifications ........................................................................... 8
4.2 List of components of the appliance......................................................... 9
4.3 Functions of the appliance ....................................................................... 9
5 Installation and operation ............................................................................ 10
5.1 Installation .............................................................................................. 10
5.2 Operation ............................................................................................... 11
6 Cleaning ...................................................................................................... 15
6.1 Safety Instructions for cleaning .............................................................. 15
6.2 Cleaning ................................................................................................. 15
7 Possible Malfunctions .................................................................................. 17
8 Disposal ....................................................................................................... 17
370235 1 / 19
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung d es Geräts und gilt als wichtige Inform ationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherheits hinweise und Handlungsanweisungen sch afft die Voraussetzung für das sich ere und sachgerechte Arbeiten mit d em Gerät. Darüber hinaus müssen die für den Einsatzbereich des Geräts gelte nden örtlichen Unfallverhütungsvorsc hriften und allgemeinen Sicherheitsb estimmungen eingehalten werden. Diese Bedienungsanleitung ist Bestandt eil des Produkts und muss in unmitt elbarer Nähe des Geräts für das In¬stall ations-, Bedienungs-, Wartungs- und R einigungspersonal jederzeit zugängli ch auf¬bewahrt werden. Wenn das Gerät a n eine dritte Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 19 370235
Safety
EN
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
370235 3 / 19
Safety
EN
Supervised usage only
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
Operating Personnel
• The appliance may only be operated by qualified personnel and trained
specialist personnel.
• This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Safety of Meat Grinder Operation
• Never place any cloths, napkins nor any other objects on or under the appliance
during operation to avoid injuries and material damages in the event of fire,
electric shock or excessive heat.
• Prior to disassembly/assembly of components, cleaning or moving the appliance
into other location, switch it off (turn the ON/OFF switch to “OFF” position) and
disconnect it from electric power supply (pull the plug out).
• When assembling the appliance never use force.
• Switch the appliance on only after its complete and correct assembly. To this
end, read indications in section 5.2 “Operation”.
• Never reach into the filling shaft, neither insert any objects in the outlet of the
worm housing when the appliance is connected to mains supply.
• Never put hair, clothing nor kitchen utensils into the filling shaft of the appliance.
• Prior to switching on, make sure that the filling shaft of the appliance is free of
any foreign bodies.
• Never keep your face over the filling shaft of the running appliance. During
operation, chips of bone scraps or hard ingredients (fruit stones, leaf stalks etc.)
may be projected.
Improper Use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used when its technical condition is flawless and
allows for safe operation.
4 / 19 370235
Safety
EN
• The appliance may only be used when all connections are executed according
to rules of law in force.
• The appliance may only be used when it is clean.
• Use only original spare parts. Never attempt to repair the appliance on your
own.
• Do not introduce any changes in the appliance nor modify it.
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Grinding of suitable food products (meat, vegetables) with the use of
adequate accessories.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
– Grinding of frozen meat.
– Processing of bones.
370235 5 / 19
General information
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 19 370235
Transport, packaging and storage
EN
3 Transport, packaging and storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
370235 7 / 19
Technical data
EN
Name:
Meat grinder FW200
Item No.:
370235
Material:
Stainless steel
Material of grinder funnel:
Stainless steel
Diameter of filling shaft, in mm:
50
Diameter of disks, in mm:
82
Max. output, in kg/h:
200
Power supply:
1.47 kW / 230 V / 50 Hz
Dimensions (W x D x H) in mm:
500 x 435 x 445
Weight in kg:
30,8
4 Technical data
4.1 Technical specifications
We reserve the right to implement technical modifications!
Version / Characteristics
• Colour: silver
• Reverse run
• ON/OFF button
• Indicator lights: ON/OFF, forward run, reverse run
• Detachable grinder funnel and grinding unit
• All stainless steel components are dishwasher-safe.
• The set includes: 1 perforated disk (4.5 mm), 1 stainless steel 4-arm blade, 1
pusher
8 / 19 370235
Technical data
EN
Fig. 1
1. Filling shaft
2. Grinder funnel
3. ON/OFF switch
4. Housing
5. Adjustable feet (4x)
6. Worm housing
7. Screw connection for accessories
(optionally)
8. Worm
9. Locking ring
10. Magnetic insert for accessories
(optionally)
11. Pusher
12. Stainless steel 4-arm
blade
13. Perforated disk (4.5 mm)
4.2 List of components of the appliance
4.3 Functions of the appliance
Meat grinder is intended for grinding meat.
370235 9 / 19
Installation and operation
EN
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• In order to work without interruptions, keep at least 10 cm of free space from left
and right side, as well as from the rear, and 50 cm over the appliance.
10 / 19 370235
Installation and operation
EN
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
• Do not use the appliance with an external timer or remote control.
5.2 Operation
Before the First Use
1. Make sure that all components of the appliance and accessories are available
and in sound condition.
2. Prior to first use, thoroughly clean the appliance and equipment according to
instructions in section 6 “Cleaning”. Prior to assembly, thoroughly dry all
components.
3. Always use the enclosed pusher in order to carefully push meat into the filling
hopper and worm housing.
Indications and Advices
• Always process only fresh food products. Especially in the case of meat, make
sure it is processed directly prior to heat treatment or consumption: ground
meat, even if stored in a refrigerator, features a short due date of consumption.
Observe provisions of acts of law and regulations in force.
• When processing larger quantities of food products, divide them into portions,
and then process them within 2–3 minutes. Switch the appliance off between
processing of subsequent portions, so that the appliance does not overheat.
Prepare another portion during the break.
• Never use the appliance for processing of too hard and too fibrous food
products (e.g. fruit stones, shells, nuts, bones, cartilage, thick tendons, etc.).
Remove them prior to processing. Parboil hard vegetables prior to grinding.
370235 11 / 19
Installation and operation
EN
Fig. 2:
• Already at the process of meat grinding add necessary seasoning, herbs, onion
(e.g. in the case of ground meat or minced meat) in order to obtain a better
blend. Mill hard seasoning, e.g. grains of pepper, nutmeg, etc. prior to adding
them.
• Meat grinder is not intended for grinding highly watery food products.
Assembly
1. Use fixing screws (b) to attach the worm housing (6) to the appliance.
2. Insert the worm (c) into the worm housing (6).
3. Insert stainless steel blade (12) onto the screw (c) of the worm (c), making sure
that the smooth cutting side is faced outwards.
12 / 19 370235
Installation and operation
EN
WARNING!
Injury hazard! Stainless steel blade is very sharp!
Exercise extreme caution when assembling the appliance.
Fig. 3
① Start button
② Stop button
③ Reverse run function button
④ Indicator light of forward run function
⑤ Indicator light of power supply
⑥ Indicator light of reverse run function
4. Insert the stainless steel blade (12) onto the perforated disk (13).
5. Then screw the locking ring (9) clockwise onto the worm housing (6).
Operating Elements
1. Press Start ① to switch the appliance on.
2. Press Stop ② o switch the appliance off.
370235 13 / 19
Installation and operation
EN
1. When operating the meat grinder pay
attention to keep the correct working
position of your body (Fig. 4).
Fig. 4
3. With the reverse run button ③ you may change the direction of revolutions in
order to extract ingredients that stuck in the worm housing. You need to press
and hold the button to operate it.
4. Indicator light ④ is lit, when the appliance is processing meat in forward run.
5. Indicator light of power supply ⑤ is lit, when the appliance is plugged into the
mains.
6. Indicator light ⑥ is lit, when the appliance is operated in the reverse run.
Start-up
1. Mind that
2. Slice the meat into pieces of suitable size.
3. Put the sliced pieces into grinder funnel.
4. Switch the appliance on.
5. When the motor is on, slide the meat portion by portion to the filling shaft.
6. Always use the enclosed pusher; never use your hands nor any other objects to
do this.
7. When the meat is processed, screw the locking ring off, turning it counterclockwise.
14 / 19 370235
Cleaning
EN
6 Cleaning
6.1 Safety Instructions for cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
Appliance Disassembly
The appliance should be disassembled the following way:
– screw the locking ring off, turning it counter-clockwise and remove it,
– remove all components from the worm housing (perforated disk,
stainless steel blade, worm shaft),
– remove the pusher from the filling shaft,
– remove grinder funnel from the worm housing,
– turn the locking ring counter-clockwise to screw the worm housing off,
– to end with, remove the worm housing from the appliance,
– remove residues of processed food products from the worm housing and
filling shaft.
NOTE: Clean the appliance directly after each use and do not let the
residues of food products to dry up on the housing nor any other
component of the meat grinder.
370235 15 / 19
Cleaning
EN
Cleaning of the Appliance and Accessories
1. Wash the detachable stainless steel components with a mild cleaning agent.
Use a soft sponge or dishwashing brush for cleaning.
NOTE: All detachable stainless steel components are dishwasher-safe.
2. Residues of food products that dried up on the detachable components of the
appliance may be easily removed after soaking them for a while in warm water.
3. To end with, rinse the cleaned components in clean water and thoroughly dry.
4. Wipe the motor block and connection cable only with a slightly damp cloth.
Make sure that no liquid penetrates ventilation slots at the rear and bottom side
of the appliance.
5. Carefully dry the motor block.
6. Leave all cleaned components for ca. 1/2 hour to dry in open air.
7. Lubricate perforated disks, worm and stainless steel blade with a minute amount
of edible oil, to prevent them from rusting.
Storing the Appliance
1. If the appliance is to remain unused for a longer period of time, clean it,
observing indications in section 6 “Cleaning” and store in a dry, clean place,
safe from frost and sunlight, and out of the reach of children. Do not place any
heavy objects on the appliance.
2. All components should be stored together. Insert the worm shaft, stainless steel
blade and perforated disk into the worm housing, screw the locking ring onto the
worm housing and secure the worm housing onto the appliance housing, using
the locking ring. This way you will avoid injuring yourself with the stainless steel
blade and loosing components. Put the grinder funnel onto the screw housing,
and insert the pusher into the filling shaft.
3. Cover the appliance to protect it against dust and soiling.
16 / 19 370235
Possible Malfunctions
EN
Malfunction
Possible reason
Solution
The appliance does not
start.
The plug is not properly
connected to the socket.
Check the power supply.
Stop button switched on.
Press the Start button.
The Start button does not
work.
Contact the supplier.
Check if the installation
process was carried out
correctly.
See the safety and
installation indications.
The appliance does not
grind the meat finely
enough.
The detachable
components are correctly
assembled.
Check the assembly.
The blade is not inserted
correctly.
Re-assemble the
components following the
indications.
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
7 Possible Malfunctions
Mögliche
8 Disposal
Electrical appliance
Electrical appliances should be returned to designated collection points.
370235 17 / 19
Loading...
