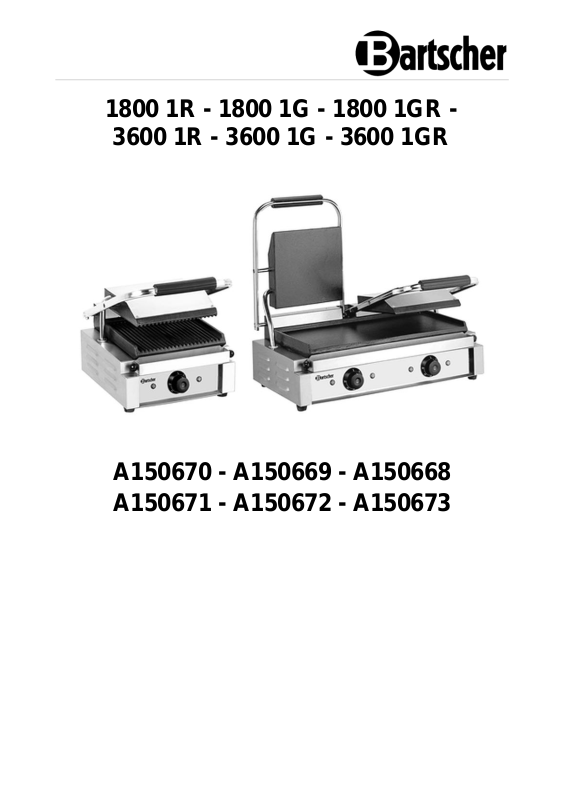

1800 1R - 1800 1G - 1800 1GR -
3600 1R - 3600 1G - 3600 1GR
A150670 - A150669 - A150668
A150671 - A150672 - A150673
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 8.0
Date of preparation: 2023-08-31
EN
2
Original instruction manual
1 Safety ............................................................................................................ 2
1.1 Explanation of Signal Words .................................................................... 2
1.2 Safety instructions.................................................................................... 3
1.3 Intended Use ........................................................................................... 6
1.4 Unintended Use ....................................................................................... 6
2 General information ....................................................................................... 7
2.1 Liability and Warranty .............................................................................. 7
2.2 Copyright Protection ................................................................................ 7
2.3 Declaration of Conformity ........................................................................ 7
3 Transport, Packaging and Storage ................................................................ 8
3.1 Delivery Check ......................................................................................... 8
3.2 Packaging ................................................................................................ 8
3.3 Storage .................................................................................................... 8
4 Technical Data ............................................................................................... 9
4.1 Technical Specifications .......................................................................... 9
4.2 Functions of the Appliance ..................................................................... 12
4.3 List of Components of the Appliance ..................................................... 13
5 Installation and operation ............................................................................ 15
5.1 Installation .............................................................................................. 15
5.2 Operation ............................................................................................... 16
6 Cleaning ...................................................................................................... 19
6.1 Safety Instructions for Cleaning ............................................................. 19
6.2 Cleaning ................................................................................................. 20
7 Possible Malfunctions .................................................................................. 21
8 Disposal ....................................................................................................... 22
A150670 1 / 22
Safety
EN
Read this instruction manual before using and keep it available
at all times!
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
Diese Bedienungsanleitung beschreibt di e Installation, Bedienung und Wartung d es Geräts und gilt als wichtige Infor mationsquelle und Nachschlagewer k. Die Kenntnis aller enthaltenen Sicherh eitshinweise und Handlungsanweisu ngen schafft die Voraussetzung f ür das sichere und sachgerechte Ar beiten mit dem Gerät. Darüber hinaus müssen die für den Einsatzbereic h des Geräts geltenden örtlichen Unfall verhütungsvorschriften und allgemeine n Sicherheitsbestimmungen eingehalten werden. Diese Bedienungsanleitung is t Bestandteil des Produkts und muss in unmittelbarer Nähe des Geräts für das In¬stallations-, Bedienu ngs-, Wartungs- und Reinigungspers onal jederzeit zugänglich auf¬bewahrt werd en. Wenn das Gerät an eine dritt e Person
weitergegeben wird, muss die Bedienungsa nleitung mit ausgehändigt werden.
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
2 / 22 A150670
Safety
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
, die
1.2 Safety instructions
Electrical Current
• Too high a mains voltage or incorrect installation may cause electric shock.
• The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
• To avoid short-circuit, the appliance should be kept dry.
• If there are malfunctions during operation, disconnect the appliance from the
power supply.
• Do not touch the appliance’s plug with wet hands.
• Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
• Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
• Do not transport the appliance, holding it by the power cord.
• Do not allow the power cord to come into contact with heat sources or sharp
edges.
• Do not bend, pinch nor knot the power cord.
A150670 3 / 22
Safety
EN
• Always completely unwind the power cord.
• Never place the appliance or other objects on the power cord.
• Always take hold of the plug to disconnect the appliance from the power supply.
• Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
• Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
• To avoid fire hazard, clean the appliance regularly.
• Do not cover the appliance with, e.g., aluminium foil or cloths.
• Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
• Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
• In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
• Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Hot Surfaces
• Surfaces of the appliance become hot during operation. Burning hazard! High
temperature remains for some time after switching the appliance off.
• Do not touch any hot surfaces of the appliance. Use the provided handling
elements and holders.
• You may transport and clean the appliance after it cools down entirely.
• It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
4 / 22 A150670
Safety
EN
Supervised Usage only
• Only supervised appliance may be used.
• Always remain in an immediate vicinity of the appliance.
Operating personnel
• This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
• Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper use
• Unintended or prohibited use may cause damage to the appliance.
• The appliance may only be used in a technically flawless condition, providing for
safe use.
• The appliance may only be used with connections in a technically flawless
condition, providing for safe use.
• The appliance may only be used clean.
• Use only original spare parts. Never attempt to repair the appliance on your
own.
• Do not attempt to modify nor alter the appliance.
A150670 5 / 22
Safety
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
– Grilling of suitable food products.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
6 / 22 A150670
General information
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
A150670 7 / 22
Transport, Packaging and Storage
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
8 / 22 A150670
Technical Data
EN
Name:
Contact grill 1800 1R
Art. No.:
A150670
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
1
Grill surface version:
ribbed
Temperature range, min.–max., in °C:
50 - 300
Connected load:
1,8 kW | 230 V | 50 Hz
Dimensions of top grill plate (W x D), in
mm:
214 x 214
Dimensions of bottom grill plate (W x D),
in mm:
220 x 235
Dimensions (W x D x H), in mm:
290 x 395 x 210
Weight, in kg:
12,7
4 Technical Data
4.1 Technical Specifications
Version / Characteristics Contact grills
• Control: knob, manual
• Temperature control: thermostatic
• Indicator lights: ON/OFF, heating
• Grease collection tray
• The set includes: 1 cleaning brush
We reserve the right to implement technical modifications.
<Endergebnis>
A150670 9 / 22
Technical Data
EN
Name:
Contact grill 1800 1G
Art. No.:
A150669
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
1
Grill surface version:
smooth
Temperature range, min.–max., in °C:
50 - 300
Connected load:
1,8 kW | 230 V | 50 Hz
Dimensions of top grill plate (W x D), in
mm:
214 x 214
Dimensions of bottom grill plate (W x D),
in mm:
220 x 235
Dimensions (W x D x H), in mm:
290 x 395 x 210
Weight, in kg:
12,7
Name:
Contact grill 1800 1GR
Art. No.:
A150668
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
1
Grill surface version:
ribbed at top, smooth at the bottom
Temperature range, min.–max., in °C:
50 - 300
Connected load:
1,8 kW | 230 V | 50 Hz
Dimensions of top grill plate (W x D), in
mm:
214 x 214
Dimensions of bottom grill plate (W x D),
in mm:
220 x 235
Dimensions (W x D x H), in mm:
290 x 395 x 210
Weight, in kg:
13,0
10 / 22 A150670
Technical Data
EN
Name:
Contact grill 3600 2R
Art. No.:
A150671
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
2
Grill surface version:
ribbed
Temperature range, min.–max., in °C:
50 - 300
Connected load:
3,6 kW | 230 V | 50/60 Hz
Dimensions of top grill plate (W x D), in
mm:
215 x 215
Dimensions of bottom grill plate (W x D),
in mm:
470 x 230
Dimensions (W x D x H), in mm:
570 x 395 x 210
Weight, in kg:
26,0
Name:
Contact grill 3600 2G
Art. No.:
A150672
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
2
Grill surface version:
smooth
Temperature range, min.–max., in °C:
50 - 300
Connected load:
3,6 kW | 230 V | 50/60 Hz
Dimensions of top grill plate (W x D), in
mm:
215 x 215
Dimensions of bottom grill plate (W x D),
in mm:
470 x 230
Dimensions (W x D x H), in mm:
570 x 395 x 210
Weight, in kg:
23,5
A150670 11 / 22
Technical Data
EN
Name:
Contact grill 3600 2GR
Art. No.:
A150673
Material:
stainless steel
Grill plate material:
cast iron, enamelled
Number of grill units:
2
Grill surface version:
ribbed at top, smooth at the bottom
Temperature range, min.–max., in °C:
50 - 300
Connected load:
3,6 kW | 230 V | 50/60 Hz
Dimensions of top grill plate (W x D), in
mm:
215 x 215
Dimensions of bottom grill plate (W x D),
in mm:
470 x 230
Dimensions (W x D x H), in mm:
570 x 395 x 210
Weight, in kg:
23,25
4.2 Functions of the Appliance
The contact grill is equipped with smooth/ribbed grill plates with optimal thermal
conductance and it is ideal for heating up flat bread slice, pita, etc., as well as
grilling of suitable food products used for preparation of snacks.
12 / 22 A150670
Technical Data
EN
Fig. 1
1. Handle
2. Top grill plate
3. Bottom grill plate
4. Grease collection tray
5. Housing
6. Feet (4x)
7. Heating up indicator lamp (orange)
8. Temperature controller
9. Operation indicator light (green)
10. Ventilation openings
11. Cable guide
12. Handle guard
13. Cleaning brush
4.3 List of Components of the Appliance
A150670 / A150669 / A150668
A150670 13 / 22
Technical Data
EN
Fig. 2
1. Handle top left grill plate
2. Top left grill plate
3. Handle guard top right grill plate
4. Handle top right grill plate
5. Cable connection right heating zone
6. Top right grill plate
7. Bottom grill plate with 2 heating
zones
8. Grease collection tray
9. Housing
10. Feet (4x)
11. Heating indicator light (orange), right
heating zone
12. Temperature control knob of the
right heating zone
13. Operation indicator light (green),
right heating zone
14. Heating indicator light (orange), left
heating zone
15. Temperature control knob of the left
heating zone
16. Operation indicator light (green),
left heating zone
17. Ventilation openings
18. Cable connection left heating zone
19. Handle guard top left grill plate
20. Cleaning brush
A150671 / A150672 / A150673
14 / 22 A150670
Installation and operation
EN
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
5 Installation and operation
5.1 Installation
Unpacking / Positioning
• Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
• If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
• Be careful not to damage the rating plate and warning labels fixed on the
appliance.
• Never place the appliance in humid or wet environment.
• Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
• The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
A150670 15 / 22
Installation and operation
EN
WARNING
Risk of scalding!
During operation, the grill plates, collection tray and outer surfaces heat
up considerably and remain hot for some time still after the appliance is
switched off.
Do not touch hot surfaces.
When operating the appliance and immediately following it, you may
touch the handle or control elements only.
Risk of scalding with hot steam!
When opening the appliance during operation, a hot steam may escape.
Always open the appliance slowly and with caution, using the handle.
Risk of burning by hot fat or fat splashes!
Protect your hands and face from possible fat splashes.
Use protective mitts.
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
• Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
• Leave at least 20 cm clearance from flammable walls and items.
Power supply connection
• Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
• Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
• The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
5.2 Operation
16 / 22 A150670
Installation and operation
EN
Before the First Use
1. Before use, clean the appliance, observing instructions in section 6 “Cleaning”.
2. Insert the grease collection tray at the front of the appliance, under the grill
plate.
3. Before the first use, heat the open appliance up without grilled products for
approx. an hour with temperature set to 180°C – 200°C. Observe indications in
the “Switching on” section.
Due to post-production residues, there may be a smoke produced during heating
up. This is, however, no threat to users and is not a sign of any defect of the
appliance. Smoke will not be emitted during the next use. Ensure proper ventilation
during first heating-up.
4. Moisten the grill plates with food oil three or four times.
• Reinigen Sie das Gerät und Zubehörteile vor dem Ge brauch gründlic h nach den An weisungen im Absch nitt 6 „Reinigung“ . U ważać, aby do ins talacji elektr ycznej i skrzyn ki rozdzielczej nie dostała się wo da. Trocknen Sie das Gerät und Zubehörteile gründlic h ab!
• Setzen Sie die Boden-Abdeckung in das Becken ein. Osłona pełni funkcję rozp órki pomiędzy el ementem grze wczym a tac ką na resztki j edzenia itd.
• Setzen Sie den Schaltkasten mit Heizele ment vorsichtig auf den hinteren Rand des Gerätes. Sworzeń w dolnej cz ęści skrzynki roz dzielczej musi wchodzić w otwór w urządzeniu głównym. D ann ist der Schaltkasten richtig positio niert.
Switching-On
1. Connect the appliance to a single grounded socket.
The green operation indicator light will come on.
2. Set the desired temperature with the temperature control knob.
As soon as the temperature controller is rotated to the selected setting, the red
heating-up indicator light comes on.
The temperature may be set within the range from 50°C to 300°C.
We recommend to select the maximum temperature in the range of 200°C – 250°C.
The appliance needs about 10 minutes to reach the temperature of 250°C after it is
switched on.
The red heating-up indicator light goes off after the set temperature has been
reached. When the temperature drops by approx. 10°C, the heating is switched on
again and the red heating-up control light comes on again.
A150670 17 / 22
Installation and operation
EN
Food Preparation
1. Open the appliance using the handle and lift the top grill plate.
2. Depending on the product to be grilled, the grill plates should be greased with a
small amount of edible oil to prevent product burning.
3. Put food products prepared for grilling onto the bottom grill plate.
4. Close the appliance using the handle.
There is no need to flip the grilled products, as both grill plates are heated up.
5. Watch the grilled product during processing until the grilling process is finished.
6. Remove the grilled food from the grill plate.
ATTENTION!
When removing the ready food, do not use any hard nor sharp or pointed
implements to avoid damaging the surface of grill plates.
Switching the appliance OFF
1. If the appliance is not used, rotate the temperature control knob to '0' position.
2. Disconnect the appliance from the socket (pull the plug out).
18 / 22 A150670
Cleaning
EN
Grease collection tray
There is a grease collection tray in front of the bottom grill plate, where the dripping
vegetable and animal fat is collected.
1. Observe the grease collection tray during operation.
2. The grease collection tray should be removed and emptied regularly, when the
appliance, the grease collection tray and its contents have cooled.
Safety thermostat
The appliance is equipped with the safety thermostat, which activates when the
appliance is overheated and disconnects the appliance.
When the safety thermostat is activated, proceed the following way:
– Disconnect the appliance from the socket (pull the plug out).
– Wait for the appliance to cool down.
– Press the RESET pin located at the bottom of the appliance.
If over a short period of time, the safety thermostat activates again, contact the
service company.
6 Cleaning
6.1 Safety Instructions for Cleaning
• Before cleaning, disconnect the appliance from the power supply.
• Leave the appliance to cool down completely.
• Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
• Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
• For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
A150670 19 / 22
Cleaning
EN
6.2 Cleaning
1. Clean the appliance daily.
CAUTION!
Make sure that moisture, oil, nor fat do not enter the appliance.
2. Clean the housing, the handle and the outside of the top grill with a damp cloth.
In case of stubborn soiling, use a mild cleaning agent.
3. Clean the top and bottom heating plate from the inside with a soft, damp cloth.
Use mild cleaning agent if required.
4. Remove larger soiling from ribbed grill plates with the provided cleaning brush.
5. In the case of more stubborn soiling, grease the inside of the warm grill plates
with oil and leave it for a couple of minutes.
6. Wipe the internal surface of the ribbed grill plates with a damp cloth.
7. Then dry the grill plates thoroughly using a soft cloth.
CAUTION!
Wait for the grease collection tray and its content to cool down before you
start cleaning.
8. Wash the removable grease collection tray with warm water and mild cleaning
agent.
9. Dry the grease collection tray and reinstall it in the appliance.
20 / 22 A150670
Possible Malfunctions
EN
Error
Possible Cause
Solution
The appliance is connected
to the power supply, the
temperature is set, the
orange heating-up indicator
light is on but the grill plates
do not heat up.
Damaged temperature
controller.
Contact the service
company.
Damages to one of the
heating wires.
Contact the service
company.
The safety thermostat
tripped.
Leave the appliance to
cool down and press the
RESET pin located at
the bottom of the
appliance.
The appliance is connected
to power supply,
temperature controller is
activated, orange heatingup indicator light is on, but
the temperature cannot be
set.
Damaged temperature
controller.
Contact the service
company.
The orange heating-up
indicator light is not on,
although the appliance is
switched on and the grilling
process runs as usual.
Damaged heating-up
indicator light.
Contact the service
company.
7 Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
A150670 21 / 22
EN
Error
Possible Cause
Solution
Green operation indicator
light is off, although the
appliance is on.
Abnormal or interrupted
power supply.
Check the power supply
and the cable for
damage or faults.
Fuse damaged.
Check the power supply
and have the fuse
replaced if needed.
The appliance is connected
to the power supply, but the
grill plates are not heating
up.
Temperature is not set.
Set the temperature.
Damaged heaters in the
grill plates.
Contact the service
company.
The appliance is connected
to the power supply, but it
does not work.
The safety thermostat
tripped.
Disconnect the appliance
from power supply, leave
it too cool down, and then
press the RESET pin
located at the bottom of
the appliance.
If the appliance still does
not work, contact the
service company.
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
8 Disposal
Electrical Appliance
Disposal
Electrical appliances should be returned to designated collection points.
22 / 22 A150670
