Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Safety instructions
•
This device may only be operated in technically proper and safe
condition.
•
The device can be used by children 8 years and up, as well as by
people with disabilities and those with limited experience/knowledge
as long as they are under supervision or have been instructed on
proper use of the device and its possible dangers.
•
Children should not play with the device.
•
Cleaning and maintenance cannot be performed by children
younger than 8 years old and must be done under supervision.
•
Children under the age of 8 years old must be kept away from the
device and its power cord.
- 18 -
Only a qualified technician and using original spare parts and
•
accessories should carry out repairs and maintenance of the device.
Do not attempt to repair the device yourself.
•
Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous for the
user or lead to damages of the device or personal injury, and further,
the warranty expires.
•
To prevent hazards and to ensure optimum efficiency, no modifications
or alterations to the device that are not explicitly approved by the
manufacturer may be undertaken.
•
Never allow the power cable to come into contact with heat sources or
sharp edges. The power cable should not hang over the side of the
working surface. Ensure that no one can step on or trip over the cable.
•
The power cable must not be folded, bent or tangled, and must always
remain fully unrolled.
•
Never place the device or other objects on the power cable.
•
Do not lay the cable over carpets or heat insulations. Do not cover
the cable. Keep away the cable from operating range and do not
dunk it into water.
•
Inspect the power cable regularly for damage. Never use the device
if the cable is damaged. If the power cable is damaged, have an
authorised service center or qualified electrician replace it.
•
The device is not adapted for use with an external timer or remote
control.
•
During operation never move the device with the grilled products
and GN containers.
•
Never leave the device unattended when in use.
•
Only use the device indoors.
- 19 -
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.
HOT SURFACE!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.3 Hazard sources
DANGER!
Electric shock hazard!
To avoid the hazard results please follow the safety instructions below.
Do not use the machine in case of incorrect operation, damages or dropping on
the floor.
The supply cable must be disconnected from the socket only by pulling the plug.
- 20 -
Never carry or lift the device by the supply cable. Always use the device handles.
In any case do not open the device housing. In case of electrical or mechanical
modifications the electric shock hazard will occur.
Never immerse the plug in water or other liquids.
Do not use any acid agents and make sure no water ingresses the device.
Never operate the device with moist hands or standing on wet floor.
Remove the plug from its socket:
- when the device is not used,
- in case of anomalies during operation,
- before cleaning.
DANGER!
Suffocation hazard!
Prevent access of children to the package materials like plastic bags and
foamed polystyrene elements.
HOT SURFACE!
Burn hazard!
To avoid the hazard results please follow the safety instructions below.
The housing of the device and the grill surface become very hot during the
operation. Do not touch them with bare hands. Use appropriate kitchen utensils
for placing and removing food.
The grill surface remains hot for some time after turning off, so before cleaning or
moving the device wait until it cools down.
WARNING!
Fire or explosion hazard!
To avoid the hazard results please follow the safety instructions below.
To avoid the fire hazard and the damages of the device never place the kitchen
utensils, towels, paper, etc. on the grill surface.
- 21 -
Never use the device near flammable materials, such as alcohol, spirits, or petrol.
High temperature may cause their evaporation and due to contact with the ignition
sources the deflagration may occur, and in result the injuries and damages.
In case of fire before the fire extinguishing activities remove the plug from the socket
or disconnect the device from the power supply (pull the plug!).
Caution: Do not spray the device with water when it is still connected to the power
supply: Electric shock hazard!
1.4 Proper use
The operational safety of the device is assured only in case of proper use, according
to the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The device is not designed for continuous operation in the industrial applications.
The device is intended for home use or in similar places such as:
→ in kitchens for store or office employees or in similar business areas;
→ in agricultural farms;
→ by guests of hotels, motels and other typical places of accomodation;
→ in Bed and Breakfast facilities.
The ceramic grill plate is intended only for grilling meat, fish and vegetables directly
on the grilling surface or in appropriate GN containers.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.
- 22 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
- violation of advice concerning operation and cleaning;
- use other than designed;
- alterations made by user;
- use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.
- 23 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in
your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
- Do not store outdoors.
- Keep it dry and dust-free.
- Do not expose it to aggressive media.
- Do not expose it to direct sunlight.
- Avoid mechanical shocks and vibration.
- In case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly.
If required refresh or renew.
- 24 -
2
4. Technical data
4.1 Overview of parts
4
Keep Warm &
grilling function
1
5
3
1
Side handles
1
Dip tray
2
Left grilling surface
3
Middle grilling surface
4
Right grilling surface /
5
food warming surface
Body
6
Function switch
7
Heating control light (red)
8
Temperature control knob
9
Setting indicator („OFF” position)
10
Feet (4)
11
6
10
8
7
9
11
- 25 -
4.2 Technical specification
Name

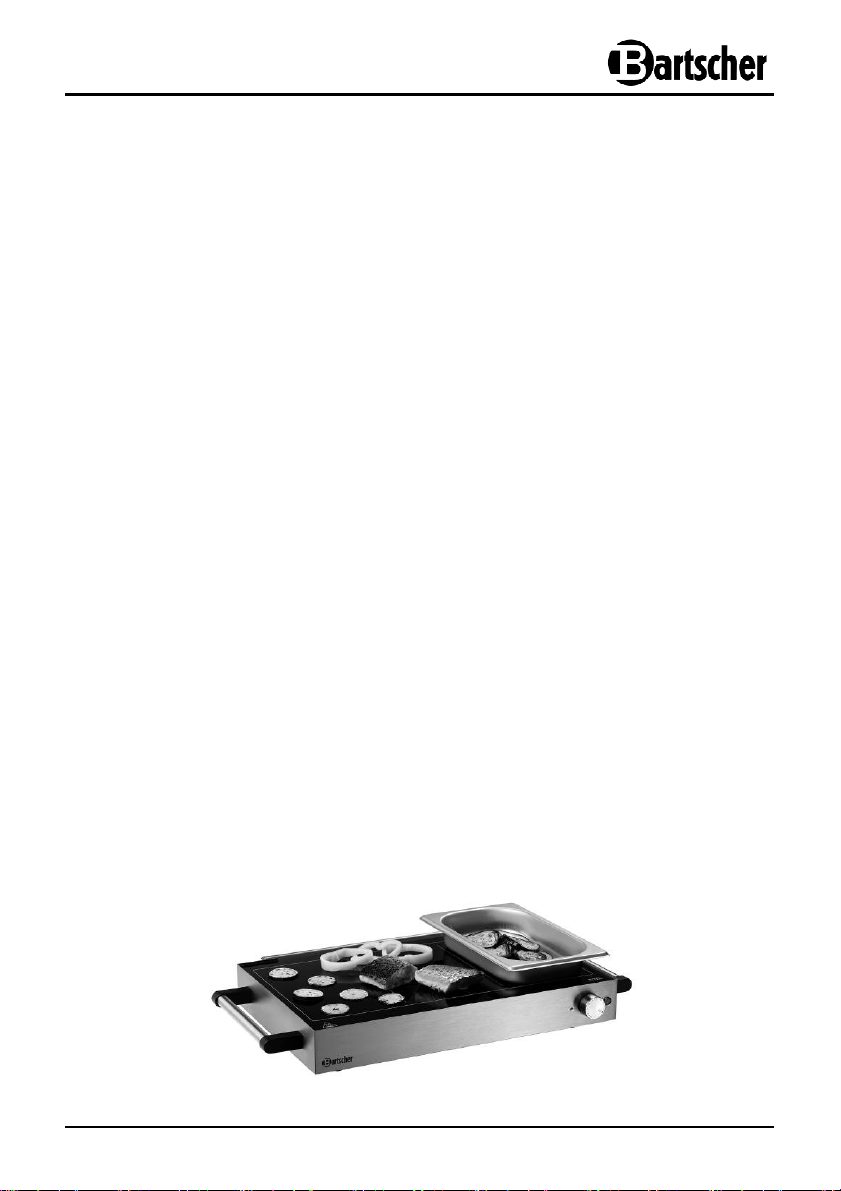

Ceramic grill plate GP2511GN
Code-No.
Material: Stainless steel body
Grilling surface material: Schott Ceran glass
Power: 2.5 kW / 220-240 V~ 50/60 Hz
Temperature adjustment:
Temperature range:
Dimensions: W 600 x D 414 x H 86 mm
Cooking surface: W 500 x D 260 mm
Weight: 7.95 kg
We reserve the right to make technical changes!
Infinitely variable by temperature control knob
Grilling: from 80 °C to max. 300 °C
Food warming at 100 °C
104919
operation
Electronic overheating protection
Ceramic grill plates are equipped with the electronic overheating protection, which
automatically switches off the device in case of its overheating.
If this happens, disconnect the device from the power supply (pull the plug!) and leave
the device to cool off. Then, you may start using the device again.
- 26 -
5. Installation and operation
5.1 Installation
Positioning
• Unpack the device and remove all packing material.
CAUTION!
Never remove the rating plate and any warning signs from the device.
• Place the device on top of an even, stable, dry, and water-resistant surface which
supports the weight of the device and is not heat sensitive.
• The surface on which the device is placed must be easily accessible and sufficiently
large. To enable easy operation of the device and ensure proper air circulation, leave
the space of at least 10 cm at the back and on the sides of the device and at least
50 cm from the top and in front of it.
• Never place the device in humid or wet environment.
• Never place the device on the flammable surfaces.
• Place the device so that the plug is easily accessible and can be quickly removed
from its socket in case of necessity.
Connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid specification should
be compared with that of the device (see rating plate). Connect the device only
in case of compliance!
Connect the device only to properly installed single socket with
protective terminal.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the
device directly to the wall socket; do not use any extension cords or power strips.
- 27 -
5.2 Operation
Before the first use
• Before the first use, clean the device according to the instructions included
in section 6 ”Cleaning“.
• Attach the drip tray at the back of the device.
• Connect the device to a single grounded outlet.
• Turn the device on with the function switch („I“ position) and heat it at the
highest temperature setting “HI” for ca. 5 minutes without any food. Take into
account the instructions regarding settings included in subsequent sections of
this operating manual.
• During the first use, some smoke may appear, which is not dangerous and will
not occur during future use.
• Turn the device off by turning the temperature control knob to “OFF“ position
and switching the function switch to „0” position. Allow it to cool down.
Function and temperature setting
Function switch is located on the right side of the device, next to the side
handle.
Possible settings of the function switch are as follows:
- In „0“ position the device has no power supply.
- In „I“ position all 3 grilling or food warming surfaces can
be used simultaneously.
Temperature is adjusted via the temperature control knob located on the
front panel of the device. The following temperature settings are available:
Please remember that after switching from the grilling
function to the food warming function, reduction of the
grilling surface’s temperature takes some time.
-
In „II“ position, the middle and left surface can be used for grilling,
whereas the right one can be used for food warming.
OFF - OFF position
LO
- setting for low temperature ca. 80 °C
2 ● 3 ● 4 ● 5 ● 6
- adjustment levels
HI
- setting for high temperature ca. 300 °C
- 28 -
• In „I“ position of the function switch, set the temperature control knob to the desired
temperature in the range from 80 °C to 300 °C in or der to grill foods or in „LO” position
in order to maintain the temperature of the grilled food.
• In „II“ position of the function switch, the temperature of the right surface for
grilling/food warming is 100 °C, irrespective of the temperature control knob’s setting.
• The temperature of the middle and left grilling surface can be adjusted by turning
the temperature control knob clockwise from „OFF” position to the required
position between „LO” (ca. 80 °C) and „HI” (ca. 300 °C).
• During the preheating phase the red heating control light, located next to the
temperature control knob, is lit (when the function switch is in „I” or „II” position).
• When the device reaches the set temperature, the heating control light goes off and
turns on again during the next reheating phase.
Instructions for the preparation of food
• Ceramic grill plate is designed for preparation of food directly on the gilling surface
with a very low amount of fat. It is a healthy way of preparation of meat, fish and
vegetables. It also saves time and energy, and eliminates the need to wash cookware.
• Before placing any food products on the gilling surface, apply some oil to its surface.
Use oil with a high level of heat resistance, such as rapeseed or sunflower seed oil.
• Meat and fat require smaller amounts of oil, because they already contain grease;
when grilling fish and vegetables more oil can be applied on the grilling surface.
By adding oil, you can prevent food from sticking to the grilling surface or from
scorching.
• Before each use, preheat the ceramic grill plate.
• Place the prepared food products directly on the grilling surface or in appropriate
GN containers.
• Grilling surface can be used in the following way:
full-surface grilling on 1/1 GN or
grilling on 2/3 GN (left and middle grilling surfaces) combined
with a gentle food warming function on 1/3 GN (right grilling
surface/food warming surface or in GN containers)
- 29 -
HOT SURFACE! Danger of burns!
The grilling surface gets hot quickly and remains hot for some time after
being turned off. To avoid burns, do not touch the grilling surface!
• After grilling, remove any food remains as well
as oil into the dip tray using the Ceran plate
scraper.
• Check and empty the dip tray regularly. Clean
it as needed and reattach to the device.
CAUTION!
Never use the device without the properly
attached drip tray.
• To avoid mixing of tastes and aromas of different food products, remove food
remains from the gilling surface before starting the next stage of grilling.
• Prepare food products in the following order: vegetables after a meat or fish.
• Use aluminum foil for stewing food or when you want to preserve its natural juices
and aroma.
• When grilling, avoid using sugars or liquids containing sugar. If sugar is
necessary, wrap the food product in aluminum foil or place it in an appropriate
GN container.
NOTE!
If sugar, syrup, milk etc. is spilt over the grilling surface, remove it carefully
with a Ceran plate scraper when the grilling surface is still hot: if allowed to
cool down, food remains (especially sugar or syrup) are difficult to remove.
• You may use any preferred grill utensils for placing and removing grilled food
(forks, tongs, etc.), but plastic kitchen utensils must not be used.
Never place plastic containers on the grilling surface.
• Never use knife to cut food products directly on the grilling surface, as you may
damages the surface.
•
When you finish using the ceramic grill plate, set the temperature control knob to
„OFF“ position, switch the function switch to „0” position and disconnect the
device from the power supply (pull the plug!).
- 30 -
6. Cleaning
CAUTION!
Disconnect the unit from the power supply (unplug!) before cleaning.
The unit is not designed to be rinsed with running water.
Do not use a pressure washer to clean the device!
Be careful and do not let the water into the unit.
Cleaning
o Before you perform any cleaning, make sure the device has cooled down.
o Remove the grilling remains with an appropriate Ceran plate scraper or paper
towel.
o Should there be any remains that cannot be easily removed, wet them with a sponge
and heat the device for a few minutes at the highest temperature setting “HI”. Turn
the device off and remove food remains with a Ceran plate scraper.
o Clean the Ceran grill surface with a soft cloth soaked in warm water with a mild
cleaning agent.
o Remove the dip tray, empty and clean it with a soft cloth or sponge with a mild
cleaning agent. Rinse the dip tray with clean water and then dry it thoroughly before
reinstalling in the device.
o Clean the body and side handles of the device regularly with a soft, moist cloth.
o All the cleaned surfaces should be dried thoroughly.
o Use only soft cloths, never use any abrasive cleaning pads which could scratch the
device surface.
Storage
o If the device is not used for any lengthy period, clean it according to the
aforementioned description and store it in dry, clean place protected against
cold, sun and children. Do not place any have objects on the device.
- 31 -
7. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit
for use before disposal. For that purpose disconnect device from mains
supply and remove mains connection cable from the device.
CAUTION!
For the disposal of the device please consider and
act according to the national and local rules and
regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: +49 (0) 5258 971-0
Germany fax: +49 (0) 5258 971-120
