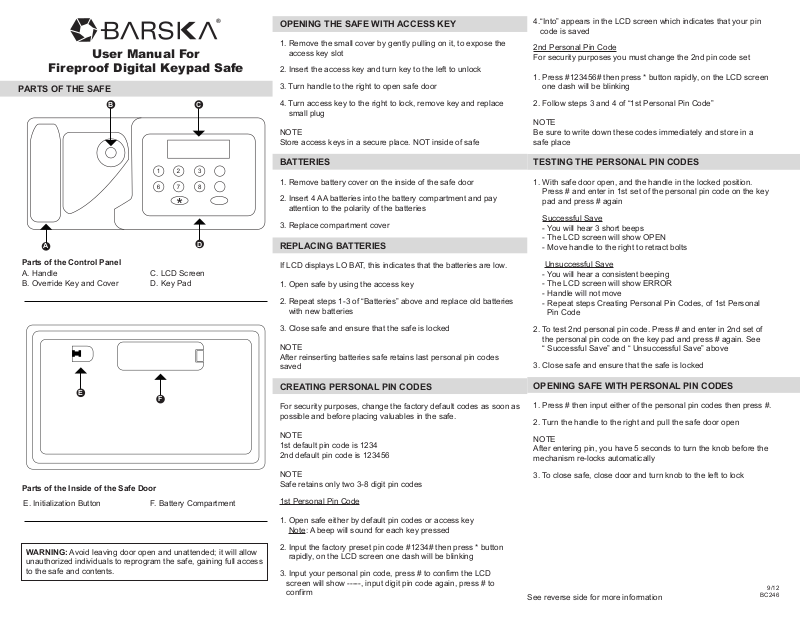

BARSKA AX11902 User Manual

User Manual For

Fireproof Digital Keypad Safe

PARTS OF THE SAFE

B

OPENING THE SAFE WITH ACCESS KEY

1. Remove the small cover by gently pulling on it, to expose the
access key slot

2. Insert the access key and turn key to the left to unlock

3. Turn handle to the right to open safe door

C

4. Turn access key to the right to lock, remove key and replace
small plug

NOTE
Store access keys in a secure place. NOT inside of safe

4.“Into” appears in the LCD screen which indicates that your pin
code is saved

2nd Personal Pin Code
For security purposes you must change the 2nd pin code set

1. Press #123456# then press * button rapidly, on the LCD screen
one dash will be blinking

2. Follow steps 3 and 4 of “1st Personal Pin Code”

NOTE
Be sure to write down these codes immediately and store in a
safe place

A

Parts of the Control Panel

A. Handle
B. Override Key and Cover

E

Parts of the Inside of the Safe Door

E. Initialization Button F. Battery Compartment

C. LCD Screen
D. Key Pad

F

D

BATTERIES

1. Remove battery cover on the inside of the safe door

2. Insert 4 AA batteries into the battery compartment and pay
attention to the polarity of the batteries

3. Replace compartment cover

REPLACING BATTERIES

If LCD displays LO BAT, this indicates that the batteries are low.

1. Open safe by using the access key

2. Repeat steps 1-3 of “Batteries” above and replace old batteries
with new batteries

3. Close safe and ensure that the safe is locked

NOTE
After reinserting batteries safe retains last personal pin codes
saved

CREATING PERSONAL PIN CODES

For security purposes, change the factory default codes as soon as
possible and before placing valuables in the safe.

NOTE
1st default pin code is 1234
2nd default pin code is 123456

NOTE
Safe retains only two 3-8 digit pin codes

1st Personal Pin Code

TESTING THE PERSONAL PIN CODES

1. With safe door open, and the handle in the locked position.
Press # and enter in 1st set of the personal pin code on the key
pad and press # again

Successful Save

- You will hear 3 short beeps

- The LCD screen will show OPEN

- Move handle to the right to retract bolts

Unsuccessful Save

- You will hear a consistent beeping

- The LCD screen will show ERROR

- Handle will not move

- Repeat steps Creating Personal Pin Codes, of 1st Personal
Pin Code

2. To test 2nd personal pin code. Press # and enter in 2nd set of
the personal pin code on the key pad and press # again. See
“ Successful Save” and “ Unsuccessful Save” above

3. Close safe and ensure that the safe is locked

OPENING SAFE WITH PERSONAL PIN CODES

1. Press # then input either of the personal pin codes then press #.

2. Turn the handle to the right and pull the safe door open

NOTE
After entering pin, you have 5 seconds to turn the knob before the
mechanism re-locks automatically

3. To close safe, close door and turn knob to the left to lock

WARNING: Avoid leaving door open and unattended; it will allow
unauthorized individuals to reprogram the safe, gaining full access
to the safe and contents.

1. Open safe either by default pin codes or access key
Note: A beep will sound for each key pressed

2. Input the factory preset pin code #1234# then press * button
rapidly, on the LCD screen one dash will be blinking

3. Input your personal pin code, press # to confirm the LCD
screen will show -----, input digit pin code again, press # to
confirm

See reverse side for more information

9/12

BC246

User Manual For

Fireproof Digital Keypad Safe

CHANGING PERSONAL PIN CODES

1. Open safe by entering either of the personal pin codes or by
using the access key

2. Press and hold down the initialization button on the inside of
the safe door, release initialization button

4. On the LCD screen it will show CLEAR, indicating that the pin
codes have been deleted.

5. The safe is now in default mode. Default pin codes are 1234
and 123456

6. See “Initial Numeric Pin Codes” to change default pin codes

CARE AND MAINTENANCE

- For security purposes, change the factory default codes as
soon as possible

- If necessary use a damp cloth to clean the safe. DO NOT use
chemicals or cleaning agents

- Keep liquids away from the control panel. Spills on the control
panel will cause damage and possibly electric shock

- Secure safe in a proper area to prevent it from falling and
causing damage or injury

- DO NOT over stuff the contents of the safe, it can damage the
motor mechanism or the contents

- DO NOT disassemble the product. For all repairs and
maintenance, contact authorized service centers or distributor
BARSKA Customer Service

- DO NOT place emergency keys inside of safe

- The Safe can withstand heat up to 1700ºF but the interior will
reach up to 350ºF for 1 hour, avoid storing items that will get
damaged at that temperature

- NOT intended for digital media, such as backup tapes, data
cartridges, CD's etc

- Do not store delicate items; Safe accumulates moisture because
of fire resistance technology, which might cause damage to
delicate items such as jewelry, photos, and other moisture
sensitive items

Replacement Keys: When calling for replacement or additional
access keys have the access key code number ready. The access
key code is etched on the access keys and on this manual.

1 YEAR LIMITED WARRANTY

SAFES

BARSKA warrants this new safe to be free of original defects in
material and/or workmanship under normal use for a period of
twelve (12) months from the date product is received by
purchaser. This warranty does not include damage caused by
improper installation or maintenance. Damage from misuse,
abuse, accident (such as dropping), normal wear and tear,
excessive fire, flood, or acts of nature. Damage from service or
repairs other than those performed by BARSKA. Labor, cost
and shipping charges for the removal and replacement of
defective parts beyond the initial twelve-month warranty period.
All transportation and shipping charges. Removing or altering
the seal under any circumstances will automatically void the
warranty.

This warranty is limited to original purchaser and is not
transferable. This warranty applies only to products purchased
in the United States.

Please email [e-mail] or call 1.888.666.6769 for
Return Merchandise Number (RMA#) before any returns. The
RMA number must appear on the outside of the shipping
package. Product must be packed carefully and sturdily in its
original packaging to prevent damage in transit and returned
freight pre-paid to:

Please include all of the following when returning BARSKA
products for service and/or replacement:

1. Please write your complete details (Name, Address,
Telephone #, E-mail address, RMA#, etc.)

2. Purchase receipt or Proof of Purchase. (Original/Copy)

3. A brief explanation of the defect.

4. A Check/Money Order of $50.00 to cover inspection,
shipping and handling.
*Please allow 6-8 weeks for delivery.

BARSKA will examine and test returned product and repair or
replace defective part(s) or units with new part(s) or a new unit
if necessary within the warranty period. Purchaser is required
to remit $50.00 to BARSKA for return shipping and handling at
time product is returned. If repair is required after warranty
period expiration, purchaser will be charged for replacement
parts and return shipping.

BARSKA® Optics shall not be liable for any consequential,
incidental and/or contingent damages whatsoever. We will not
pay shipping, insurance or transportation charges from you to
us, or any import fees, duties and or taxes. This warranty
supersedes all previous BARSKA® Optics warranties.
