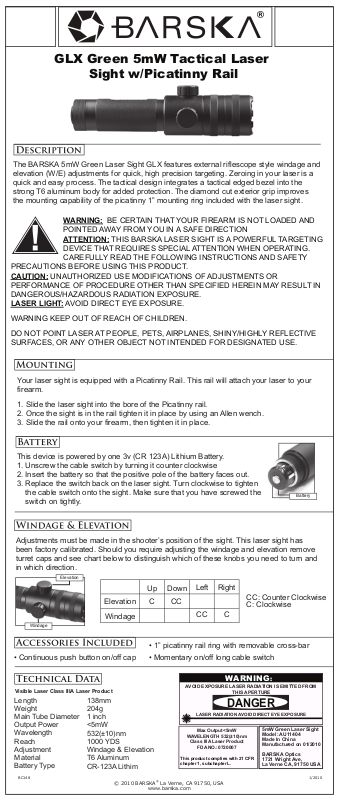

BARSKA AU11404 User Manual

GLX Green 5mW Tactical Laser

Sight w/Picatinny Rail

The BARSKA 5mW Green Laser Sight GLX features external riflescope style windage and
elevation (W/E) adjustments for quick, high precision targeting. Zeroing in your laser is a
quick and easy process. The tactical design integrates a tactical edged bezel into the
strong T6 aluminum body for added protection. The diamond cut exterior grip improves
the mounting capability of the picatinny 1” mounting ring included with the laser sight.

WARNING: BE CERTAIN THAT YOUR FIREARM IS NOT LOADED AND
POINTED AWAY FROM YOU IN A SAFE DIRECTION
ATTENTION: THIS BARSKA LASER SIGHT IS A POWERFUL TARGETING
DEVICE THAT REQUIRES SPECIAL ATTENTION WHEN OPERATING.

CAREFULLY READ THE FOLLOWING INSTRUCTIONS AND SAFETY
PRECAUTIONS BEFORE USING THIS PRODUCT.
CAUTION: UNAUTHORIZED USE MODIFICATIONS OF ADJUSTMENTS OR
PERFORMANCE OF PROCEDURE OTHER THAN SPECIFIED HEREIN MAY RESULT IN
DANGEROUS/HAZARDOUS RADIATION EXPOSURE.
LASER LIGHT: AVOID DIRECT EYE EXPOSURE.

WARNING KEEP OUT OF REACH OF CHILDREN.

DO NOT POINT LASER AT PEOPLE, PETS, AIRPLANES, SHINY/HIGHLY REFLECTIVE
SURFACES, OR ANY OTHER OBJECT NOT INTENDED FOR DESIGNATED USE.

Your laser sight is equipped with a Picatinny Rail. This rail will attach your laser to your
firearm.

1. Slide the laser sight into the bore of the Picatinny rail.

2. Once the sight is in the rail tighten it in place by using an Allen wench.

3. Slide the rail onto your firearm, then tighten it in place.

This device is powered by one 3v (CR 123A) Lithium Battery.

1. Unscrew the cable switch by turning it counter clockwise

2. Insert the battery so that the positive pole of the battery faces out.

3. Replace the switch back on the laser sight. Turn clockwise to tighten
the cable switch onto the sight. Make sure that you have screwed the
switch on tightly.

Battery

Adjustments must be made in the shooter’s position of the sight. This laser sight has
been factory calibrated. Should you require adjusting the windage and elevation remove
turret caps and see chart below to distinguish which of these knobs you need to turn and
in which direction.

Elevation

Left

CC

Right

CC: Counter Clockwise
C: Clockwise

C

Windage

Elevation

Windage

Up

Down

CCC

• 1” picatinny rail ring with removable cross-bar

• Continuous push button on/off cap • Momentary on/off long cable switch

Visible Laser Class IIIA Laser Product

Length
Weight
Main Tube Diameter
Output Power
Wavelength
Reach
Adjustment
Material
Battery Type

BC148 1/2010

138mm
204g
1 inch
<5mW
532(±10)nm
1000 YDS
Windage & Elevation
T6 Aluminum
CR-123A Lithim

© 2010 BARSKA® La Verne, CA 91750, USA

www.barska.com

AVOID EXPOSURE LASER RADIATION IS EMITTED FROM

LASER RADIATION AVOID DIRECT EYE EXPOSURE

Max Output<5mW

WAVELENGTH 532(±10)nm

Class IIIA Laser Product

FDA NO.:0720007

This product complies with 21 CFR
chapter 1, subchapter L.

WARNING:

THIS APERTURE

DANGER

5mW Green Laser Sight
Model: AU11404

Made In China
Manufactured on 01/2010

BARSKA Optics
1721 Wright Ave,
La Verne CA, 91750 USA
