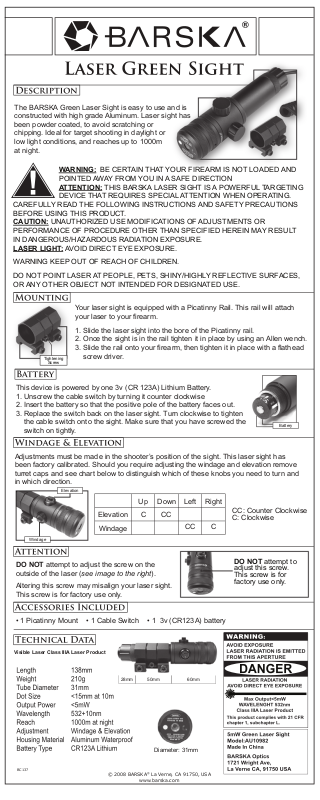

BARSKA AU10982 User Manual

The BARSKA Green Laser Sight is easy to use and is
constructed with high grade Aluminum. Laser sight has
been powder coated, to avoid scratching or
chipping. Ideal for target shooting in daylight or
low light conditions, and reaches up to 1000m
at night.

Your laser sight is equipped with a Picatinny Rail. This rail will attach
your laser to your firearm.

1. Slide the laser sight into the bore of the Picatinny rail.

2. Once the sight is in the rail tighten it in place by using an Allen wench.

3. Slide the rail onto your firearm, then tighten it in place with a flathead
screw driver.

This device is powered by one 3v (CR 123A) Lithium Battery.

1. Unscrew the cable switch by turning it counter clockwise

2. Insert the battery so that the positive pole of the battery faces out.

3. Replace the switch back on the laser sight. Turn clockwise to tighten
the cable switch onto the sight. Make sure that you have screwed the
switch on tightly.

DO NOT attempt to adjust the screw on the
outside of the laser (see image to the right).

Altering this screw may misalign your laser sight.
This screw is for factory use only.

Adjustments must be made in the shooter’s position of the sight. This laser sight has
been factory calibrated. Should you require adjusting the windage and elevation remove
turret caps and see chart below to distinguish which of these knobs you need to turn and
in which direction.

CCC

CC

C

Windage

Right

Left

Up

Down

Elevation

CC: Counter Clockwise
C: Clockwise

• 1 Picatinny Mount • 1 Cable Switch • 1 3v (CR123A) battery

DO NOT attempt to
adjust this screw.
This screw is for
factory use only.

BC137

© 2008 BARSKA® La Verne, CA 91750, USA

www.barska.com

Elevation

Windage

WARNING: BE CERTAIN THAT YOUR FIREARM IS NOT LOADED AND
POINTED AWAY FROM YOU IN A SAFE DIRECTION
ATTENTION: THIS BARSKA LASER SIGHT IS A POWERFUL TARGETING

DEVICE THAT REQUIRES SPECIAL ATTENTION WHEN OPERATING.
CAREFULLY READ THE FOLLOWING INSTRUCTIONS AND SAFETY PRECAUTIONS
BEFORE USING THIS PRODUCT.
CAUTION: UNAUTHORIZED USE MODIFICATIONS OF ADJUSTMENTS OR
PERFORMANCE OF PROCEDURE OTHER THAN SPECIFIED HEREIN MAY RESULT
IN DANGEROUS/HAZARDOUS RADIATION EXPOSURE.
LASER LIGHT: AVOID DIRECT EYE EXPOSURE.

WARNING KEEP OUT OF REACH OF CHILDREN.

DO NOT POINT LASER AT PEOPLE, PETS, SHINY/HIGHLY REFLECTIVE SURFACES,
OR ANY OTHER OBJECT NOT INTENDED FOR DESIGNATED USE.

60mm50mm

28mm

Diameter: 31mm

Tightening

Screw

Battery

Visible Laser Class IIIA Laser Product
