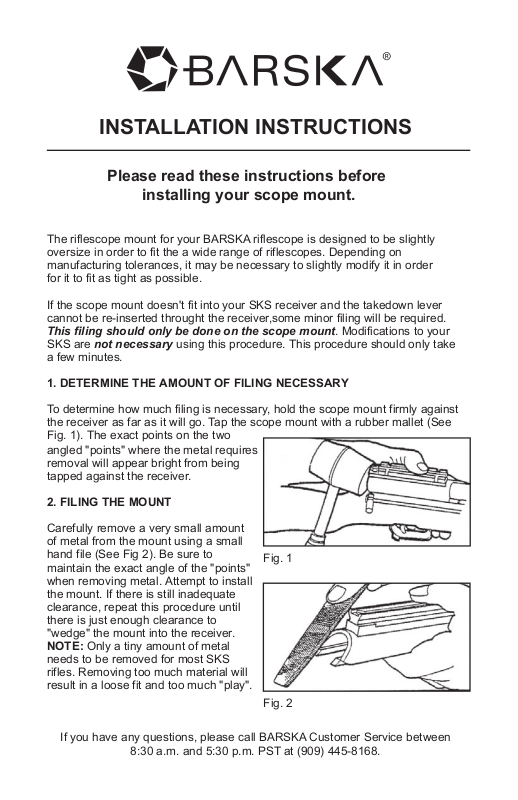

BARSKA AF10930 User Manual

INSTALLATION INSTRUCTIONS

Please read these instructions before

installing your scope mount.

The riflescope mount for your BARSKA riflescope is designed to be slightly
oversize in order to fit the a wide range of riflescopes. Depending on
manufacturing tolerances, it may be necessary to slightly modify it in order
for it to fit as tight as possible.

If the scope mount doesn't fit into your SKS receiver and the takedown lever
cannot be re-inserted throught the receiver
This filing should only be done on the scope mount. Modifications to your
SKS are not necessary using this procedure. This procedure should only take
a few minutes.

,some minor filing will be required.

1. DETERMINE THE AMOUNT OF FILING NECESSAR

To determine how much filing is necessary, hold the scope mount firmly against
the receiver as far as it will go. Tap the scope mount with a rubber mallet (See
Fig. 1). The exact points on the two

angled "points" where the metal requires
removal will appear bright from being
tapped against the receiver

2. FILING THE MOUNT

Carefully remove a very small amount
of metal from the mount using a small
hand file (See Fig 2). Be sure to
maintain the exact angle of the "points"
when removing metal. Attempt to install
the mount. If there is still inadequate
clearance, repeat this procedure until
there is just enough clearance to
"wedge" the mount into the receiver
NOTE: Only a tiny amount of metal
needs to be removed for most SKS
rifles. Removing too much material will
result in a loose fit and too much "play".

If you have any questions, please call BARSKA

8:30 a.m. and 5:30 p.m. PST at [phone].

.

Fig. 1

.

Fig. 2

Y

Customer Service between
