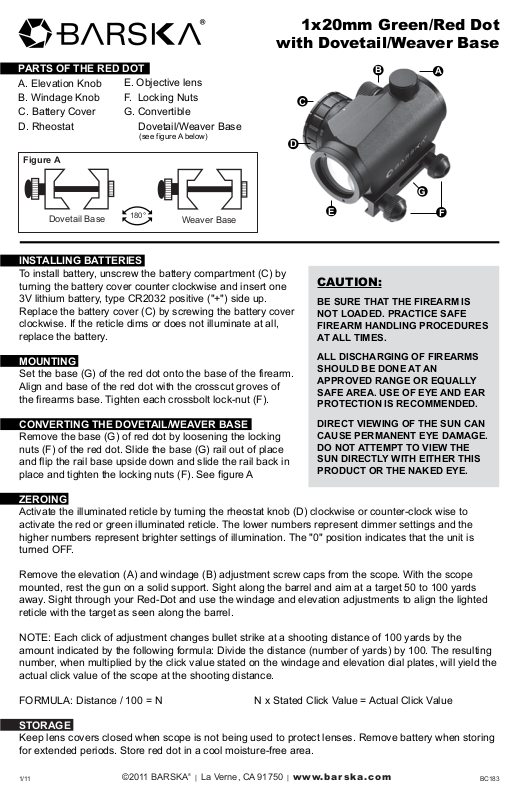

BARSKA AC11586 User Manual

1x20mm Green/Red Dot

with Dovetail/Weaver Base

PARTS OF THE RED DOT

A. Elevation Knob
B. Windage Knob
C. Battery Cover
D. Rheostat

Figure A

Dovetail Base

E. Objective lens
F. Locking Nuts
G. Convertible
Dovetail/Weaver Base

(see figure A below)

180°

Weaver Base

INSTALLING BATTERIES

To install battery, unscrew the battery compartment (C) by
turning the battery cover counter clockwise and insert one
3V lithium battery, type CR2032 positive ("+") side up.
Replace the battery cover (C) by screwing the battery cover
clockwise. If the reticle dims or does not illuminate at all,
replace the battery.

MOUNTING

Set the base (G) of the red dot onto the base of the firearm.
Align and base of the red dot with the crosscut groves of
the firearms base. Tighten each crossbolt lock-nut (F).

CONVERTING THE DOVETAIL/WEAVER BASE

Remove the base (G) of red dot by loosening the locking
nuts (F) of the red dot. Slide the base (G) rail out of place
and flip the rail base upside down and slide the rail back in
place and tighten the locking nuts (F). See figure A

B

C

D

G

E

CAUTION:

BE SURE THAT THE FIREARM IS
NOT LOADED. PRACTICE SAFE
FIREARM HANDLING PROCEDURES
AT ALL TIMES.

ALL DISCHARGING OF FIREARMS
SHOULD BE DONE AT AN
APPROVED RANGE OR EQUALLY
SAFE AREA. USE OF EYE AND EAR
PROTECTION IS RECOMMENDED.

DIRECT VIEWING OF THE SUN CAN
CAUSE PERMANENT EYE DAMAGE.
DO NOT ATTEMPT TO VIEW THE
SUN DIRECTLY WITH EITHER THIS
PRODUCT OR THE NAKED EYE.

A

F

ZEROING

Activate the illuminated reticle by turning the rheostat knob (D) clockwise or counter-clock wise to
activate the red or green illuminated reticle. The lower numbers represent dimmer settings and the
higher numbers represent brighter settings of illumination. The "0" position indicates that the unit is
turned OFF.

Remove the elevation (A) and windage (B) adjustment screw caps from the scope. With the scope
mounted, rest the gun on a solid support. Sight along the barrel and aim at a target 50 to 100 yards
away. Sight through your Red-Dot and use the windage and elevation adjustments to align the lighted
reticle with the target as seen along the barrel.

NOTE: Each click of adjustment changes bullet strike at a shooting distance of 100 yards by the
amount indicated by the following formula: Divide the distance (number of yards) by 100. The resulting
number, when multiplied by the click value stated on the windage and elevation dial plates, will yield the
actual click value of the scope at the shooting distance.

FORMULA: Distance / 100 = N N x Stated Click Value = Actual Click Value

STORAGE

Keep lens covers closed when scope is not being used to protect lenses. Remove battery when storing
for extended periods. Store red dot in a cool moisture-free area.

1/11 BC183

©2011 BARSKA

®

| La Verne, CA 91750 | w w w. b a r s k a . c o m
