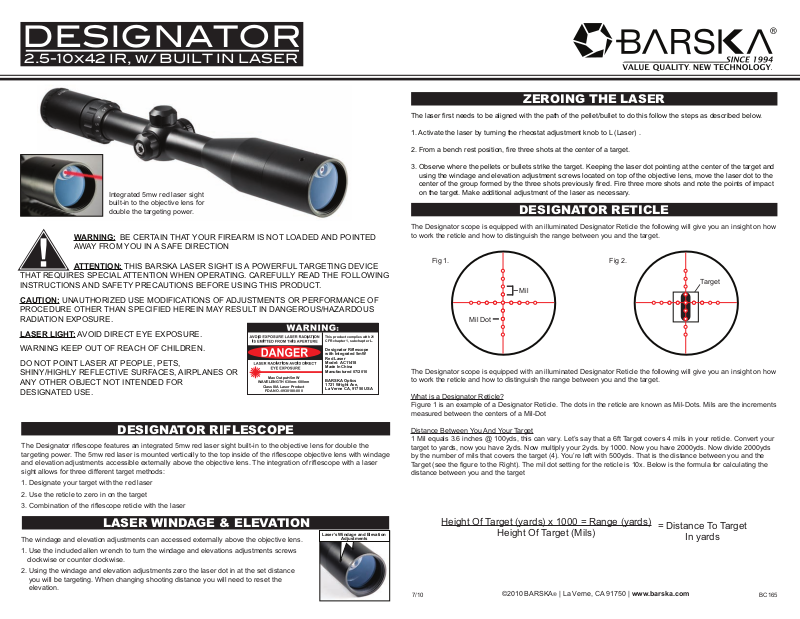

BARSKA AC11418 User Manual

DESIGNATOR

2.5-10x42 IR, w/ BUILT IN LASER

Integrated 5mw red laser sight
built-in to the objective lens for
double the targeting power.

WARNING: BE CERTAIN THAT YOUR FIREARM IS NOT LOADED AND POINTED
AWAY FROM YOU IN A SAFE DIRECTION

THAT REQUIRES SPECIAL ATTENTION WHEN OPERATING. CAREFULLY READ THE FOLLOWING
INSTRUCTIONS AND SAFETY PRECAUTIONS BEFORE USING THIS PRODUCT.

CAUTION: UNAUTHORIZED USE MODIFICATIONS OF ADJUSTMENTS OR PERFORMANCE OF
PROCEDURE OTHER THAN SPECIFIED HEREIN MAY RESULT IN DANGEROUS/HAZARDOUS
RADIATION EXPOSURE.

LASER LIGHT: AVOID DIRECT EYE EXPOSURE.

WARNING KEEP OUT OF REACH OF CHILDREN.

DO NOT POINT LASER AT PEOPLE, PETS,
SHINY/HIGHLY REFLECTIVE SURFACES, AIRPLANES OR
ANY OTHER OBJECT NOT INTENDED FOR
DESIGNATED USE.

The Designator riflescope features an integrated 5mw red laser sight built-in to the objective lens for double the
targeting power. The 5mw red laser is mounted vertically to the top inside of the riflescope objective lens with windage
and elevation adjustments accessible externally above the objective lens. The integration of riflescope with a laser
sight allows for three different target methods:

1. Designate your target with the red laser

2. Use the reticle to zero in on the target

3. Combination of the riflescope reticle with the laser

The windage and elevation adjustments can accessed externally above the objective lens.

1. Use the included allen wrench to turn the windage and elevations adjustments screws
clockwise or counter clockwise.

2. Using the windage and elevation adjustments zero the laser dot in at the set distance
you will be targeting. When changing shooting distance you will need to reset the
elevation.

ATTENTION: THIS BARSKA LASER SIGHT IS A POWERFUL TARGETING DEVICE

This product complies with 21
CFR chapter 1, subchapter L.

Designator Riflescope
with Integrated 5mW
Red Laser
Model: AC11418

Made In China

Max Output<5mW

WAVELENGTH 630nm-680nm

Class IIIA Laser Product

FDA NO.:0930180-000

Manufactured 07/2010

BARSKA Optics
1721 Wright Ave,
La Verne CA, 91750 USA

DESIGNATOR RIFLESCOPE

LASER WINDAGE & ELEVATION

Laser’s Windage and Elevation

Adjustments

ZEROING THE LASER

The laser first needs to be aligned with the path of the pellet/bullet to do this follow the steps as described below.

1. Activate the laser by turning the rheostat adjustment knob to L (Laser) .

2. From a bench rest position, fire three shots at the center of a target.

3. Observe where the pellets or bullets strike the target. Keeping the laser dot pointing at the center of the target and
using the windage and elevation adjustment screws located on top of the objective lens, move the laser dot to the
center of the group formed by the three shots previously fired. Fire three more shots and note the points of impact
on the target. Make additional adjustment of the laser as necessary.

DESIGNATOR RETICLE

The Designator scope is equipped with an illuminated Designator Reticle the following will give you an insight on how
to work the reticle and how to distinguish the range between you and the target.

Fig 1. Fig 2.

Mil

Mil Dot

The Designator scope is equipped with an illuminated Designator Reticle the following will give you an insight on how
to work the reticle and how to distinguish the range between you and the target.

What is a Designator Reticle?
Figure 1 is an example of a Designator Reticle. The dots in the reticle are known as Mil-Dots. Mils are the increments
measured between the centers of a Mil-Dot

Distance Between You And Your Target
1 Mil equals 3.6 inches @ 100yds, this can vary. Let’s say that a 6ft Target covers 4 mils in your reticle. Convert your
target to yards, now you have 2yds. Now multiply your 2yds. by 1000. Now you have 2000yds. Now divide 2000yds
by the number of mils that covers the target (4). You’re left with 500yds. That is the distance between you and the
Target (see the figure to the Right). The mil dot setting for the reticle is 10x. Below is the formula for calculating the
distance between you and the target

Height Of Target (yards) x 1000 = Range (yards)

Height Of Target (Mils)

7/10

©2010 BARSKA® | La Verne, CA 91750 | www.barska.com

= Distance To Target

Target

In yards

BC165
